Marine navigation systems have evolved significantly over the years, and the Garmin GPSMAP 1243xsv stands out as a top-tier option for boaters seeking advanced technology, durability, and ease of use. Designed for both professional anglers and recreational boaters, this chartplotter combines a large display, robust sonar capabilities, and seamless connectivity into a rugged package built to withstand the marine environment. In this comprehensive review, we’ll explore the GPSMAP 1243xsv’s key features, technical specifications, performance, user interface, and value proposition, while also comparing it to other Garmin models and offering practical tips for maximizing its potential. User reviews and real-world insights will further illuminate why this device is a standout choice in the marine electronics market.

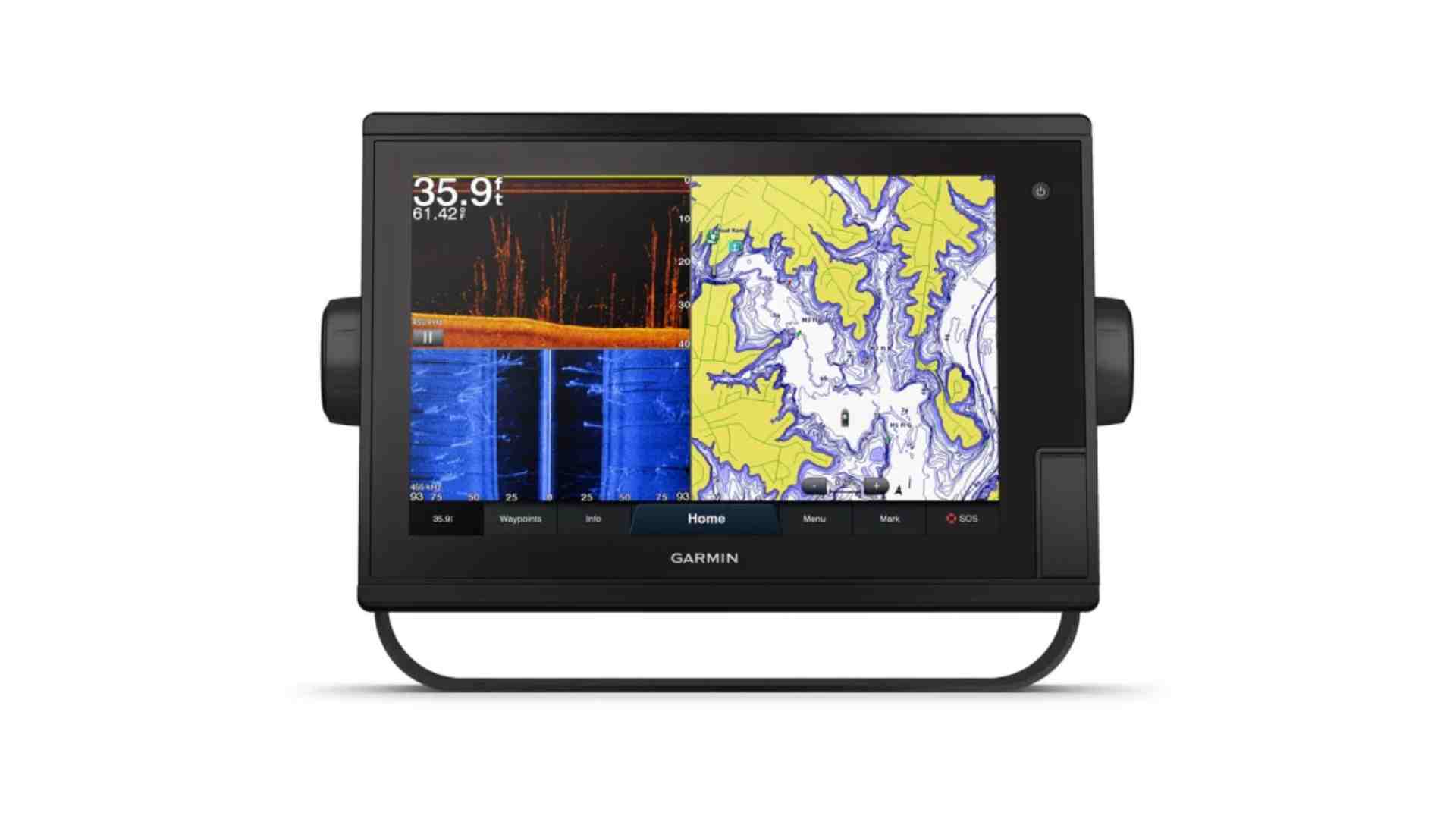

What Makes the Garmin GPSMAP 1243xsv Stand Out?
The Garmin GPSMAP 1243xsv is more than just a navigation tool—it’s a complete marine solution that integrates cutting-edge technology with practical design. Whether you’re navigating open waters, scouting fishing spots, or managing a networked marine system, this device delivers a blend of precision, versatility, and reliability. Its 12-inch display, advanced sonar capabilities, and customizable interface make it a favorite among boaters who demand high performance without complexity.
At its core, the GPSMAP 1243xsv is built to enhance your time on the water. With preloaded maps, a rugged waterproof design, and a responsive touchscreen, it caters to a wide range of boating needs. Let’s dive into the specifics that define this chartplotter and set it apart from the competition.
Key Features of the Garmin GPSMAP 1243xsv
1. Large 12-Inch Display
The GPSMAP 1243xsv features a 12-inch WXGA display with a resolution of 1280 x 800 pixels, offering crisp, vibrant visuals. The In-Plane Switching (IPS) technology ensures excellent readability from any angle, even in direct sunlight—a critical feature for boaters. Measuring 10.3 x 6.4 inches (12.1 inches diagonally), the screen provides ample space to view charts, sonar data, and other information simultaneously.
- 12.1-inch IPS touchscreen (1024 x 768 resolution)
- Sunlight-readable with adjustable brightness
- Customizable split-screen views (up to 4 panels)
- Intuitive touch controls with physical buttons for backup
2. Rugged, Waterproof Design
Built for the harsh marine environment, the GPSMAP 1243xsv carries an IPX7 waterproof rating. This means it can withstand splashes, rain, and even temporary submersion in water up to 1 meter for 30 minutes. Its durable construction also resists impacts and extreme temperatures, making it a reliable companion for long days on the water.
- IPX7 waterproof rating (can withstand splashes and rain)
- Rugged, corrosion-resistant housing
- Flush-mount and surface-mount options
3. Advanced Chartplotter Capabilities
This device excels as a chartplotter, offering preloaded Garmin Navionics+ coastal and inland mapping with Auto Guidance+ technology. Users can overlay sonar data, switch between 2D charts and satellite imagery, and integrate with compatible marine electronics like radar and autopilots. The ability to customize layouts ensures that critical data—whether navigation routes or fish-finding sonar—is always front and center.
4. Responsive Touchscreen Interface
The touchscreen interface is intuitive and responsive, even with wet hands or in choppy conditions. Paired with physical buttons, it offers flexibility for navigation and control. Users can pinch to zoom, swipe through menus, and tap to access functions, making it accessible for both seasoned boaters and newcomers.
5. Comprehensive Connectivity
The GPSMAP 1243xsv supports NMEA 2000, NMEA 0183, Ethernet, and Wi-Fi connectivity. This allows seamless integration with engines, radar, VHF radios, AIS systems, and third-party devices via OneHelm digital switching. Built-in ANT technology also connects it to Garmin accessories like quatix watches and wireless transducers.
- Wi-Fi & Bluetooth for wireless updates via ActiveCaptain app
- NMEA 2000 & NMEA 0183 support (connects to engines, radar, autopilot)
- Garmin Marine Network (share data between multiple displays)
6. Preloaded Mapping
Out of the box, the device comes with detailed Navionics+ charts covering coastal waters and inland lakes across the U.S. and Canada. These maps include depth contours, hazards, and points of interest, with a 1-year subscription for daily updates to keep your data current.
- Preloaded Garmin Navionics+ maps (with Auto Guidance+ for route planning)
- Supports BlueChart g3 Vision & LakeVü HD maps
- Quickdraw Contours (create custom maps with 1-foot contours)
7. Sonar Integration
The GPSMAP 1243xsv supports advanced sonar capabilities, including 1 kW traditional CHIRP sonar, Ultra High-Definition (UHD) ClearVü, and SideVü scanning sonar. It’s also compatible with Garmin Panoptix and LiveScope transducers (sold separately), providing real-time, detailed underwater views for fish finding and structure identification.
- Built-in Ultra High-Definition SideVü & ClearVü scanning sonar
- Supports LiveScope & Panoptix live sonar (transducer sold separately)
- CHIRP traditional sonar for deep-water fishing
- GT56UHD transducer compatibility (best for shallow water)
8. Customizable Layouts
Boaters can tailor the display to their preferences, choosing split-screen views or full-screen modes for charts, sonar, or engine data. Adjustable color palettes and data fields—like water temperature or wind speed—ensure the most relevant information is always visible.
9. Intuitive User Interface
The interface is designed for ease of use, with a home screen that displays key data like position, depth, and speed. Menus are logically organized, and the fast processor ensures quick transitions between functions, enhancing the overall user experience.
10. Value for Money
Priced at $2,999.99 (as listed on Garmin’s site), the GPSMAP 1243xsv delivers a robust feature set that justifies its cost. Compared to competitors like Humminbird’s Helix 12 ($2,500), it offers superior connectivity, display quality, and sonar options, making it a strong value proposition for serious boaters.
- MSRP: $2,999 (without transducer)
- Available at major marine electronics retailers (West Marine, Bass Pro Shops, Amazon)
Technical Specifications
Here’s a detailed look at the GPSMAP 1243xsv’s specs:
| Feature | Specification |
|---|---|
| Display Size | 12.1-inch diagonal (10.3 x 6.4 inches) |
| Resolution | 1280 x 800 pixels (WXGA) |
| Display Type | IPS touchscreen |
| Waterproof Rating | IPX7 (submersible up to 1 meter for 30 minutes) |
| Sonar Support | 1 kW CHIRP, UHD ClearVü, UHD SideVü, Panoptix, LiveScope (transducer separate) |
| Transducer Ports | 1 x 12-pin sonar port (includes 8-to-12-pin adapter) |
| Connectivity | NMEA 2000, NMEA 0183, Ethernet, Wi-Fi, ANT |
| Mapping | Preloaded Garmin Navionics+ with Auto Guidance+ |
| Power Supply | DC (10-32V) |
| Weight | 13.17 lbs |
| Dimensions | 18.3 x 14.1 x 10.4 inches |
| Price | $2,999.99 (without transducer) |
Optional accessories like the GT56UHD transducer ($449.99) or GMR 18 HD3 radar ($1,999.99) can enhance its capabilities further.
Performance Assessment
Pros
Accuracy and Speed
The GPSMAP 1243xsv’s high-sensitivity GPS receiver delivers pinpoint accuracy, locking onto your position quickly and reliably, even in remote areas. Paired with a powerful processor, it renders maps and sonar data in real time without lag. Users report seamless transitions between screens and rapid updates, crucial for navigating busy waterways or tracking moving fish.
Durability and Weather Resistance
The IPX7 rating ensures the device thrives in wet conditions, while its rugged build protects against vibrations and UV exposure. Boaters on forums like The Hull Truth praise its resilience, with one user noting, “It’s been through storms and still works like day one.”
Sonar Performance
With UHD sonar, the GPSMAP 1243xsv provides crystal-clear images of underwater structures and fish. The CHIRP technology enhances target separation, while SideVü and ClearVü offer wide-angle views. Pairing it with a GT56UHD transducer optimizes shallow-water performance, while the GT51 is preferred for deeper waters.
Cons
- Expensive – Higher cost than Humminbird Helix 12 or Lowrance HDS Live.
- Single transducer port – Limits sonar flexibility compared to Garmin’s 86xx series.
- No built-in radar – Requires additional purchase for radar overlay.
Navigating the User Interface
The GPSMAP 1243xsv’s interface is a highlight, blending touchscreen convenience with physical controls. The home screen offers an at-a-glance view of essential data, while swipe gestures and taps provide quick access to settings. Customizable layouts let users prioritize navigation, sonar, or engine info, with adjustable brightness and contrast for visibility in all conditions.
Saving routes and waypoints is straightforward, a boon for anglers returning to favorite spots. The responsive touchscreen and fast processor ensure smooth operation, even in rough seas. As one user on Crappie.com noted, “It’s so easy to use, I was up and running in minutes.”
Comparing the GPSMAP 1243xsv to Other Models
GPSMAP 1243xsv vs. GPSMAP 1242xsv
- Display: 12-inch (1243xsv) vs. 10-inch (1242xsv)
- Price: $2,999.99 vs. $2,199.99
- Features: Both offer similar sonar and connectivity, but the 1243xsv’s larger IPS screen improves visibility.
GPSMAP 1243xsv vs. GPSMAP 8612xsv
- Display: 12-inch vs. 12-inch (8612xsv has true HD)
- Sonar: Single-band CHIRP (1243xsv) vs. dual-band CHIRP with three ports (8612xsv)
- Price: $2,999.99 vs. $6,099.99
- Best For: 1243xsv suits single-transducer setups; 8612xsv is ideal for advanced multi-transducer needs.
GPSMAP 1243xsv vs. Echomap Ultra 126sv
- Display: Both 12-inch, but GPSMAP has IPS
- Features: GPSMAP offers radar support and HDMI output; Echomap lacks these
- Price: $2,999.99 vs. $2,899.99
User Reviews and Real-World Insights
Positive Feedback
- “Upgraded from a 93sv, and the difference is night and day. The screen is huge, and Livescope looks incredible.” – Vandamit (BassBoat Central Forum)
- “The touchscreen is super responsive, and the maps are incredibly detailed.” – Amazon Customer
- “Best chartplotter I’ve ever used. The integration with my Yamaha engine is flawless.” – THT Forum User
Critiques
- “Wish it had dual transducer ports like the 8612xsv.” – Semperfifishing (THT Forum)
- “Pricey, but worth it if you need top-tier performance.” – Reddit User
Optimizing Your GPSMAP 1243xsv Experience
Tips
- Read the Manual: Unlock hidden features like custom data fields.
- Update Software: Regular updates via the ActiveCaptain app enhance performance.
- Add Accessories: Pair with a GMR radar or Force trolling motor for expanded functionality.
Troubleshooting
- Soft Reset: Power off/on to fix minor glitches.
- Support: Garmin’s customer service is highly responsive, as noted by users on forums.
Pricing and Value
At $2,999.99, the GPSMAP 1243xsv is competitively priced against rivals like the Humminbird Helix 12 MSI G4N ($2,500), which requires additional adapters. The Garmin’s superior display, connectivity, and sonar options justify the premium, especially for networked setups. Used units can be found for $1,300-$1,800, offering budget-friendly alternatives.
Final Verdict: Who Should Buy It?
The Garmin GPSMAP 1243xsv is an excellent choice for
- Serious anglers who rely on LiveScope and high-def sonar.
- Offshore & coastal boaters needing advanced navigation.
- Tech-savvy users who want seamless integration with other Garmin devices.
However, if you’re on a budget or don’t need a 12-inch screen, the Echomap UHD 93sv or GPSMAP 8612xsv (for dual transducers) might be better options.
Rating: 9.5/10
- Best-in-class display & sonar
- Superior networking & mapping
- High price & single transducer port
Where to Buy?
- Amazon ($2,999)
- West Marine ($3,099 with bundle options)
- Bass Pro Shops (Occasional sales)
Conclusion
The Garmin GPSMAP 1243xsv is a powerhouse marine navigation system that excels in accuracy, durability, and versatility. Its 12-inch IPS display, advanced sonar, and robust connectivity make it a top choice for boaters who want a reliable, feature-rich chartplotter. While it comes at a higher price point than some competitors, its performance and user-friendly design deliver exceptional value. Whether you’re fishing coastal waters or cruising inland lakes, the GPSMAP 1243xsv is a worthy investment that elevates your boating experience.
For those seeking a blend of cutting-edge technology and practical usability, this chartplotter is hard to beat. Pair it with the right transducer and accessories, and you’ll have a marine companion that’s ready for any adventure.
