The Victron Orion TR Smart DC-DC Charger stands out as a versatile and reliable solution for managing battery charging in various applications, from RVs and boats to off-grid residential systems. With its adaptive 3-stage charging process, Bluetooth connectivity, and compatibility with both 12V and 24V systems, this charger has garnered attention for its efficiency and programmability. In this in-depth review, we’ll explore its features, specifications, real-world performance, pricing, and user feedback to provide a clear picture of what this device offers and whether it’s the right fit for your needs.

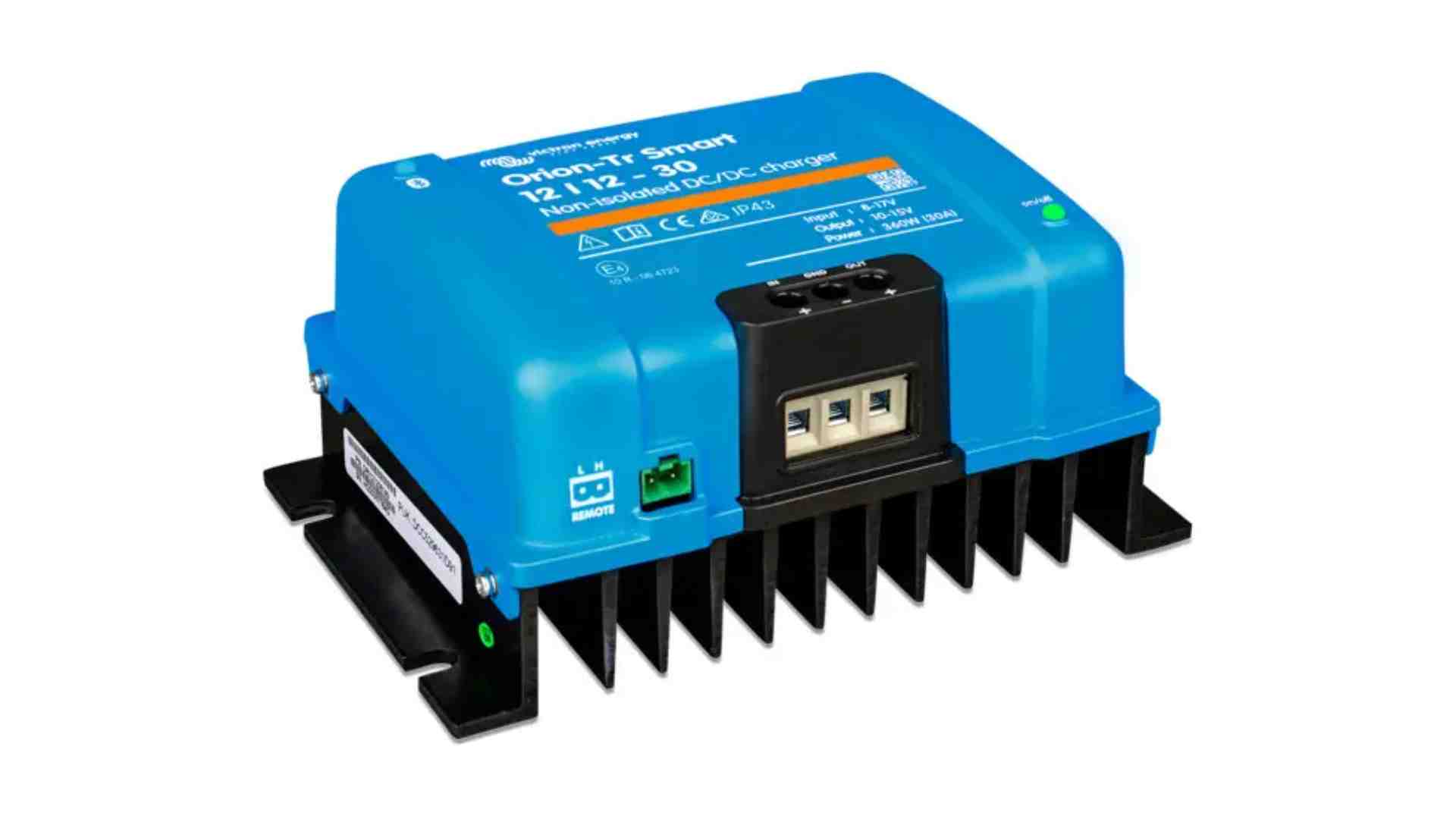

Overview of the Victron Orion TR Smart DC-DC Charger
The Victron Orion TR Smart DC-DC Charger is designed to optimize battery charging by drawing power from a vehicle’s alternator or another DC source and delivering it to an auxiliary or house battery. Available in isolated and non-isolated versions, it caters to a wide range of setups, including mobile applications like RVs, vans, boats, and even stationary off-grid systems. Its standout feature is the adaptive 3-stage charging process—bulk, absorption, and float—which ensures batteries are charged efficiently and maintained properly over time.
What sets this charger apart is its built-in Bluetooth functionality, allowing users to monitor and adjust settings remotely via the VictronConnect app. This eliminates the need for constant physical access to the unit, making it ideal for hard-to-reach installations. Additionally, its ability to function as both a step-up (boost) and step-down (buck) charger adds flexibility, supporting various voltage configurations such as 12V to 12V, 12V to 24V, and 24V to 12V.
Key Features and Specifications
Features
- Adaptive 3-Stage Charging: Bulk, absorption, and float stages ensure optimal battery health and longevity.
- Bluetooth Connectivity: Program and monitor the charger via the VictronConnect app.
- Engine Running Detection: Automatically detects when the engine is running to initiate charging, with customizable settings.
- Versatile Voltage Options: Supports 12V and 24V systems, with step-up and step-down capabilities.
- Parallel Connectivity: Multiple units can be connected for increased charging capacity.
- Remote On/Off: Optional remote switch or app-based control for convenience.
- Short Circuit Protection: Built-in safety feature to prevent damage.
- IP43 Rating: Offers durability and protection against dust and water splashes.
- Isolated vs. Non-Isolated Models: Isolated versions prevent ground loops, while non-isolated models suit simpler setups with a common ground.
Specifications
| Parameter | Details |
|---|---|
| Weight | 3 lbs |
| Dimensions (HxWxD) | 5.1 x 7.3 x 2.8 inches |
| IP Rating | IP43 |
| Battery Compatibility | Lead-acid and lithium |
| Charging Stages | Bulk, Absorption, Float |
Available Models and Pricing
The Orion TR Smart DC-DC Charger comes in several configurations to suit different needs, each with a consistent price point of $243.95 (availability subject to stock, with backorders accepted).
| Model | Input Voltage | Output Voltage | Current Output | Power Output |
|---|---|---|---|---|
| 12V/12V-18A | 12V | 12V | 18A | 220W |
| 12V/12V-30A | 12V | 12V | 30A | 360W |
| 12V/24V-15A | 12V | 24V | 15A | 360W |
| 24V/12V-30A | 24V | 12V | 30A | 360W |
| 24V/24V-17A | 24V | 24V | 17A | 408W |
These options allow users to select the appropriate model based on their system’s voltage and charging requirements. The price reflects Victron’s premium quality, though it’s higher than some competitors like the Kisae DMT-1250, which offers 50A charging for a similar cost.
Design and Build Quality
Weighing just 3 lbs and measuring 5.1 x 7.3 x 2.8 inches, the Orion TR Smart is compact and easy to install in tight spaces, such as under RV seats, in engine compartments, or on boats. Its IP43 rating ensures it can withstand dust and light water exposure, making it suitable for mobile environments where conditions can vary. The short circuit-proof design adds an extra layer of reliability, protecting both the charger and connected batteries from potential faults.
The isolated version features galvanically separated input and output terminals, eliminating ground loops and interference—a critical consideration for complex setups like boats or systems with separate battery banks. The non-isolated version, conversely, uses a shared negative connection, making it simpler and more cost-effective for applications like vans or RVs with a chassis ground.
Performance and Functionality
Charging Capabilities
The Orion TR Smart’s 3-stage charging process is tailored to maximize battery life. In the bulk stage, it delivers maximum current until the battery reaches a set voltage. The absorption stage then maintains that voltage to fully charge the battery, followed by the float stage, which keeps the battery topped off without overcharging. This adaptability makes it compatible with both lead-acid and lithium batteries, a significant advantage for users with diverse setups.
The charger’s engine shutdown detection feature is a highlight, allowing it to start and stop charging based on the alternator’s activity. Unlike some competitors, it doesn’t require an ignition feed or D+ connection, simplifying installation. Users can fine-tune this feature via the VictronConnect app to match their specific system needs.
Bluetooth and Programmability
The built-in Bluetooth is a game-changer, enabling remote monitoring and configuration. Through the VictronConnect app, users can adjust charging parameters, toggle the charger on or off, and view real-time performance data. While the app’s interface may initially confuse beginners, a quick review of the manual and battery specifications allows for precise customization. This flexibility is particularly valuable for lithium battery users, who need specific voltage and current settings to avoid damage.
However, the lack of a VE.Direct port—a common feature in other Victron products—limits integration with Victron’s broader ecosystem, such as the Venus OS or GX devices. This omission has drawn criticism from users who rely on centralized control via Dynamic Voltage and Current Control (DVCC).
Isolated vs. Non-Isolated: Which to Choose?
Choosing between the isolated and non-isolated versions depends on your setup:
- Isolated: Ideal for systems where the starter and auxiliary batteries lack a common ground (e.g., boats or certain RVs). It prevents electrical interference and ensures safety.
- Non-Isolated: Suited for most vehicle-based applications (e.g., vans or RVs) with a shared chassis ground, offering a simpler and slightly cheaper option.
| Feature | Isolated Version | Non-Isolated Version |
|---|---|---|
| Ground Connection | Separate for starter & auxiliary batteries | Shared ground |
| Best For | Systems without common ground (e.g., marine applications) | Most vehicles (RVs, vans) |
| Price | Slightly higher (~20−20−50 more) | More affordable |
For example, a van with both batteries grounded to the chassis typically requires only the non-isolated model, saving costs without sacrificing performance.
Installation and Setup
Installing the Orion TR Smart is straightforward, thanks to its compact size and clear manual. The engine detection feature eliminates the need for complex wiring like an ignition feed, though an optional remote on/off switch can be added for manual control. Users can connect multiple units in parallel to increase charging capacity, a boon for larger systems.
The VictronConnect app simplifies setup, though some users report a learning curve. For instance, adjusting the charger to work with a specific battery type (e.g., LiFePO4) requires inputting the correct voltage and current limits. While the app doesn’t allow direct current reduction on the Orion itself, users can manage total system current by pairing it with a programmable solar charge controller, such as the Victron SmartSolar MPPT.
Real-World User Experiences
User reviews provide valuable insights into the Orion TR Smart’s performance, highlighting both its strengths and limitations.
Positive Feedback
- Ease of Use: A boat owner installing the 12/12-30A model praised its Bluetooth functionality, noting, “I can tweak settings from my phone without digging into the engine bay.”
- Durability: An RV user reported, “It’s been running flawlessly in my camper for over a year, even in dusty conditions.”
- Flexibility: A solar enthusiast paired the 12/12-18A model with a 206Ah LiFePO4 battery, appreciating its compatibility: “Works great with my Victron MPPT setup.”
Criticisms
- Limited Integration: One user vented frustration over the lack of VE.Direct: “I’ve got a full Victron system, but this feels like an outsider. Bluetooth is nice, but I want it on my Venus OS dashboard.”
- Bluetooth Range: Another RV owner complained, “The signal barely reaches outside my vehicle—other Victron products work fine from farther away.”
- Performance Issues: A Ford F-150 PowerBoost owner towing a trailer noted minimal charging (1% SOC gain over 385 miles), attributing it to the truck’s 12.7V regulation rather than the charger itself. A workaround—running the AC fan at level 6—boosted voltage to 13.7V, improving output.
Specific Use Cases
- RV Camping: Users like “nebulight” appreciate Victron’s quality but hesitate due to the lack of integration, opting for alternatives like the Kisae DMT-1250 for higher current and cooling.
- Boating: A fisherman using the 12/12-30A model with a kicker motor found it cycled on/off when the alternator couldn’t sustain 30A, suggesting a manual switch or lower-output model (e.g., 18A) for stability.
- Hybrid Vehicles: PowerBoost owners discovered the charger’s effectiveness depends on the vehicle’s unique electrical system, sometimes requiring creative solutions or alternative setups like the Victron MultiPlus II.
Pros and Cons
Pros
- Versatile 12V/24V compatibility and step-up/step-down functionality.
- Bluetooth-enabled for easy programming and monitoring.
- Compact, durable design with IP43 rating.
- Supports lead-acid and lithium batteries.
- Engine detection simplifies installation.
Cons
- No VE.Direct port limits integration with Victron ecosystem.
- Bluetooth range can be inconsistent.
- Higher price compared to some competitors (e.g., Kisae DMT-1250 at 50A).
- Current output isn’t directly adjustable via the app.
Pricing and Value
At $243.95 across all models, the Orion TR Smart sits in the premium segment of DC-DC chargers. While its build quality, Bluetooth features, and brand reputation justify the cost for many, alternatives like the Kisae DMT-1250 offer higher output (50A) for a similar price, albeit without Bluetooth or Victron’s refinement. For users prioritizing integration and durability over raw power, the Orion remains a strong contender.
Comparison with Competitors
| Model | Max Current | Bluetooth | VE.Direct | Price |
|---|---|---|---|---|
| Victron Orion-TR Smart | 30A | Yes | No | $300 |
| Kisae DMT-1250 | 50A | No | No | $250 |
| Renogy DCC50S | 50A | Yes | No | $280 |
The Orion excels in programmability and durability, while the Kisae offers higher current for less tech-savvy users. Your choice depends on whether you value smart features or raw charging power.
Who Should Buy the Victron Orion TR Smart?
The Victron Orion-TR Smart DC-DC Charger is a high-quality but niche product. It excels in efficiency and ease of use but lacks full Victron ecosystem integration.
Who Should Buy It?
- RV & van lifers needing reliable alternator charging.
- Marine users requiring isolated charging.
- Those already invested in Victron’s Bluetooth ecosystem.
Who Should Avoid It?
- Ford PowerBoost owners (due to voltage issues).
- Users needing GX device integration.
- Those needing >30A charging.
Rating: 4/5
- Performance: ★★★★☆
- Features: ★★★★☆
- Value: ★★★☆☆
For most users, it’s a solid choice, but alternatives like the Renogy DCC50S may offer better value for higher-current needs.
Conclusion
The Victron Orion TR Smart DC-DC Charger is a premium, feature-rich solution for charging auxiliary batteries in mobile and off-grid setups. Its adaptive 3-stage charging, Bluetooth connectivity, and versatile voltage options make it a standout choice for users valuing quality and control. While drawbacks like limited integration and Bluetooth range exist, its performance, durability, and ease of use outweigh these for most applications.
Priced at $243.95, it’s a worthwhile investment for those prioritizing reliability over raw power. Whether you’re outfitting an RV, boat, or hybrid vehicle, the Orion TR Smart delivers consistent results—provided you’re willing to navigate its quirks and tailor it to your system.
