The Garmin 7610xsv stands as a pinnacle of marine navigation technology, offering boaters an all-in-one solution that integrates GPS navigation, chartplotting, and advanced sonar capabilities into a single, robust device. Designed for a wide range of users—from recreational boaters to seasoned anglers and professional mariners—this multi-function display (MFD) promises to elevate the boating experience with its cutting-edge features, intuitive interface, and seamless compatibility with Garmin’s ecosystem of marine accessories. In this comprehensive review, we’ll explore the Garmin 7610xsv in detail, covering its key features, technical specifications, performance capabilities, and overall value. We’ll also compare it to other Garmin models and assess its price, durability, and suitability for various boating needs.
What is the Garmin 7610xsv?

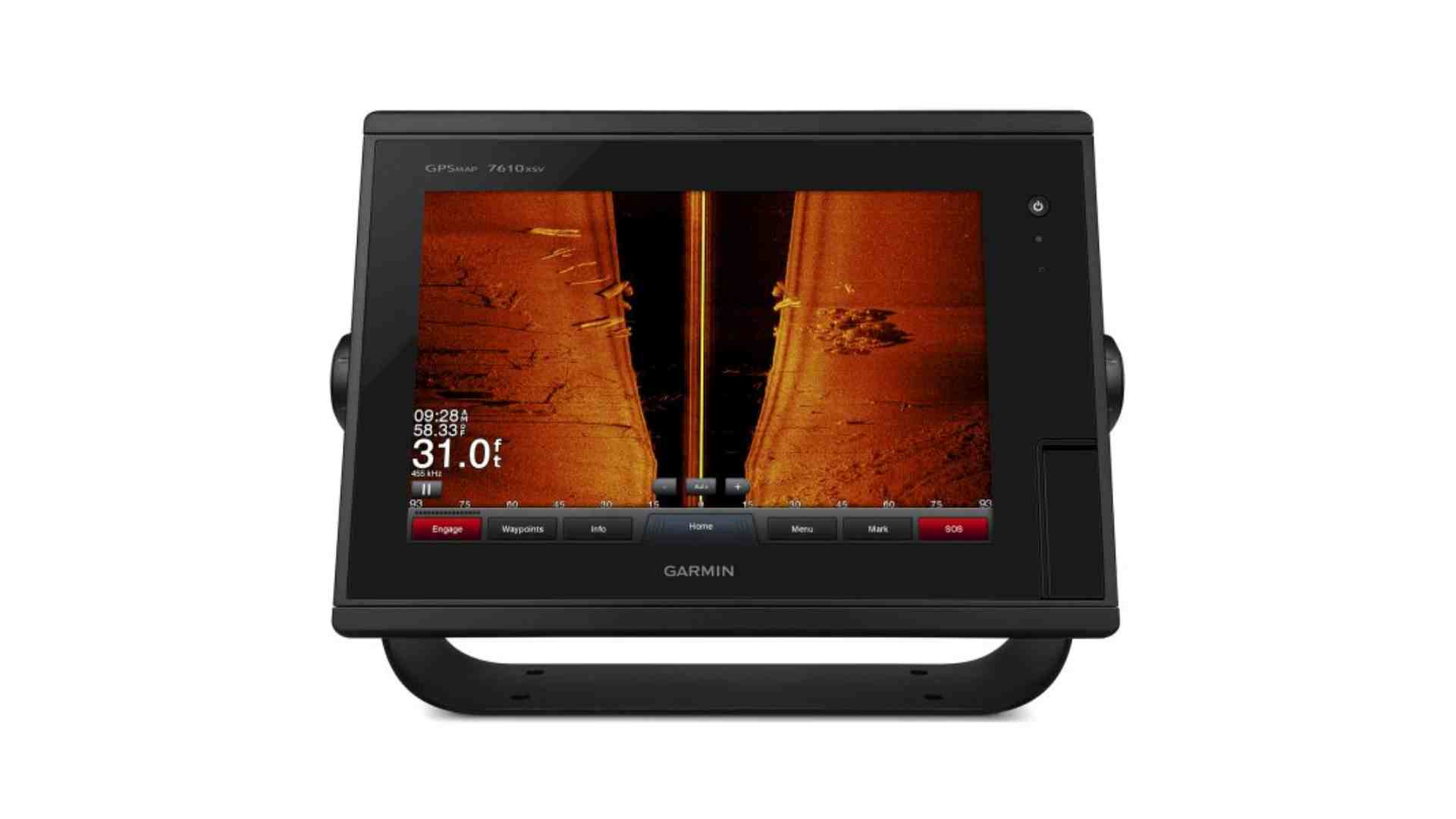

The Garmin 7610xsv is a 10-inch multi-touch widescreen chartplotter and sonar combo designed to meet the demands of sport fishermen, cruisers, and sailors alike. It combines high-performance navigation tools with advanced sonar technology, making it a versatile companion for anyone who spends time on the water. At its core, the device offers precise GPS navigation, detailed chartplotting, and a suite of sonar features—including CHIRP, ClearVü, and SideVü—delivering exceptional underwater visibility. With a high-resolution display, powerful processing capabilities, and extensive networking options, the Garmin 7610xsv is engineered to provide boaters with the tools they need to navigate confidently and fish effectively.
This device is more than just a chartplotter; it’s a fully integrated system that supports radar, autopilot, and a variety of transducers, allowing users to customize their setup based on their specific requirements. Whether you’re plotting a course through coastal waters, scanning for fish in deep lakes, or monitoring weather conditions via radar, the Garmin 7610xsv aims to deliver a seamless and reliable experience.
Key Features of the Garmin 7610xsv
The Garmin 7610xsv is packed with features that set it apart in the marine electronics market. Below, we’ll dive into its standout capabilities and how they enhance the boating and fishing experience.
Advanced CHIRP Sonar Technology
The Garmin 7610xsv is equipped with cutting-edge CHIRP sonar technology, a standout feature that sets it apart from traditional sonar systems. CHIRP, which stands for Compressed High-Intensity Radiated Pulse, uses a broad range of frequencies to generate highly detailed, crystal-clear images of underwater environments. This advanced sonar capability allows users to see fish, underwater structures, and the seabed with remarkable clarity. The device also supports dual-channel CHIRP sonar with a 1 kW power output, offering customizable frequency settings (low, medium, or high) to suit various fishing conditions, from shallow waters to deep-sea exploration. Additionally, it enables users to create custom HD maps with 1-foot contours by instantly recording sonar data, providing personalized fishing charts tailored to specific locations.
- CHIRP Sonar Technology: Uses a range of frequencies for detailed, high-quality underwater images, unlike traditional sonar.
- Superior Target Separation: Easily distinguish between baitfish, game fish, and submerged objects like wrecks or reefs.
- Dual-Channel CHIRP: 1 kW power output with customizable low, medium, or high-frequency settings for versatile fishing.
- Exceptional Clarity: Delivers precise visuals for both shallow-water and deep-sea fishing.
- Custom HD Maps: Create personalized fishing charts with 1-foot contours using instantly recorded sonar data.
ClearVü and SideVü Scanning Sonar
The Garmin 7610xsv is equipped with advanced sonar technologies, including traditional CHIRP sonar, as well as CHIRP ClearVü and CHIRP SideVü scanning sonar. These features provide boaters and anglers with a detailed, almost photographic view of the underwater environment. ClearVü focuses on what’s directly below the boat, while SideVü expands the view to the sides, creating a full picture of the underwater landscape. With adjustable frequencies (260 kHz, 455 kHz, and 800 kHz), users can customize the sonar’s range and level of detail based on their needs.
This technology is a game-changer for fishing and boating. Anglers can spot fish schools, underwater structures, and bait movement in real time, while safety-focused boaters can detect hazards like rocks or shallow areas to navigate more confidently.
- Dual-Channel CHIRP Sonar: Operates at 70/83/200 kHz for excellent target separation, helping distinguish fish and objects clearly.
- ClearVü Scanning Sonar: Uses 260/455/800 kHz frequencies to deliver detailed images of what’s beneath the boat.
- SideVü Scanning Sonar: Also at 260/455/800 kHz, it provides side-scan imaging for a wider view of the underwater area.
- Panoptix™ LiveScope Support: Adds real-time 3D fish tracking for an even more dynamic fishing experience.
These features make the Garmin 7610xsv a powerful tool for both fishing precision and safe navigation.
High-Resolution 10-Inch Display
The Garmin 7610xsv comes equipped with a 10-inch WXGA touchscreen display, boasting a sharp resolution of 1280 x 800 pixels. This large, colorful screen is designed for easy viewing in any lighting, even under bright sunlight, thanks to its high brightness and anti-glare features. The touchscreen is highly responsive, supporting multi-touch gestures like pinch-to-zoom and swipe, offering a user-friendly experience similar to a smartphone or tablet. With its size and clarity, the display is perfect for showing detailed charts, sonar data, and radar overlays all at once. Plus, it offers customizable split-screen options, letting users keep an eye on multiple data sources—like GPS, sonar, and radar—on one screen.
- 1280 x 800 WXGA Resolution: Delivers crisp, clear visuals for an enhanced viewing experience.
- Sunlight-Readable: High brightness and anti-glare technology ensure visibility in bright conditions.
- Responsive Touchscreen: Multi-touch support makes it as easy to use as a smartphone.
- Split-Screen Capability: View sonar, radar, and charts simultaneously with a customizable layout.
Seamless Integration with Garmin Accessories
A major strength of the Garmin 7610xsv is its compatibility with Garmin’s extensive range of marine accessories. It supports radar systems like the GMR 18xHD, autopilot units, and a variety of transducers, including the GT50 TM and Panoptix models. This modularity allows boaters to build a fully integrated marine ecosystem tailored to their needs.
For example, pairing the device with a radar system enhances situational awareness in low-visibility conditions, while an autopilot integration lets you relax while the system steers your boat along a pre-planned route. The Garmin 7610xsv also supports NMEA 2000 and NMEA 0183 networking, enabling it to connect with other onboard systems and share data seamlessly.
- Seamless integration with radar, autopilot, and engine data
- Compatible with Garmin GMR™ radar (xHD2 and xHD models)
- Supports Fusion-Link audio control
Preloaded Charts and Mapping Options
The Garmin 7610xsv comes preloaded with BlueChart g2 coastal maps and LakeVü HD inland maps, covering thousands of U.S. lakes, rivers, and coastal waters. These charts include depth contours, navigation aids, tidal stations, and fishing-specific data, providing a solid foundation for navigation and angling. Users can upgrade to premium options like BlueChart g3 Vision or LakeVü g3 Ultra for enhanced features such as Auto Guidance, 3D views, and high-resolution satellite imagery.
The device also supports Garmin’s Quickdraw Contours, a free feature that lets users create personalized HD maps with 1-foot contours in real time. This is particularly useful for anglers exploring uncharted waters or refining their knowledge of familiar fishing spots.
- Coastal charts with depth contours, navigation aids, and tide data
- 17,000+ U.S. inland lakes with 1-foot contours
- Auto Guidance technology for route planning with obstacle avoidance
Fast and Accurate GPS
Equipped with a high-sensitivity 10 Hz GPS/GLONASS receiver, the Garmin 7610xsv updates your position and heading 10 times per second. This rapid refresh rate ensures smooth, real-time tracking, even at high speeds or in challenging environments like canyons or under heavy tree cover. The GPS system supports up to 5,000 waypoints, 50 saved tracks, and 100 routes, making it easy to mark and revisit key locations.
- Faster position updates (10 times per second) for precise tracking
- High-sensitivity internal antenna (external antenna compatible)
Wi-Fi & ActiveCaptain® App Connectivity
- Wireless updates and data sharing
- Smart notifications for weather, software updates, and community waypoints
Technical Specifications
The Garmin 7610xsv’s technical prowess underpins its impressive feature set. Here’s a detailed look at its specifications:
| Specification | Details |
|---|---|
| Display Size | 10.1″ diagonal (8.6” x 5.3”; 25.7 cm x 13.5 cm) |
| Display Resolution | 1280 x 800 pixels (WXGA) |
| Dimensions | 11.4” x 8.1” x 3” (28.9 x 20.6 x 7.6 cm) |
| Weight | 5.2 lbs (2.36 kg) |
| Waterproof Rating | IPX7 (submersible up to 1 meter for 30 minutes) |
| Power Input | 10-32 Vdc; Typical draw: 1.95 A at 12 Vdc; Max power: 30W at 10 Vdc |
| Sonar Power Output | 1 kW (dual-channel CHIRP) |
| Sonar Frequencies | Traditional: 70/83/200 kHz; ClearVü/SideVü: 260/455/800 kHz |
| GPS Receiver | 10 Hz GPS/GLONASS |
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi |
| Memory | 2 SD card slots for expandable storage |
| Mounting Options | Bail, flat, or flush |
These specs highlight the device’s robust construction, powerful sonar capabilities, and versatile connectivity options, making it suitable for a wide range of vessels and boating conditions.
Navigating the Garmin 7610xsv Interface
The Garmin 7610xsv’s interface is designed for ease of use, ensuring that both novice and experienced boaters can harness its full potential. Let’s explore the setup process and how to navigate its controls effectively.
Initial Setup and Configuration
Setting up the Garmin 7610xsv is a straightforward process. Upon powering on the device, a setup wizard guides you through configuring basic settings like language, units of measurement, and system preferences. You’ll also connect the unit to your boat’s power supply and network, enabling communication with other onboard systems.
Once the initial setup is complete, users can dive into advanced customization options. Adjust the display brightness, choose a color scheme, and configure data fields to prioritize the information most relevant to your boating activities. The device’s flexibility allows you to tailor the interface to your specific needs, whether you’re focused on navigation, fishing, or both.
Understanding the Display and Controls
The 10-inch touchscreen is the heart of the Garmin 7610xsv’s interface, offering a responsive and intuitive experience. Menus, icons, and buttons are clearly laid out, providing quick access to features like sonar, charts, and radar. The multi-touch capability supports gestures such as pinch-to-zoom and swipe, while split-screen functionality lets you view multiple applications side by side.
Physical buttons complement the touchscreen, offering tactile control for key functions like power and menu navigation. These buttons are especially useful in rough conditions when precise touchscreen input might be challenging. The interface also includes advanced navigation tools like Auto Guidance, which suggests safe routes based on your boat’s dimensions and destination, and radar overlay for enhanced situational awareness.
Performance and Functionality
The Garmin 7610xsv excels in real-world performance, delivering reliable navigation and sonar capabilities across a variety of boating scenarios. Here’s how it performs in key areas.
GPS and Chartplotting Capabilities
The device’s 10 Hz GPS/GLONASS receiver provides fast, accurate positioning, making it ideal for coastal cruising, inland exploration, and offshore navigation. Preloaded BlueChart g2 and LakeVü HD maps offer detailed coverage of U.S. waters, while optional upgrades like BlueChart g3 Vision add features like 3D views and Auto Guidance.
The chartplotting system supports up to 5,000 waypoints, though some users have noted limitations in waypoint management. When zoomed out, waypoints can cluster into packets, obscuring individual markers—a drawback compared to older Garmin models like the 3000 series. However, for most users, the system’s speed, accuracy, and customization options outweigh this minor inconvenience.
Sonar and Fishfinding Features
The Garmin 7610xsv’s sonar suite is a game-changer for anglers. The dual-channel CHIRP sonar delivers exceptional detail, while ClearVü and SideVü provide near-photographic images of the underwater environment. Real-world tests, such as those conducted on Lake George, NY, demonstrate its ability to locate structure and fish with pinpoint accuracy, significantly boosting catch rates.
The device also supports Panoptix transducers, which offer live 3D views of fish and bait in real time. This cutting-edge technology allows anglers to see fish swimming under or in front of the boat, enhancing both strategy and success on the water.
Radar and Networking Performance
When paired with a Garmin radar like the GMR 18xHD, the 7610xsv provides spectacular separation and range, with features like bird mode for spotting flocks up to a quarter-mile away. Its networking capabilities—via Garmin Marine Network, NMEA 2000, and Wi-Fi—enable seamless data sharing with other devices, from autopilots to weather receivers like the GXM 52.
Comparison with Other Garmin Models
To understand the Garmin 7610xsv’s place in the lineup, let’s compare it to two other popular models: the Garmin 1040xs and the Garmin 7612xsv.
| Feature | Garmin 7610xsv | Garmin 1040xs | Garmin 7612xsv |
|---|---|---|---|
| Display Size | 10.1″ (1280 x 800) | 10.4″ (800 x 600) | 12.1″ (1280 x 800) |
| Sonar | Dual CHIRP, ClearVü, SideVü | CHIRP, DownVü | Dual CHIRP, ClearVü, SideVü |
| GPS | 10 Hz GPS/GLONASS | 10 Hz GPS/GLONASS | 10 Hz GPS/GLONASS |
| Networking | NMEA 2000, Wi-Fi, Garmin Network | NMEA 2000, limited networking | NMEA 2000, Wi-Fi, Garmin Network |
| Price (Approx.) | $2,699.99 | $1,999.99 | $3,999.99 |
The 7610xsv offers a middle ground between the more affordable 1040xs and the larger, pricier 7612xsv. It includes advanced sonar features missing from the 1040xs and provides a more compact alternative to the 7612xsv, making it an excellent choice for mid-sized vessels.
Price and Value Assessment
The Garmin 7610xsv retails for approximately $2,699.99, positioning it as a premium marine electronics option. While this price may seem steep, its value becomes apparent when considering its feature set and durability. The device’s IPX7 waterproof rating ensures it can withstand harsh marine environments, and its robust construction promises years of reliable use.
For anglers, the advanced sonar capabilities justify the investment by improving fishfinding efficiency. For navigators, the combination of precise GPS, detailed charts, and radar compatibility offers unmatched safety and convenience. Compared to competitors like Simrad or Raymarine, the Garmin 7610xsv holds its own with superior sonar clarity and a user-friendly interface, though some users may prefer alternatives for specific features like waypoint management.
Durability & Longevity
- IPX7 waterproof rating ensures reliability in harsh marine conditions.
- Robust construction withstands vibrations and saltwater exposure.
- Garmin’s software updates keep the system current with new features.
Final Verdict: Is the Garmin 7610xsv Worth It?
Pros
- Exceptional CHIRP, ClearVü, and SideVü sonar performance
- Large, high-resolution touchscreen with intuitive controls
- Seamless integration with Garmin accessories and networks
- Preloaded with detailed BlueChart g2 and LakeVü HD maps
- Durable, waterproof design built for marine conditions
Cons
- Waypoint management can be cumbersome with large datasets
- Premium price may deter budget-conscious buyers
- Occasional GPS accuracy issues reported by some users
Who Should Buy It?
- Serious anglers needing ultra-detailed sonar.
- Offshore boaters requiring radar and autopilot integration.
- Tech-savvy users who want Wi-Fi and ActiveCaptain connectivity.
Who Should Skip It?
- Casual boaters who don’t need advanced sonar or radar.
- Budget-conscious buyers (consider Echomap UHD instead).
Conclusion
The Garmin 7610xsv is a powerhouse of marine technology, blending advanced navigation, sonar, and networking capabilities into a single, user-friendly package. Its 10-inch display, powerful sonar suite, and extensive compatibility make it an ideal choice for boaters who demand performance and versatility. While it has minor drawbacks—like waypoint management limitations and a higher price point—its benefits far outweigh these concerns for most users.
Rating: 9.5/10 🚤🎣
Whether you’re an angler seeking to maximize your catch or a mariner navigating complex waterways, the Garmin 7610xsv delivers the tools you need to succeed on the water. With its durable design and continuous software updates, it’s a long-term investment that promises to enhance your boating adventures for years to come. If you’re in the market for a top-tier chartplotter/sonar combo, the Garmin 7610xsv deserves a spot at the top of your list.
Happy Boating!
