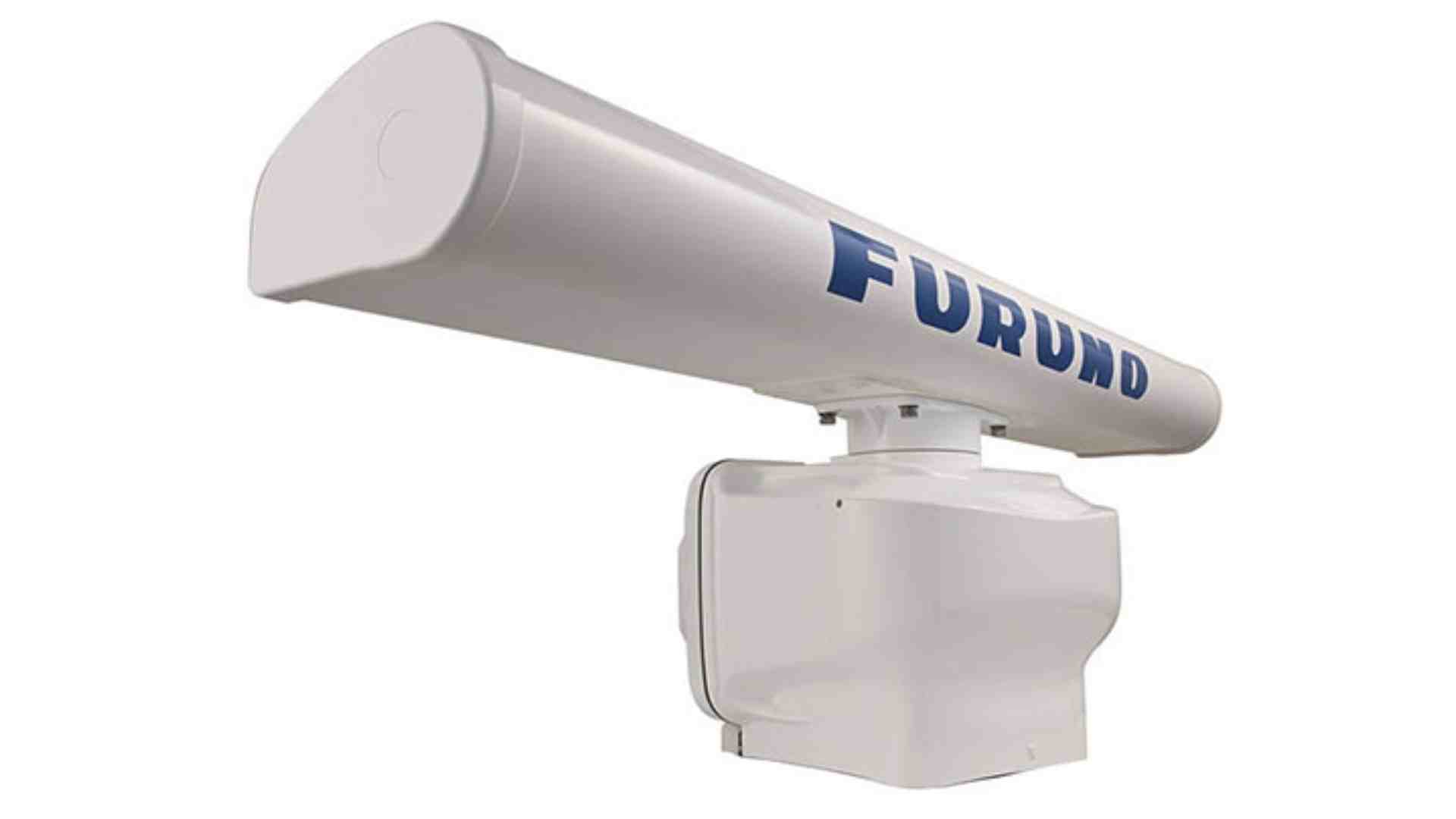

The Furuno DRS12AX stands as a pinnacle of marine radar technology, offering mariners a robust, high-performance tool designed to enhance navigation and safety on the water. Engineered by Furuno, a brand synonymous with reliability in the marine electronics industry, the DRS12AX is tailored for a wide range of vessels, from small recreational boats to large commercial ships. This comprehensive review explores the radar’s core features, technical specifications, performance capabilities, installation process, user interface, and maintenance requirements, providing an in-depth look at why it’s a top choice for marine navigation.
Understanding the Basics of the Furuno DRS12AX
The Furuno DRS12AX is a marine radar system built to deliver precise and dependable imaging for navigation and target detection. Its compact yet durable design ensures it can withstand the harsh marine environment while remaining versatile enough to suit various vessel types. At its core, the DRS12AX leverages advanced radar technology to provide mariners with clear visuals, even in adverse conditions like fog, rain, or low-light scenarios.
One of its standout attributes is the high-resolution display, which offers detailed radar images critical for safe navigation. Whether you’re maneuvering through crowded harbors or open waters, the DRS12AX ensures that obstacles, other vessels, and environmental features are clearly visible. This clarity is a game-changer for mariners who rely on radar to make informed decisions in real-time.
Key Features of the Furuno DRS12AX
The DRS12AX is packed with features that elevate its functionality beyond basic radar systems. Here’s a closer look at some of its most notable capabilities:
Dual Range Mode
The Dual Range mode allows users to monitor both short- and long-range targets simultaneously. This feature provides a comprehensive view of the surrounding area, enabling mariners to detect nearby hazards like buoys or small boats while keeping an eye on distant objects such as large ships or landmasses. This dual perspective enhances situational awareness, making it particularly valuable in busy or unfamiliar waters.
- 12kW peak power output ensures superior long-range detection (up to 96 nautical miles).
- UHD digital processing enhances clarity, reducing noise and false echoes.
- Short-range detection as close as 20 meters, ideal for harbor navigation.
MARPA Functionality
The Mini Automatic Radar Plotting Aid (MARPA) feature is another highlight, enabling the DRS12AX to track multiple targets at once. By displaying target course and speed vectors, MARPA simplifies monitoring the movements of nearby vessels or objects. This is especially useful in high-traffic areas, where collision avoidance is a priority, offering mariners an extra layer of safety and control.
Bird Mode for Fishing Applications
For anglers and commercial fishermen, the DRS12AX includes a pre-configured Bird Mode that excels at detecting flocks of birds—a key indicator of fish activity. Unlike earlier models that required manual adjustments, this mode is optimized for immediate use, providing enhanced detection with minimal effort.
Fast Target Tracking™
Borrowed from Furuno’s commercial-grade FAR3000 radar, the Fast Target Tracking™ function delivers instant target vectors with the press of a button. This rapid response increases situational awareness and bolsters safety by allowing mariners to quickly assess potential threats.
Lightweight & Low-Noise Design
- 20% lighter pedestal than previous models.
- Reduced motor noise for quieter operation.
Easy Installation & Smart Connectivity
- No external power supply (PSU) required (runs on 24V DC; converter needed for 12V systems).
- Smart-connector cable simplifies setup.
Technical Specifications of the Furuno DRS12AX
The DRS12AX’s technical prowess underpins its exceptional performance. Below is a detailed breakdown of its specifications:
| Specification | Details |
|---|---|
| Frequency Band | X-band |
| Peak Power Output | 12 kW |
| Antenna Size Options | 4 ft or 6 ft |
| Maximum Range | 96 nautical miles |
| Minimum Detection Range | 20 meters |
| Power Requirement | 24V DC (12V with converter) |
| Weight (Pedestal) | 42 lbs (20% lighter than previous models) |
| Cable Length | 15 meters |
X-Band Frequency
Operating in the X-band frequency range, the DRS12AX ensures optimal performance for marine applications. This frequency is widely used in radar systems due to its balance of range and resolution, making it ideal for detecting both small and large targets.
Power and Range
With a 12 kW peak power output, the DRS12AX achieves a maximum range of 96 nautical miles—among the best in its class. This long-range capability, paired with a minimum detection range of just 20 meters, allows it to excel in both near-shore navigation and offshore surveillance. The 4-foot or 6-foot antenna options further enhance its versatility, with the larger array offering improved target separation.
Design Improvements
The redesigned pedestal is 20% lighter than its predecessors, reducing strain on mounting structures. It also features an updated motor that significantly lowers noise levels, improving the onboard experience. The smart-connector cable simplifies installation and maintenance, eliminating the need for an external power supply unit (PSU) and reducing overall costs.
Performance Analysis of the Furuno DRS12AX
Performance is where the DRS12AX truly shines, setting it apart from competitors in the marine radar market. Its advanced signal processing algorithms deliver precise, high-quality radar images, ensuring reliable target detection across various conditions.
Radar Performance and Range
The DRS12AX’s ability to detect targets at distances up to 96 nautical miles makes it a powerhouse for long-range surveillance. This extensive coverage is invaluable for offshore navigation, allowing mariners to spot distant vessels or landmasses well in advance. At closer ranges, its 20-meter minimum detection range ensures that small objects like buoys or crab pots remain visible, even in calm conditions.
The radar’s performance is further enhanced by its narrow beam width (0.5 degrees wider with the 4-foot array compared to the 6-foot option), which provides excellent target resolution. This precision is critical in congested areas, where distinguishing between closely spaced objects can prevent accidents.
Target Detection Capabilities
The DRS12AX excels at detecting and tracking multiple targets simultaneously. Its MARPA functionality, combined with Fast Target Tracking™, offers real-time updates on target movements, making it an indispensable tool for collision avoidance. Whether tracking small recreational boats or large commercial vessels, the radar provides consistent accuracy.
The Bird Mode adds another dimension to its detection capabilities, offering fishermen a reliable way to locate fish by tracking bird activity. Users report that this feature outperforms earlier models, requiring little to no adjustment for effective results.
Installation and Setup of the Furuno DRS12AX
Installing the DRS12AX is a straightforward process, thanks to its smart-connector cable and detailed setup guide provided by Furuno. However, proper preparation and equipment are essential for a successful installation.
Equipment Needed
To install the DRS12AX, you’ll need:
- A sturdy mounting bracket compatible with the radar’s 42-pound pedestal.
- High-quality cabling (15-meter cable included).
- A 24V DC power supply (or a Furuno NEW-12V-24V-7A converter for 12V systems, priced at $350).
- Basic tools (e.g., wrenches, screwdrivers) for securing the unit and connecting wiring.
The mounting bracket must be durable enough to handle marine conditions, while the power supply should be marine-grade to ensure stability.
Step-by-Step Setup Guide
- Mount the Radar Unit: Secure the pedestal to the mounting bracket in a location with an unobstructed view, typically 11 feet or higher above the waterline for optimal performance.
- Connect the Cables: Route the 15-meter smart-connector cable from the radar to the display unit, avoiding interference from other electronics.
- Power Up: Connect to a 24V DC source or use the converter for 12V systems.
- Configure Settings: Access the user interface to adjust range, gain, and other parameters as needed.
- Test the System: Perform a full sweep to ensure proper operation and target detection.
Furuno’s guide includes tips for optimizing performance, such as sealing the array bolts with white sealant to prevent water intrusion—a critical step to avoid bearing damage and noise issues reported by some users.
Navigating the User Interface
The DRS12AX features an intuitive user interface designed for ease of use, whether you’re a seasoned mariner or a novice boater. Compatible with Furuno’s NavNet TZtouch, TZtouch2, and TZtouch3 systems, it integrates seamlessly into modern navigation setups.
Control Panel Overview
The control panel includes a mix of buttons, knobs, and a high-resolution display screen. Buttons handle functions like power, menu navigation, and target tracking, while knobs allow precise adjustments to gain and range. The layout is ergonomic, ensuring accessibility even in rough seas.
Customizing Display Settings
Users can tailor the radar display to their needs by adjusting:
- Gain: Controls sensitivity to filter out noise or enhance weak signals.
- Range: Sets the scanning distance, from 20 meters to 96 nautical miles.
- Target Markers: Customizes symbols or colors for different targets (e.g., vessels, buoys).
These options allow mariners to optimize the radar for specific conditions, such as reducing gain in harbors or increasing it for long-range coastal scans.
Maintenance and Troubleshooting
To keep the DRS12AX performing at its best, regular maintenance and prompt troubleshooting are essential.
Regular Maintenance Tips
- Cleaning: Wipe down the unit to remove salt, dirt, and debris.
- Inspection: Check mounting brackets and connections for wear or corrosion.
- Sealing: Ensure array bolts are fully sealed with sealant to prevent water intrusion.
- Software Updates: Install updates from Furuno to maintain peak performance.
Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| Loud squeaking noise | Water in bearings | Reseal array bolts; service unit |
| Intermittent signals | Loose connections | Tighten cables and check power supply |
| Incorrect target tracking | Calibration needed | Recalibrate via user interface |
Users have reported squeaking noises from the pedestal, often due to improper sealing during installation. Slowing the rotation speed to 24 RPM can reduce noise, though it may slightly impact close-range performance. For persistent issues, Furuno’s customer service is highly regarded for its responsiveness.
Comparing the DRS12AX to Alternatives
When choosing a radar, mariners often compare the DRS12AX to other Furuno models like the DRS6A-NXT or competitors like Simrad. The DRS12AX’s 12 kW output outperforms the 6 kW DRS6A-NXT, offering superior range and bird-finding capability. However, the solid-state DRS25A-NXT provides Doppler tracking and instant-on features, appealing to those prioritizing navigation over raw power.
Against Simrad, Furuno’s reliability and customer service often tip the scales, though Simrad may excel in sidescan sonar integration. The DRS12AX’s compatibility with TZtouch systems and lack of a PSU requirement make it a cost-effective, high-performance option.
| Model | Power | Antenna Size | Best For |
|---|---|---|---|
| DRS12AX | 12kW | 4′ or 6′ | Long-range, commercial use |
| DRS6A-NXT | 6kW | 4′ | Budget-friendly, recreational |
| DRS25A-NXT | 25kW | 6′ | Professional offshore use |
Verdict: The DRS12AX offers the best balance of power, range, and affordability for serious boaters.
Final Verdict: Is the Furuno DRS12AX Worth It?
Pros:
- Exceptional long-range detection
- Reliable in all weather conditions
- Great for fishing (Bird Mode)
- Easy installation & low maintenance
Cons:
- Requires 24V power (extra cost for 12V boats)
- Some reports of pedestal noise (fixable)
Who Should Buy It?
- Offshore fishermen needing bird detection.
- Commercial vessels requiring long-range radar.
- Serious cruisers prioritizing safety.
For recreational boaters, the DRS6A-NXT may suffice, but if you need maximum performance, the DRS12AX is the clear winner.
Where to Buy & Pricing
- Price: ~6,170(4′array)/ 6,170(4′array)/ 6,770 (6′ array)
- Available at: Marine electronics retailers (West Marine, Defender, Hodges Marine).
Conclusion
The Furuno DRS12AX is a standout marine radar system, blending advanced technology with practical design. Its 12 kW power, 96-nautical-mile range, and features like Dual Range mode, MARPA, and Bird Mode make it a versatile tool for navigation, safety, and fishing. Easy to install and maintain, with a user-friendly interface, it caters to both professional mariners and recreational boaters. While minor issues like noise can arise from improper installation, its overall performance and Furuno’s stellar support make the DRS12AX a worthy investment for enhancing your marine experience.
Happy Boating!
