Thermal imaging technology has transformed how industries monitor equipment, ensure safety, and prevent costly failures. Among the standout solutions in this field is the FLIR AX8 Thermal Imaging Camera, a compact yet powerful device designed for continuous condition and safety monitoring. Manufactured by FLIR Systems, a leader in thermal imaging innovation, the AX8 integrates thermal and visual imaging into a single affordable package, offering real-time temperature monitoring, automated alarms, and seamless integration with industrial systems. This article explores the FLIR AX8 in depth, covering its features, technical specifications, applications, and why it stands out as a critical tool for modern industries.
Understanding Thermal Imaging Technology
Thermal imaging, or infrared imaging, detects heat emitted by objects and translates it into visible images, revealing temperature variations that the human eye cannot see. This non-invasive technique relies on cameras equipped with sensors, such as uncooled microbolometers, to capture infrared radiation. Unlike traditional cameras that depend on visible light, thermal imaging cameras excel in low-light or harsh conditions, making them indispensable across sectors like manufacturing, energy, transportation, and more.
The FLIR AX8 leverages this technology to provide continuous monitoring, spotting potential issues like overheating components or electrical faults before they escalate into failures. Its ability to operate in darkness, through smoke, or in confined spaces enhances its utility, offering a proactive approach to maintenance and safety.
FLIR Systems: A Legacy of Innovation
FLIR Systems has been a pioneer in thermal imaging since its founding in 1978. Originating from groundbreaking research by two MIT professors, the company has grown into a global leader, delivering cutting-edge solutions for professional and industrial use. With a diverse product portfolio ranging from handheld devices to integrated systems, FLIR caters to a wide array of applications, from building inspections to military-grade surveillance. The AX8 is a testament to FLIR’s commitment to combining affordability with advanced functionality, making high-quality thermal imaging accessible to more users.

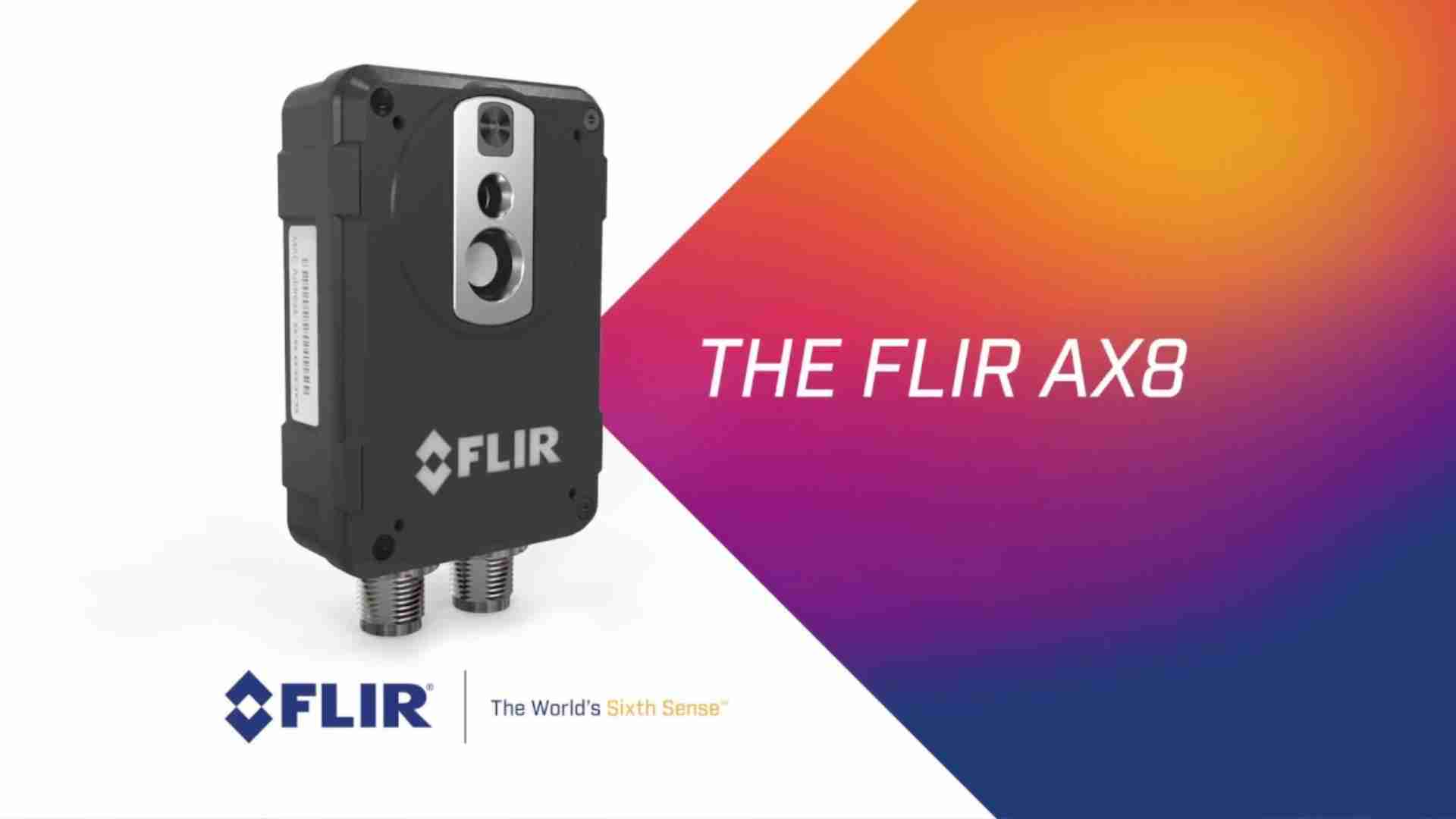

Key Features of the FLIR AX8
The FLIR AX8 is engineered for reliability and ease of use, offering a suite of features that make it ideal for continuous monitoring. Here’s a closer look at what sets it apart:
1. Dual Thermal and Visual Imaging
The AX8 combines an 80 x 60 pixel thermal sensor with a 640 x 480 pixel visual camera, providing both infrared and visible light perspectives. This dual capability is enhanced by FLIR’s proprietary Multi-Spectral Dynamic Imaging (MSX) technology, which overlays visual details onto thermal images. MSX sharpens edges, highlights labels, and improves contextual awareness, making it easier to identify specific components or anomalies.
2. Compact and Durable Design
Measuring just 54 x 25 x 95 mm (with connectors), the AX8 is small enough to fit into tight spaces like electrical cabinets or machinery housings. Its IP67-rated encapsulation ensures resistance to dust and water, while its rugged build withstands bumps (25g) and vibrations (2g), making it suitable for harsh industrial environments.
3. Continuous Temperature Monitoring
With a temperature range of -10°C to +150°C (14°F to 302°F) and an accuracy of ±2°C or ±2% of the reading, the AX8 delivers precise measurements. It supports up to six spot meters and six area boxes for detailed analysis, automatically detecting hot or cold spots and providing max/min/average temperature data.
4. Automated Alarms and Analysis
The AX8 features automatic alarm functions, allowing users to set up to five temperature thresholds. When exceeded, it triggers digital outputs, stores images, sends files via FTP, emails notifications (SMTP), or alerts a PLC, ensuring rapid response to potential issues.
5. Seamless Industrial Integration
Ethernet/IP and Modbus TCP compliance enable easy integration with programmable logic controllers (PLCs). The camera supports Power over Ethernet (PoE) and a variety of protocols (e.g., TCP, UDP, HTTP, RTSP), facilitating control, data streaming, and image transfer over a 100 Mbps Ethernet connection.
6. Versatile Video Streaming
The AX8 offers multiple streaming formats—Motion JPEG, MPEG, and H.264—at a resolution of 640 x 480 pixels. This flexibility ensures compatibility with various systems, providing live video feeds for real-time monitoring.
Technical Specifications at a Glance
To understand the AX8’s capabilities, here’s a detailed breakdown of its specifications:
| Category | Specification |
|---|---|
| IR Resolution | 80 x 60 pixels |
| Thermal Sensitivity | < 0.10°C @ +30°C (100 mK) |
| Field of View (FOV) | 48° x 37° |
| Temperature Range | -10°C to +150°C (14°F to 302°F) |
| Accuracy | ±2°C or ±2% of reading (+10°C to +100°C at +10°C to +35°C ambient) |
| Visual Camera | 640 x 480 pixels, adapts to IR lens |
| Image Modes | Thermal, Visual, MSX |
| Ethernet Connector | M12 8-pin X-coded, 100 Mbps |
| Power | 12/24V DC (2W continuous, 3.1W max) or PoE IEEE 802.3af Class 0 |
| Operating Temperature | 0°C to +50°C (32°F to +122°F) |
| Encapsulation | IP67 |
| Weight | 4.5 ounces (approx. 127 grams) |
| Dimensions | 54 x 25 x 95 mm (2.1 x 1 x 3.7 in.) with connectors |
This table highlights the AX8’s balance of precision, durability, and connectivity, making it a versatile tool for diverse applications.
Applications Across Industries
The FLIR AX8’s compact design and advanced features make it a valuable asset in numerous sectors. Here’s how it enhances safety and efficiency across different industries:
1. Electrical Systems
In electrical cabinets and control panels, the AX8 monitors for hot spots caused by loose connections, load imbalances, or corrosion. Early detection prevents outages, fires, and equipment damage, ensuring uninterrupted operations.
2. Manufacturing and Process Control
Manufacturing plants rely on machinery like motors, bearings, and heat exchangers. The AX8 identifies overheating components, enabling predictive maintenance that reduces downtime and extends equipment lifespan.
3. Data Centers
Data centers require constant temperature regulation to protect sensitive equipment. The AX8 provides continuous monitoring, alerting staff to cooling failures or overheating servers, safeguarding critical infrastructure.
4. Energy Generation and Distribution
In power plants and substations, the AX8 detects thermal anomalies in transformers, cables, and generators, preventing failures that could disrupt energy supply.
5. Transportation and Mass Transit
For rail systems and vehicle fleets, the AX8 monitors brakes, engines, and electrical systems, reducing the risk of fires or mechanical breakdowns that could endanger passengers and cargo.
6. Storage and Refrigeration
In warehouses storing volatile materials or perishable goods, the AX8 ensures temperature stability, preventing spoilage or hazardous conditions like thermal runaway in batteries.
How the FLIR AX8 Enhances Predictive Maintenance
Predictive maintenance uses data to anticipate equipment failures, minimizing unplanned downtime. The AX8 plays a pivotal role by providing longitudinal temperature data, revealing trends that signal wear or impending faults. For example, a gradual increase in a motor’s temperature might indicate bearing wear, prompting timely intervention. Unlike manual scans, which are periodic and labor-intensive, the AX8’s continuous monitoring offers real-time insights, making it a cost-effective first line of defense.
Case Study: Wood Production
In wood processing plants, planers are critical machines prone to overheating. By installing the AX8, operators can monitor heat distribution in real time. When temperatures exceed safe limits, automated alarms trigger immediate action, preventing breakdowns and maintaining production schedules.
1. Preventing Equipment Failures
Unplanned downtime due to electrical or mechanical failures can cost industries thousands per hour. The FLIR AX8 detects hotspots, overheating components, and insulation breakdowns before they lead to catastrophic failures.
2. Enhancing Workplace Safety
Thermal imaging identifies overheating circuits, faulty connections, and fire hazards, reducing the risk of electrical fires and workplace accidents.
3. Cost-Efficient Predictive Maintenance
By continuously monitoring equipment, the AX8 helps shift from reactive to predictive maintenance, extending machinery lifespan and reducing repair costs.
Advanced MSX Technology: A Game-Changer
FLIR’s MSX technology is a standout feature of the AX8. By blending thermal and visual images, MSX creates a hybrid output that retains the thermal data’s accuracy while adding visible details like component outlines or labels. This clarity is invaluable in complex environments like electrical panels, where identifying the exact source of a hot spot can be challenging. The result is faster diagnostics and more informed decision-making.
Comparison: Thermal vs. MSX Imaging
| Aspect | Thermal Only | MSX Enhanced |
|---|---|---|
| Detail Clarity | Limited to heat patterns | Adds visible edges and labels |
| Context Awareness | Requires interpretation | Immediate recognition of objects |
| Diagnostic Speed | Slower due to ambiguity | Faster with precise targeting |
Installation and Integration
The AX8’s compact size and flexible mounting options (e.g., front/rear plates, ball joint brackets) simplify installation in space-constrained areas. Its M12 8-pin X-coded Ethernet connector supports PoE, reducing wiring complexity. The camera’s web interface allows remote configuration, while compatibility with industrial protocols ensures it integrates seamlessly into existing networks. Accessories like PoE injectors and Ethernet cables further streamline setup.
Step-by-Step Installation Guide
- Select Location: Choose a spot with a clear view of the target (e.g., electrical cabinet interior).
- Mount Camera: Secure using a compatible bracket (e.g., T199163 Front Mounting Plate Kit).
- Connect Power: Use PoE or a 12/24V DC supply via the M12 connector.
- Network Setup: Connect to an Ethernet network and configure via the web interface.
- Set Alarms: Define temperature thresholds and link to PLC or notification systems.
Performance in Real-World Conditions
The AX8 operates reliably from 0°C to +50°C (32°F to 122°F), with storage tolerance from -40°C to +70°C (-40°F to 158°F). Its IP67 rating protects against dust and water, while compliance with EMC standards (e.g., EN 61000-6-2) ensures electromagnetic compatibility in industrial settings. The camera’s thermal sensitivity (<0.10°C) detects subtle changes, making it ideal for early fault detection.
Comparing the FLIR AX8 to Alternatives
While the AX8 excels in its niche, it’s worth comparing to other FLIR models and competitors:
FLIR AX8 vs. FLIR E-Series
The FLIR E-Series (e.g., E5xt) offers higher IR resolution (up to 320 x 240) and a handheld design, ideal for portable inspections. However, the AX8’s fixed-mount, continuous monitoring capability and lower cost make it better suited for stationary applications.
FLIR AX8 vs. Competitor Models
Compared to alternatives like the Optris PI series, the AX8’s MSX technology and industrial protocol support provide a competitive edge. While some rivals offer higher resolution, the AX8’s affordability and integration features appeal to budget-conscious users needing reliable monitoring.
| Feature | FLIR AX8 | FLIR E8 | FLIR T540 |
|---|---|---|---|
| Resolution | 80 × 60 | 320 × 240 | 464 × 348 |
| Visual Camera | Yes | No | Yes |
| Continuous Monitoring | Yes | No | No |
| Industrial Protocols | Modbus, Ethernet/IP | No | No |
| Price Range | Mid-range | Entry-level | High-end |
Why Choose the FLIR AX8?
The FLIR AX8 strikes a balance between performance, durability, and cost. Its ability to prevent outages, reduce maintenance expenses, and enhance safety justifies its investment. For industries reliant on uptime—such as manufacturing, energy, or data management—the AX8 delivers peace of mind through proactive monitoring and rapid response capabilities.
Cost-Benefit Analysis
| Factor | Benefit | Cost Offset |
|---|---|---|
| Downtime Reduction | Early fault detection | Savings from avoided outages |
| Maintenance | Predictive rather than reactive | Lower repair costs |
| Safety | Prevents fires and failures | Reduced liability expenses |
Conclusion
The FLIR AX8 Thermal Imaging Camera is a game-changer for continuous condition and safety monitoring. Its compact design, dual imaging capabilities, and robust integration options make it an essential tool for industries aiming to optimize operations and minimize risks. Whether safeguarding electrical systems, enhancing manufacturing efficiency, or protecting critical infrastructure, the AX8 delivers unmatched value. Backed by FLIR Systems’ decades of expertise, it’s a reliable, forward-thinking solution for today’s industrial challenges.
For those seeking a dependable, cost-effective way to monitor equipment health and ensure safety, the FLIR AX8 stands out as a top choice, blending cutting-edge technology with practical application.
Where to Buy?
- Price: ~€1,089 (ex. VAT)
- Availability: Industrial suppliers, FLIR-authorized distributors
Pros:
- Affordable continuous monitoring
- Easy integration with PLCs
- Rugged, IP67-rated design
Cons:
- Lower resolution than high-end models
- Fixed focus (no manual adjustment)
For industries prioritizing real-time thermal monitoring, the FLIR AX8 delivers unmatched value and reliability.
