Starters are the unsung heroes of internal combustion engines, providing the critical initial torque to set pistons in motion. Whether powering a boat slicing through waves or a car cruising down the highway, starters are indispensable. While marine and automotive starters share the fundamental goal of cranking an engine, their design, construction, and performance are tailored to vastly different environments. This article dives deep into the nuances of marine and automotive starters, exploring their mechanics, differences, safety considerations, and maintenance needs to help you make informed decisions for your vehicle or vessel.
Understanding Starters: The Heart of Engine Ignition
A starter is an electric motor that converts electrical energy from a battery into mechanical energy to crank an engine, initiating the combustion process. When you turn the ignition key or press the start button, the starter engages, driving the engine’s flywheel or flexplate to begin rotation. This process is vital for both marine and automotive engines, but the environments and demands they face necessitate distinct designs.
How Starters Work
The starter system comprises several key components:
- Solenoid: Acts as a magnetic switch, controlling the flow of electricity from the battery to the starter motor. When activated, it engages the pinion gear with the engine’s flywheel or flexplate.
- Armature: A cylindrical core of iron laminations with wire windings that generate a magnetic field when electrified, driving the motor’s rotation.
- Brushes: Typically made of carbon or graphite, these transfer electrical current to the armature via the commutator, a segmented copper cylinder.
- Pinion Gear: A small gear that meshes with the flywheel or flexplate to transfer torque from the starter motor to the engine.
- Commutator: Ensures continuous current flow to the armature as it rotates.
When the ignition is activated, the solenoid closes electrical contacts, sending current to the armature. The armature’s magnetic field interacts with the solenoid’s, causing the armature to spin. This rotation drives the pinion gear, which engages the flywheel or flexplate, cranking the engine until combustion begins. Once the engine starts, the pinion gear disengages to prevent damage.

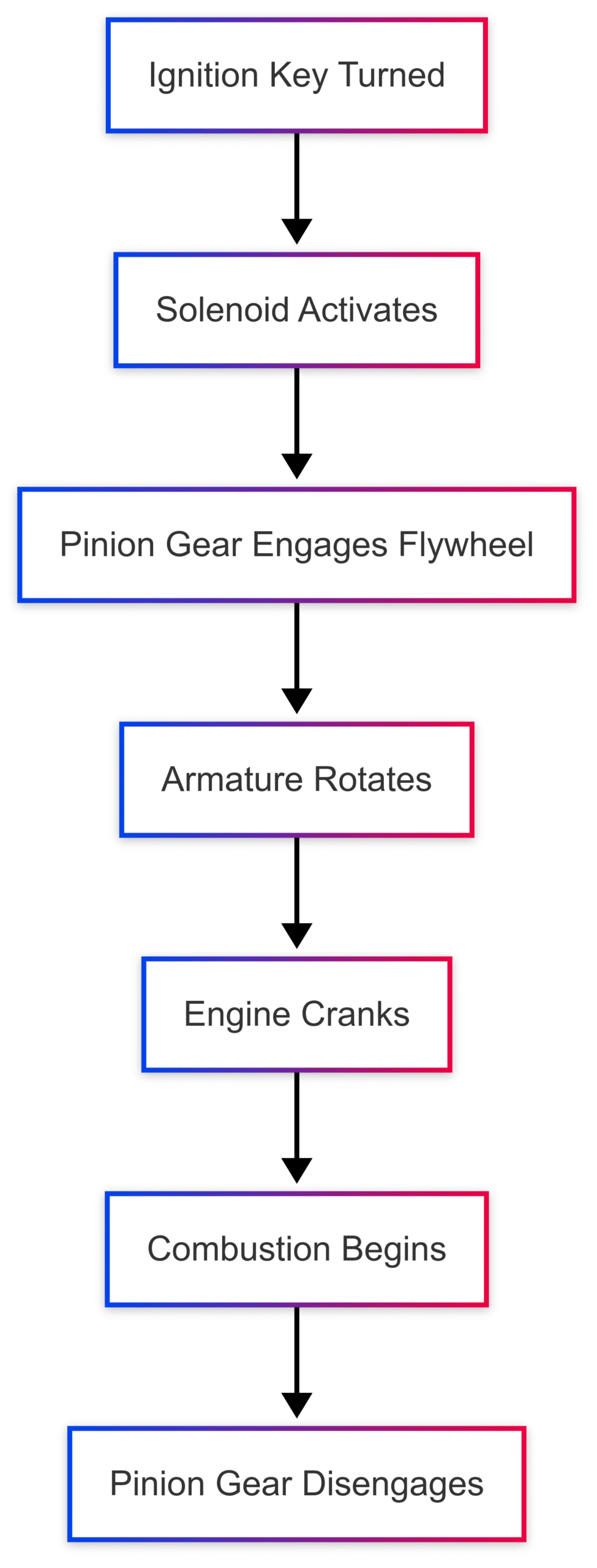

Below is a simplified flowchart illustrating the starter engagement process:
Marine vs. Automotive Starters: Key Differences
While marine and automotive starters share a common purpose, their design and functionality diverge significantly due to the unique challenges of their operating environments. Below, we explore these differences in detail.
Design and Construction
Marine Starters
Marine starters are engineered to withstand the harsh conditions of aquatic environments, including constant exposure to water, salt, and humidity. Key design features include:
- Corrosion-Resistant Materials: Components are often made from stainless steel, brass, or coated alloys to resist saltwater corrosion.
- Sealed Housings: Marine starters are fully sealed to prevent water ingress, often featuring rubber gaskets and silicone seals at joints.
- Spark Suppression: To prevent ignition of flammable bilge gases, marine starters incorporate internal shielding, such as a sealed plate between the bendix (pinion gear mechanism) and armature, and varnished or rubber-coated field coils.
- SAE J1171 Certification: Marine starters must meet stringent safety standards, including operation in explosive atmospheres, to earn this certification.
Automotive Starters
Automotive starters, designed for terrestrial environments, prioritize compactness and efficiency. Their construction includes:
- Lightweight Materials: Aluminum and lightweight alloys reduce weight, fitting snugly within cramped engine compartments.
- Open or Ventilated Housings: Unlike marine starters, automotive starters often have vented casings to dissipate heat, as they are not exposed to constant moisture.
- Standard Components: Copper terminals and standard field coils are common, as corrosion resistance is less critical.
Performance and Efficiency
Marine Starters
Marine engines, often larger and heavier than automotive ones, demand starters with higher torque output. Key performance characteristics include:
- High Torque Ratings: Marine starters are designed to crank engines ranging from small outboards to large yacht powerplants, requiring robust torque to overcome resistance.
- High IP Ratings: Ingress Protection (IP) ratings ensure resistance to water spray and submersion, maintaining performance in wet conditions.
- Gear Reduction Systems: Many modern marine starters use gear reduction to enhance torque while reducing current draw, improving efficiency for larger engines.
Automotive Starters
Automotive starters are optimized for smaller, more compact engines, balancing performance with energy efficiency:
- Moderate Torque: Sufficient to start car and truck engines, typically ranging from 1.0L to 6.0L.
- Energy Efficiency: Designed to minimize battery drain, crucial for fuel economy and frequent starts in urban driving.
- Noise Reduction: Gear reduction and sound-dampening technologies reduce operational noise, enhancing driver comfort.
Durability and Lifespan
Marine Starters
The marine environment—marked by saltwater, vibrations, and moisture—demands exceptional durability:
- Corrosion Resistance: Materials and coatings extend lifespan despite constant exposure to corrosive elements.
- Vibration Tolerance: Robust construction withstands engine and wave-induced vibrations.
- Average Lifespan: With proper maintenance, marine starters can last 5-10 years, though corrosion can shorten this in neglected systems.
Automotive Starters
Automotive starters face different challenges, such as temperature fluctuations and road vibrations:
- Temperature Resilience: Insulated components withstand extreme heat and cold, common in engine compartments.
- Vibration Resistance: Sturdy designs absorb shocks from rough roads or off-road conditions.
- Average Lifespan: Typically 7-12 years, depending on driving conditions and maintenance.
Safety Considerations
Safety is paramount for both marine and automotive starters, but the risks they mitigate differ significantly.
Marine Starters
Marine starters prioritize explosion prevention due to the risk of flammable bilge gases:
- Spark Suppression: Sealed designs and internal shields prevent sparks from igniting gasoline vapors, adhering to SAE J1171 standards.
- Thermal Protection: Prevents overheating, reducing fire risk.
- Waterproof Connectors: Maintain electrical integrity in wet conditions, preventing short circuits.
Automotive Starters
Automotive starters focus on electrical and operational safety:
- Overcurrent Protection: Prevents electrical damage from power surges.
- Anti-Restart Systems: Avoid accidental engagement while the engine is running.
- Wire Harness Shielding: Reduces electromagnetic interference, ensuring reliable operation.
Environmental Impact
The operating environment profoundly influences starter performance and longevity.
Marine Environment
Marine starters contend with:
- Saltwater Corrosion: Accelerates wear on unprotected components.
- Moisture and Submersion: Requires robust sealing to prevent water ingress.
- Bilge Gas Accumulation: Necessitates spark-proof designs to avoid explosions.
Road Environment
Automotive starters face:
- Temperature Extremes: From scorching engine bays to freezing winters.
- Dust and Debris: Can clog vents or wear components if not properly sealed.
- Vibrations: From engine operation and road conditions.
Comparative Analysis: Marine vs. Automotive Starters
To summarize the differences, the following table compares key attributes of marine and automotive starters:
| Feature | Marine Starters | Automotive Starters |
|---|---|---|
| Environment | Water, salt, humidity | Temperature fluctuations, dust, vibrations |
| Materials | Stainless steel, brass, corrosion-resistant coatings | Aluminum, copper, lightweight alloys |
| Sealing | Fully sealed, high IP ratings | Vented or partially sealed |
| Torque Output | High, for larger engines | Moderate, for compact engines |
| Safety Features | Spark suppression, thermal protection, waterproof connectors | Overcurrent protection, anti-restart, wire shielding |
| Certification | SAE J1171 for explosion-proofing | None specific, general automotive standards |
| Lifespan | 5-10 years (with maintenance) | 7-12 years (with maintenance) |
| Cost (Average) | $50-$350 (depending on engine size) | $30-$150 (depending on vehicle type) |

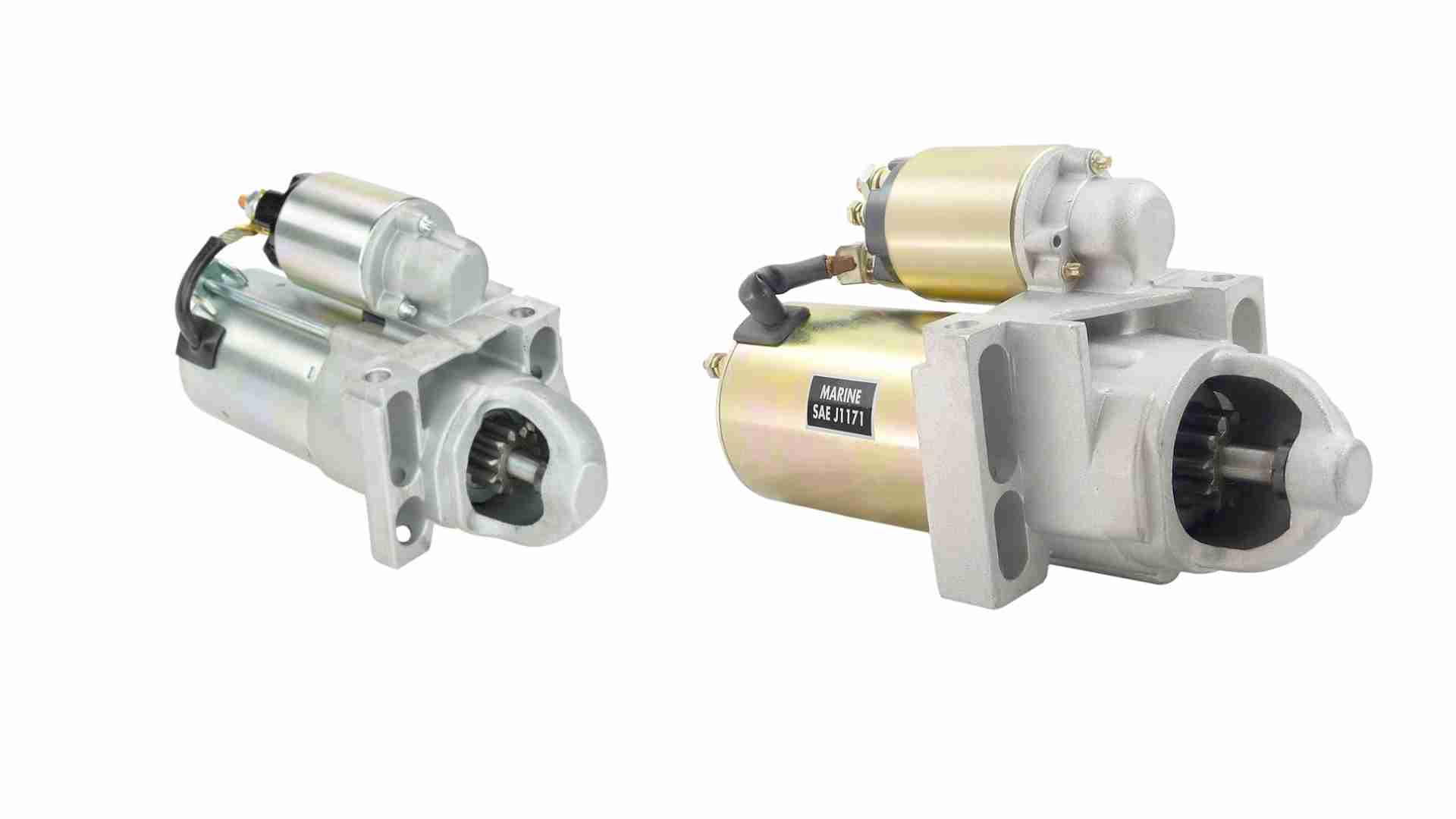

Identifying Marine vs. Automotive Starters
Distinguishing a marine starter from an automotive one, especially for Big Block Chevy (BBC) engines, is critical for safety and compliance. External and internal features provide clues:
External Identification
- SAE J1171 Marking: Marine starters often have “SAE Marine” or “J1171” stamped or labeled on the housing, indicating certification.
- Sealing: Look for silicone or rubber seals at joints, such as between the motor body and nose, or around the solenoid.
- Rubber Boot: A rubber insulator around the solenoid post is common in marine starters to prevent arcing, though not definitive.
- Corrosion Resistance: Marine starters may have coated or painted surfaces, both inside and out, to resist rust.
Internal Identification
- Shielding Plate: A marine starter typically has a sealed plate between the bendix and armature to contain sparks. If you can see windings or the armature through the bendix, it’s likely automotive.
- Coated Components: Varnished or rubber-coated field coils and brass (not copper) terminals indicate a marine starter.
- Gaskets: Marine starters feature robust gaskets at the solenoid and housing to prevent gas ingress.
Practical Example: BBC Starters
For BBC engines (e.g., 454 stroker), marine and automotive starters may appear similar externally, as both can bolt onto the engine. However, using an automotive starter in a marine application risks catastrophic failure. For instance, a user on a boating forum discovered their “SAE Marine” stamped starter was a modified automotive unit, lacking the critical shielding plate, highlighting the importance of internal inspection.
Maintenance and Repair
Proper maintenance extends the life of both marine and automotive starters, but their unique environments dictate different approaches.
Marine Starters
Common Issues:
- Corrosion: Saltwater exposure erodes unprotected components.
- Moisture Intrusion: Compromises seals and electrical connections.
- Worn Brushes/Solenoid Contacts: Due to frequent starts in harsh conditions.
Solutions:
- Regular Cleaning: Rinse with freshwater to remove salt deposits.
- Seal Inspection: Check and replace gaskets or silicone seals as needed.
- Brush Replacement: Replace worn brushes every 2-3 years or as indicated by performance issues.
- Professional Rebuild: Use marine-certified shops to ensure proper shielding is maintained.
Automotive Starters
Common Issues:
- Electrical Failures: From battery issues or wiring faults.
- Worn Solenoids: Due to frequent starts in stop-and-go driving.
- Damaged Pinion Gears: From improper engagement or wear.
Solutions:
- Battery Checks: Ensure the battery is fully charged to reduce starter strain.
- Periodic Inspections: Check for loose connections or worn components.
- Component Replacement: Replace solenoids or pinion gears as needed, using OEM or high-quality aftermarket parts.
- Lubrication: Apply anti-seize to mounting bolts for easier future removal.
Cost and Availability
Marine starters are generally more expensive due to their specialized construction and safety features. Below is a sample of starter prices for common applications:
| Application | Model/SKU | Price (USD) | Source |
|---|---|---|---|
| Mercruiser 4.3L/5.0L/5.7L (1998-Up) | 6792NB_DSA-PS-1 | $73.69 | Discount Starter & Alternator |
| Mercury Marine 40-70HP | 5399N | $54.99 | Discount Starter & Alternator |
| Mercruiser 3.0/3.0LX (1990-1998) | 6563NK-1 | $71.49 | Discount Starter & Alternator |
| Automotive (GM 350) | Various (e.g., PowerMaster) | $30-$100 | AutoZone, Summit Racing |
| Automotive BBC High-Torque Mini | PowerMaster Max | $100-$150 | Jegs, Team C |
Rebuilt marine starters can cost as little as $65-$130, offering a cost-effective alternative, while automotive rebuilds are typically $20-$50 cheaper. Always verify marine starters meet SAE J1171 standards before purchase.
Safety and Regulatory Considerations
Marine Starters
The risk of bilge gas explosions makes marine starters subject to strict regulations:
- SAE J1171 Standards: Requires starters to operate safely in explosive atmospheres, passing tests for ignition resistance.
- US Coast Guard Regulations: Mandate ignition-protected components in enclosed engine compartments to prevent fires or explosions.
- Insurance Requirements: Non-compliant starters may void insurance claims, especially post-incident.
Using an automotive starter in a boat, particularly in an enclosed compartment, is not only dangerous but also illegal. Forum discussions highlight real-world consequences, such as boats exploding due to non-marine starters igniting bilge fumes, emphasizing the need for compliance.
Automotive Starters
Automotive starters face fewer regulatory hurdles, as car engine compartments are open, reducing the risk of gas accumulation. However, using high-quality, OEM-spec starters ensures reliability and safety, particularly in high-performance or heavy-duty vehicles.
Practical Tips for Boat Owners
For boat owners, especially those with BBC engines, ensuring a marine starter is installed is critical. Here are actionable tips:
- Verify Certification: Check for SAE J1171 or “Marine” markings. If unsure, consult a marine electrician or disassemble to inspect for shielding.
- Run Bilge Blowers: Operate blowers for at least 4-5 minutes before starting to clear potential fumes, as recommended by the US Coast Guard.
- Open Engine Hatches: Ventilate the engine compartment manually before starting, especially in older boats without blowers.
- Carry Spares: Keep a rebuilt marine starter as a backup, particularly for long trips.
- Consult Professionals: Use marine-certified mechanics for installations and rebuilds to ensure compliance and safety.
Conclusion
Marine and automotive starters, while sharing a common purpose, are tailored to their respective environments. Marine starters prioritize corrosion resistance, spark suppression, and durability to withstand water and salt, while automotive starters focus on compactness, efficiency, and cost-effectiveness for road conditions. Understanding these differences is crucial for selecting the right starter, ensuring safety, and complying with regulations. For marine applications, always opt for SAE J1171-certified starters to prevent catastrophic failures, and maintain rigorous maintenance schedules to maximize lifespan. By appreciating the engineering behind these vital components, vehicle and vessel owners can ensure reliable performance and peace of mind.
Happy Boating!
