The Essentials Of Handheld Marine Radios

Discover the essentials of handheld marine radios, key features like DSC, GPS, and waterproofing, and top models for safe boating communication.

Handheld marine radios are indispensable tools for boaters, serving as critical safety devices and reliable communication systems on the water. Whether you’re navigating a small dinghy or a large yacht, these compact devices ensure you stay connected with other vessels, marinas, and emergency services like the Coast Guard. This guide explores the core features, technical specifications, operational protocols, and top models of handheld marine radios, helping you make an informed purchase and use them effectively.

What is a Handheld Marine Radio and Why is it Essential?

A handheld marine radio is a portable communication device operating on the Very High Frequency (VHF) band, designed specifically for maritime use. Unlike fixed-mount radios, these devices are compact, battery-powered, and easy to carry, making them ideal for emergencies and everyday communication. They allow boaters to send distress signals, contact the Coast Guard, communicate with nearby vessels, or coordinate with marinas.

Why You Need a Handheld Marine Radio

• Emergency Communication: In critical situations like engine failure or man-overboard incidents, a handheld marine radio can be a lifeline, enabling distress calls with precise location data via Digital Selective Calling (DSC).
• Backup for Fixed Radios: Even if your vessel has a fixed-mount radio, a handheld unit serves as a reliable backup in case of power failure or lightning strikes.
• Day-to-Day Operations: Handheld radios facilitate routine tasks like checking in with marinas, coordinating with other boats, or receiving weather updates.
• Portability: Their compact size makes them ideal for use on small boats, dinghies, or life rafts where fixed radios are impractical.

Without a handheld marine radio, you risk being stranded without communication, especially in remote areas where cell phones are unreliable due to limited coverage.

Key Features to Look for in a Handheld Marine Radio

Choosing the right handheld marine radio involves evaluating several critical features to ensure reliability, usability, and safety. Below are the must-have specifications and considerations:

1. VHF Marine Radio Functionality

Handheld marine radios operate on the VHF band (156-162 MHz), the global standard for maritime communication. VHF signals are line-of-sight, meaning their range depends on the antenna height and power output. Most handheld radios offer 1-6 watts of power, providing a range of 5-10 miles under optimal conditions.

2. Digital Selective Calling (DSC)

DSC is a critical safety feature that allows users to send automated distress signals with a single button press. These signals include the vessel’s Maritime Mobile Service Identity (MMSI) number and, if equipped with GPS, precise location coordinates. DSC-enabled radios can also receive distress calls from other vessels, enhancing situational awareness.

3. Waterproofing and Floating Design

Marine environments are harsh, with constant exposure to water, salt, and humidity. Look for radios with a high waterproof rating, such as IPX7 (submersible in 1 meter of water for 30 minutes) or IPX8 (continuous submersion). A floating design is equally important—if dropped overboard, the radio will float and often includes flashing lights for easy retrieval in low-visibility conditions.

4. Built-in GPS

A built-in GPS receiver is a game-changer for emergency situations. It automatically embeds your location in DSC distress calls, reducing response time for rescuers. GPS-enabled radios also allow navigation features like waypoint marking, which is useful for coastal cruising or fishing.

5. Battery Life and Charging Options

Battery life is a critical factor, as handheld radios rely on rechargeable or disposable batteries. Most models offer 10-20 hours of standby time, but transmitting at high power (e.g., 6 watts) significantly reduces this. Look for:

• Rechargeable Batteries: Lithium-ion batteries with USB or cradle charging options.
• Disposable Battery Trays: Useful for emergencies when recharging isn’t possible.
• Charging Flexibility: Models with USB-C charging or 12V compatibility for onboard use.

6. Range and Power Settings

Handheld marine radios typically operate at 1, 2, or 6 watts. Higher wattage extends range but drains the battery faster. For example:

• 1 Watt: Ideal for short-range communication (e.g., within a marina or between crew members on the same vessel).
• 6 Watts: Best for longer-range communication, such as contacting coastal stations or other boats up to 10 miles away.
  Range is also affected by antenna height and environmental factors like sea state or obstructions.

7. Easy-to-Use Interface

A user-friendly interface is crucial, especially in high-stress situations. Look for radios with:

• Large, backlit displays for readability in low light.
• Intuitive controls and clearly labeled buttons.
• Simple menus for accessing channels and settings.

8. Multiple Channel Watch

Dual-watch and tri-watch features allow monitoring of multiple channels simultaneously. For example:

• Dual-Watch: Monitors Channel 16 (distress and calling) and one other channel.
• Tri-Watch: Monitors Channel 16, a secondary channel (e.g., Channel 9 for calling), and a third user-selected channel (e.g., Channel 69 for ship-to-ship communication).
  This is particularly useful in busy waterways or during fleet operations.

9. Noise Cancellation and Squelch

Marine environments are noisy, with engine rumble, wind, and waves. Effective squelch control filters out background noise, ensuring clear audio. Advanced models may include proprietary noise-canceling technology for enhanced clarity.

10. Automatic Weather Alerts

Many handheld marine radios include NOAA Weather Radio channels (in the U.S.) or equivalent services elsewhere. Automatic weather alerts notify you of severe weather conditions, helping you make informed decisions about your route or anchoring plans.

VHF Marine Radio Channels: A Quick Reference

Understanding VHF channel usage is essential for effective communication. Below is a table summarizing key channels and their purposes in the U.S. and UK:

Note: Always check local regulations for channel usage, as restrictions may apply.

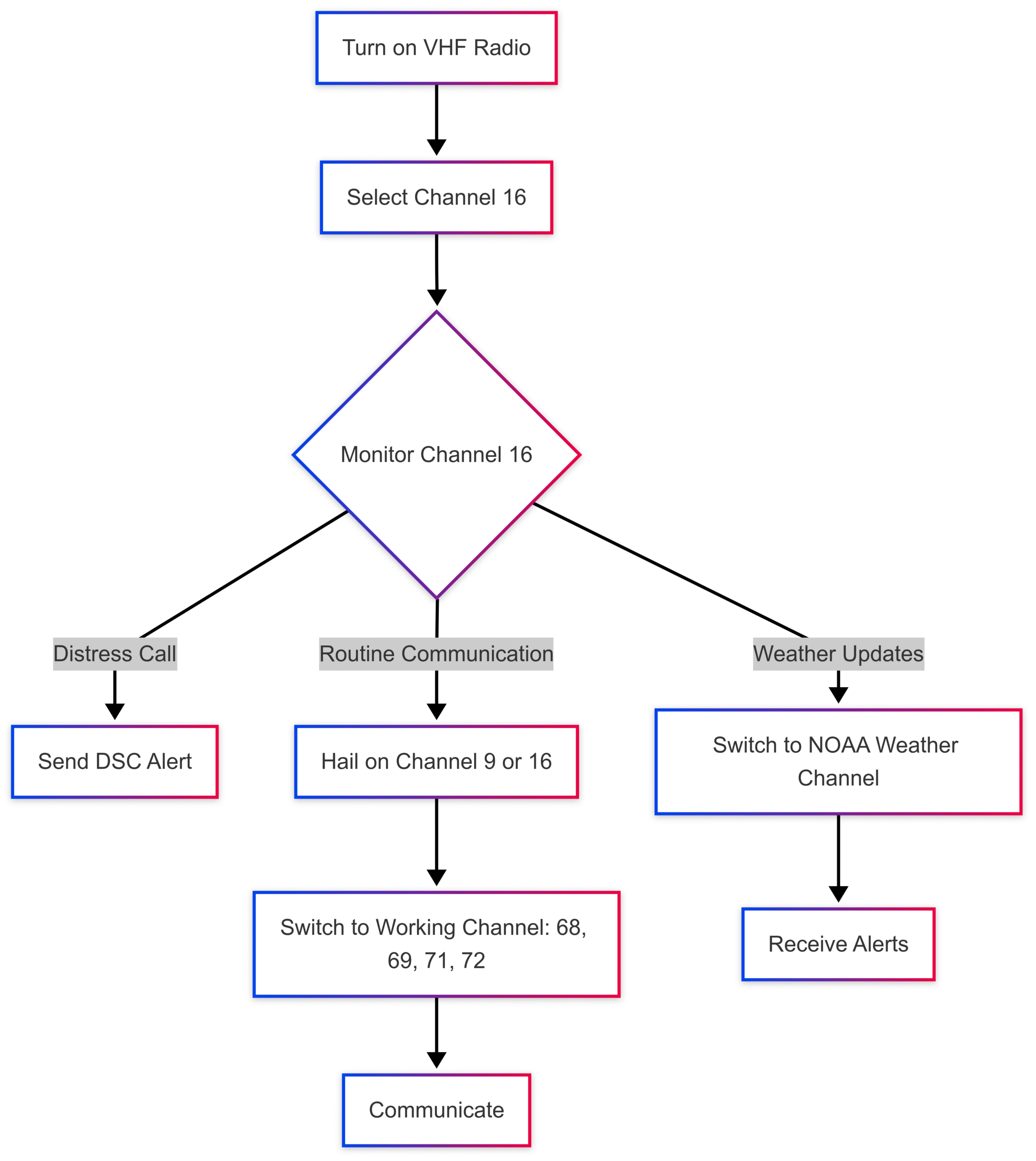

Chart: VHF Channel Usage Workflow

Top Handheld Marine Radios: Models, Specs, and Prices

Below is a comparison of some of the best handheld marine radios available, based on features, performance, and value.

Model Highlights

1. Standard Horizon HX890: A premium choice with DSC, built-in GPS, and a rugged, floating design. It includes a strobe light for emergencies and supports dual/tri-watch.
2. Icom IC-M25: Lightweight and affordable, ideal for recreational boaters. It lacks GPS but offers excellent battery life and a flashing light when submerged.
3. Cobra MR HH600: Combines DSC, GPS, and Bluetooth for smartphone integration. Its long battery life makes it suitable for extended trips.
4. Uniden MHS75: Budget-friendly with solid waterproofing and reliable performance for short-range communication.
5. Garmin VHF 215i: Offers optional GPS and a clear display, making it a versatile choice for coastal cruising.

Accessories to Enhance Your Handheld Marine Radio

To maximize the utility of your handheld marine radio, consider these accessories:

• Holder/Clip: Keeps the radio secure and accessible on your belt or boat console.
• Remote Access Microphone: Allows hands-free operation, ideal for multitasking on the water.
• Spare Batteries: A disposable battery tray (AA/AAA) is essential for emergencies when recharging isn’t possible.
• USB Charger/Cradle: Ensures convenient charging, with cradles being more reliable in wet conditions.
• Carrying Case: Protects the radio from drops and scratches during storage or transport.

How to Care for Your Handheld Marine Radio

Proper maintenance extends the lifespan of your radio and ensures it’s ready for emergencies. Follow these tips:

1. Clean After Use: Wipe the radio with a damp cloth to remove salt and grime.
2. Store Properly: Keep it in a cool, dry place when not in use, ideally in a protective case.
3. Check Batteries: Replace or recharge batteries regularly. Remove disposable batteries during long-term storage.
4. Inspect for Damage: Check for cracks, corrosion, or worn seals, and have repairs done by a qualified technician.
5. Test Monthly: Transmit on a clear channel to ensure functionality.

Operating Your Handheld Marine Radio: Best Practices

Using a VHF radio requires adherence to proper protocols to ensure clear communication and compliance with regulations:

• Monitor Channel 16: Always keep Channel 16 active unless actively communicating on another channel.
• Switch to Working Channels: After hailing on Channel 16 or 9, move to a working channel (e.g., 68, 69) to avoid congestion.
• Keep Conversations Brief: VHF is a shared resource, so avoid long conversations and use appropriate language.
• Avoid False Alerts: Never transmit a false distress call, as it’s illegal and diverts resources from real emergencies.
• Set Squelch Correctly: Adjust squelch to eliminate white noise while ensuring clear reception.

Licensing Requirements

• United States: Recreational boaters don’t need a license for VHF use within U.S. waters, but a license is required for international travel or DSC-enabled radios (FCC-issued MMSI).
• United Kingdom: A VHF license from Ofcom is mandatory, along with an MMSI for DSC radios.
• Other Countries: Check local regulations, as licensing requirements vary.

Understanding Range and Power Settings

The range of a handheld VHF radio depends on:

• Antenna Height: A radio held at sea level (e.g., in a life raft) may only reach 4-5 miles, while one used from a cockpit (1-2 meters above sea level) can reach 10 miles.
• Power Output: Most radios default to 6W on Channel 16 for maximum range, but switch to 1W on channels like 15 or 17 for onboard communication.
• Environmental Factors: Rough seas, landmasses, or atmospheric conditions can reduce range.

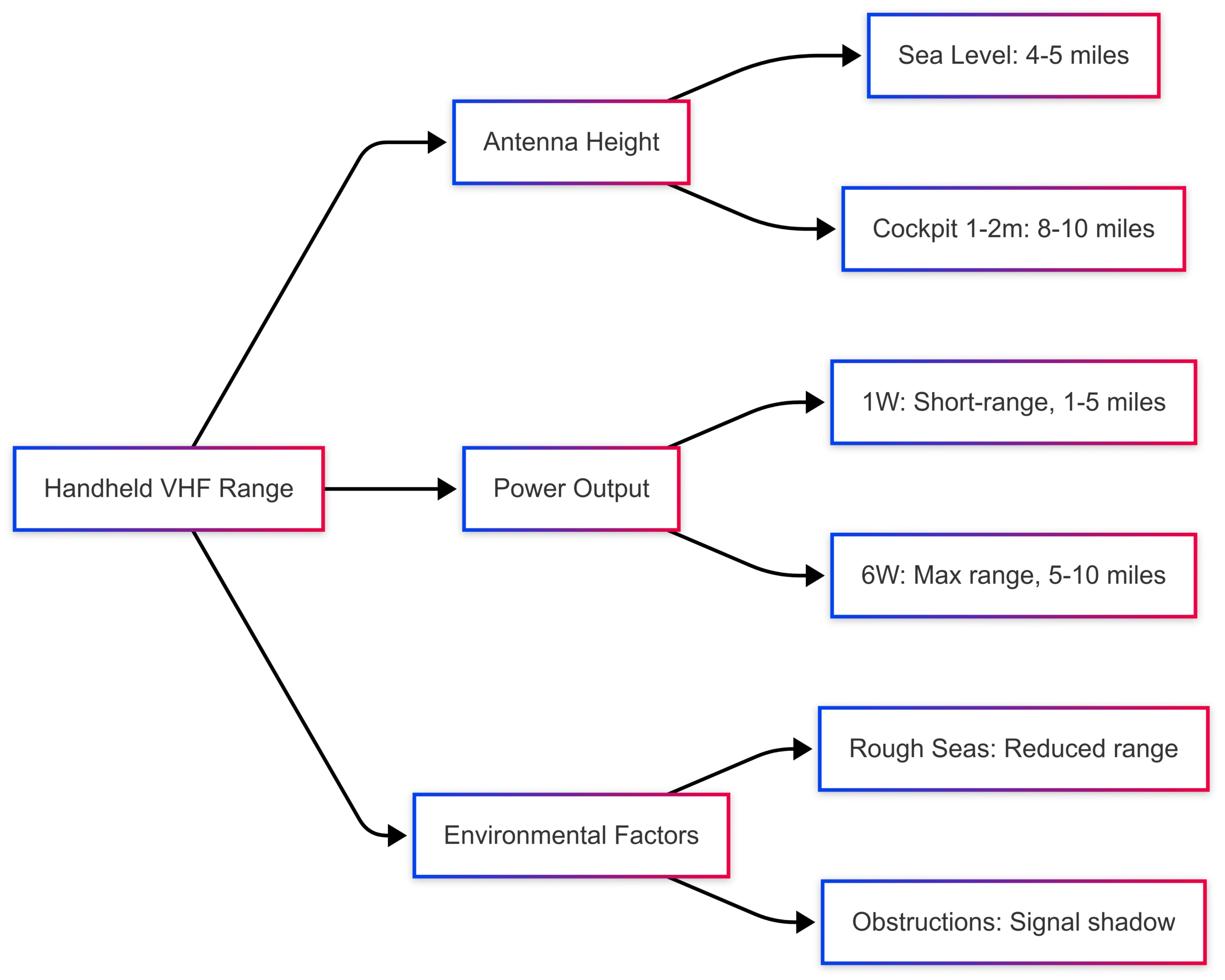

Chart: Factors Affecting VHF Range

FAQs About Handheld Marine Radios

How do I troubleshoot radio issues?

• Check power and battery charge.
• Restart the radio by holding the power button for 3 seconds.
• Ensure proper channel selection and squelch settings.
• Consult a technician if issues persist.

Learning to Use Your VHF Radio

For new boaters, understanding VHF radio operation is critical. Free online courses, such as the Handheld VHF Radio Essentials offered by Northeast Maritime Online (NEMO°), teach proper usage, terminology, and protocols. These courses also introduce licensing requirements and advanced training options for international certifications.

Conclusion

Handheld marine radios are more than just communication devices—they’re essential safety tools for any boater. By prioritizing features like DSC, GPS, waterproofing, and long battery life, you can ensure reliable performance in emergencies and daily operations. Regular maintenance, adherence to VHF protocols, and familiarity with channel usage will maximize the effectiveness of your radio. Whether you’re a recreational boater or a seasoned sailor, investing in a quality handheld marine radio is a decision that could save lives.

Happy Boating!
