Boating enthusiasts know the importance of reliable power on the water. Whether you’re fishing, cruising, or enjoying a bioluminescent spectacle in Florida, a dead battery can ruin your adventure. Solar battery chargers offer a clean, efficient, and sustainable solution to keep your boat’s batteries charged, especially when dockside power isn’t an option. This comprehensive guide explores how solar battery chargers work, how to select the right one, installation tips, and the best products available, ensuring your boat is always ready for the next trip.
Why Choose Solar Battery Chargers for Boats?
Solar battery chargers harness sunlight to generate electricity, providing a renewable energy source for your boat’s batteries. They’re ideal for boaters who store their vessels on trailers, at marinas without power, or in remote locations. Here’s why solar chargers are a game-changer:
- Eco-Friendly: No fossil fuels, no emissions, and silent operation.
- Cost-Effective: After the initial investment, solar energy is free, reducing reliance on shore power or generators.
- Low Maintenance: Once installed, solar systems require minimal upkeep.
- Versatility: Suitable for various battery types, including lead-acid, AGM, and LiFePO4.
- Reliability: Prevents battery self-discharge during long periods of inactivity.
However, solar chargers depend on sunlight, so cloudy days or shaded areas can reduce efficiency. A proper setup with a charge controller is essential to avoid overcharging and ensure battery longevity.
How Solar Battery Chargers Work
Solar panels convert sunlight into electricity using photovoltaic cells. The energy flows through a charge controller, which regulates voltage and current to prevent overcharging. The controller then directs the electricity to the boat’s battery, storing it for later use. This setup powers essential systems like bilge pumps, lights, or electronics, even when the boat is unattended.
Key Components
- Solar Panel: Captures sunlight and generates electricity. Available in rigid, flexible, or portable forms.
- Charge Controller: Regulates energy flow to protect the battery. MPPT (Maximum Power Point Tracking) controllers are more efficient than PWM (Pulse Width Modulation).
- Battery: Stores energy. Common marine batteries include lead-acid, AGM, or lithium (LiFePO4).
- Wiring and Connectors: Marine-grade cables ensure safe, corrosion-resistant connections.
Types of Marine Solar Panels
Choosing the right solar panel depends on your boat’s size, power needs, and mounting options. Here are the main types:
1. Rigid Solar Panels
- Material: Monocrystalline silicon cells.
- Efficiency: 15-22%, offering high power output.
- Pros: Durable, long lifespan (20+ years), space-efficient.
- Cons: Heavy, requires fixed mounting, less adaptable to curved surfaces.
- Best For: Larger boats with flat surfaces, like cabin roofs.
2. Flexible Solar Panels
- Material: Amorphous silicon or thin-film cells.
- Efficiency: 10-15%, lower than rigid panels.
- Pros: Lightweight, bendable, ideal for curved surfaces like T-tops or decks.
- Cons: Less efficient, shorter lifespan (10-15 years).
- Best For: Smaller boats or irregular surfaces.
3. Portable Solar Chargers
- Design: Compact, foldable panels with built-in batteries or controllers.
- Efficiency: Varies, typically 10-20%.
- Pros: Easy to store, portable, great for occasional use.
- Cons: Lower power output, not ideal for continuous charging.
- Best For: Kayaks, small boats, or temporary setups.
How to Choose the Right Solar Battery Charger
Selecting a solar battery charger involves assessing your boat’s power needs, battery type, and environmental conditions. Here’s a step-by-step guide:
1. Determine Power Requirements
Calculate the energy consumption of devices that run when the boat is idle, such as bilge pumps or alarms. For example:
- A bilge pump drawing 4 amps for 4 hours daily consumes 16 amp-hours (Ah) at 12V, equivalent to 192 watt-hours (Wh).
- A 25W solar panel generating 1 amp per hour in 5 hours of sunlight produces 5 Ah (60 Wh) daily, insufficient for this pump.
For minimal loads (e.g., battery self-discharge), a 10-20W panel suffices. For higher loads, consider 100-200W panels.
2. Assess Battery Capacity
Marine batteries range from 50-200 Ah. A 100W panel can charge a 100 Ah battery in 1-2 days under optimal conditions. Match the panel size to the battery’s capacity and desired charging speed.
3. Consider Sunlight Availability
In sunny regions like Florida, smaller panels may suffice. In cloudy areas like Seattle, larger panels or additional trickle chargers are needed. Use this formula to estimate panel size:
Panel Wattage = (Daily Ah Consumption × 12V) ÷ Hours of SunlightFor 16 Ah daily with 5 hours of sunlight: (16 × 12) ÷ 5 = 38.4W. A 50W panel would be adequate.
4. Choose a Charge Controller
A charge controller is non-negotiable for panels above 10W to prevent overcharging. MPPT controllers are 20-30% more efficient than PWM, ideal for larger setups. For budget-conscious boaters, PWM controllers work for small panels.
5. Evaluate Mounting Options
- Rigid Panels: Mount on flat surfaces with brackets.
- Flexible Panels: Adhere to curved surfaces or T-tops.
- Portable Chargers: Use suction cups, handlebar mounts, or windshield mounts for temporary setups.
6. Budget and Brand
Prices range from $15 for basic 1.5W panels to $180 for 35W systems with controllers. Trusted brands include Battery Tender, SUNER POWER, and Victron.
Top Solar Battery Chargers for Boats
Here’s a curated list of popular solar battery chargers, including specifications and prices:
| Product | Wattage | Voltage | Mount Type | Charge Controller | Price | Best For |
|---|---|---|---|---|---|---|
| Battery Tender 17W Mountable Solar Charger (SKU: 021-1173) | 17W | 12V | Fixed | Yes (PWM) | $134.95 | Medium boats, fixed installations |
| Battery Tender 35W Mountable Solar Charger (SKU: 021-1174) | 35W | 12V | Fixed | Yes (PWM) | $179.95 | Larger boats, high power needs |
| Battery Tender 5W Handlebar Mount (SKU: 021-1172) | 5W | 12V | Handlebar | No | $89.95 | Small boats, temporary use |
| Battery Tender 5W Windshield Mount (SKU: 021-1171) | 5W | 12V | Suction Cup | No | $74.95 | Kayaks, portable setups |
| SUNER POWER 50W Solar Charger | 50W | 12V | Fixed/Portable | Yes (MPPT) | $89.95 | Versatile, budget-friendly |
| SOLPERK 20W Solar Panel Kit | 20W | 12V | Adjustable Bracket | Yes (PWM) | $37.99 | Trailers, small boats |
| Harbor Freight 1.5W Solar Charger | 1.5W | 12V | Portable | No | $15.00 | Minimal maintenance, budget |
Product Highlights
- Battery Tender 17W/35W: Robust for fixed installations, includes PWM controllers for safe charging. Ideal for boats left unattended for weeks.
- SUNER POWER 50W: MPPT controller maximizes efficiency, waterproof design suits marine environments.
- SOLPERK 20W: Affordable, adjustable mount for trailers or small boats.
- Harbor Freight 1.5W: Ultra-cheap, suitable for sunny regions with minimal loads.
Installation Guide: Setting Up a Solar Battery Charger
Proper installation ensures efficiency and safety. Follow these steps:
- Select a Location: Mount the panel where it receives maximum sunlight, avoiding shadows from masts or T-tops.
- Install the Solar Panel:
- Rigid Panels: Secure with marine-grade brackets.
- Flexible Panels: Use adhesive or Velcro for curved surfaces.
- Portable Chargers: Attach via suction cups or clamps.
- Connect to Charge Controller: Use marine-grade cables (e.g., 12 AWG) to connect the panel’s positive and negative terminals to the controller’s input.
- Wire to Battery: Connect the controller’s output to the battery terminals, ensuring proper polarity. Use fuse holders (e.g., Blue Sea #5060) for safety.
- Test the System: Check the controller’s display for voltage and current. A reading of 13-14V indicates proper charging.
- Monitor: Periodically inspect connections for corrosion, and clean panels with water.

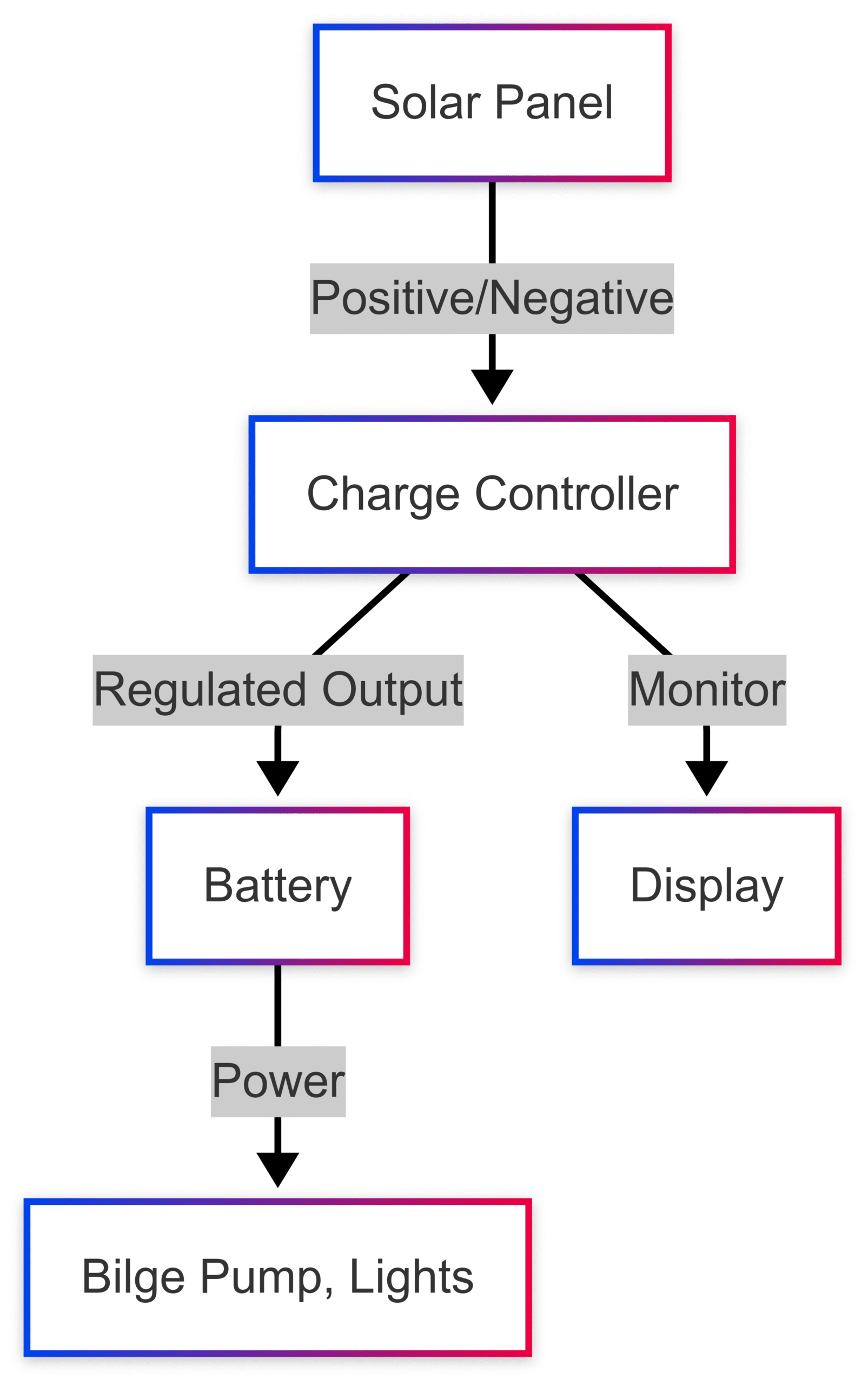

Wiring Diagram
This diagram illustrates the flow from panel to battery, with the controller regulating the process.
Pros and Cons of Solar Battery Chargers
| Pros | Cons |
|---|---|
| Clean, renewable energy | High initial cost ($15-$200) |
| No noise or fuel costs | Weather-dependent output |
| Easy to install and maintain | Limited power on cloudy days |
| Extends battery life | Requires space for larger panels |
FAQs: Solar Battery Chargers for Boats
Do Solar Chargers Work for Boat Batteries?
Yes, solar chargers effectively maintain and charge boat batteries, provided the panel size matches the battery’s capacity and sunlight availability.
How Much Solar Power Is Needed?
A 10-20W panel is sufficient for trickle charging a 50-100 Ah battery. For high loads (e.g., bilge pumps), 100-200W panels are recommended.
What Size Panel for a 12V Battery?
A 100W panel is ideal for a 12V, 100 Ah battery, charging it in 1-2 days under good conditions. Adjust based on load and sunlight.
Why Use a Charge Controller?
Controllers prevent overcharging, which can shorten battery life or cause explosions in wet-cell batteries. MPPT controllers optimize power output.
Can I Use a Cigarette Lighter Port?
Avoid cigarette lighter ports due to voltage loss and corrosion risks. Wire directly to the battery through a controller for efficiency.
Tips for Maximizing Solar Charging Efficiency
- Angle Panels Correctly: Tilt panels toward the sun for maximum exposure. Adjustable mounts help.
- Keep Panels Clean: Remove dirt, salt, or bird droppings to maintain efficiency.
- Use Lithium Batteries: LiFePO4 batteries have near-zero self-discharge, reducing charging needs.
- Disconnect Unused Circuits: Turn off battery switches to prevent phantom discharges.
- Combine with Trickle Charger: In cloudy regions, a low-cost trickle charger can supplement solar power.
Community Insights
Boating forums like Reddit and The Hull Truth reveal practical tips:
- Pittsburgh Boaters: Heavy rain can overwhelm bilge pumps, so use a tight cover and a 20-50W panel.
- Trailer Storage: A 15W panel with a regulator can maintain a battery for years, as seen in driveway gate applications.
- Victron Controllers: Praised for reliability, especially for expensive battery setups.
- Harbor Freight Hacks: Budget 1.5W panels work in sunny climates but are fragile.
Conclusion
Solar battery chargers are a reliable, eco-friendly solution for keeping your boat’s batteries charged, whether you’re a weekend kayaker or a long-term cruiser. By selecting the right panel size, installing a charge controller, and following best practices, you can ensure your boat is always powered up without relying on dockside electricity. From budget-friendly $15 Harbor Freight panels to robust $180 Battery Tender systems, there’s a charger for every boater. Invest in solar today and enjoy worry-free adventures on the water.
Happy Boating!
