Discover if a wind generator on a sailboat is worth the cost. Explore performance, costs, and benefits of marine wind turbines like the Silentwind and D400.
Sailboats offer a unique lifestyle, blending adventure with self-sufficiency. For cruisers, reliable power is critical to run navigation systems, lights, refrigeration, and autopilots. While solar panels dominate as the go-to renewable energy source, marine wind generators are gaining attention for their ability to harness wind energy in diverse conditions. But are they worth the investment? This article dives into the performance, costs, benefits, and drawbacks of wind generators on sailboats, focusing on models like the Silentwind and Eclectic Energy D400, to help you decide if they fit your cruising needs.
Understanding Marine Wind Generators
Marine wind turbines are engineered to withstand the harsh conditions of the sea, unlike their land-based counterparts. The marine environment—marked by salt spray, high humidity, and constant motion—demands robust construction. Most marine wind generators feature anodized aluminum or stainless steel bodies, corrosion-resistant coatings, and sealed bearings to protect against rust and wear. These design elements ensure durability but increase costs compared to land turbines.
Wind generators convert kinetic wind energy into electricity, typically charging a sailboat’s battery bank. They excel in windy conditions, making them a compelling option for cruisers sailing in trade wind regions or high-latitude areas with consistent breezes. However, their output depends heavily on wind speed, governed by the cube rule: power increases eightfold when wind speed doubles (e.g., a 10-knot wind yields one-eighth the power of a 20-knot wind). This exponential relationship means performance varies significantly with location and sailing style.
Key Features of Marine Wind Generators
To evaluate whether a wind generator is worth the cost, let’s examine the features of two popular models: the Silentwind and the Eclectic Energy D400.
Silentwind Wind Generator
The Silentwind is designed specifically for marine use, offering lightweight construction and low noise. Key specifications include:
- Weight: 6 kg, making it easy to install without adding significant weight aloft.
- Materials: Aluminum alloy body with corrosion protection, stainless steel shaft, and waterproof sealed bearings.
- Blades: Hand-laminated carbon fiber Silent Power Blades, engineered for minimal noise and high durability.
- Power Output:
- Starts charging at 4 knots (50W at 14 knots, 100W at 19 knots).
- Maximum output of 420W at 29 knots for 12V systems.
- Controller: External hybrid controller supports both wind and solar inputs, with a multifunction display, manual/electronic stop switch, and adjustable parameters (e.g., brake module, load cut-off voltage).
- App Integration: iOS and Android apps allow remote monitoring and configuration.
- Mounting: Mast supports designed for vibration absorption and noise reduction.
Eclectic Energy D400
The D400 is another marine-focused wind generator, known for its near-silent operation and robust build. Its specifications include:
- Weight: Approximately 17 kg, heavier than the Silentwind, requiring careful consideration for mounting.
- Materials: Corrosion-resistant aluminum body with sealed components.
- Blades: Aerodynamic design for low noise and efficiency.
- Power Output:
- Produces minimal power (1–2 amps) at 5–10 knots.
- Capable of 33–35 amps (approximately 400W) at 35 knots.
- Controller: External regulator to manage battery charging and prevent overcharging.
- Mounting: Typically installed aft or on mizzen masts, with vibration-dampening supports.
Performance Comparison
The following table compares the Silentwind and D400 based on key metrics:
| Feature | Silentwind | Eclectic Energy D400 |
|---|---|---|
| Weight | 6 kg | 17 kg |
| Max Power Output | 420W at 29 knots | 400W at 35 knots |
| Start-Up Wind Speed | 4 knots | ~5–10 knots (minimal output) |
| Noise Level | Minimal (carbon fiber blades) | Near-silent (comparable to rigging) |
| Controller | Hybrid (wind/solar), app-integrated | External regulator |
| Price (Approximate) | $1,800–$2,200 | $2,000–$2,500 |
Note: Prices vary based on region, installation kits, and additional components.
Benefits of Wind Generators on Sailboats
Wind generators offer several advantages for cruisers seeking energy independence. Here’s why they might be worth the cost:
1. Reliable Power in Windy Conditions
Wind generators shine in areas with consistent breezes, such as trade wind belts or high-latitude regions. For example, the D400 can produce 33–35 amps in 35-knot winds, enough to power heavy loads like refrigeration, autopilots, and navigation systems. The Silentwind’s low start-up speed (4 knots) ensures it generates power even in light winds, making it versatile for varied conditions.
2. Complementary to Solar Panels
Hybrid systems combining wind and solar power provide redundancy. Solar panels perform best in sunny, unshaded conditions, but their output drops at night or in cloudy weather. Wind generators, conversely, can produce power 24/7, provided there’s sufficient wind. A hybrid setup with a controller like the Silentwind’s ensures seamless integration, maximizing energy capture.
3. Low Maintenance and Durability
Marine wind generators are built to last, with corrosion-resistant materials and sealed components requiring minimal upkeep. Users of the D400 report zero maintenance over years of use, while the Silentwind’s carbon fiber blades resist wear and reduce noise, enhancing longevity.
4. Quiet Operation
Modern wind generators prioritize low noise. The D400’s sound is comparable to wind through rigging, while the Silentwind’s carbon fiber blades minimize whooshing sounds. This makes them suitable for liveaboard cruisers who value tranquility.
Power Output Visualization

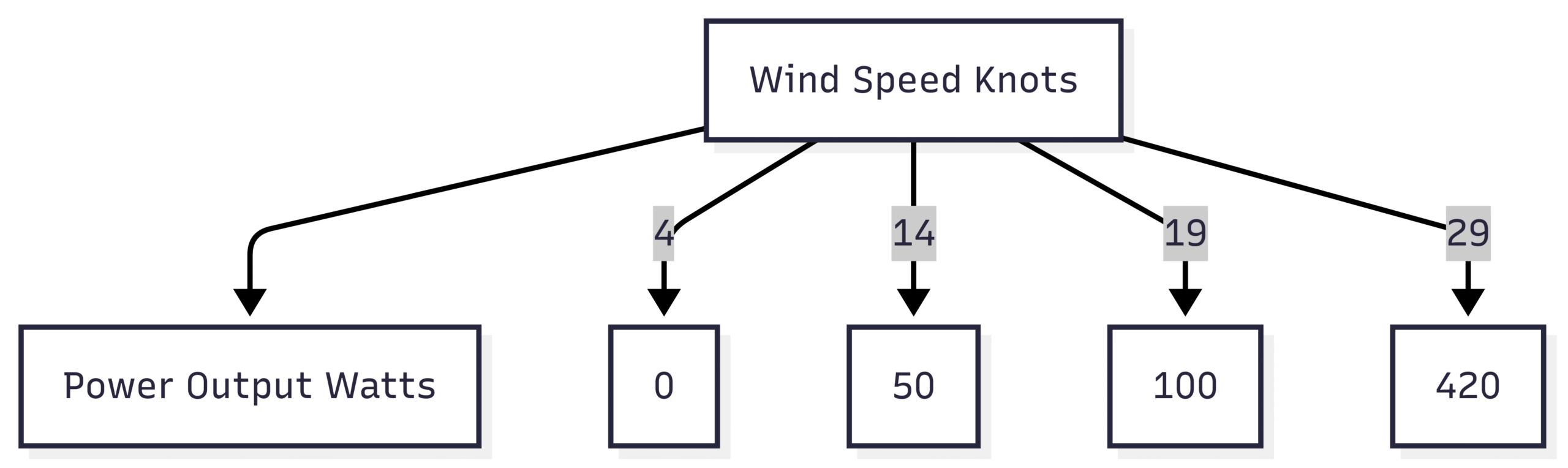

To illustrate the exponential power curve, consider the following Mermaid chart showing power output versus wind speed for the Silentwind:
This chart highlights the cube rule’s impact: small increases in wind speed yield significant power gains, but low winds produce minimal output.
Drawbacks of Wind Generators
Despite their benefits, wind generators have limitations that may affect their cost-effectiveness:
1. High Initial Cost
Wind generators are expensive, with prices ranging from $1,800 to $2,500 for models like the Silentwind and D400. Installation costs, including masts, wiring, and controllers, can add $500–$1,000. In contrast, solar panels offer a lower cost per watt, with 250W panels costing $200–$400. For budget-conscious cruisers, solar may be a better starting point.
2. Inconsistent Output in Low Winds
The exponential power curve means wind generators produce negligible power in light winds. At 5–10 knots, the D400 generates just 1–2 amps, insufficient for most onboard needs. Sailors in calm anchorages or fair-weather regions may find wind generators underperform.
3. Solar Panel Shading
Wind generators mounted aft or on masts can shade solar panels, reducing their output. For example, the D400 may shade a 50W solar panel, costing 4 amps in full sun. In high winds (27–28 knots), the generator might compensate, but such conditions are rare in protected anchorages.
4. Safety Concerns
Fast-spinning blades pose risks to birds, crew, and equipment. Poorly mounted generators can injure tall visitors, snag halyards, or damage sails. Careful placement is essential, adding complexity to installation.
5. Weight and Space Considerations
Wind generators add weight aloft, affecting a sailboat’s stability. The D400’s 17 kg is significant, while the Silentwind’s 6 kg is more manageable. They also require deck space for mounting and controllers, which can clutter smaller vessels.
Is a Wind Generator Worth It for Your Sailboat?
The decision hinges on your sailing style, cruising grounds, and energy needs. Here’s how to evaluate:
1. Assess Your Wind Conditions
Wind generators are most effective in areas with consistent, strong winds. Trade wind regions, high-latitude destinations like Patagonia, or exposed anchorages are ideal. If you sail in calm, protected waters or prefer light-air days, solar panels may suffice. Use local wind data to estimate average speeds and variability.
2. Maximize Solar First
Solar panels are cheaper and more reliable in most conditions. Before investing in a wind generator, optimize your solar setup with high-efficiency panels, proper placement to avoid shading, and a robust battery bank. A hybrid system can then supplement solar with wind power.
3. Consider Your Power Needs
Calculate your daily energy consumption (in amp-hours) for appliances like refrigeration, autopilots, and electronics. Compare this to potential wind generator output. For example, a 35-knot breeze might yield 33 amps from the D400, but typical 10–15-knot winds produce far less. If your needs exceed wind output, a hybrid system or diesel generator may be necessary.
4. Evaluate Noise Tolerance
Both the Silentwind and D400 are quiet, but some older models are noisy. If silence is a priority, choose a modern, low-noise generator and test it in various conditions.
5. Budget and Installation
Weigh the cost against benefits. A $2,000 wind generator plus $500 installation totals $2,500, while 500W of solar panels might cost $800–$1,200 installed. If funds are limited, solar offers better value per watt.
Case Study: D400 in the Bahamas
A cruiser with a D400 reported exceptional performance during 35-knot Christmas winds in the Bahamas, charging batteries faster than consumption. However, in typical 10–15-knot trade winds, output was intermittent due to gusty conditions and anchorage turbulence. Shading of 200W solar panels further reduced efficiency, leading the cruiser to question the generator’s value.
Alternative Power Options
If a wind generator doesn’t suit your needs, consider these alternatives:
- Solar Panels: High-efficiency panels (e.g., 400W for $400–$600) provide consistent power in sunny conditions. Flexible panels fit curved surfaces like biminis.
- Hydro Generators: These generate power from water flow while sailing, ideal for long passages. Prices range from $1,500 to $3,000.
- Diesel Generators: Reliable but noisy and fuel-dependent, costing $3,000–$10,000.
- Portable Gasoline Generators: Affordable ($500–$1,000) but less practical for long-term cruising.
Choosing the Right Wind Generator
If you decide a wind generator is worth the cost, the Silentwind and D400 are top contenders. The Silentwind’s lightweight design, low start-up speed, and hybrid controller make it ideal for smaller vessels or hybrid systems. The D400’s robust output in high winds suits larger boats or windy regions, though its weight and higher price are drawbacks.
Installation Tips
- Location: Mount on a mizzen mast or aft pole, ensuring clear airflow and minimal sail interference. Avoid areas near crew or equipment.
- Vibration Dampening: Use supports to reduce noise and wear.
- Wiring: Ensure proper gauge to minimize power loss.
- Safety: Install a stop switch and tie-off mechanism for high winds (>45 knots).
Conclusion
A wind generator on a sailboat can be worth the cost for cruisers in windy regions, those with hybrid systems, or those prioritizing redundancy. Models like the Silentwind and D400 offer reliable, quiet performance, but their high cost, inconsistent low-wind output, and solar shading issues make them less cost-effective than solar panels for most sailors. Before investing, maximize solar potential, assess local wind conditions, and calculate energy needs. For the right cruiser, a wind generator is a valuable asset, but for many, solar remains the smarter choice.
Happy Boating!
