Trim tabs are critical components in aviation and boating, acting as secondary control surfaces that enhance stability, control, and efficiency. In aircraft, they help pilots maintain straight and level flight with minimal effort, while in boats, they adjust the vessel’s attitude for optimal performance and comfort. This article delves into the four main types of trim tabs used primarily in aviation—trim tabs, balance tabs, antiservo tabs, and ground adjustable tabs—exploring their mechanics, applications, and benefits. We’ll also touch on their maritime counterparts to provide a holistic understanding, ensuring this guide is valuable for enthusiasts, pilots, boaters, and engineers alike.
Understanding Trim Tabs: The Basics
Trim tabs are small, adjustable surfaces attached to the trailing edges of larger control surfaces like elevators, rudders, or ailerons in aircraft, or mounted on the transom of boats. Their primary function is to counteract aerodynamic or hydrodynamic forces, reducing the physical effort required to maintain a desired attitude or heading. By fine-tuning the position of these tabs, pilots and boaters can achieve a smoother, more efficient operation, whether cruising at altitude or navigating choppy waters.
In aviation, trim tabs allow pilots to fly hands-off for extended periods, acting like a rudimentary autopilot. In boating, they correct for uneven weight distribution, reduce bow rise, and enhance fuel efficiency. Despite their small size, trim tabs have a significant impact, embodying the principle famously articulated by Buckminster Fuller: a small “trim tab” can steer a massive system with minimal effort.
The four types of trim tabs in aviation—trim tabs, balance tabs, antiservo tabs, and ground adjustable tabs—each serve unique purposes. Let’s explore how they work, their applications, and their benefits, with insights into their boating equivalents where relevant.
1. Standard Trim Tabs: The Workhorse of Flight Control
How They Work
The standard trim tab is the most common type found on small single-engine aircraft, such as Cessna 172s or Piper Cherokees. Attached to the trailing edge of an elevator or rudder, it’s controlled by a trim wheel or switch in the cockpit. When the pilot adjusts the trim wheel, the tab moves in the opposite direction of the desired control surface deflection.
For example:
- Nose-up trim: Rolling the trim wheel to the “nose up” position deflects the trim tab downward. This creates an upward force on the tab, pushing the elevator upward and raising the aircraft’s nose.
- Nose-down trim: Conversely, moving the wheel to “nose down” raises the trim tab, forcing the elevator downward and lowering the nose.
This counterintuitive mechanism leverages aerodynamic pressure to hold the control surface in place, reducing the pilot’s workload. The tab’s small size belies its effectiveness, as even minor deflections can significantly alter the aircraft’s attitude.
Applications
Trim tabs are ubiquitous in general aviation due to their simplicity and reliability. They’re ideal for maintaining level flight during long cruises or compensating for weight shifts, such as fuel burn or passenger movement. For instance, as fuel is consumed from wing tanks, the aircraft’s center of gravity shifts, requiring trim adjustments to maintain level flight.
Advantages
- Ease of Use: Intuitive cockpit controls make trim adjustments straightforward.
- Versatility: Effective across various flight conditions, from takeoff to landing.
- Low Maintenance: Simple mechanical design ensures durability.
Limitations
- Limited Force: Trim tabs are less effective at high speeds or with heavy control loads, where more robust systems like balance tabs may be needed.
- Manual Adjustment: Pilots must continually monitor and adjust trim, unlike automated systems.
Boating Parallel
In boating, trim tabs serve a similar stabilizing role. Mounted on the transom, these stainless steel or aluminum plates articulate up and down via hydraulic or electric actuators. Controlled by helm-mounted buttons or joysticks labeled “Bow Up” and “Bow Down,” they adjust the boat’s running angle. For example, deploying the starboard tab lowers the port bow, correcting a list to starboard. This intuitive system mirrors aviation trim tabs, enhancing control and efficiency.
2. Balance Tabs: Easing Heavy Control Loads
How They Work
Balance tabs are designed for aircraft with heavy control loads, typically found on larger or faster planes like twin-engine aircraft or high-performance models. Structurally similar to trim tabs, they differ in their operation: balance tabs are mechanically linked to the control surface’s movement rather than independently controlled.
When the pilot moves the yoke or rudder pedals, the control surface (e.g., elevator or aileron) deflects, and the balance tab moves in the opposite direction. For instance:
- If the elevator is raised, the balance tab deflects downward, creating an aerodynamic force that assists the elevator’s movement.
- This opposing motion reduces the force required to hold the control surface in position, making the aircraft easier to maneuver.
Applications
Balance tabs shine in scenarios where control surfaces experience significant aerodynamic forces, such as during high-speed flight or when operating large control surfaces. They’re common in aircraft like the Beechcraft Baron or older airliners, where manual control would otherwise be taxing.
Advantages
- Reduced Pilot Effort: Significantly lightens control loads, enhancing pilot comfort and precision.
- Enhanced Safety: Prevents overexertion during critical maneuvers.
- Broad Compatibility: Works with various control surfaces, including ailerons and rudders.
Limitations
- Complexity: Mechanical linkages add weight and maintenance requirements.
- Limited Adjustability: Unlike trim tabs, balance tabs aren’t independently adjustable, limiting their role to assisting control movement.
Boating Parallel
While balance tabs are aviation-specific, their principle of reducing control effort aligns with advanced boating trim systems, like Bennett Marine’s hydraulic tabs. These systems use internal motors to drive actuators, minimizing the physical strain on the boat’s steering system, akin to how balance tabs ease yoke pressure.
3. Antiservo Tabs: Stabilizing Pitch Control
How They Work
Antiservo tabs are unique in that they move in the same direction as the control surface, increasing resistance to its movement. Commonly found on stabilators (all-moving horizontal stabilizers) in aircraft like the Piper Cherokee or Cirrus SR20, they enhance pitch control stability.
For example:
- When the stabilator moves upward to pitch the nose down, the antiservo tab also deflects upward, creating a downward force that opposes the stabilator’s motion.
- This resistance increases the “control feel,” requiring more pilot effort to move the stabilator, thus preventing overcontrol.
Applications
Antiservo tabs are critical in aircraft with sensitive pitch controls, where small yoke movements could lead to exaggerated pitch changes. They’re particularly valuable in training aircraft, where novice pilots might otherwise overcorrect, risking airframe stress or stalls.
Advantages
- Improved Stability: Enhances control feel, reducing the risk of overcontrolling.
- Safety: Protects against abrupt pitch changes that could exceed structural limits.
- Compact Design: Integrates seamlessly with stabilators, minimizing drag.
Limitations
- Increased Effort: Requires more pilot input, which can be fatiguing in some scenarios.
- Specific Use Case: Primarily used with stabilators, limiting their application.
Boating Parallel
In boating, antiservo-like functionality appears in systems designed to prevent over-trimming, such as Lenco Marine’s automatic tab controls. These systems adjust tab positions to maintain optimal hull attitude, preventing excessive bow rise or plow, much like antiservo tabs stabilize aircraft pitch.
4. Ground Adjustable Tabs: Set-and-Forget Stability
How They Work
Ground adjustable tabs are fixed tabs bent or adjusted on the ground to correct minor aerodynamic imbalances. Typically found on rudders or ailerons of training aircraft like the Cessna 152, they’re not adjustable in flight. Adjustments involve physically bending the tab (often between wooden blocks) to deflect it left or right, influencing the control surface’s neutral position.
For example:
- If an aircraft tends to yaw left in level flight, bending the rudder’s ground adjustable tab to the right applies a corrective force, aligning the aircraft.
- Adjustments are trial-and-error, requiring test flights to fine-tune the setting.
Applications
These tabs are ideal for older or simpler aircraft where permanent corrections are needed to compensate for manufacturing tolerances, rigging issues, or consistent flight characteristics. They’re common in flight schools, where aircraft undergo frequent maintenance checks.
Advantages
- Simplicity: No cockpit controls or moving parts, reducing complexity and cost.
- Reliability: Once set, they require minimal maintenance.
- Cost-Effective: Inexpensive to install and adjust.
Limitations
- Static Adjustment: Cannot be altered in flight, limiting their flexibility.
- Trial and Error: Achieving the perfect setting can be time-consuming.
Boating Parallel
Ground adjustable tabs have no direct boating equivalent, as marine trim tabs are dynamically adjustable. However, the concept of fixed adjustments aligns with hull modifications like strakes or keels, which are set during manufacturing to influence handling but aren’t altered underway.
Trim Tabs in Boating: A Complementary Perspective

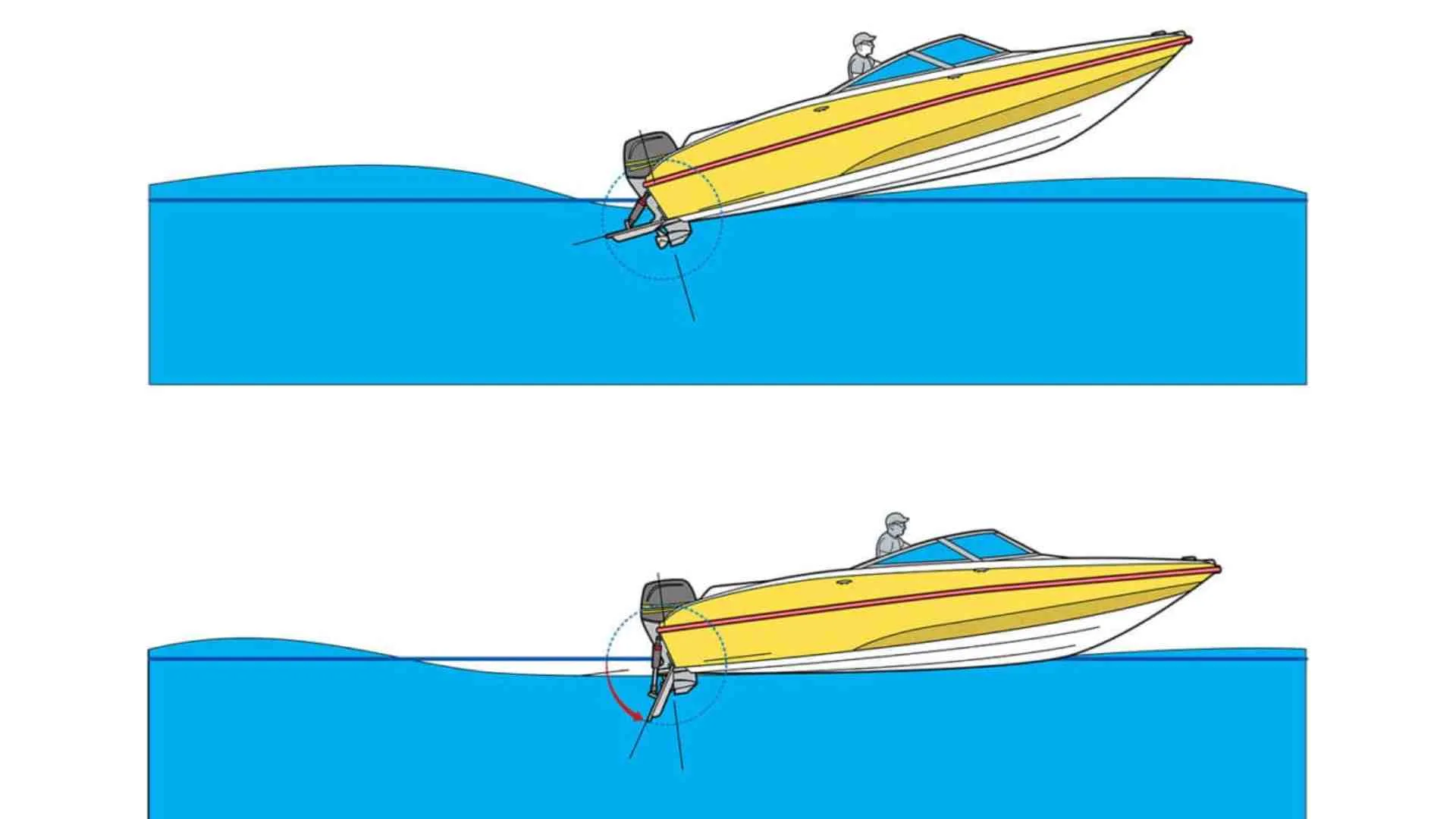

While aviation trim tabs focus on control surface deflection, boating trim tabs adjust the hull’s running angle to optimize performance. Here’s a deeper look at their operation and benefits, drawing parallels to aviation.
Mechanics and Operation
Boating trim tabs are flat plates (typically 12–24 inches wide) hinged at the transom, controlled by hydraulic or electric actuators. Helm controls allow independent adjustment of port and starboard tabs, labeled “Bow Up” and “Bow Down.” Key functions include:
- Lowering the Bow: Deploying both tabs creates lift at the stern, reducing bow rise for better visibility and faster planing.
- Correcting List: Deploying one tab lifts the opposite side, leveling the boat against uneven weight or crosswinds.
- Adjusting for Sea Conditions: Tabs fine-tune the hull’s angle to reduce pounding in head seas or stabilize in following seas.
Hydraulic vs. Electric Systems
| Feature | Hydraulic (e.g., Bennett Marine) | Electric (e.g., Lenco Marine) |
|---|---|---|
| Mechanism | Motor drives hydraulic fluid to actuators | Motor in actuator drives ball screw |
| Speed | Slower, steady adjustments | Faster response |
| Installation | More complex (hoses, pumps) | Simpler, fewer components |
| Maintenance | Check fluid levels, seals | Inspect actuators, wiring |
| Failure Mode | Tabs retract under pressure | Tabs stay in position, require manual release |
| Cost | $800–$2,000 (depending on size) | $600–$1,800 |
Sizing Guidelines
Choosing the right tab size is critical for efficiency. Manufacturers recommend:
- Width: 1 inch of tab span per foot of boat length (e.g., 24 inches for a 24-foot boat).
- Chord: 9 inches for fast boats, 12 inches for heavier vessels.
- Example: A 25-foot boat might use 24 x 9-inch tabs, but transom space may necessitate 18 x 12-inch tabs to avoid drag.
| Boat Length | Recommended Tab Size | Notes |
|---|---|---|
| 17–22 ft | 12 x 9 in | Compact transoms |
| 23–30 ft | 18 x 12 in | Balanced performance |
| 31–40 ft | 24 x 12 in | Maximum lift |
User Reviews
Aircraft Pilots Say:
- “Balance tabs make long flights much less tiring.” – Cessna 182 Pilot
- “Ground-adjustable tabs fixed my right yaw issue permanently.” – Flight Instructor
Boat Owners Report:
- “Hydraulic tabs are slower but last longer.” – Sportfishing Captain
- “Electric tabs respond instantly but can fail if seals wear out.” – Yacht Owner
Optimizing Trim Tab Use: Tips for Aviation and Boating
Aviation Tips
- Monitor Trim Settings: Regularly check trim position to avoid over-trimming, which can lead to control issues.
- Use in Phases: Adjust trim during climb, cruise, and descent to maintain hands-off flight.
- Consult POH: Follow the Pilot’s Operating Handbook for recommended trim procedures specific to your aircraft.
Boating Tips
- Short Bursts: Apply tab adjustments in half-second increments to avoid over-trimming.
- Check Retraction: Ensure tabs are fully retracted before accelerating to prevent drag or listing.
- Maintenance: Paint tabs with epoxy primer and antifouling paint to prevent barnacle buildup. Install zinc anodes to combat corrosion.
The Broader Impact of Trim Tabs
Beyond their mechanical function, trim tabs symbolize efficiency and leverage. In business, the “trim tab” metaphor—popularized by Buckminster Fuller—suggests that small, strategic changes can yield outsized results. For example, a company might adjust its customer engagement strategy (a “trim tab”) to significantly boost loyalty without overhauling its operations.
In aviation and boating, trim tabs embody this principle by allowing precise control with minimal effort. Whether it’s a pilot maintaining level flight or a boater smoothing out a rough ride, these devices demonstrate how small adjustments can transform performance.
Conclusion
The four types of trim tabs—trim tabs, balance tabs, antiservo tabs, and ground adjustable tabs—each play a vital role in aviation, enhancing control, stability, and pilot comfort. Their boating counterparts mirror these benefits, optimizing hull attitude for efficiency and safety. By understanding their mechanics, applications, and best practices, pilots and boaters can harness trim tabs to elevate their experience, whether soaring through the skies or slicing through waves.
Trim Tab Comparison Chart
| Type | Movement | Best For | Key Benefit |
|---|---|---|---|
| Standard Trim Tab | Opposite to control | Small aircraft | Reduces yoke pressure |
| Balance Tab | Opposite to control | High-speed aircraft | Eases heavy control loads |
| Antiservo Tab | Same as control | Light aircraft | Prevents over-control |
| Ground Adjustable Tab | Fixed | Training aircraft | Permanent trim correction |
For those considering upgrades, brands like Bennett Marine and Lenco offer reliable solutions with clear sizing guidelines and competitive pricing. Regular maintenance and thoughtful operation ensure these small devices deliver big results, proving that even the smallest tab can steer the course of a journey.
