Marine radar technology has transformed navigation, offering boaters enhanced safety and situational awareness. Garmin’s GMR Fantom 18 and 24 dome radars stand at the forefront of this evolution, delivering cutting-edge features like MotionScope Doppler technology, solid-state pulse compression, and industry-leading power output. Designed for vessels where open-array radars may be impractical, these radomes provide high-resolution imaging, robust target detection, and versatility for various boating applications. This article explores the features, specifications, performance, and practical considerations of the Fantom 18 and 24, helping boaters decide which model best suits their needs.
Introduction to Garmin’s Fantom Series

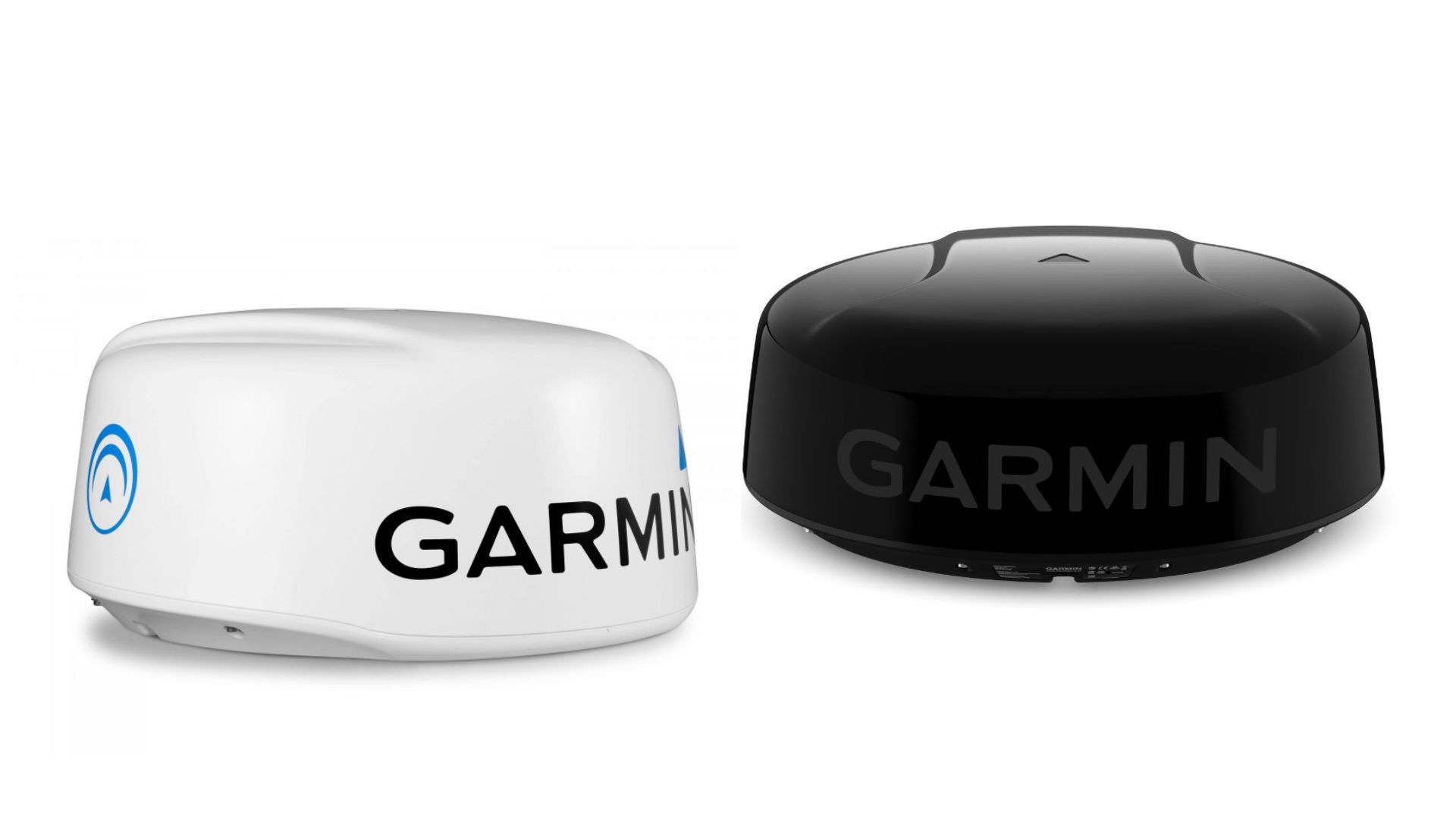

Garmin’s Fantom series represents a leap forward in marine radar technology, combining solid-state design with Doppler processing to deliver real-time target tracking and superior clarity. The Fantom 18 and 24 dome radars make this technology accessible to a broader range of boaters by offering compact, cost-effective solutions without sacrificing performance. These radomes are ideal for small to mid-sized vessels, providing powerful radar capabilities for navigation, collision avoidance, weather tracking, and fishing.
The Fantom series is built around MotionScope technology, which uses the Doppler effect to detect and highlight moving targets in distinct colors based on their direction relative to the boat. This feature enhances situational awareness, allowing mariners to quickly identify potential collision risks, navigate around severe weather, or locate flocks of birds indicating fishing hotspots. With 40W of power—the highest in their class—the Fantom 18 and 24 deliver exceptional range and resolution, making them versatile tools for coastal cruising, offshore adventures, and everything in between.
Key Features of the GMR Fantom 18 and 24
The Fantom 18 and 24 share a robust feature set that sets them apart in the dome radar market. Below are the standout capabilities that make these radomes a top choice for mariners:
MotionScope Doppler Technology
MotionScope leverages Doppler processing to detect moving targets in real time, highlighting them in different colors (e.g., green for targets moving away, red for targets approaching). This feature simplifies collision avoidance by visually distinguishing threats from stationary objects. When paired with Echo Trails, which display a fading trail behind moving targets, mariners can easily track the direction and speed of other vessels or weather patterns. The trails are corrected for the boat’s rotation when connected to a heading sensor or autopilot via the Garmin Marine Network, ensuring accurate representation.
Pulse Compression and High-Resolution Imaging
The Fantom series employs pulse compression technology to maximize energy efficiency and enhance target detection. This results in high-resolution images that distinguish real targets from noise, even in cluttered environments. The Fantom 18 features a 5.2-degree horizontal beam width, while the Fantom 24 offers a narrower 3.7-degree beam width, providing sharper, more precise imaging. Pulse expansion further enlarges target sizes on the display, improving visibility and differentiation.
Dual Range Capability
Both radomes support dual range functionality, allowing simultaneous close- and long-range scanning with overlays on a chartplotter. This eliminates the need to switch between ranges, enabling mariners to monitor immediate surroundings (e.g., nearby vessels or buoys) and distant targets (e.g., weather patterns or land) concurrently. The feature is particularly valuable in busy waterways or during extended voyages.
Auto Bird Gain
For anglers, the Auto Bird Gain feature is a game-changer. It optimizes radar settings to detect flocks of birds on the water’s surface, which often indicate baitfish and feeding gamefish. This capability makes the Fantom 18 and 24 valuable tools for locating productive fishing spots, especially offshore.
Dynamic Auto Gain and Sea Filter
These radomes automatically adjust gain and sea clutter settings based on environmental conditions, such as calm, medium, or rough seas. Dynamic Auto Gain ensures optimal performance by reducing noise and enhancing target clarity, while the Dynamic Sea Filter minimizes clutter from waves, improving visibility in challenging conditions.
MARPA and Target Tracking
Mini-Automatic Radar Plotting Aid (MARPA) enables simultaneous tracking of up to 10 targets, providing course and speed information for collision avoidance. When paired with a heading sensor, MARPA delivers precise tracking, even in dynamic conditions.
Low Power Consumption and Instant On
With power consumption below 25W, the Fantom 18 and 24 are energy-efficient, extending battery life for longer trips. The solid-state design eliminates warm-up time, allowing instant target tracking upon activation. Features like power-save mode and timed transmit mode further reduce energy use by allowing users to customize active and inactive periods.
Dual Radar Support
Both models support dual radar configurations, enabling integration with another Fantom radome, open-array radar, or Garmin’s xHD series. This provides redundancy and flexibility, allowing independent displays to pull data from different radar sources.
Additional Features
- Guard Zone: Sets a safety zone around the vessel, triggering an alarm if an object enters.
- Radar Overlay: Overlays radar data on chartplotter maps for intuitive navigation.
- Variable Range Markers (VRM) and Electronic Bearing Lines (EBL): Facilitate quick distance and bearing measurements.
- Target Size Adjustment: Enhances target separation by adjusting on-screen resolution.
Technical Specifications
The Fantom 18 and 24 differ primarily in size, beam width, and weight, but share many core specifications. Below is a detailed comparison:
| Specification | Fantom 18 | Fantom 24 |
|---|---|---|
| Dimensions | 20″ x 9.8″ (50.8 x 24.9 cm) | 25.4″ x 9.8″ (64.5 x 24.9 cm) |
| Weight | 14 lbs (6.35 kg) | 17.4 lbs (7.89 kg) |
| Antenna Length | 17″ (43.18 cm) | 23″ (58.42 cm) |
| Beam Width | 5.2° horizontal, 25° vertical | 3.7° horizontal, 25° vertical |
| Rotation Speed | Up to 60 RPM | Up to 60 RPM |
| Range | 20 ft to 48 NM | 20 ft to 48 NM |
| Minimum Range | 6 meters | 6 meters |
| Power Output | 40W | 40W |
| Power Consumption | 4W (standby), 24W (power save), 33W (normal) | 4W (standby), 24W (power save), 33W (normal) |
| Power Input | 10-32V DC | 10-32V DC |
| Water Rating | IPX7 | IPX7 |
| Radar Type | Radome | Radome |
What’s in the Box?
- Fantom 18x or 24x radome
- 15m power cable
- 15m network cable
- Garmin Marine Network adapter cable (small to large connector)
- Mounting hardware kit and template
- Installation instructions
Pricing
- Fantom 18: $1,999.99
- Fantom 24: $2,799.99
Performance Comparison: Fantom 18 vs. Fantom 24
The primary difference between the Fantom 18 and 24 lies in their horizontal beam width, which significantly impacts target separation and resolution. The Fantom 24’s narrower 3.7-degree beam width provides sharper, more detailed images compared to the Fantom 18’s 5.2-degree beam width. This difference is most pronounced at close ranges, where the Fantom 24 excels at distinguishing closely spaced targets, such as buoys or vessels in a crowded marina.
Beam Width and Target Separation
Beam width determines the radar’s ability to resolve individual targets. A narrower beam concentrates energy on a smaller area, improving definition and reducing the likelihood of merging multiple targets into a single return. At a distance of 1 mile, the Fantom 24’s beam width spans approximately 340 feet, while the Fantom 18’s spans 475 feet. This 135-foot difference can be critical in scenarios requiring precise navigation, such as identifying channel markers or avoiding closely spaced vessels.
To illustrate, consider two buoys 400 feet apart at 1 mile. The Fantom 24’s narrower beam is more likely to display them as separate targets, while the Fantom 18 may merge them into a single return due to its wider beam. This effect diminishes at longer ranges, where both radars’ beams widen significantly, but the Fantom 24 maintains an advantage in clarity.
Practical Applications
- Collision Avoidance: The Fantom 24’s superior target separation is ideal for busy waterways like Great South Bay, Long Island, where mariners need to distinguish multiple vessels or obstacles at ranges of 3-5 miles. The Fantom 18 is adequate for less congested areas or shorter ranges but may struggle with tightly grouped targets.
- Navigation: For navigating in fog or low visibility, the Fantom 24’s ability to resolve buoys and markers enhances safety. The Fantom 18 performs well but may require more careful interpretation in complex environments.
- Fishing: Both models’ Auto Bird Gain feature detects birds effectively, but the Fantom 24’s sharper resolution may provide a slight edge in pinpointing smaller flocks or isolated birds.
- Weather Tracking: Both radars track weather patterns from 20 feet to 48 nautical miles, with no significant performance difference due to identical power output and range capabilities.
Power and Range
Both models deliver 40W of power, enabling robust performance across their 20-foot to 48-nautical-mile range. This power level ensures reliable target detection in adverse conditions, such as rain or fog, where signal attenuation can degrade performance. The solid-state design enhances durability and eliminates the need for magnetron replacement, reducing long-term maintenance costs.
Choosing Between the Fantom 18 and Fantom 24
Selecting the right radar depends on vessel size, boating environment, budget, and specific use cases. Below are key considerations to guide your decision:
Vessel Size and Aesthetics
- Fantom 18: Its compact 20-inch diameter is ideal for smaller vessels (under 27 feet) where space is limited or a sleek profile is desired. However, some boaters note that an 18-inch dome may appear undersized on larger boats, impacting aesthetics.
- Fantom 24: The 25.4-inch dome suits mid-sized vessels and provides a balanced look on boats over 27 feet. Its larger size requires more mounting space, which may be a constraint on smaller boats.
Boating Environment
- Great South Bay, Long Island: This area features busy waterways, channel markers, and variable weather, making the Fantom 24’s superior target separation advantageous for collision avoidance and navigation within 3-5 miles. The Fantom 18 is sufficient for casual boating but may merge closely spaced targets in congested areas.
- Offshore Use: For occasional offshore trips (20-30 miles), both models perform well, with no significant range advantage. The Fantom 24’s clarity may aid in spotting distant weather or birds, but the Fantom 18 meets most needs.
Budget
The $800 price difference ($1,999.99 for the Fantom 18 vs. $2,799.99 for the Fantom 24) is a critical factor. For budget-conscious boaters, the Fantom 18 delivers excellent performance for most recreational applications. The Fantom 24’s enhanced resolution justifies the cost for those prioritizing safety in complex environments or seeking the best possible data.
Use Case: Collision Avoidance and Navigation
For mariners prioritizing collision avoidance and navigation, the Fantom 24’s narrower beam width provides a clear advantage in resolving closely spaced targets. In scenarios like navigating fog or busy channels, the ability to distinguish individual vessels or buoys can prevent accidents. The Fantom 18 is adequate for short-range navigation (under 3 miles) in less demanding conditions but may require more operator attention to interpret merged targets.
User Experience Level
Novice radar users may find the Fantom 18’s slightly simpler output easier to interpret, as its wider beam produces less granular data. Experienced mariners, however, will appreciate the Fantom 24’s detailed imaging, which supports more precise decision-making. Both models integrate seamlessly with Garmin MFDs (e.g., GPSMAP 942xs, 943xsv), offering chart overlays that enhance usability for beginners.
Real-World Feedback from Boaters
Online forums, such as The Hull Truth (THT), provide valuable insights from boaters using the Fantom 18 and 24. Key takeaways include:
- Target Separation: Users consistently praise the Fantom 24 for its superior target separation, particularly in crowded waterways or when navigating near channel markers. One user noted that the Fantom 18 merged two buoys into a single return, while the Fantom 24 displayed them distinctly.
- Close-Range Performance: The Fantom 24’s narrower beam width is lauded for short-range clarity, making it ideal for fog or low-visibility conditions. The Fantom 18 performs well but is less effective in complex scenarios.
- Value Proposition: Some boaters argue the Fantom 18 offers sufficient performance for casual boating, saving $800 for other equipment. Others emphasize the Fantom 24’s safety benefits, with one user stating, “How much is your well-being worth?”
- Bird Detection: Both models detect flocks of birds, but the Fantom 24 may resolve smaller or more distant groups more clearly, aiding offshore anglers.
- Aesthetics: On boats over 27 feet, the Fantom 18 is sometimes criticized for looking undersized, while the Fantom 24 is seen as more proportionate.
Installation and Compatibility
Both radomes are designed for easy installation, with no complex user settings. They integrate seamlessly with Garmin’s GPSMAP series (e.g., 942xs, 943xsv) and other compatible chartplotters via the Garmin Marine Network. For optimal performance, a heading sensor or autopilot is recommended to enable features like MARPA and trail correction. The radomes’ IPX7 water rating ensures durability in harsh marine environments, and their solid-state design enhances reliability.
When mounting, ensure the radar is level when the boat is underway, not at the dock, to avoid skewed returns. The Fantom 24’s larger size may require a sturdier mounting platform, so verify compatibility with your vessel’s radar arch or hardtop.
Cost-Saving Tips
To offset the Fantom 24’s higher cost, consider purchasing during promotional events at retailers like West Marine, where Gold Rewards Members can earn significant points during 5x points events. These points can fund additional equipment, such as autopilot components. Additionally, compare prices across vendors, as electronics pricing is often standardized, but shipping or tax advantages may apply.
Fantom 18 vs. Fantom X: Is the Upgrade Worth It?
Some boaters have noted newer Fantom X models, which offer 50W of power and a power-save mode compared to the standard Fantom’s 40W. Priced approximately $500-600 higher (e.g., $2,100 for Fantom 18x vs. $1,500-1,600 for Fantom 18), the Fantom X provides marginal improvements for most recreational users. For collision avoidance and navigation in fog, the standard Fantom 18 or 24 is sufficient, as the additional power primarily enhances long-range detection and bird tracking. Unless offshore fishing or extended voyages are priorities, the standard models offer better value.
Conclusion
The Garmin GMR Fantom 18 and 24 dome radars redefine marine radar performance, bringing advanced features like MotionScope, pulse compression, and dual range capability to compact, affordable packages. The Fantom 18 is a cost-effective choice for smaller vessels or casual boaters, delivering reliable performance for navigation and collision avoidance. The Fantom 24, with its narrower beam width and superior target separation, is the preferred option for busy waterways, larger vessels, or mariners seeking maximum clarity and safety.
For boaters in areas like Great South Bay, the Fantom 24’s enhanced resolution justifies its $2,799.99 price for those prioritizing precise navigation and collision avoidance. Budget-conscious users will find the Fantom 18’s $1,999.99 price point and robust feature set more than adequate for most recreational needs. By assessing vessel size, boating environment, and specific requirements, mariners can confidently choose the radar that best enhances their safety and enjoyment on the water.
For more information, visit garmin.com/newmarine or follow Garmin Marine on social media for updates and tips.
Happy Boating!
