When it comes to a successful fishing expedition, having the right tools at your disposal can make all the difference. One essential accessory for any fishing boat is a fish finder. Fish finders have transformed the way both recreational and professional anglers operate, using sonar technology to detect fish underwater and give detailed information about the water’s depth, structure, and bottom composition. Whether you’re a weekend angler or a seasoned pro, understanding fish finders and choosing the right one for your needs can help you catch more fish efficiently.
In this article, we’ll explore the key features, technology, and pricing of fish finders, as well as some tips on choosing the right model for your fishing boat.
What is a Fish Finder?

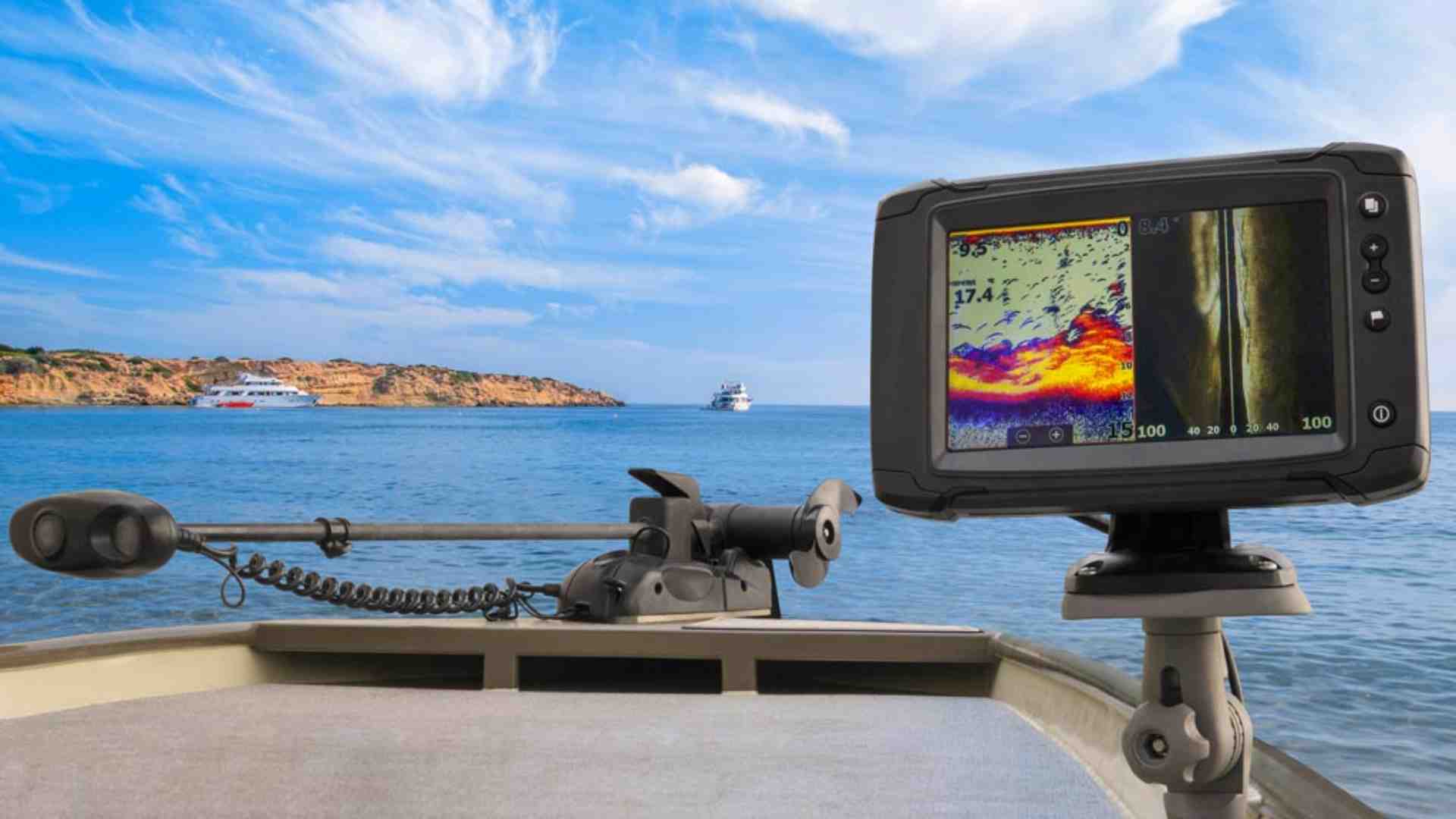

A fish finder is an electronic device that uses sonar technology to detect objects underwater. It sends out sound waves and then interprets the reflected echoes, allowing you to “see” fish, underwater structures, and the sea or lake bed on a display screen. The fish finder screen typically shows a variety of information including depth, water temperature, and fish locations.
Key Components of a Fish Finder
- Transducer: This is the heart of the fish finder. The transducer sends sonar waves into the water and receives the echoes that bounce back from objects like fish or the seabed.
- Display: The display shows a visual interpretation of the sonar data. These can vary from simple black-and-white screens to high-definition, full-color displays.
- Sonar Technology: There are different types of sonar technology used in fish finders:
- Single-beam sonar: Basic models use a single sonar beam for simple depth and fish detection.
- Dual-beam sonar: Offers more coverage and is better suited for spotting fish in deeper waters.
- CHIRP sonar: Sends a range of frequencies to give more detailed, clearer images and better target separation.
- Side-scan and Down-scan sonar: Side-scan provides a wide view of what’s to the sides of the boat, while down-scan shows detailed images directly beneath the boat.
- GPS Integration: Many modern fish finders also come with built-in GPS functionality, which allows you to mark waypoints, follow routes, and map out your fishing grounds.
- Connectivity: Some fish finders can sync with smartphones, tablets, and other devices, offering real-time data sharing and remote control capabilities.
Types of Fish Finders
1. Portable Fish Finders
Portable fish finders are ideal for small boats, kayaks, or for anglers who want to take their equipment with them. These devices are compact, easy to install, and often come with a suction cup or clamp to attach the transducer temporarily.
- Price Range: $50 to $300
- Example: Garmin Striker 4 ($119) – This model features a 3.5-inch screen, GPS, and CHIRP sonar. It’s a compact and affordable option for smaller boats or portable use.
2. Fixed Mount Fish Finders
These are typically more powerful and feature-rich, designed to be permanently installed on your boat. They are often equipped with advanced sonar technologies like CHIRP, down-scan, and side-scan, as well as GPS mapping capabilities.
- Price Range: $300 to $2,000+
- Example: Humminbird HELIX 7 CHIRP SI GPS G4 ($699) – The HELIX 7 has a 7-inch color display, GPS, CHIRP sonar, and both side and down imaging, offering excellent performance for serious anglers.
3. Fish Finders with GPS Combo
These models combine fish-finding capabilities with GPS mapping technology, making it easier to navigate and find your favorite fishing spots.
- Price Range: $400 to $1,500
- Example: Lowrance HDS-7 LIVE ($1,299) – This model is highly advanced, offering real-time sonar, side-scan, and GPS mapping. It features a 7-inch display, Active Imaging, and CHIRP sonar for top-notch performance.
4. Kayak Fish Finders
Designed specifically for use on kayaks, these fish finders are compact, waterproof, and easily mounted. Many have built-in rechargeable batteries and feature compact transducers.
- Price Range: $100 to $500
- Example: Deeper PRO+ Smart Sonar ($299) – This castable, portable sonar works via a smartphone app and is popular among kayak anglers. It offers GPS, dual-beam sonar, and can be used both from shore or on a kayak.
Features to Consider When Choosing a Fish Finder
1. Display Size and Resolution
The display is one of the most important aspects of a fish finder. Larger displays (5 to 12 inches) with higher resolutions offer clearer images and allow for easier reading, especially in bright sunlight. Small displays may be more challenging to use on larger bodies of water or in bright conditions but are often more affordable.
2. Sonar Power and Frequency
The power of the sonar, measured in watts, affects how deep the sonar can penetrate the water and how quickly it can send back data. More powerful units (500W to 1000W) can detect fish and underwater structures at greater depths. The frequency range (measured in kHz) also plays a role: lower frequencies (50-83 kHz) are better for deep water, while higher frequencies (200-455 kHz) provide more detail in shallow water.
3. GPS Mapping and Navigation
Fish finders with built-in GPS allow you to mark waypoints and create your own maps. This is especially helpful when fishing in unfamiliar waters or when you want to return to a successful spot. Some models even come with preloaded maps of lakes and coastal areas, offering better navigation.
4. CHIRP Sonar
CHIRP (Compressed High-Intensity Radiated Pulse) sonar has become increasingly popular in mid-to-high-end fish finders. It sends out multiple frequencies at once, creating clearer, more detailed images of the underwater environment. If you’re serious about fishing, opting for a unit with CHIRP sonar will greatly improve your fish-finding ability.
5. Side Imaging and Down Imaging
- Down imaging is great for getting highly detailed views of what’s directly beneath the boat.
- Side imaging is a bit more advanced, scanning large areas to the left and right of the boat, allowing you to cover more water.
6. Connectivity
Some fish finders come with Bluetooth or Wi-Fi connectivity, enabling you to sync the device with your smartphone or tablet. This feature can be especially useful for sharing data, controlling the fish finder remotely, or viewing sonar images on a larger screen.
Price Breakdown and Popular Models
Budget Fish Finders (Under $150)
For anglers on a budget or beginners, basic models like the Garmin Striker 4 or Lucky Portable Fish Finder are excellent choices. These offer standard sonar and small displays but are easy to use.
- Garmin Striker 4: $119
- Lucky Portable Fish Finder: $89
Mid-range Fish Finders ($150 to $500)
Mid-range units offer enhanced features like CHIRP sonar, larger displays, and GPS functionality. Humminbird PiranhaMax 4 DI and Lowrance HOOK Reveal 5 are popular in this category.
- Humminbird PiranhaMax 4 DI: $159
- Lowrance HOOK Reveal 5: $299
High-end Fish Finders ($500 and Up)
For serious anglers, high-end fish finders like the Lowrance HDS-9 LIVE or Garmin GPSMAP 8610xsv provide the most advanced sonar and mapping features, often with 3D imaging, touchscreen displays, and wireless integration.
- Lowrance HDS-9 LIVE: $1,499
- Garmin GPSMAP 8610xsv: $2,499
Tips for Choosing the Right Fish Finder
- Determine Your Budget: High-end models offer incredible features, but you may not need them if you only fish occasionally or in shallow waters.
- Consider Your Boat Size: Larger boats benefit from bigger displays and more powerful sonar. If you’re in a kayak or a small boat, a portable, compact model may be ideal.
- Think About Water Depth: If you mostly fish in shallow waters, a dual-beam sonar is sufficient. For deep-sea or large lake fishing, opt for a model with more powerful sonar and down-scan imaging.
- Look for GPS Features: A GPS-enabled fish finder can help you navigate and find your favorite fishing spots again with ease.
- Ease of Use: Especially for beginners, finding a unit that is intuitive and easy to navigate will make your fishing trips more enjoyable and productive.
Conclusion
Fish finders are invaluable tools for anglers, making it easier to locate fish and navigate waters efficiently. Whether you’re a weekend fisherman or a professional angler, there’s a fish finder that can suit your needs. Consider the factors above, from sonar technology to display size and GPS capabilities, and find the right model within your budget to make the most of your fishing adventures.
Happy Boating!
