The Caterpillar (Cat) C9 ACERT engine is a robust diesel engine known for its high torque and reliability, widely used in applications such as heavy trucks, recreational vehicles (RVs), marine vessels, agricultural equipment, and generators. With a 6-cylinder configuration and horsepower ranging from 335 to 575, depending on the model, it delivers impressive performance, particularly in high-torque scenarios like towing or powering large equipment. However, like any complex machinery, the C9 ACERT is not immune to issues. This article delves into the most common problems associated with the Cat C9 ACERT engine, their causes, symptoms, diagnostic approaches, and solutions, providing a detailed resource for owners, operators, and mechanics. We’ll also explore maintenance tips to prolong engine life and include visual aids like charts and diagrams to enhance understanding.
Overview of the Cat C9 ACERT Engine
The Cat C9 ACERT is a 9-liter, inline 6-cylinder diesel engine designed for durability and performance. Introduced in the early 2000s, it was used in various applications until its discontinuation for on-highway use around 2010 due to stricter emissions standards. It remains in use for off-highway and marine applications, where its high torque (up to 1150 ft-lbs) and sleeved design make it a preferred choice. The ACERT (Advanced Combustion Emission Reduction Technology) system was Caterpillar’s solution to meet environmental regulations, incorporating features like the Hydraulically Actuated Electronically Controlled Unit Injector (HEUI) system.
Key Specifications
| Specification | Details |
|---|---|
| Engine Type | Inline 6-cylinder, 4-stroke diesel |
| Displacement | 8.8–9.3 liters |
| Horsepower Range | 335–575 hp |
| Torque | Up to 1150 ft-lbs |
| Fuel System | HEUI (Hydraulically Actuated Unit Injector) |
| Aspiration | Turbocharged, aftercooled |
| Emissions Technology | ACERT (pre-2010 models) |
| Applications | Trucks, RVs, marine, agriculture, generators |
| Weight (approx.) | 1,650–1,800 lbs (dry) |
Despite its strengths, the C9 ACERT has faced criticism for certain recurring issues, particularly with its fuel system and sensors. Below, we outline the most prevalent problems, drawing from mechanic insights, user experiences, and technical discussions.
Common Problems with the Cat C9 ACERT Engine
1. HEUI Fuel System Issues
The HEUI system, which uses pressurized engine oil to actuate fuel injectors, is both a strength and a vulnerability of the C9 ACERT. While it allows precise fuel delivery, it is highly sensitive to maintenance practices and contaminants.
Symptoms
- Loss of power, especially at higher temperatures
- Rough idling or surging
- Engine misfiring or dying at idle
- Diagnostic codes like 164-2 (Injection Actuation Pressure erratic)
Causes
- HEUI Pump Failure: The pump’s bearings, especially in early models, are prone to wear, releasing metal debris that can damage injectors. A remanufactured pump costs around $1,400, while a new one is approximately $2,500.
- Dirty Oil: Inadequate oil changes or using non-recommended oils can clog the system, reducing pressure and performance.
- Injector Damage: Debris from a failing pump or contaminated fuel can harm injectors, leading to costly replacements ($500–$700 per injector).
Diagnosis
- Check Oil Quality: Ensure oil is changed every 5,000 miles or 200 hours, using Cat-recommended synthetic oil (e.g., Cat DEO-ULS 10W-30).
- Inspect HEUI Pump: Remove the pump’s top cover (T27 Torx screws) to check for metal debris on the magnet. If present, both pump and injectors may need replacement.
- Pressure Testing: Use a 5,000 psi gauge to measure injection actuation pressure and compare it to the Electronic Technician (ET) tool readings.
Solutions
- Replace the HEUI pump if metal debris is found. A remanufactured pump (part no. 10R-8900) is a cost-effective option.
- Install an aftermarket filter between the HEUI pump and cylinder head to catch debris, priced at $200–$300.
- Regularly change oil and use high-quality filters (e.g., Cat Advanced Efficiency Oil Filter, ~$30).
Maintenance Tip
Users report that adhering to strict oil change intervals and using Cat or equivalent filters (e.g., Baldwin .02 micron) significantly reduces HEUI-related issues. An aftermarket filter system is a worthwhile investment for high-hour engines.
2. Fuel Injector Problems
Fuel injectors in the C9 ACERT are critical for combustion but prone to leaks, clogging, and premature wear.
Symptoms
- Strong diesel smell near the valve cover
- Reduced fuel economy
- Power loss or misfiring
- Excessive smoke (black or white)
Causes
- Leaking Injector Seals: High cylinder pressures can degrade O-ring seals, causing leaks. Replacement O-rings cost $10–$20 per injector.
- Clogged Injectors: Dirt or old fuel can block the needle-sized nozzles, typically requiring replacement before 100,000 miles.
- Worn Injectors: Premature wear, often due to poor fuel quality, can cause improper fuel delivery.
Diagnosis
- Visual Inspection: Remove the valve cover and crank the engine to check for excessive oil leakage from injector spill ports.
- Performance Testing: Use the ET tool to test injector performance. A failing injector may show inconsistent actuation.
- Fuel Quality Check: Test fuel for contaminants or water, which can clog injectors.
Solutions
- Replace leaking O-rings or entire injectors if damaged. A full set of six injectors costs $3,000–$4,200.
- Use fuel injector cleaners (e.g., Stanadyne Performance Formula, ~$10 per bottle) as a preventive measure.
- Ensure fuel filters (e.g., Cat Fuel Filter 1R-0749, ~$25) are replaced regularly to prevent clogging.
Maintenance Tip
Injectors should last up to 7,000 hours with proper maintenance, but replacing O-rings every 3,000–4,000 hours can prevent leaks. Always use clean, high-quality diesel fuel.
3. Excessive Oil Consumption
Some C9 ACERT engines exhibit high oil consumption, which can indicate internal issues.
Symptoms
- Oil loss of 1 gallon every 40–50 hours or 2,500 miles
- No visible leaks or oil in exhaust
- Normal dipstick readings despite oil additions
Causes
- Piston Ring Wear: Worn or unseated rings can allow oil to enter the combustion chamber, though this is not a widespread issue.
- Overfilling: Inaccurate dipsticks can lead to overfilling, causing oil to be burned off.
- Low Operating Temperature: Caterpillar suggests that engines running below optimal temperatures (e.g., <170°F) may not seat rings properly, increasing oil consumption.
Diagnosis
- Blowby Test: Measure crankcase blowby to assess ring sealing. Excessive blowby indicates worn rings.
- Oil Level Check: Verify oil levels with a known quantity (C9 requires 7.4 gallons) to rule out dipstick errors.
- Temperature Analysis: Monitor engine temperature to ensure it reaches 170–190°F during operation.
Solutions
- Replace the thermostat (e.g., Cat Thermostat 247-7133, ~$50) to ensure proper operating temperature.
- Conduct an oil consumption report to document usage, as required by Cat warranty processes.
- If rings are worn, a cylinder overhaul with a Cat Precious Metals Overhaul Kit (~$2,500) may be necessary.
Maintenance Tip
Maintain accurate oil records and avoid overfilling. If oil consumption persists, consult a Cat dealer for a detailed inspection, as warranty coverage may apply for engines under 500,000 miles.
4. Sensor Failures
The C9 ACERT relies on multiple sensors, and failures can cause significant performance issues.
Symptoms
- Engine stuck in low RPM mode (temperature sensor failure)
- Erratic power delivery or surging (actuation pressure sensor)
- Diagnostic codes like 164-2 or atmospheric pressure sensor faults
Causes
- Temperature Sensor Failure: A faulty sensor may incorrectly report a cold engine, limiting RPM to protect the engine.
- Injection Actuation Pressure (IAP) Sensor: A clogged or failed IAP sensor can cause rough idling or no-start conditions. Part cost is ~$150.
- Wiring Issues: Corroded or loose multi-plug connectors can disrupt sensor signals.
Diagnosis
- Sensor Testing: Use a multimeter to check sensor resistance (e.g., IAP sensor should read 6–10 ohms when cold).
- Wiring Inspection: Check for corroded or loose connections at multi-plugs.
- Code Reading: Use the ET tool to identify specific sensor-related codes.
Solutions
- Replace faulty sensors (e.g., Cat IAP Sensor 224-4536, ~$150).
- Clean or repair wiring harnesses to ensure proper connections.
- For IAP sensor issues, cleaning with carburetor cleaner may temporarily resolve clogs.
Maintenance Tip
Regularly inspect wiring and connectors, especially in marine or dusty environments. Carry a spare IAP sensor for quick roadside fixes.
5. Serpentine Belt and Tensioner Issues
The serpentine belt system, which drives auxiliary components, can fail if not maintained.
Symptoms
- Squeaking noises, especially when cold
- Belt dust or wear on the engine front
- Overheating due to tensioner failure
Causes
- Tensioner Failure: The belt tensioner (Dayco brand, rebranded by Cat) can seize, causing belt slippage. A Cat tensioner costs $260, but a Dayco equivalent is $60.
- Idler Pulley Wear: Worn idler pulleys can cause belt misalignment.
- Neglected Maintenance: Infrequent belt replacements lead to wear and failure.
Diagnosis
- Visual Inspection: Check for belt dust, cracks, or misalignment.
- Manual Testing: Gently rotate the tensioner and idler pulleys to detect binding or roughness.
- Sound Check: Listen for squeaking during cold starts or under load.
Solutions
- Replace the tensioner and idler pulleys (Cat idler pulley, ~$50 each; Dayco tensioner, ~$60).
- Install new belts (Continental belts, ~$30 each).
- Rebuild tensioner bearings as a cost-saving alternative (~$20 for bearing kits).
Maintenance Tip
Inspect the serpentine system every 1,000 hours or annually. Replacing tensioners and idlers preventatively can avoid catastrophic engine damage from overheating.
Visualizing the C9 ACERT Fuel System

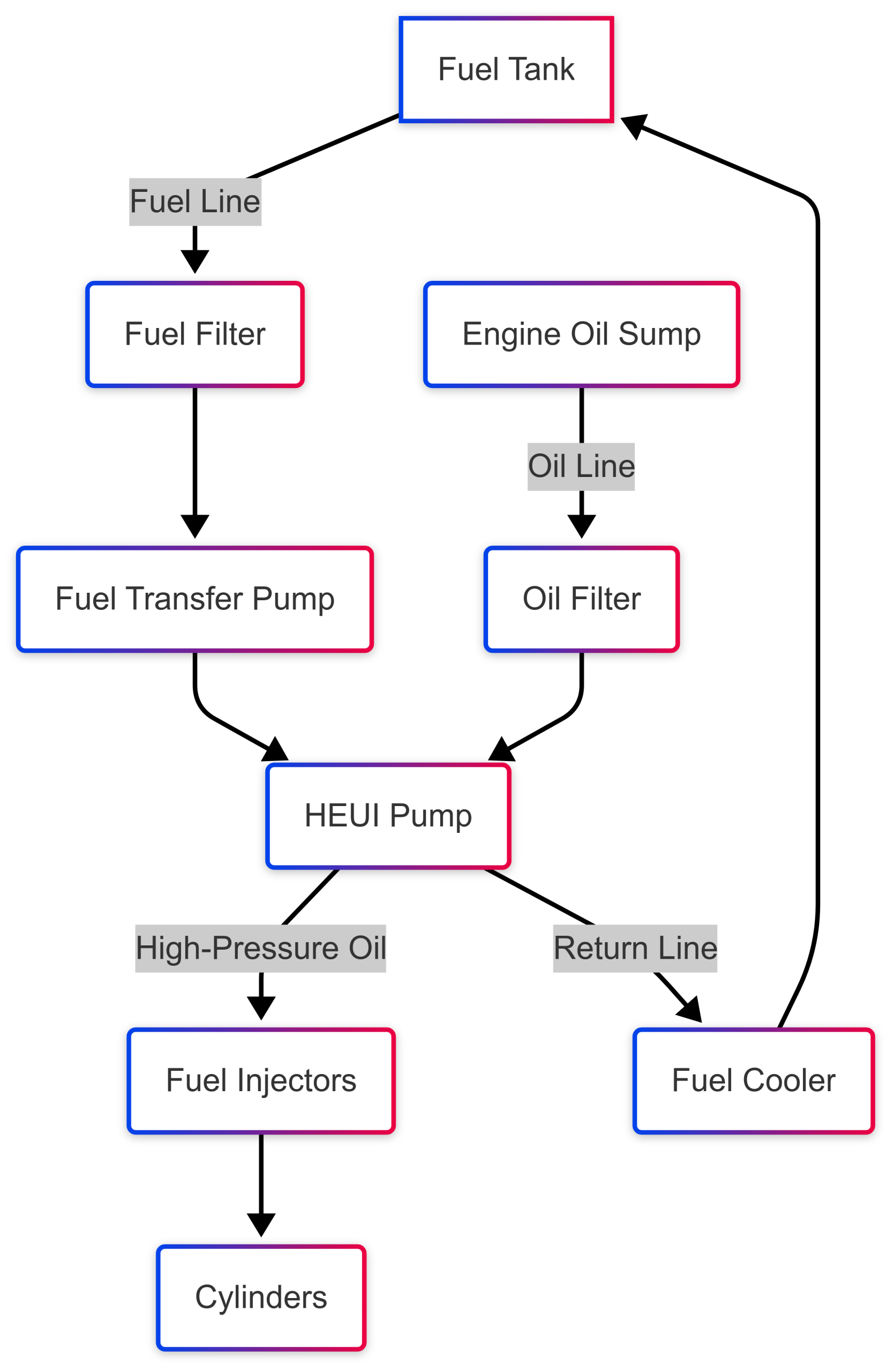

To better understand the HEUI system’s complexity, below is a diagram illustrating the fuel and oil flow:
This diagram highlights the interdependence of oil and fuel systems, emphasizing the need for clean oil and fuel to prevent HEUI pump and injector issues.
Cost Analysis of Common Repairs
Below is a table summarizing typical repair costs for C9 ACERT issues:
| Issue | Parts Cost | Labor Cost (est.) | Total Cost (est.) |
|---|---|---|---|
| HEUI Pump Replacement | $1,400–$2,500 | $500–$1,000 | $1,900–$3,500 |
| Injector Replacement (6) | $3,000–$4,200 | $600–$1,200 | $3,600–$5,400 |
| Injector O-Ring Replacement | $60–$120 | $300–$600 | $360–$720 |
| IAP Sensor Replacement | $150 | $100–$200 | $250–$350 |
| Tensioner & Idler Replacement | $150–$300 | $200–$400 | $350–$700 |
| Thermostat Replacement | $50 | $100–$200 | $150–$250 |
| Cylinder Overhaul Kit | $2,500 | $2,000–$4,000 | $4,500–$6,500 |
Note: Costs vary by region and service provider. Labor estimates assume 2–4 hours per repair at $100–$150/hour.
User Experiences and Insights
Online forums and mechanic discussions reveal mixed experiences with the C9 ACERT:
- Positive Feedback: Owners with well-maintained engines, like a 2006 C9 with 45,000 miles, report minimal issues when oil and filters are changed annually. Marine users with 2,000+ hours praise the sleeved design for easier rebuilds.
- Negative Feedback: Truck and agricultural users frequently cite HEUI pump and injector failures, often linked to poor maintenance or early model defects. One user reported a $3,000 annual maintenance cost for C9 auxiliary engines, compared to $500 for others.
- Warranty Disputes: Some owners faced warranty denials for ring wear or oil consumption, with Caterpillar claiming the engine was unsuitable for certain applications, despite its on-highway classification.
Maintenance Tips for Longevity
To minimize issues and extend the C9 ACERT’s lifespan:
- Adhere to Maintenance Schedules: Change oil every 5,000 miles or 200 hours, using Cat DEO-ULS or equivalent synthetic oil.
- Use Quality Filters: Install Cat or Baldwin filters for oil and fuel to protect the HEUI system.
- Monitor Sensors: Regularly check sensor performance with the ET tool or a multimeter.
- Inspect Serpentine System: Replace belts, tensioners, and idlers every 1,000–2,000 hours.
- Document Service History: Maintain detailed records to support warranty claims and ensure proper maintenance.
- Check Fuel Quality: Use clean, fresh diesel and add fuel additives to prevent injector clogging.
Comparison with Alternatives
When considering a C9 ACERT-equipped vehicle or vessel, some owners compare it to alternatives like the Cummins QSC 8.3, which has a reputation for fewer issues in marine applications. The Cummins engine benefits from a simpler common rail fuel system, reducing sensitivity to oil quality. However, the C9’s sleeved design makes it more rebuildable, potentially lowering long-term costs.
C9 ACERT vs. Cummins QSC 8.3
| Feature | Cat C9 ACERT | Cummins QSC 8.3 |
|---|---|---|
| Displacement | 8.8–9.3 liters | 8.3 liters |
| Horsepower | 335–575 hp | 490–600 hp |
| Fuel System | HEUI | Common Rail |
| Rebuildability | Sleeved (easier) | Non-sleeved |
| Known Issues | HEUI pump, injectors | Minimal |
| Maintenance Cost | Higher | Lower |
For buyers prioritizing reliability over rebuildability, the Cummins may be preferable, but a well-maintained C9 can match its performance.
Conclusion
The Cat C9 ACERT engine is a powerful and versatile diesel engine, but its HEUI fuel system, injector sensitivity, and sensor vulnerabilities require diligent maintenance. Common issues like HEUI pump failures, injector leaks, excessive oil consumption, sensor malfunctions, and serpentine system wear are manageable with proper care and timely repairs. By adhering to strict maintenance schedules, using high-quality oils and filters, and monitoring engine performance, owners can maximize the C9’s lifespan and reliability.
For prospective buyers, checking service history is critical, especially for high-hour engines or those with gaps in maintenance records. While the C9 ACERT has faced criticism, particularly in automotive applications, its sleeved design and robust performance make it a viable choice for marine and off-highway uses when properly maintained. If issues arise, leveraging diagnostic tools like the Cat ET and consulting experienced mechanics can prevent costly downtime.
By understanding the C9 ACERT’s strengths and weaknesses, owners can make informed decisions, ensuring this engine continues to deliver the torque and durability it was designed for.
