Boating Shackles: A Comprehensive Guide

When it comes to boating, the importance of reliable hardware cannot be overstated. Among the various pieces of equipment, boating shackles are small yet essential components that play a critical role in ensuring safety and functionality on the water. Whether you’re securing rigging, connecting anchors, or fastening lines, shackles are indispensable in a wide array of marine applications. This article provides an in-depth look at boating shackles, covering their types, materials, uses, specifications, and prices.

What Are Boating Shackles?

Shackles are U-shaped metal pieces used to connect various components in a boating setup. They typically consist of a body, a pin (which can be threaded or secured with a cotter pin), and sometimes a screw or bolt to secure the pin in place. The primary function of a shackle is to form a secure connection between different elements, such as ropes, chains, or other hardware, allowing for easy assembly and disassembly when needed.

Types of Boating Shackles

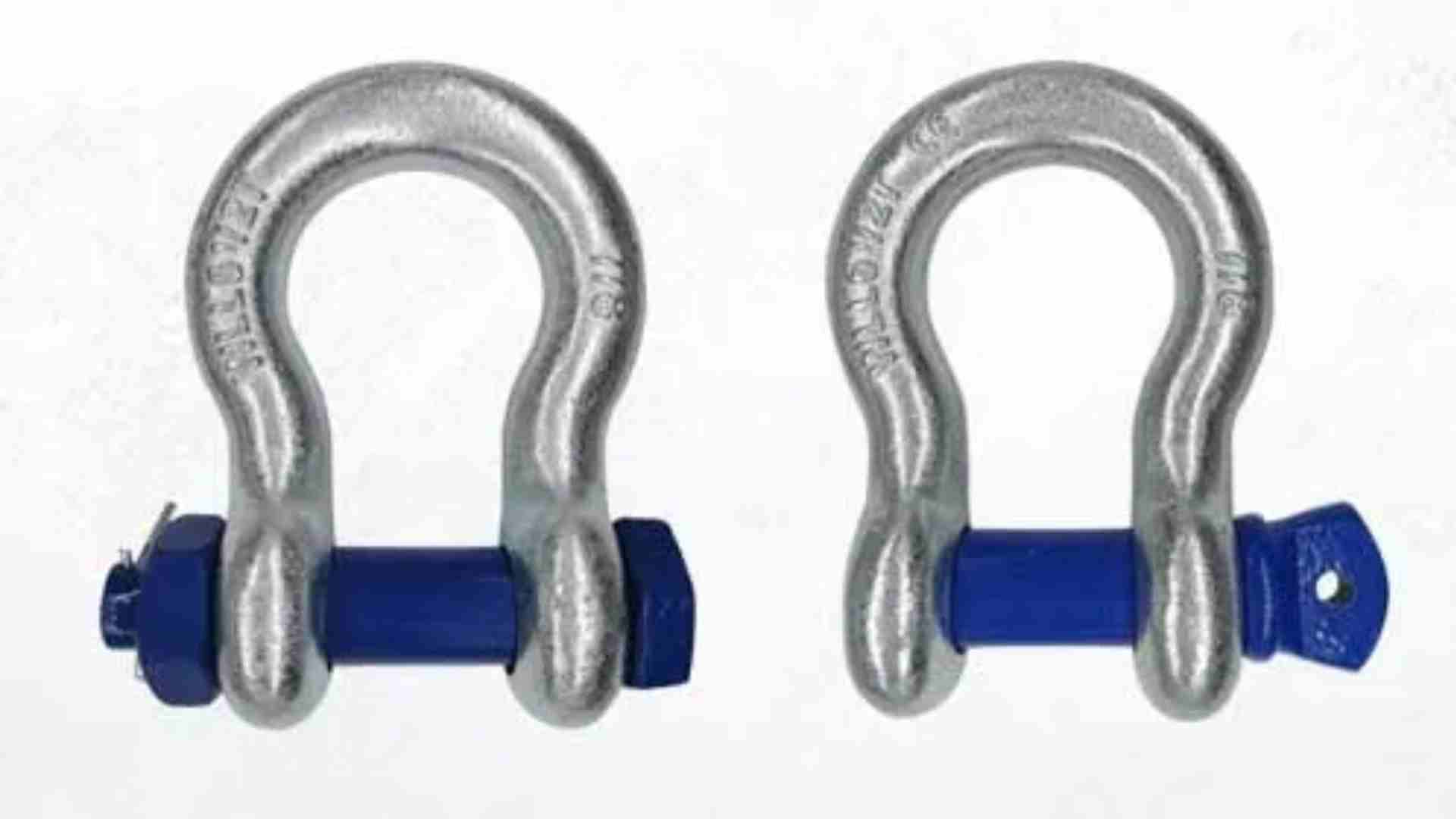

1. Bow Shackles:

  • Shape: Bow shackles have a larger, more rounded “bow” or curve.
  • Use: The larger loop allows for more flexibility and movement, making them ideal for attaching multiple lines or chains.
  • Price Range: $5 – $30 depending on size and material.

2. D Shackles (Dee Shackles):

  • Shape: These have a more narrow, D-shaped design.
  • Use: They are used where a tighter connection is required, such as in rigging or with anchor chains.
  • Price Range: $3 – $25 depending on size and material.

3. Snap Shackles:

  • Feature: These have a spring-loaded mechanism for quick release.
  • Use: Often used for applications where speed and convenience are key, such as attaching sheets and halyards in sailing.
  • Price Range: $10 – $50 depending on size and material.

4. Twist Shackles:

  • Feature: The body of the shackle is twisted to allow for a 90-degree rotation of the pin and the connected item.
  • Use: Used where the connected lines or chains need to be aligned differently.
  • Price Range: $7 – $35 depending on size and material.

5. Long D Shackles:

  • Shape: These shackles have a longer, more slender body.
  • Use: Ideal for applications requiring a longer reach.
  • Price Range: $8 – $40 depending on size and material.

Materials Used in Boating Shackles

1. Stainless Steel:

  • Advantages: Corrosion-resistant, durable, and strong, making it ideal for marine environments.
  • Disadvantages: More expensive than other materials.
  • Price Example: A stainless steel bow shackle can range from $10 to $30.

2. Galvanized Steel:

  • Advantages: More affordable and still resistant to rust, though not as durable as stainless steel.
  • Disadvantages: Prone to corrosion over time, especially in saltwater.
  • Price Example: A galvanized steel D shackle typically costs between $5 and $15.

3. Alloy Steel:

  • Advantages: Extremely strong, often used in heavy-duty applications.
  • Disadvantages: Can be prone to rust without proper coating or maintenance.
  • Price Example: An alloy steel shackle might range from $15 to $40.

4. Synthetic Shackles:

  • Advantages: Lightweight, flexible, and does not corrode. Often used in specialized applications.
  • Disadvantages: Less durable in high-load situations compared to metal shackles.
  • Price Example: Synthetic shackles range from $20 to $60.

Specifications and Load Ratings

When selecting shackles for boating, it’s crucial to consider their load ratings, which are determined by the working load limit (WLL) and the breaking strength. The WLL is the maximum load a shackle can safely handle, usually expressed in pounds or kilograms. Breaking strength is the load at which the shackle will fail.

  • Stainless Steel D Shackle:
    • Size: 6mm (1/4 inch)
    • WLL: 1,100 lbs (500 kg)
    • Breaking Strength: 5,500 lbs (2,500 kg)
    • Price: $12
  • Galvanized Bow Shackle:
    • Size: 10mm (3/8 inch)
    • WLL: 2,200 lbs (1,000 kg)
    • Breaking Strength: 11,000 lbs (5,000 kg)
    • Price: $8

Common Uses of Boating Shackles

  1. Anchor Chains: Shackles are used to connect the anchor chain to the anchor or to join segments of chain together.
  2. Rigging: Used to connect various parts of the sailboat’s rigging, such as attaching the halyard to the sail.
  3. Mooring Lines: Shackles are often used to attach mooring lines to a buoy or dock.
  4. Deck Hardware: Frequently used to secure hardware like blocks, pulleys, and other deck equipment.

How to Choose the Right Shackle

Selecting the appropriate shackle depends on several factors:

  • Load Requirements: Consider the WLL and breaking strength based on your specific needs.
  • Material: Stainless steel is recommended for saltwater environments due to its corrosion resistance.
  • Type of Shackle: Choose the shape and type (e.g., bow, D, snap) based on the application.
  • Size: Ensure the size matches the lines, chains, or hardware it will be used with.

Maintenance Tips

  1. Regular Inspection: Frequently check shackles for signs of wear, corrosion, or deformation.
  2. Lubrication: Lubricate the pin threads with marine grease to prevent seizing.
  3. Replacement: Replace shackles immediately if they show signs of significant wear or damage.

Pricing Overview

The price of boating shackles varies depending on the type, material, and size. Here’s a quick overview:

  • Budget Shackles: $3 to $10 (typically galvanized steel or small-sized stainless steel)
  • Mid-Range Shackles: $10 to $30 (stainless steel or larger-sized galvanized steel)
  • Premium Shackles: $30 to $60+ (alloy steel, large stainless steel, or specialized synthetic shackles)

Conclusion

Boating shackles may be small, but their role in ensuring safety and efficiency on the water is significant. By understanding the different types, materials, and specifications, you can select the right shackle for your needs, whether you’re anchoring, rigging, or securing lines. Proper maintenance and regular inspection will ensure that these vital components continue to perform reliably, keeping your boating adventures safe and enjoyable.

Investing in quality shackles tailored to your specific requirements is crucial. With a wide range of options available, from budget-friendly galvanized steel to high-end stainless steel, there’s a shackle for every boating scenario. So, next time you head out on the water, take a moment to appreciate these unsung heroes of marine hardware.

Happy Boating!
