Boat Fuel Gauge Reading Full When Empty: Troubleshoot Guide

A malfunctioning boat fuel gauge can quickly turn a relaxing day on the water into a frustrating experience. Picture this: you set out for a day of boating, confident that your fuel tank is full, only to realize later that your boat is running on empty while your fuel gauge stubbornly reads “full.” It’s a scenario that many boaters have encountered, and it can be incredibly inconvenient and even worrisome.

In this article, we will dive into the perplexing issue of a boat fuel gauge reading full when the tank is actually empty. We’ll explore the potential causes behind this malfunction and provide possible solutions to rectify the problem. Understanding the root causes and finding effective solutions will not only save you from unexpected fuel shortages but also provide peace of mind during your boating adventures.

So, let’s delve into the world of boat fuel gauges and uncover the reasons behind this frustrating issue, empowering you to troubleshoot and resolve it efficiently.

Table of Contents show

Understanding the Fuel Gauge

Boat Fuel Gauge Reading Full When Empty: Troubleshoot Guide

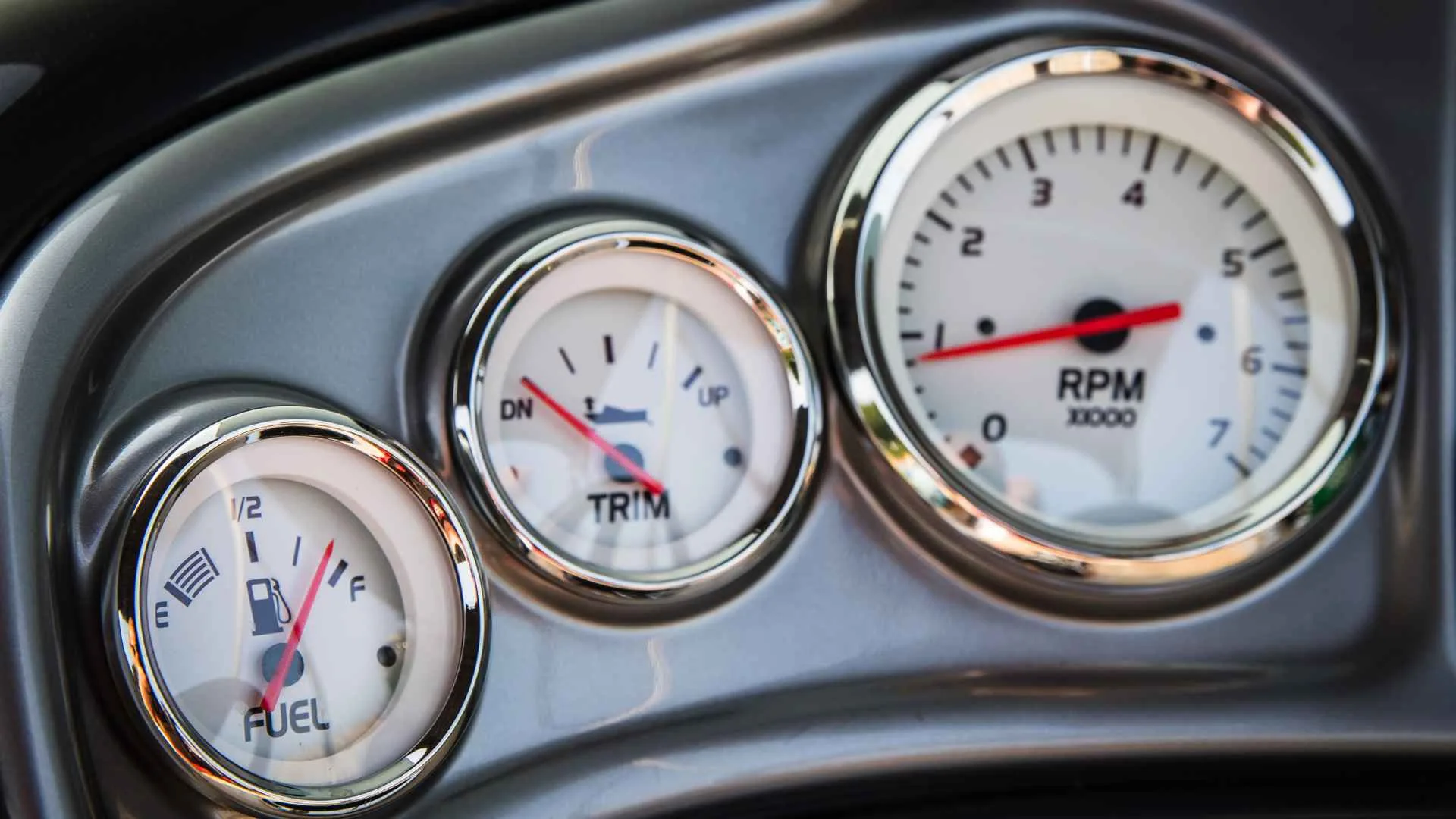

The fuel gauge is an essential component of any boat, providing crucial information about the amount of fuel in the tank. It serves as a visual indicator, allowing boaters to monitor fuel levels and plan their trips accordingly.

In most boats, the fuel gauge operates using a combination of a sender unit and electrical components. The sender unit is typically a float or arm that is connected to a variable resistor. As the fuel level in the tank changes, the position of the float or arm also adjusts, altering the resistance in the sender unit. The electrical components in the fuel gauge then interpret this resistance to display the corresponding fuel level on the gauge.

A properly functioning fuel gauge is vital for safe and efficient boating. It provides valuable information that helps boaters avoid fuel shortages and plan refueling stops. By having an accurate reading of the fuel level, boaters can make informed decisions about their route, distance, and potential fuel consumption.

However, when the fuel gauge malfunctions, it can lead to inaccurate readings and, in the case you described, display a full tank when it’s actually empty. Understanding the causes behind this issue is key to resolving it and ensuring that your fuel gauge provides accurate and reliable readings.

What Are the Potential Causes of a Misreading Fuel Gauge?

There are several potential causes for a fuel gauge to inaccurately read full when the tank is actually empty. These causes can vary depending on the specific boat and its fuel system. Here are a few common factors to consider:

Faulty Fuel Sender Unit: The fuel sender unit, which is responsible for measuring the fuel level in the tank, can become faulty over time. A malfunctioning sender unit may not accurately transmit the correct fuel level information to the gauge, resulting in inaccurate readings.

Wiring Issues: Electrical wiring problems, such as loose connections or damaged wires, can disrupt the communication between the fuel sender unit and the fuel gauge. Faulty wiring can cause incorrect readings or prevent the gauge from functioning properly.
Gauge Calibration: Fuel gauges require calibration to ensure accurate readings. If the gauge is not properly calibrated or has been tampered with, it may display incorrect fuel levels. Calibration issues can arise from incorrect installation, modifications, or changes in the fuel system.
Stuck Float: The float in the fuel sender unit can sometimes get stuck, particularly if it becomes damaged or encounters debris or sediment in the fuel tank. A stuck float can prevent the sender unit from accurately measuring the fuel level, leading to a misreading on the fuel gauge.

Grounding Issues: Proper grounding is essential for the accurate operation of the fuel gauge. If the gauge or sender unit lacks a good electrical ground connection, it can result in erratic readings or complete failure of the gauge.

It’s important to note that these are general potential causes, and the specific cause of the misreading fuel gauge will depend on your boat’s fuel system. Identifying the root cause is crucial to resolving the issue effectively and ensuring accurate fuel level readings. In the next sections, we will explore solutions and troubleshooting steps to address these potential causes.

Identifying the root cause is crucial for troubleshooting and resolving the issue.

Identifying the root cause of a misreading fuel gauge is crucial for effectively troubleshooting and resolving the issue. While there are various potential causes, pinpointing the specific factor responsible for the inaccurate readings is essential. Here’s why:

Efficient Troubleshooting: By identifying the root cause, you can focus your troubleshooting efforts on the specific component or system that needs attention. This allows for a more efficient and targeted approach to resolving the problem.
Appropriate Solution: Different causes require different solutions. For example, if the issue lies with a faulty sender unit, replacing or repairing it may be necessary. On the other hand, if it’s a wiring issue, repairing or rewiring the connections might be the solution. Understanding the root cause ensures that you implement the appropriate fix and avoid wasting time and resources on unnecessary repairs.
Preventing Recurrence: Resolving the root cause of the misreading fuel gauge helps prevent the issue from recurring. By addressing the underlying problem, you can restore the gauge’s accuracy and reliability, ensuring that you receive accurate fuel level readings in the future.

To identify the root cause, a systematic approach is often required. This may involve inspecting the sender unit, checking the gauge’s functionality, examining the wiring connections, or seeking professional assistance if needed. By taking the time to troubleshoot and determine the specific cause, you can effectively address the issue and regain confidence in your fuel level readings.

1. Faulty Sender Unit

A faulty sender unit can indeed cause the fuel gauge to misread and display inaccurate fuel level readings. The sender unit is a critical component that measures the fuel level in the tank and sends a corresponding electrical signal to the fuel gauge. When the sender unit is compromised, it can lead to various issues that affect the accuracy of the gauge.

Here are some specific problems that may arise from a faulty sender unit:

Worn-Out Float: The sender unit typically consists of a float that moves up and down with the fuel level in the tank. Over time, the float can wear out, lose buoyancy, or develop leaks. This can cause it to provide incorrect positioning information, resulting in inaccurate fuel level readings on the gauge.
Stuck or Damaged Float Arm: The float arm is attached to the float and moves along with it. If the float arm becomes stuck due to debris, sediment, or mechanical issues, it may not accurately reflect the actual fuel level. Similarly, a damaged or bent float arm can provide irregular signals, leading to incorrect readings on the fuel gauge.
Faulty Electrical Connection: The sender unit relies on a secure and proper electrical connection to transmit the fuel level signal to the gauge. Loose, corroded, or damaged electrical connections can interfere with the transmission of the signal, causing the gauge to display inaccurate readings.

It’s important to note that these issues are common potential causes of a misreading fuel gauge associated with a faulty sender unit. Addressing these specific problems, such as replacing the worn-out float, freeing a stuck float arm, or repairing the electrical connections, can help restore accurate fuel level readings on the gauge. However, diagnosing and resolving sender unit issues often require careful inspection, troubleshooting, and, in some cases, professional assistance.

2. Malfunctioning Gauge

In some cases, the issue of a fuel gauge reading full when the tank is empty may stem from a malfunctioning gauge itself. Over time, gauges can develop internal faults or calibration issues that affect their accuracy.

Here are a few ways in which a malfunctioning gauge can contribute to the misreading:

Internal Faults: The internal components of the fuel gauge, such as the resistor or the gauge needle mechanism, can experience wear, corrosion, or damage. These issues can interfere with the gauge’s ability to accurately interpret the signals received from the sender unit, leading to incorrect fuel level readings.
Calibration Issues: Fuel gauges require proper calibration to ensure accurate readings. Over time, the calibration may become skewed, resulting in inaccurate fuel level indications. This can be due to factors such as changes in the fuel system, modifications made to the gauge or sender unit, or wear and tear on the gauge’s internal components.
Inaccurate or Stuck Gauge Needle: The needle on the fuel gauge may become inaccurate or stuck, preventing it from properly indicating the fuel level. This can cause the gauge to show the tank as full when it’s actually empty or display other inconsistent readings.

If you suspect that the fuel gauge itself is malfunctioning, it may be necessary to inspect and test the gauge’s functionality. This can involve checking the connections, verifying the needle’s movement, and assessing the calibration accuracy. Depending on the severity of the issue, repairing or replacing the gauge may be required to restore accurate fuel level readings. It’s important to consult the manufacturer’s guidelines or seek professional assistance to ensure the proper diagnosis and resolution of gauge-related problems.

3. Wiring Issues

Wiring issues can indeed contribute to fuel gauge malfunctions and result in inaccurate fuel level readings. The wiring connections between the sender unit and the fuel gauge play a crucial role in transmitting the electrical signal that indicates the fuel level. When these connections are loose, damaged, or corroded, it can disrupt the proper flow of the electrical signal, leading to erratic or inaccurate readings. Here are a few ways in which wiring issues can impact the fuel gauge:

Loose Connections: If the wiring connections between the sender unit and the fuel gauge are loose, they may intermittently lose contact or provide inconsistent electrical signals. This can cause the fuel gauge to display fluctuating or unreliable fuel level readings.

Damaged Wires: Wires that are damaged, frayed, or corroded can hinder the transmission of the electrical signal. This can result in incomplete or distorted readings on the fuel gauge, making it difficult to obtain accurate fuel level information.
Corroded Terminals: Corrosion can occur on the terminals where the wiring connections are made. Corroded terminals create resistance in the electrical circuit, affecting the signal quality and leading to inaccurate fuel level readings.

To address wiring issues, it is essential to carefully inspect the wiring connections, terminals, and wire integrity. Clean any corrosion, tighten loose connections, and repair or replace damaged wires as necessary. It may also be helpful to use electrical contact cleaner or dielectric grease to enhance the longevity and reliability of the connections. By ensuring secure and properly functioning wiring, you can improve the accuracy of the fuel gauge readings and minimize the chances of misreading fuel levels due to wiring issues.

DIY Troubleshooting and Repairs

If you’re experiencing a misreading fuel gauge, there are some DIY troubleshooting tips and repairs you can try before seeking professional assistance. Please keep in mind that the specific steps may vary depending on your boat’s make, model, and fuel system. Always consult the manufacturer’s guidelines and follow safety precautions while working on your boat’s electrical system. Here are some general steps to consider:

1. Inspect the sender unit:

Locate the fuel sender unit, which is usually located inside the fuel tank.
Remove the sender unit if accessible, following the manufacturer’s instructions.

Inspect the float for signs of damage or wear. Replace it if necessary.
Check the float arm for any obstructions or damage that may affect its movement.
Clean the sender unit and its components using a suitable cleaner, ensuring no residue remains.

2. Check wiring connections:

Inspect the wiring connections between the sender unit and the fuel gauge.
Ensure all connections are secure and free from corrosion or damage.
Clean any corroded terminals using a wire brush or contact cleaner.

If any wires are damaged, frayed, or corroded, repair or replace them following proper electrical wiring practices.

3. Calibrate the gauge (if possible):

Consult the manufacturer’s instructions to determine if the fuel gauge can be calibrated.
Follow the calibration process outlined in the instructions, if applicable.

Keep in mind that not all fuel gauges can be calibrated, as some are factory-set and non-adjustable.

Remember, these steps are intended as general guidelines and may not resolve all fuel gauge issues. If the problem persists or if you’re unsure about any aspect of the troubleshooting process, it’s advisable to seek professional assistance from a marine technician or an experienced electrician. They can provide more specific guidance and diagnostics to identify and resolve the issue effectively.

Professional Inspection and Repair

While some DIY troubleshooting steps can be effective in resolving fuel gauge issues, there are instances where professional inspection and repair are necessary. Electrical systems on boats can be complex, and misdiagnosing or improperly repairing fuel gauge problems can lead to further complications.

Here are some reasons why consulting a qualified marine technician or electrician is beneficial:

Expertise and Experience: Professional technicians have specialized knowledge and experience working with marine electrical systems. They are trained to diagnose and troubleshoot complex issues, including those related to fuel gauges. Their expertise allows them to accurately identify the root cause of the problem and provide appropriate solutions.
Proper Diagnostic Tools: Professionals have access to specialized diagnostic tools and equipment that can effectively assess the performance and functionality of the fuel gauge, sender unit, and wiring connections. These tools can provide more detailed information and help pinpoint the exact source of the problem.
Reliable and Long-Term Solutions: Professional technicians are skilled in performing precise repairs or replacements. They can ensure that the fuel gauge, sender unit, and associated wiring connections are properly restored to their optimal functionality. This helps prevent recurring issues and provides a reliable, long-term solution.

Warranty Considerations: If your boat or its components are still under warranty, attempting DIY repairs could void the warranty coverage. Professional technicians are familiar with warranty terms and conditions and can perform repairs that comply with the manufacturer’s guidelines, preserving any warranty coverage you may have.

When faced with persistent or complex fuel gauge issues, it is strongly recommended to consult with a qualified marine technician or electrician. They have the knowledge, tools, and experience to accurately diagnose the problem and provide effective solutions, ensuring that your boat’s fuel gauge functions properly and reliably.

Installing a Fuel Level Monitoring System

In some cases, boaters may consider installing a fuel level monitoring system as an alternative or additional solution to address fuel gauge issues. These systems provide accurate and real-time fuel level readings, often through digital displays or remote monitoring capabilities. Here are some key points to consider when installing a fuel level monitoring system:

Benefits of modern fuel monitoring systems:

Accurate Readings: Modern fuel monitoring systems offer precise and reliable fuel level readings, eliminating the guesswork associated with traditional fuel gauges.
Advanced Features: Many systems provide additional features such as low fuel alerts, fuel consumption monitoring, and historical data tracking, enabling better fuel management and planning.
Convenience: Some systems offer wireless connectivity and remote monitoring capabilities, allowing boaters to access fuel level information from their smartphones or other devices.

Choosing the right fuel level monitoring system:

Compatibility: Ensure the fuel monitoring system is compatible with your boat’s fuel tank type (e.g., gasoline, diesel) and capacity.
Sensor Type: Select a system with sensors that are suitable for your specific fuel tank shape and construction (e.g., linear, tubular).
Display and Interface: Consider the type and location of the display unit and interface, ensuring they are easily accessible and readable for your needs.

Installing the right fuel level monitoring system:

Professional Assistance: Depending on the complexity of the installation, it may be advisable to seek professional assistance to ensure proper installation and integration with your boat’s electrical system.
Wiring and Power: Follow the manufacturer’s instructions for wiring connections and power supply requirements. Ensure proper grounding and electrical safety measures are followed.
Calibration and Setup: Once installed, calibrate the fuel monitoring system according to the manufacturer’s instructions to ensure accurate readings.

Remember to thoroughly research different fuel monitoring systems, read customer reviews, and consult with reputable marine electronics providers to find a system that suits your specific needs and boat requirements. Professional assistance during the installation process can help ensure a seamless integration and optimal performance of the fuel level monitoring system on your boat.

Watch How to troubleshoot & fix a boat fuel gauge & fuel sender | Video

Conclusion

In conclusion, a boat fuel gauge reading full when the tank is actually empty can be a frustrating issue for boat owners. To recap the key points discussed:

Potential Causes: The problem can be caused by a faulty sender unit, a malfunctioning gauge, or wiring issues.
Troubleshooting Steps: DIY troubleshooting can involve inspecting and cleaning the sender unit, checking wiring connections, or calibrating the gauge.

Professional Assistance: In some cases, professional inspection and repair may be necessary to identify and resolve the underlying cause of the issue.
Importance of Addressing the Issue: A properly functioning fuel gauge is crucial for accurately monitoring fuel levels and ensuring safe boating.
Regular Maintenance: Prioritizing regular maintenance and seeking professional help when needed can help prevent or address fuel gauge issues.

It is essential for boat owners to perform troubleshooting steps and seek professional assistance if the problem persists or if they are unsure about the necessary repairs. Regular maintenance and care of the fuel system, including the fuel gauge, can help ensure reliable and accurate fuel level readings for a safer and more enjoyable boating experience.
