When you’re maintaining or considering buying a boat, there’s a long list of essential components to understand, and bellows are one of those critical parts. These flexible, accordion-like rubber components may not be as prominent as a boat’s engine or propeller, but they play a crucial role in keeping your boat watertight and ensuring it functions properly. In this guide, we’ll dive deep into what boat bellows are, how they work, why they’re vital to your boat’s operation, and key maintenance tips. We’ll also look at the costs and specifications you need to know if you’re considering replacing them.
What Are Bellows on a Boat?

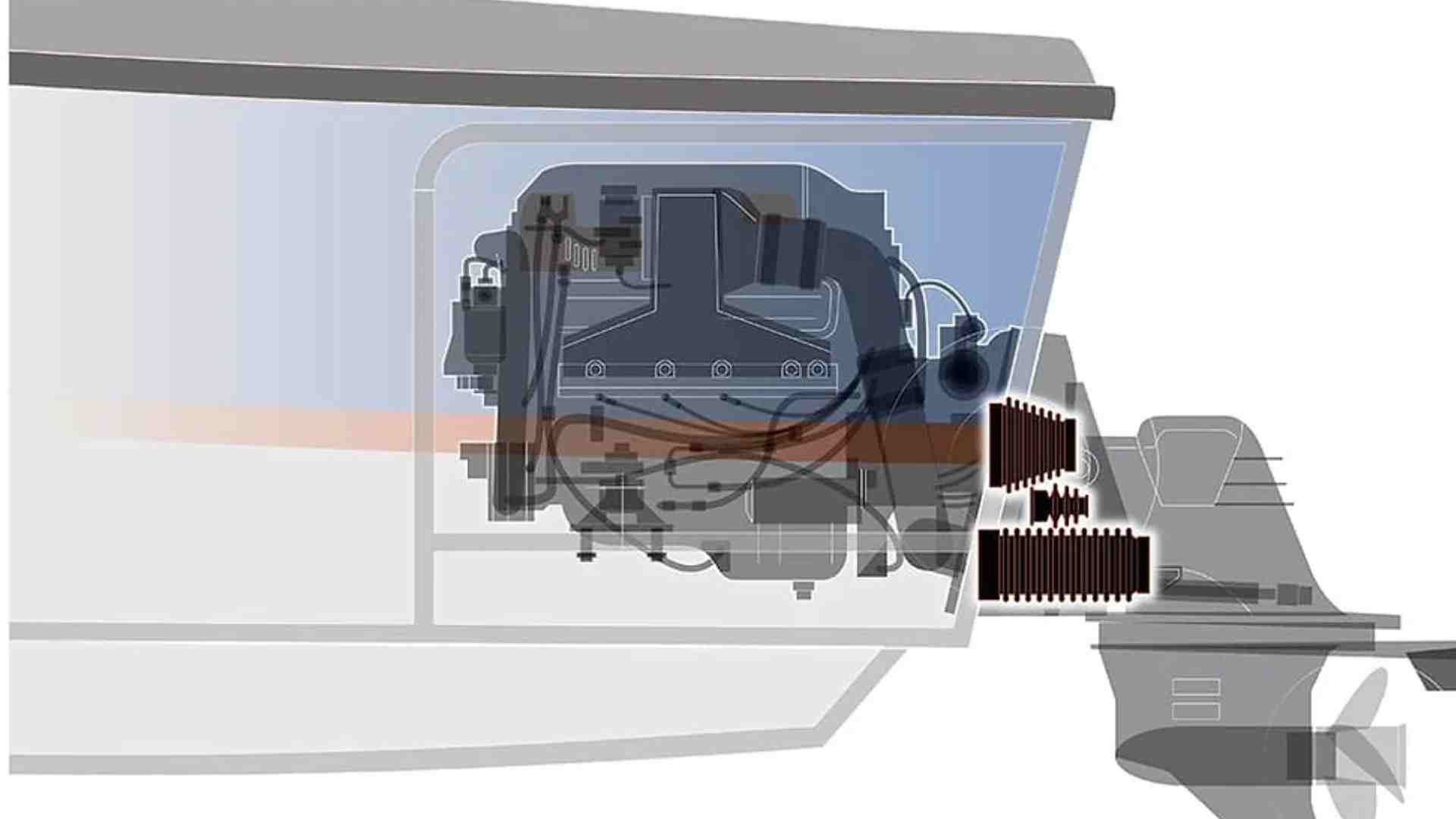

Bellows are flexible rubber tubes that form a watertight seal between two critical components of your boat: the engine and the drive. Typically found on boats with stern drives (also known as inboard/outboard drives or I/O drives), bellows act as a protective barrier that prevents water from entering the boat. The name “bellows” comes from their shape, which resembles the traditional bellows tool used to fan a flame—corrugated to allow flexibility.
There are usually three types of bellows on a boat with a stern drive:
- U-Joint Bellows: This bellows is located between the boat’s transom and the stern drive, protecting the universal joint (U-joint) from water intrusion. It also allows for the articulation of the drive.
- Exhaust Bellows: This bellows guides and expels exhaust fumes from the engine, preventing water from entering the exhaust system.
- Shift Cable Bellows: It protects the shift cable and other components from corrosion and water damage as they pass through the transom to the stern drive.
Each of these bellows performs a distinct function, but their overall purpose is the same—preventing water from entering vital areas of your boat and ensuring smooth mechanical operation.
Why Are Bellows Important?
While bellows might seem like a small part of your boat, their role is crucial to the vessel’s overall health and safety. Here’s why:
1. Prevents Water Intrusion
Water getting into places it shouldn’t is a boater’s worst nightmare. The U-joint bellows, in particular, protect the connection between the engine and the outdrive, preventing water from entering the engine compartment. A leak in the bellows can lead to water seeping into the boat, potentially flooding the bilge or, worse, causing damage to the engine and other mechanical parts.
2. Prevents Corrosion
Bellows create a seal around critical moving parts, like the U-joints and shift cables, preventing water from coming into contact with metal components. Without bellows, these parts would be exposed to water and moisture, leading to corrosion. Corroded U-joints or cables can result in expensive repairs and even leave you stranded if they fail while out on the water.
3. Ensures Proper Function of Exhaust System
The exhaust bellows not only expel exhaust fumes away from the boat but also prevent water from getting into the exhaust system. If water were to enter the exhaust, it could lead to serious engine damage or even hydrolock, where water prevents the engine from turning over.
4. Maintains Smooth Steering and Shifting
Bellows allow flexibility for components like the U-joint and shift cables. If the bellows crack or wear out, water could corrode these parts, making steering and shifting difficult or impossible. This can pose a serious safety hazard, especially if you’re navigating in tight quarters or rough waters.
Signs of Worn Bellows
Bellows don’t last forever, and due to their constant exposure to water and fluctuating temperatures, they can wear out over time. Here are some common signs that your bellows may need replacement:
- Cracks or splits in the rubber material.
- Water in the bilge—this can indicate a leak in the U-joint bellows.
- Difficult steering or shifting due to corrosion in the shift cable or U-joint.
- Excessive exhaust noise, which could be a sign of a damaged exhaust bellows.
It’s essential to regularly inspect your bellows, especially during annual maintenance, and replace them at the first signs of wear to avoid costly repairs down the line.
How Often Should You Replace Bellows?
The general rule of thumb is to inspect your bellows annually and replace them every 3-5 years, depending on the material quality, boat usage, and environmental conditions. Boats that are used in saltwater may need more frequent replacements since salt accelerates the degradation of rubber.
Bellows Replacement: Price and Specs
When it comes to replacing your bellows, costs can vary depending on your boat’s make and model and whether you choose to do it yourself or hire a professional.
- DIY Replacement Costs: If you’re handy with boat maintenance, a bellows replacement kit generally costs between $100 and $300. These kits typically include the U-joint bellows, exhaust bellows, shift cable bellows, hose clamps, and related hardware.
- Professional Replacement Costs: Hiring a professional mechanic will increase the cost significantly, as it’s a labor-intensive job. Depending on your boat’s size and location, you can expect to pay between $400 and $1,200 for professional bellows replacement.
- Labor Time: A professional mechanic may take anywhere from 4 to 8 hours to replace the bellows, depending on the boat model. DIYers should allocate extra time if they’re new to the process.
- Specifications: Bellows are typically made of durable rubber or similar synthetic materials, designed to withstand the constant exposure to water and the boat’s motion. When purchasing replacement bellows, make sure they match the exact specifications for your boat’s make and model. For example, MerCruiser or Volvo Penta drives will have specific kits designed to fit their particular stern drives.
Maintaining and Extending the Life of Your Bellows
To get the most life out of your boat’s bellows and avoid premature wear, follow these maintenance tips:
- Regular Inspections: Check for cracks, tears, or signs of aging in the bellows. If you notice any damage, replace them as soon as possible.
- Keep the Boat Out of Water: When not in use, store your boat on a lift or trailer to minimize exposure to water, which can accelerate the wear of bellows.
- Use a Protective Sealant: Some boaters apply a protective silicone-based sealant to their bellows to shield them from UV exposure and saltwater degradation.
- Replace the Bellows in Pairs: When replacing the U-joint bellows, it’s often a good idea to replace the exhaust and shift cable bellows at the same time. This way, you ensure all the components are in peak condition and avoid additional labor costs later.
Conclusion
Bellows may not be the most glamorous part of a boat, but they play a vital role in protecting critical components from water damage and ensuring the smooth operation of your vessel. Regular maintenance and timely replacements are key to avoiding costly repairs and ensuring your boat stays seaworthy. Whether you’re a seasoned boater or a newcomer, keeping an eye on your bellows and understanding their importance is a fundamental part of boat ownership.
By understanding the role of bellows and staying proactive in their upkeep, you’ll be able to enjoy smooth, worry-free boating for years to come.
Happy Boating!
