A VHF marine antenna is the unsung hero of marine communication, bridging the gap between your vessel and the outside world. Whether you’re coordinating with other boats, contacting coastal stations, or signaling for help in an emergency, a reliable VHF antenna ensures your message gets through. This comprehensive guide explores the critical aspects of selecting, installing, and maintaining a VHF marine antenna, tailored for boaters seeking safety and performance on the water. Specifically, we’ll address the needs of a boater with a 2011 Sea Hunt 240, planning to venture up to 35 miles offshore and seeking high-quality equipment recommendations.

Why a VHF Marine Antenna Matters

Marine VHF radios operate on very high frequency (VHF) bands, typically between 156-162 MHz, enabling line-of-sight communication. The antenna is the critical component that converts electrical signals into radio waves and vice versa, determining the clarity and range of your transmissions. Without a properly functioning antenna, even the best VHF radio is ineffective. A quality antenna ensures you can communicate with other vessels, marinas, or emergency services like the U.S. Coast Guard’s RESCUE 21 system, which is designed to detect distress signals up to 20 nautical miles offshore from a 1-watt source at 2 meters above sea level.

For a 24-foot vessel like the Sea Hunt 240, reliable communication is vital, especially when operating 35 miles offshore. A VHF antenna not only enhances safety but also supports features like Digital Selective Calling (DSC) and Automatic Identification System (AIS), which can broadcast your location during emergencies or track nearby vessels.

Key Factors in Choosing a VHF Marine Antenna

Selecting the right VHF antenna involves balancing performance, durability, and compatibility with your boat’s size and operational environment. Below are the primary factors to consider.

Antenna Height

VHF signals travel in a straight line, making antenna height the most significant factor in determining range. The higher the antenna is mounted, the farther it can “see” over the horizon. For example, an antenna mounted 2 meters above the water has a line-of-sight range of about 5 nautical miles, while one at 15 meters can reach up to 10 miles. When communicating with another station at a similar height, the combined range doubles.

For a 24-foot Sea Hunt 240, mounting the antenna on a T-top or center console can achieve a height of approximately 20 feet above the waterline, yielding a range of about 6 nautical miles. To communicate with a shore station with a 150-foot antenna (range of 17 miles), the total communication distance could reach 23 miles. Achieving a 35-mile range requires the receiving station to have an antenna approximately 330 feet above sea level, which is feasible for some Coast Guard RESCUE 21 stations but not guaranteed in all areas.

Antenna Gain

Antenna gain, measured in decibels (dB), indicates how effectively an antenna focuses radio energy. Higher gain antennas concentrate the signal into a narrower, disk-shaped pattern perpendicular to the antenna shaft, increasing range but reducing vertical coverage. This can cause signal fade on smaller boats that pitch and roll, as the signal may point above or below the horizon.

• 3 dB (4-foot antenna): Ideal for small boats under 24 feet or sailboats. The broad radiation pattern ensures consistent communication despite rolling.
• 6 dB (8-foot antenna): Suitable for boats 24–32 feet, offering a balance of range and stability.
• 9 dB (12–18-foot antenna): Best for larger, stable vessels over 32 feet, where pitching is minimal.

For a 24-foot Sea Hunt 240, a 3 dB or 6 dB antenna is recommended. An 8-foot, 6 dB antenna provides a good compromise but may be cumbersome if not kept vertical, as tilting reduces effectiveness. A 4-foot, 3 dB antenna or a stainless steel whip is more practical for smaller boats and easier to keep upright.

Antenna Type

VHF antennas come in two primary materials, each with distinct advantages:

• Fiberglass Antennas: Lightweight and durable, these antennas are coated with polyurethane for weather resistance. High-quality models, like the Shakespeare Mariner Series, use brass or copper elements and stainless steel ferrules for maximum efficiency and longevity (5–10 years). Lower-cost options with nylon ferrules may degrade faster in harsh marine environments.
• Stainless Steel Antennas: These “whip” antennas are rugged and ideal for masthead mounting on sailboats or small powerboats. They create less windage and are highly resistant to corrosion, making them suitable for offshore use.

For the Sea Hunt 240, a stainless steel whip or a 4-foot fiberglass antenna is recommended due to the boat’s size and the need for durability in coastal waters.

Durability

Marine environments are harsh, with exposure to saltwater, UV rays, and strong winds. Choose antennas with robust construction, such as thick radomes, ethafoam spacers to protect internal elements, and corrosion-resistant fittings (stainless steel or chrome brass). The Morad VHF-156HD, an all-metal antenna, is particularly durable for offshore use, while Shakespeare’s Galaxy series offers reliable fiberglass options.

Price and Value

VHF antennas range from $30 for basic models to over $300 for premium options. While cost is a factor, prioritize value over the cheapest option. A mid-range antenna ($80–$150) from a reputable brand like Shakespeare, Digital Antenna, or Morad offers durability and performance without breaking the bank. For example:

• Shakespeare Mariner 8900 (6 dB, 8-foot fiberglass): ~$120–$150
• Digital Antenna 528-VW (4-foot, 3 dB): ~$100–$130
• Morad VHF-156HD (metal whip): ~$200–$250

For the Sea Hunt 240, a $100–$150 antenna provides sufficient quality for reliable communication up to 35 miles offshore, assuming proper installation.

AIS Compatibility

If your VHF radio includes AIS (receive-only or transceiver), consider whether you need a dedicated AIS antenna. A single antenna can handle both VHF and AIS with a splitter, but a transceiver requires an active splitter ($200–$600) to isolate signals. Alternatively, a dual-band VHF/AIS antenna, like the Morad VHF/AIS combo, eliminates the need for a splitter but may cost more (~$250).

For a 24-foot boat, a single antenna with a splitter is practical unless you prioritize AIS transmission, in which case a dedicated AIS antenna ensures optimal performance.

Recommended Equipment for a Sea Hunt 240

Based on the needs of a 2011 Sea Hunt 240 operating up to 35 miles offshore, here are specific recommendations for high-quality VHF radio and antenna setups:

VHF Radio Recommendations

Standard Horizon GX2400

• Price: ~$350–$450
• Features: Built-in GPS, AIS receiver, NMEA 2000 interface, DSC, 25W output
• Why: The internal GPS eliminates the need for external connections, and NMEA 2000 ensures compatibility with modern chartplotters. The AIS receiver displays nearby vessels on a compatible plotter, enhancing safety.

Icom M510

• Price: ~$600–$700
• Features: Built-in GPS, DSC, NMEA 2000/0183, external speaker compatibility
• Why: A premium option with a user-friendly interface and reliable performance. Ideal for those prioritizing brand reputation and advanced features.

Antenna Recommendations

Digital Antenna 528-VW (4-foot, 3 dB)

• Price: ~$100–$130
• Features: Fiberglass, stainless steel ferrule, mini plug with PL259 adapter
• Why: Compact, durable, and easy to install on a T-top. The mini plug simplifies cable routing, and 3 dB gain suits a rolling 24-foot boat.

Shakespeare Mariner 8900 (8-foot, 6 dB)

• Price: ~$120–$150
• Features: Fiberglass, silver-plated brass elements, stainless steel ferrule
• Why: Offers increased range for offshore use but requires a stable mount to keep vertical.

Morad VHF-156HD (Metal Whip)

• Price: ~$200–$250
• Features: All-metal construction, extreme durability
• Why: Ideal for harsh offshore conditions, though heavier and pricier.

Additional Equipment

• Coaxial Cable: Use RG-8X or RG-213 for runs over 10 meters to minimize signal loss. Avoid coiling excess cable, as it can cause interference.
• Splitter (if using AIS): Vesper SP-160 (~$250) for AIS transceivers, or a basic splitter (~$50) for AIS receivers.
• EPIRB/PLB: For 35 miles offshore, a Category 1 EPIRB (~$400–$600) or PLB (~$300) is strongly recommended as a backup for distress signaling beyond VHF range.

Table 1: Recommended VHF Antenna Specifications for a Sea Hunt 240

Installation Tips for Optimal Performance

Proper installation is critical to maximizing your VHF antenna’s performance. Here’s how to set up your antenna on a Sea Hunt 240:

Mounting Location

• T-top or Center Console: Mount the antenna on the highest point of the T-top or console to achieve 15–20 feet above the waterline. Use a ratchet mount for adjustability under low bridges.
• Avoid Interference: Keep the antenna at least 3 feet from other antennas, metal objects, or electronics to prevent signal distortion.
• Orientation: Ensure the antenna is vertical during operation. A tilted antenna significantly reduces range.

Cable and Connectors

• Cable Quality: Use RG-8X for runs up to 20 meters or RG-213 for longer runs. For a T-top installation, a 10–15-meter cable is typically sufficient.
• Connectors: Use gold-plated or stainless steel connectors for corrosion resistance. Ensure connections are sealed with waterproof tape or heat-shrink tubing.
• Minimize Length: Cut the cable to the shortest length needed to avoid signal loss. For example, RG-58 loses 3 dB per 49 feet, halving effective power.

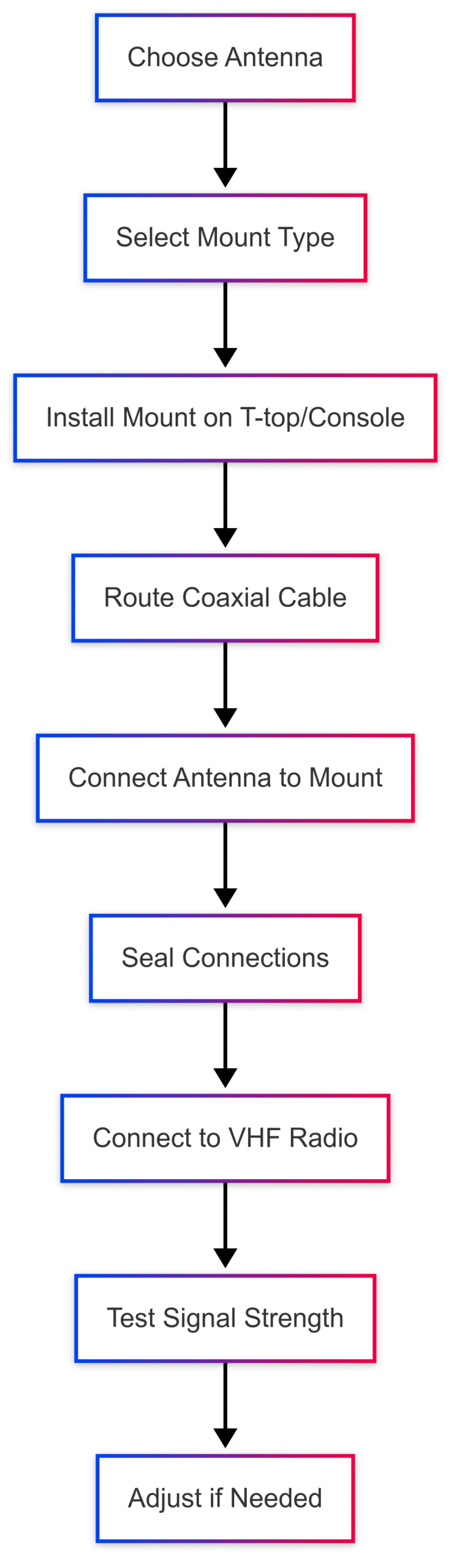

Diagram: VHF Antenna Installation Process

Testing

Before heading offshore, test the system:

1. Check signal strength on Channel 16 (emergency channel).
2. Verify DSC functionality by sending a test call to a friend’s MMSI.
3. Confirm AIS data (if applicable) displays on your chartplotter.
4. Ensure the antenna is unobstructed and connections are secure.

Maximizing VHF Range

To achieve reliable communication up to 35 miles offshore, consider these strategies:

1. Maximize Height: Mount the antenna as high as possible on the T-top or console.
2. Check Connections: Ensure all connectors are tight and corrosion-free.
3. Use a Booster: A VHF antenna booster can enhance weak signals, though it’s rarely needed with quality equipment.
4. Reduce Interference: Turn off nearby electronics that may cause noise, such as radar or LED lights.
5. Tune to the Correct Channel: Use Channel 16 for distress or hailing, then switch to a working channel.

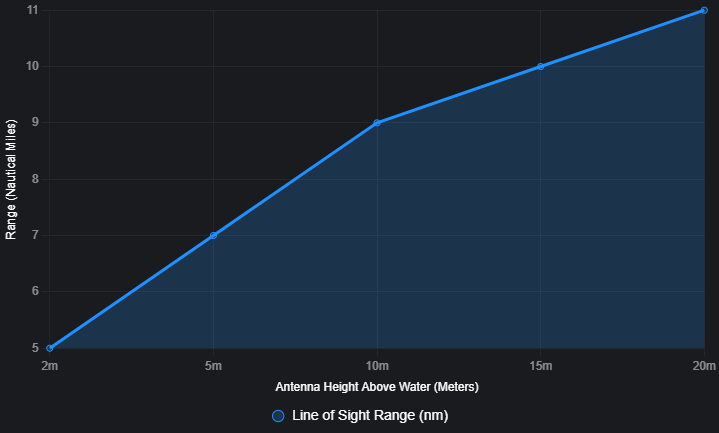

Chart 1: VHF Range vs. Antenna Height

This chart illustrates how antenna height impacts line-of-sight range, emphasizing the importance of mounting the antenna as high as possible.

Maintenance for Longevity

A VHF antenna’s lifespan averages 5–20 years, depending on quality and care. Follow these maintenance tips:

• Inspect Regularly: Check for cracks, corrosion, or loose connections monthly.
• Clean the Antenna: Wash with soap and water during routine boat cleaning. Avoid harsh detergents that damage fiberglass.
• Test Performance: Periodically test signal strength and range to detect degradation.
• Protect in Storage: If trailering, lower the antenna or use a ratchet mount to prevent damage.

Common Issues and Troubleshooting

If your VHF antenna underperforms, consider these potential issues:

1. Poor Range: Check antenna height, gain, and cable quality. Ensure no obstructions block the line of sight.
2. Interference: Move the antenna away from other electronics or antennas (minimum 3 feet).
3. Corrosion: Inspect connectors and replace any corroded components.
4. Signal Fade: On a rolling boat, a high-gain antenna may cause intermittent signals. Switch to a 3 dB antenna for better coverage.

FAQs

Conclusion

A VHF marine antenna is a critical safety and communication tool for boaters, especially on a 24-foot Sea Hunt 240 venturing up to 35 miles offshore. By choosing a high-quality antenna (e.g., Digital Antenna 528-VW or Morad VHF-156HD), mounting it correctly, and pairing it with a reliable radio like the Standard Horizon GX2400 or Icom M510, you can ensure clear communication with shore stations and other vessels. Prioritize antenna height, select appropriate gain (3–6 dB), and use quality coaxial cables to maximize range. Regular maintenance and testing will keep your system reliable for years. For added safety, invest in an EPIRB or PLB to cover scenarios beyond VHF range. With the right setup, your VHF antenna will be a dependable lifeline on the water.

Happy Boating!
