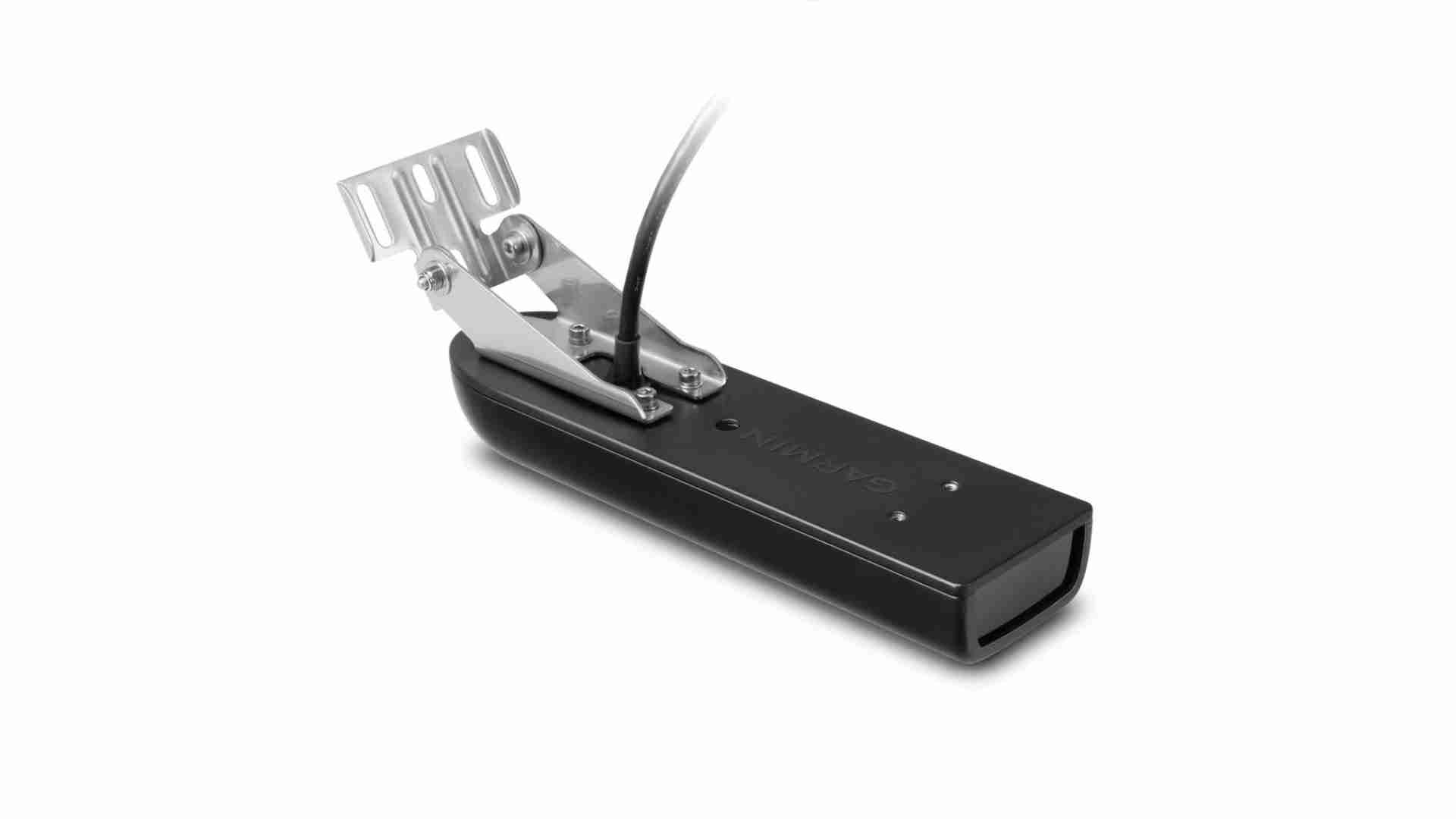

What is a Garmin Transducer?
A Garmin transducer is a marine device that converts electrical energy into sound waves and back, enabling sonar-based imaging of the underwater environment. Connected to a chartplotter or fishfinder, it emits sound waves that reflect off objects like fish, structures, or the seabed, translating these echoes into detailed visual data. This technology is critical for navigation, obstacle avoidance, and fish finding, making transducers indispensable for marine enthusiasts.
How Transducers Work
Transducers operate on sonar principles, emitting sound waves that travel through water, bounce off objects, and return as echoes. These echoes are converted into electrical signals and displayed on a compatible device, such as a Garmin GPSMAP or ECHOMAP. Garmin offers various transducer types—transom-mount, through-hull, and in-hull—each suited to different boat types and conditions:
- Transom-Mount: Attached to the boat’s transom, ideal for smaller vessels.
- Through-Hull: Mounted through the hull, offering superior performance at speed.
- In-Hull: Installed inside the hull, suitable for fiberglass boats, but may lose some depth capability.
Key Features of Garmin Transducers
Garmin transducers stand out due to their advanced technologies and robust design, tailored for marine environments. Key features include:
- CHIRP Sonar: Unlike traditional sonar, which uses a single frequency, CHIRP (Compressed High-Intensity Radiated Pulse) transmits a range of frequencies, providing sharper target separation and clearer images. This is ideal for distinguishing fish from structures or identifying bottom hardness.
- ClearVü: Delivers near-photographic images of what’s directly beneath the boat, showing detailed bottom contours and submerged objects.
- SideVü: Provides a wide-angle view of the areas to the sides of the boat, perfect for scanning large areas for fish or structures.
- Ultra High-Definition (UHD): Offers enhanced resolution for shallow-water fishing, though limited at greater depths.
- Durability: Built to withstand harsh marine conditions, including saltwater corrosion and debris impact.
- Compatibility: Seamlessly integrates with Garmin chartplotters and fishfinders, such as the GPSMAP 1243xsv and 8612.
Comparison of Key Garmin Transducer Models
To help choose the right transducer for a Garmin GPSMAP 1243xsv, we compare popular models suited for fishing up to 500 feet, trolling, and bottom fishing, with an emphasis on clear bottom imaging at speed.
| Model | Type | Power | CHIRP Frequencies | ClearVü/SideVü | Max Depth | Price (USD) | Best For |
|---|---|---|---|---|---|---|---|
| GT51M-TM | Transom-Mount | 600W | Mid-Band (80-160 kHz) | 260/455 kHz | 1,800 ft | ~$599.99 | Deep water, trolling, bottom fishing |
| GT56UHD-TM | Transom-Mount | 350W | High-Wide (150-240 kHz) | 455/800/1000 kHz | 800 ft (200 ft UHD) | ~$449.99 | Shallow water, high-resolution imaging |
| GT54UHD-TM | Transom-Mount | 350W | High-Wide (150-240 kHz) | 455/800/1200 kHz | 800 ft (125 ft UHD) | ~$399.99 | Shallow water, UHD imaging |
| GT15M-IH | In-Hull | 600W | Mid-Band (85-165 kHz) | None | 1,800 ft | ~$199.99 | Deep water, hull-mounted setups |
| GT36UHD-TM | Transom-Mount | 350W | None (ClearVü/SideVü only) | 455/800/1000 kHz | 400 ft (UHD) | ~$399.99 | Shallow water, SideVü/ClearVü focus |
| Airmar B75M | Through-Hull | 600W | Mid-Band (80-130 kHz) | None | 1,200 ft | ~$799.99 | Deep water, high-speed performance |

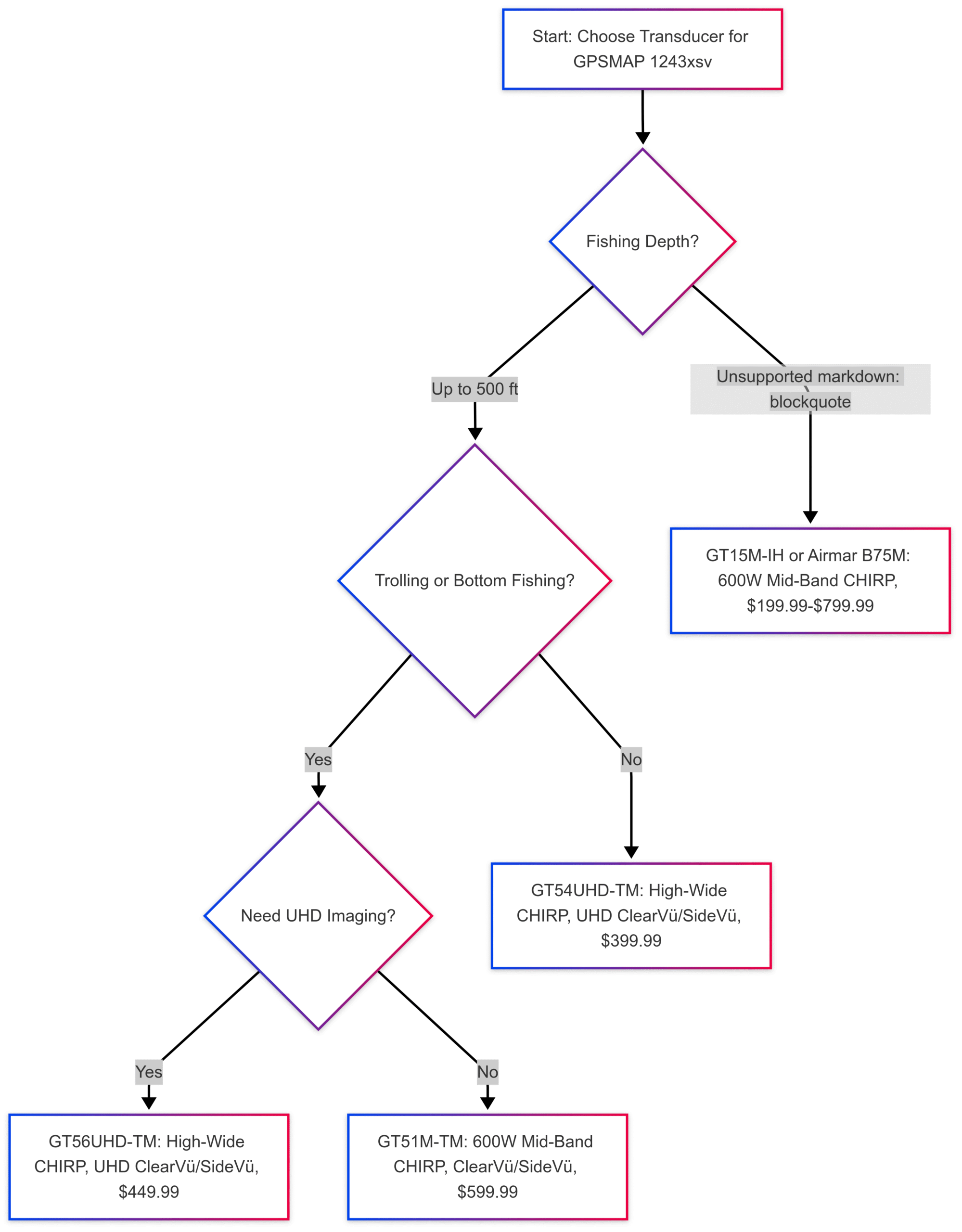

Chart: Transducer Selection Flowchart
Benefits of Garmin Transducers
Garmin transducers enhance boating and fishing through precision, versatility, and reliability. Below are the primary benefits, tailored to the needs of anglers fishing up to 500 feet.
1. High-Definition Sonar Imaging
Garmin’s CHIRP, ClearVü, and SideVü technologies provide unparalleled image clarity. For example, the GT51M-TM’s 600W Mid-Band CHIRP excels at distinguishing fish from structures at depths up to 500 feet, while its 260/455 kHz SideVü scans up to 150 meters on either side, ideal for locating fish-holding structures like reefs or wrecks. ClearVü offers near-photographic bottom images, crucial for bottom fishing to assess seabed hardness.
2. Enhanced Fish Finding
Anglers benefit from precise fish detection. The GT51M-TM’s mid-band CHIRP (80-160 kHz) provides excellent target separation at 500 feet, allowing users to differentiate between baitfish and larger gamefish. SideVü helps identify schools of fish or isolated structures, such as “Wonky Holes” (underwater springs), which are prime fishing spots.
3. Improved Navigation and Safety
Garmin transducers enhance navigation by mapping underwater contours and detecting obstacles. Real-time depth data and bottom structure information help boaters avoid hazards like shallow reefs or submerged objects, especially in unfamiliar waters. Integration with GPS-enabled chartplotters like the GPSMAP 1243xsv ensures accurate positioning.
4. Compatibility and Integration
Garmin transducers are designed to work seamlessly with Garmin MFDs, such as the GPSMAP 1243xsv and 8612. This integration allows users to switch between sonar modes (CHIRP, ClearVü, SideVü) on a single display, streamlining operation. For example, the GT56UHD-TM fully utilizes the 1243xsv’s UHD capabilities for shallow-water clarity.
5. Versatility Across Applications
Whether trolling, bottom fishing, or exploring shallow waters, Garmin transducers adapt to various scenarios. The GT51M-TM is ideal for deeper waters, while the GT56UHD-TM excels in shallow environments with high-resolution imaging. Dual-transducer setups (e.g., GT15M-IH and GT36UHD-TM) cater to anglers needing both deep-water CHIRP and UHD imaging.
6. Durability and Reliability
Constructed with corrosion-resistant materials, Garmin transducers withstand saltwater and debris impact. Their robust design ensures consistent performance, even at trolling speeds or in rough seas, making them a long-term investment.
Choosing the Right Transducer for Your Needs
For a user upgrading from a Lowrance HDS-7 to a Garmin GPSMAP 1243xsv, fishing up to 500 feet, trolling, and bottom fishing, the following considerations are critical:
- Depth and Power: A 600W transducer like the GT51M-TM or GT15M-IH is recommended for reliable bottom tracking at 500 feet, especially in saltwater, where lower frequencies (80-165 kHz) penetrate deeper.
- UHD Requirements: UHD imaging (GT56UHD-TM or GT54UHD-TM) is limited to ~200 feet for ClearVü/SideVü, making it less effective for deeper fishing. However, it’s excellent for shallow-water trolling or spotting baitfish near the surface.
- Bottom Imaging at Speed: Through-hull or in-hull transducers (e.g., GT15M-IH, Airmar B75M) maintain bottom lock at higher speeds compared to transom-mount models, which may lose clarity due to turbulence.
- Dual-Transducer Setup: For the GPSMAP 8612, which supports multiple transducers without a Y-cable, pairing a GT15M-IH (for deep-water CHIRP) with a GT56UHD-TM (for shallow-water UHD) maximizes versatility.
Recommendation: The GT51M-TM is the best choice for your GPSMAP 1243xsv. Its 600W Mid-Band CHIRP ensures clear bottom imaging at 500 feet, and its 260/455 kHz ClearVü/SideVü provides excellent side-scanning for trolling and structure identification. If shallow-water UHD is a priority, consider the GT56UHD-TM or a dual setup with the GT15M-IH for deeper CHIRP and GT36UHD-TM for UHD imaging.
Installation Guide for Garmin Transducers
Proper installation is crucial for optimal performance. Below is a step-by-step guide, with specific considerations for a 2007 Hydrasports Vector 22/23.
Step-by-Step Installation
1. Select Transducer Type:
- Transom-Mount (GT51M-TM, GT56UHD-TM): Mount near the drain plug, ensuring it’s submerged at trolling speeds and free from turbulence caused by strakes or the engine.
- In-Hull (GT15M-IH): Ideal for fiberglass hulls like the Hydrasports Vector. Confirm the hull is solid fiberglass (no foam core or Kevlar) at the mounting location.
- Through-Hull (Airmar B75M): Requires professional installation for cutting through the hull, but offers superior high-speed performance.
2. Choose Mounting Location:
- Transom-Mount: Position the transducer (e.g., GT36UHD-TM) in a spot like the blue circle described by HydraportVector, ensuring it’s level and unobstructed by the engine or towing straps.
- In-Hull: Test the bilge area for solid fiberglass using a plastic bag filled with water to simulate sonar transmission. Avoid areas with air pockets, strakes, or Kevlar reinforcement.
3. Mount the Transducer:
- Transom-Mount: Secure with stainless steel screws, ensuring the transducer face is parallel to the waterline.
- In-Hull: Glue the transducer to the hull using epoxy after testing, following Garmin’s instructions or resources like Boating Magazine’s guide.
4. Connect to MFD:
- Use the provided cables to connect the transducer to the GPSMAP 1243xsv or 8612. For dual setups on the 8612, connect each transducer to separate ports.
5. Configure Settings:
- Access the MFD’s setup menu to select the transducer type, adjust sensitivity, and set frequency ranges (e.g., 80-160 kHz for GT51M-TM’s CHIRP, 260 kHz for deep SideVü).
6. Test and Calibrate:
- Test at trolling speeds (4-6 knots) to ensure clear bottom imaging. Adjust the transducer angle if necessary to eliminate air turbulence.
Tips for Optimal Performance
- Clean Regularly: Remove marine growth to maintain signal clarity.
- Adjust Frequencies: Use lower frequencies (e.g., 260 kHz) for deeper water and higher frequencies (e.g., 800/1000 kHz) for shallow-water UHD.
- Update Firmware: Regularly check Garmin’s website for MFD software updates to enhance compatibility and performance.
- Mark Waypoints: Save productive fishing spots using the GPSMAP’s waypoint feature for future reference.
User Reviews and Feedback
Garmin transducers are highly regarded in boating and fishing communities. Below are summarized user experiences from forums, reflecting real-world performance.
- SINGLEBARREL (GT54UHD, ECHOMAP 94sv): “It works great for me. I use it for sonar, SideVü, ClearVü, etc. It has found me fish and structure.” Pros: Reliable in shallow water, clear imaging.
- Daveinthebush (GT51, GPSMAP 943): “It works great. I can even pick up my leadline going down to shrimp pots at 750 feet.” Pros: Excellent depth performance, versatile frequency adjustments.
- dahlenburg (Airmar 1KW + GT56UHD): “I can keep bottom over 800 feet going wide open with the Airmar. The GT56UHD is great for shallow water.” Pros: High-speed bottom lock, clear shallow-water imaging.
- NightFinger (GT51, 40-ft Black Watch): “The GT51’s side imaging is a game-changer for finding Wonky Holes. I can spot structures 150 meters out in 100 meters of water.” Pros: Powerful side imaging, ideal for offshore fishing.
- rexylon (GT56UHD, ECHOMAP): “I fish between 5 and 1,000 feet, and the GT56UHD performs flawlessly. ClearVü and SideVü are super clear.” Pros: Versatile across depth ranges, high-resolution imaging.
Addressing Common Issues
A user reported a Garmin ECHOMAP CV depth sounder failing, suspecting a coolant leak in an in-hull transducer. Community feedback clarified that transducers don’t use coolant but may require propylene glycol in in-hull mounts to ensure signal transmission. The issue was likely due to air pockets or improper fluid levels. Solution: Check the fluid level (propylene glycol), ensure no air bubbles, and verify the transducer’s alignment and connections.
Comparing Garmin with Other Brands
Garmin transducers compete with brands like Lowrance and Humminbird. Here’s how they compare:
- Garmin vs. Lowrance: Garmin’s CHIRP and UHD imaging offer superior clarity compared to Lowrance’s StructureScan, especially in shallow water. However, Lowrance’s Active Imaging may perform better at extreme depths (>1,000 ft).
- Garmin vs. Humminbird: Humminbird’s MEGA Imaging rivals Garmin’s UHD for shallow-water clarity, but Garmin’s integration with its MFDs and durability in saltwater environments give it an edge.
- Unique Advantage: Garmin’s seamless compatibility with its chartplotters and frequent firmware updates ensure long-term reliability.
Conclusion
Garmin transducers, such as the GT51M-TM and GT56UHD-TM, are transformative tools for anglers and boaters, offering high-definition sonar, precise fish finding, and reliable navigation. For users with a Garmin GPSMAP 1243xsv or 8612, fishing up to 500 feet, the GT51M-TM is the top choice for its 600W power and deep-water performance, while the GT56UHD-TM excels in shallow-water UHD imaging. Dual setups with the GT15M-IH and GT36UHD-TM provide maximum versatility. With durable construction, easy installation, and glowing user reviews, Garmin transducers are a worthy investment for enhancing your boating and fishing adventures.
For more details, consult Garmin’s transducer selection guide or explore user forums for real-world insights. Invest in a Garmin transducer to unlock the full potential of your marine electronics and elevate your time on the water.
Happy Boating!
