Navigation Buoys and Channel Markers 101: What Do the Red & Green Markers Indicate?

When you’re out on the water, especially in areas where there’s a lot of boat traffic or tricky navigation, understanding navigation buoys and channel markers is essential. These markers guide boaters safely through channels, mark dangerous areas, and provide vital navigational information. This article will focus on the red and green markers, which are a key part of the buoy system, especially in the United States and other regions using the IALA (International Association of Marine Aids to Navigation and Lighthouse Authorities) System B.

The Basics of Navigation Buoys

Navigation buoys come in various colors, shapes, and sizes, but they all serve a common purpose: to guide and protect boaters. In general, they mark:

  • Channels (the safe areas for vessels to travel)
  • Obstructions (such as rocks or shallow areas)
  • Special features (such as no-wake zones or restricted areas)

The red and green buoys are part of the Lateral System, which is a collection of markers that define the sides of a navigable channel. The purpose of these markers is to help boaters keep to the safest path while entering or leaving harbors and coastal areas.

Red and Green Markers: The “Red, Right, Returning” Rule

One of the most fundamental principles of buoy navigation is the “Red, Right, Returning” rule. This means:

  • Red buoys should be on the right (starboard) side of your boat when you are returning from the sea (heading towards the harbor or upstream).
  • Green buoys should be on the left (port) side when returning from the sea.

When you’re heading out to sea (away from a harbor), the red buoys will be on your left, and the green buoys will be on your right. In essence, red and green markers act like road signs for the water, directing you to stay within the boundaries of the channel.

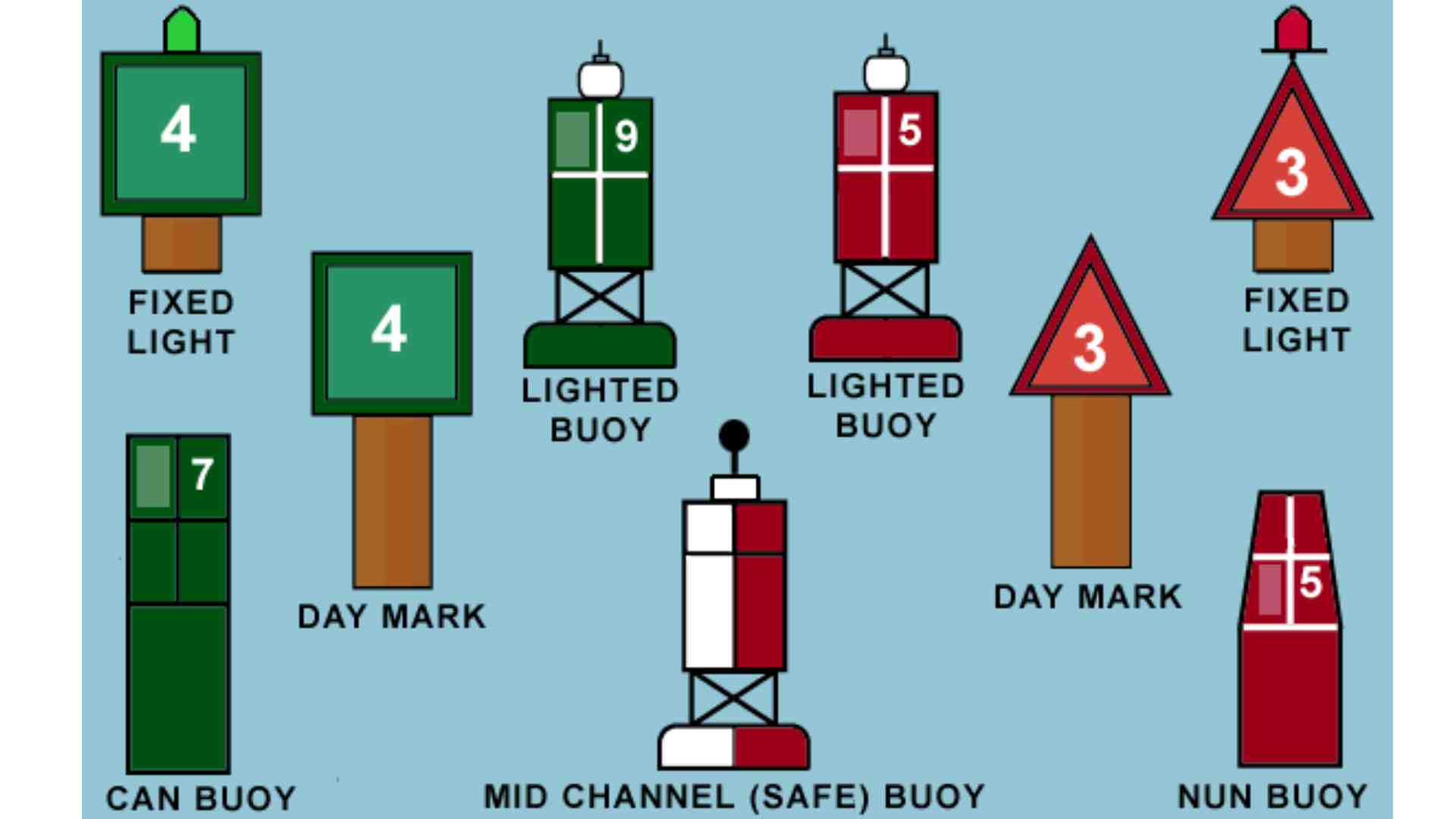

Types of Red and Green Buoys

1. Can Buoys (Green)

  • Shape: Cylindrical
  • Color: Green
  • Indicate the left (port) side of the channel when returning from sea
  • Markers: Odd numbers (such as 1, 3, 5, etc.)

2. Nun Buoys (Red)

  • Shape: Cone-shaped
  • Color: Red
  • Indicate the right (starboard) side of the channel when returning from sea
  • Markers: Even numbers (such as 2, 4, 6, etc.)

3. Daybeacons

  • These are fixed markers located on posts or other structures.
  • Green square daybeacons function similarly to can buoys, indicating the port side.
  • Red triangular daybeacons function like nun buoys, marking the starboard side.

Buoy Lights and Specs

In addition to their color and shape, many buoys also come equipped with lights to help with nighttime navigation. These lights are usually timed to flash at specific intervals, and their color corresponds to the buoy’s type (red or green). Here’s what you can expect:

1. Red Buoy Lights:

  • Flash Red
  • Interval: Every 2.5 – 4 seconds, depending on local regulations.
  • Solar-powered options are common, often with battery backup.

2. Green Buoy Lights:

  • Flash Green
  • Interval: Typically every 2.5 – 4 seconds, in sync with red buoys but sometimes staggered for clarity.

Buoy Prices and Specifications

While the average boater doesn’t typically purchase buoys, here are some specs and prices for government and private-sector entities that might need to replace or maintain them.

1. Standard Can and Nun Buoys:

  • Material: Polyethylene or fiberglass with foam-filled cores for durability.
  • Height: 5-8 feet above waterline.
  • Weight: 250-500 pounds depending on size and ballast.
  • Prices: $500 – $2,500 depending on size, material, and additional features like solar lighting or radar reflectors.

2. Lighted Buoys:

  • Material: Polyethylene or steel frames with solar-powered lights.
  • Light: LED, solar-powered, with backup batteries.
  • Height: 7-10 feet above waterline.
  • Price: $3,000 – $6,000 depending on the light configuration and durability requirements.

3. Daybeacons:

  • Structure: Mounted on pilings, either steel or treated wood.
  • Markers: High-visibility green or red with reflective materials.
  • Price: $200 – $1,500, depending on material, location, and mounting structure.

Exceptions and Variations

In some areas, especially internationally, the buoy system may follow IALA System A, which reverses the meaning of the red and green markers. For example, in Europe, red buoys mark the port side when returning from the sea, while green buoys mark the starboard side.

Other special markers you may encounter include:

  • Junction buoys (red-and-green striped), which indicate a split in the channel. The topmost color indicates the preferred channel side.
  • Isolated danger marks, which are black and red and signal the presence of a hazard.

Conclusion

Understanding the red and green navigation markers is crucial for safe boating. These buoys and markers act as a marine highway system, guiding you to stay within safe waters while avoiding hazards. Remembering simple rules like “Red, Right, Returning” ensures you can navigate confidently and safely, whether you’re on a small recreational boat or something larger.

Whether you’re heading out for a day of fishing or making your way into port after a long journey, knowing how to read these vital signs of the sea will help you avoid unnecessary risks.

Happy Boating!
