Discover how yacht autopilots work, their key components, types, advantages, and limitations. Learn to choose the right autopilot for safe and efficient boating.
Autopilot systems have become indispensable tools for modern boating, transforming the way sailors and powerboat enthusiasts navigate. Whether you’re a solo sailor trimming sails on a yacht or a powerboat captain cruising long distances, an autopilot can act like a silent crewmember, steering your vessel with precision. This article explores the intricacies of yacht autopilot systems, how they function, their types, benefits, limitations, and how to select the right one for your vessel. We’ll also dive into technical specifications, pricing, and practical considerations to ensure safe and efficient use.
What Is a Boat Autopilot?
An autopilot is an electronic or mechanical system designed to steer a vessel automatically, reducing the need for constant manual input at the helm. By integrating navigational data from sensors like compasses, GPS, and wind indicators, autopilots maintain a set course or follow a programmed route. They’re widely used on sailboats, powerboats, and commercial vessels, earning nicknames like “Iron Mike” or “Otto” for their reliability.
Autopilots are particularly valuable for short-handed crews or single-handed sailors, allowing them to perform tasks like sail trimming, navigation, or resting without losing control of the vessel. From basic tiller pilots for small boats to sophisticated below-deck systems for ocean-crossing yachts, autopilots enhance safety, efficiency, and enjoyment on the water.

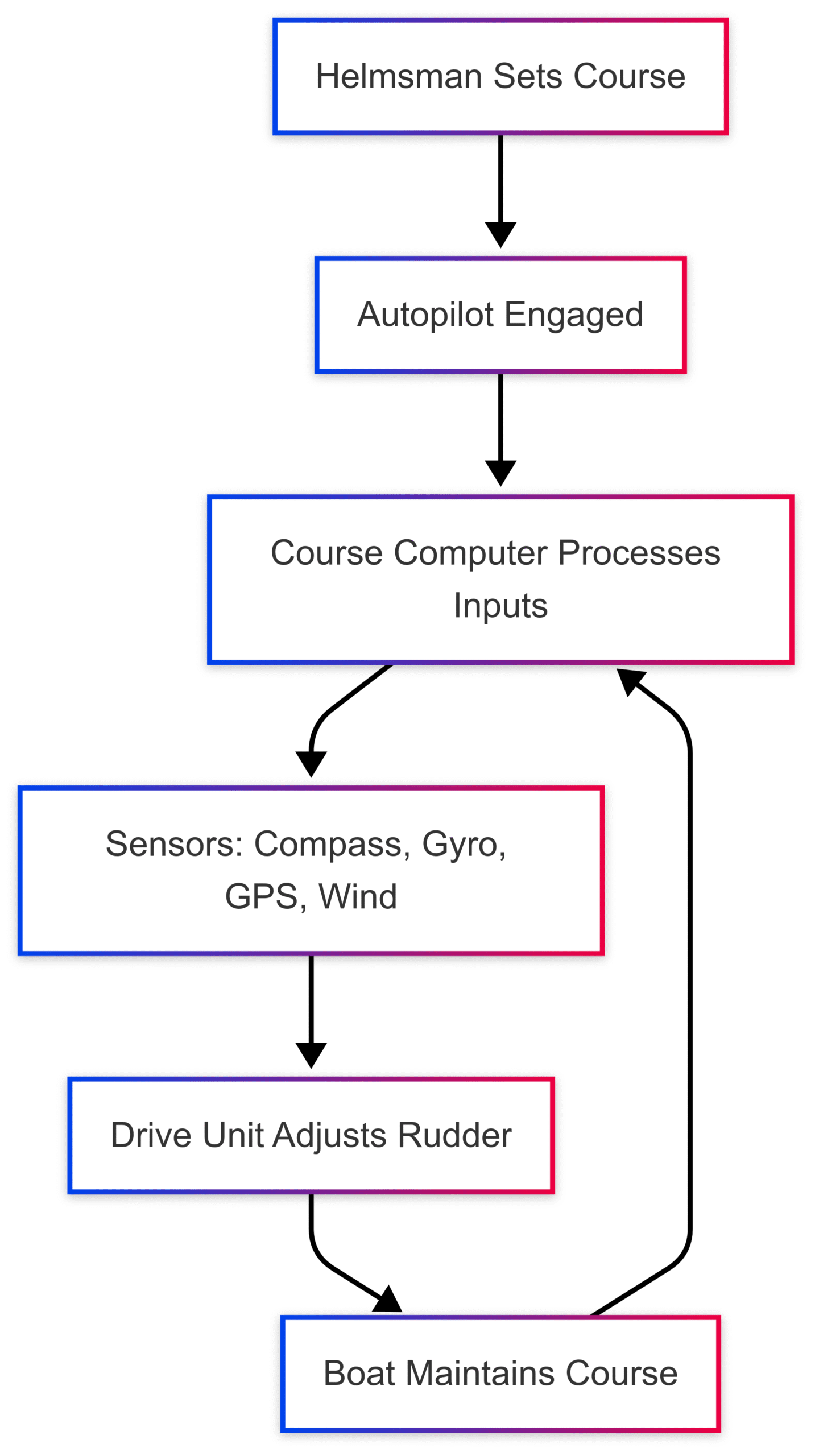

How Do Yacht Autopilots Work?
At their core, autopilots function like an advanced cruise control system, but instead of maintaining speed, they control the vessel’s heading. Here’s a simplified explanation of their operation:
- Set the Course: The helmsman steers the boat to the desired heading or inputs a waypoint via a chartplotter or GPS.
- Engage the Autopilot: By pressing an “Auto” button or similar command, the autopilot locks onto the selected course.
- Data Processing: The autopilot’s course computer processes inputs from sensors like a fluxgate compass, rate gyro, or GPS to monitor the vessel’s heading, rate of turn, and environmental conditions.
- Rudder Adjustment: The drive unit adjusts the rudder (or wheel/tiller) to correct any deviations, keeping the boat on course despite wind, waves, or currents.
- Continuous Monitoring: The system continuously analyzes sensor data, making real-time adjustments to maintain the desired heading or route.
Modern autopilots, such as Raymarine’s Evolution series or Garmin’s Reactor, incorporate adaptive algorithms that “learn” a boat’s handling characteristics, improving steering accuracy over time. Some systems integrate with wind sensors for sailboats, allowing steering based on apparent wind angle rather than a fixed compass course, which is critical for maintaining optimal sail trim.
Key Components of an Autopilot System
A yacht autopilot comprises six essential components, each playing a critical role in its operation:
- Drive Unit: The mechanical or hydraulic component that physically moves the rudder, wheel, or tiller. It connects directly to the rudder stock or steering system and must be sized appropriately for the vessel’s weight and steering type.
- Heading Sensor (Compass): Typically a fluxgate compass, it provides directional data. Advanced systems use rate-sensing or gyro compasses to measure the boat’s rate of turn, improving steering accuracy.
- Control Head: The user interface, featuring buttons, knobs, or a touchscreen to set courses, adjust settings, or switch between manual and automatic steering. Some systems include remote controls for flexibility.
- Course Computer: The “brain” of the system, it processes sensor data and calculates rudder adjustments. Modern units may include 9-axis sensors combining compass, gyro, and heel/pitch data.
- Rudder Feedback Sensor: Measures the rudder’s angle, enabling precise course corrections by comparing the applied rudder angle to the boat’s actual turn rate.
- Integration with Electronics: Interfaces with GPS, chartplotters, or wind instruments to steer to waypoints or maintain a constant wind angle (for sailboats).
Some systems combine components, such as tiller pilots that integrate the drive unit and control head, or advanced 9-axis sensors that merge the compass and course computer.
Types of Autopilot Systems
Autopilots vary based on vessel size, steering type, and intended use. The main categories are above-deck, below-deck, and windvane systems.
Above-Deck Autopilots
Above-deck autopilots are designed for smaller vessels (typically under 40 feet) with tiller or wheel steering. They are affordable, easy to install, and energy-efficient, making them ideal for day sailors or casual boaters.
- Tiller Pilots: Common on small sailboats, these use an electric ram mounted between the tiller and a gunwale fitting to control the rudder. Examples include the Raymarine EV-100 Tiller ($1,600–$1,800) and Simrad TP-22 ($600–$800).
- Wheel Pilots: Used on wheel-steered boats, these connect to the wheel via a belt or gears, driven by a small motor. The Raymarine EV-100 Wheel Pilot ($1,600–$1,900) is a popular choice.
Advantages:
- Affordable (starting at $500 for basic models).
- Simple installation, often DIY-friendly.
- Low power consumption.
Disadvantages:
- Limited power for heavy weather or larger boats.
- Vulnerable to water ingress and corrosion.
- Lack advanced sensors like rate gyros, reducing accuracy in rough seas.
Below-Deck Autopilots
Below-deck systems are designed for larger yachts (over 38 feet) or long-distance cruising. They are more powerful, durable, and capable of complex functions like waypoint navigation or wind-angle steering.
- Linear Drives: Common on sailboats, these move the rudder directly via a tiller arm or quadrant. Examples include Raymarine’s EV-200 Linear ($3,000–$3,500) and Garmin’s GHP 12 ($2,800–$3,200).
- Rotary Drives: Used for chain-and-cable steering systems, often on older vessels. They require selecting an appropriate sprocket size (13–25 teeth).
- Hydraulic Drives: Ideal for boats with hydraulic steering, matched to the steering ram’s capacity. Raymarine’s EV-100 Power ($1,500–$2,000) suits smaller powerboats, while larger systems like the Garmin GHP 20 ($4,000–$5,000) handle bigger vessels.
Advantages:
- High power and reliability for demanding conditions.
- Protected from environmental damage.
- Advanced features like GPS integration and adaptive steering.
Disadvantages:
- Higher cost ($1,500–$10,000+).
- Complex installation, often requiring professional expertise.
- Greater power consumption.
Windvane Systems
Windvane self-steering systems are mechanical, non-electronic alternatives primarily used on sailboats for long-distance cruising. They use a wind vane to detect shifts in apparent wind, adjusting the rudder via a servo-pendulum mechanism.
- Examples: Hydrovane ($5,000–$7,000) and WindPilot ($4,500–$6,500).
- Advantages: No electrical power required, robust for ocean passages, and often repairable with basic tools.
- Disadvantages: Ineffective in light winds or when motoring, high upfront cost, and less precise than electronic autopilots.
| Type | Best For | Price Range | Pros | Cons |
|---|---|---|---|---|
| Tiller Pilot | Small sailboats (<40 ft) | $500–$1,800 | Affordable, easy to install, low power | Limited power, exposed to elements |
| Wheel Pilot | Small wheel-steered boats | $1,600–$1,900 | Simple setup, good for casual use | Struggles in heavy seas, less durable |
| Below-Deck Linear | Larger sailboats (>38 ft) | $2,800–$3,500 | Powerful, reliable, advanced features | Expensive, complex installation |
| Below-Deck Rotary | Older chain/cable steering boats | $3,000–$5,000 | Durable, suits specific systems | Limited to certain steering types |
| Below-Deck Hydraulic | Powerboats, hydraulic steering | $1,500–$10,000+ | High power, fast response | High power draw, costly |
| Windvane | Long-distance sailboats | $4,500–$7,000 | No power needed, robust | Ineffective in light winds, expensive |
Show in sidebar
Advantages of Autopilot Systems
Autopilots offer significant benefits for boaters:
- Convenience: Frees up the helmsman to perform other tasks like sail trimming, navigation, or resting.
- Fuel Efficiency: Precise course-keeping reduces cruising time, saving fuel, especially when integrated with GPS.
- Safety: Maintains a steady course, reducing fatigue and allowing the crew to focus on lookout duties or radar monitoring.
- Versatility: Supports features like waypoint navigation, wind-angle steering, and trolling patterns for anglers.
- Self-Learning: Advanced systems adapt to a boat’s handling characteristics, improving performance over time.
Disadvantages and Limitations
Despite their benefits, autopilots have limitations:
- Heavy Weather Challenges: Autopilots struggle in rough seas, particularly following seas, where they react rather than anticipate wave impacts. Manual steering may be safer in such conditions.
- Power Consumption: Below-deck systems can drain batteries, especially during extended use. A robust charging system (e.g., solar, alternator, or battery bank) is essential.
- Maintenance and Reliability: Saltwater intrusion, corrosion, or component failure can disrupt operation, particularly for cockpit-mounted units. Repairs in remote locations can be challenging.
- Situational Risks: Autopilots should not be used in high-traffic areas, shallow waters, or during docking, as they lack situational awareness.
When to Avoid Using an Autopilot
Autopilots are not suitable for all scenarios. Manual steering is preferred in:
- High-Traffic Areas: Busy waterways require constant vigilance to avoid collisions.
- Shallow Waters or Hazards: Autopilots cannot detect underwater obstacles or crab pots.
- Docking or Close-Quarters Maneuvering: Precise control is needed, which autopilots cannot provide.
- Heavy Following Seas: Large waves can push the boat off course, requiring anticipatory steering that autopilots cannot perform.

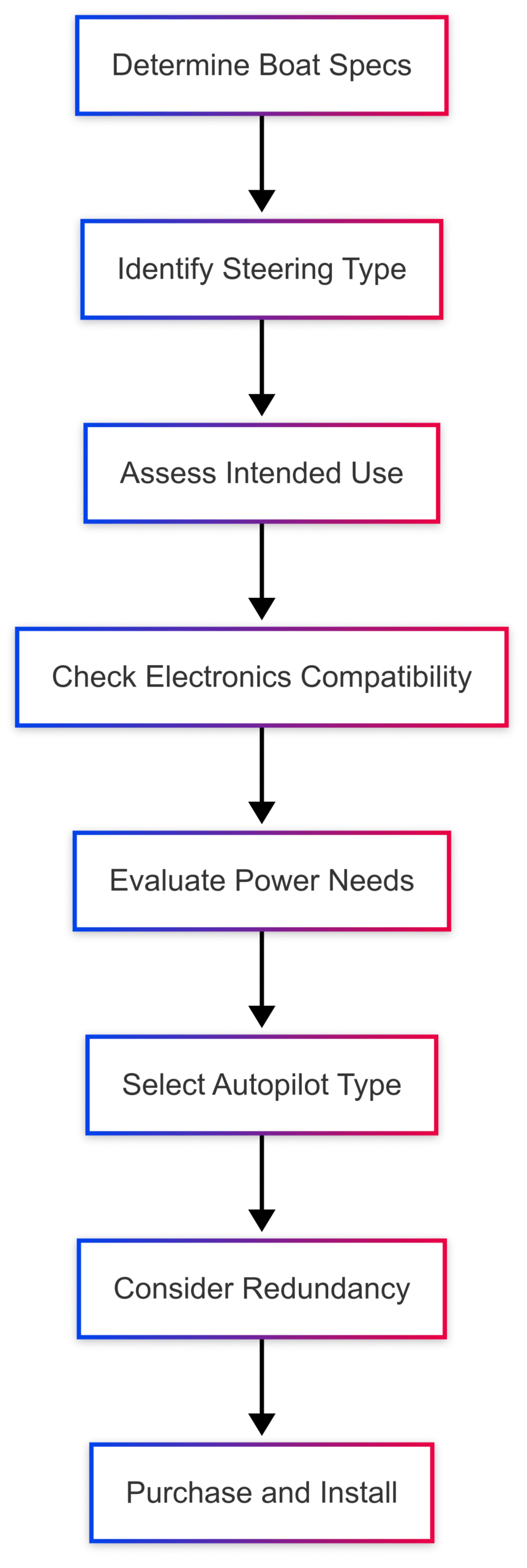

Choosing the Right Autopilot for Your Yacht
Selecting an autopilot involves matching the system to your boat’s size, steering type, and intended use. Here are key considerations:
- Boat Size and Displacement:
- Manufacturers provide recommendations based on length and displacement. For example, Raymarine’s EV-100 suits boats up to 13,200 lbs, while the EV-400 handles up to 44,000 lbs.
- Account for added weight from gear, fuel, and crew (up to 20% more than the boat’s listed displacement).
- Steering Type:
- Tiller-steered boats require tiller pilots or specific linear drives (e.g., Raymarine EV-100 Tiller).
- Wheel-steered boats may use wheel pilots or rotary drives for chain-and-cable systems.
- Hydraulic steering systems need compatible hydraulic drives.
- Intended Use:
- Casual day sailing: Above-deck tiller or wheel pilots suffice.
- Long-distance cruising: Below-deck systems with advanced sensors (e.g., rate gyro, heel sensor) are ideal.
- Sailing-specific needs: Look for wind-angle steering capabilities.
- Compatibility:
- Ensure the autopilot integrates with existing electronics (e.g., NMEA 2000 for modern systems, NMEA 0183 for older setups).
- Consider future upgrades to avoid compatibility issues.
- Power Management:
- Below-deck systems require robust battery banks and charging solutions (e.g., smart alternators, solar panels).
- For long passages, plan for 24-hour operation without discharging batteries below 50%.
- Redundancy:
- Carry a backup autopilot or windvane for long-distance cruising.
- Regularly test and maintain backup systems to ensure functionality.
Pricing and Specifications
Here’s a breakdown of popular autopilot systems with their specifications and approximate costs:
| Model | Type | Boat Size/Displacement | Key Features | Price (USD) |
|---|---|---|---|---|
| Raymarine EV-100 Tiller | Tiller Pilot | Up to 13,200 lbs | Fluxgate compass, basic course hold | $1,600–$1,800 |
| Simrad TP-22 | Tiller Pilot | Up to 39 ft | Simple installation, low power | $600–$800 |
| Raymarine EV-100 Wheel | Wheel Pilot | Up to 16,500 lbs | Belt-driven, GPS integration | $1,600–$1,900 |
| Raymarine EV-200 Linear | Below-Deck Linear | Up to 24,000 lbs | 9-axis sensor, adaptive steering | $3,000–$3,500 |
| Garmin GHP 12 | Below-Deck Linear | Up to 28,000 lbs | Shadow Drive, rate gyro | $2,800–$3,200 |
| Garmin GHP 20 | Below-Deck Hydraulic | Up to 48,000 lbs | Hydraulic drive, advanced integration | $4,000–$5,000 |
| Hydrovane | Windvane | Most sailboats | No power needed, auxiliary rudder | $5,000–$7,000 |
Tips for Safe Autopilot Use
To maximize safety and performance:
- Train the Crew: Ensure all crew members know how to engage and disengage the autopilot (e.g., Raymarine’s “Standby” button).
- Maintain Vigilance: Keep a 360-degree lookout, as autopilots cannot detect obstacles or traffic.
- Monitor Power: Check battery levels and charging systems to prevent power failures.
- Regular Maintenance: Clean and inspect components to prevent corrosion or water ingress.
- Swing the Compass: Periodically turn the boat in a circle to calibrate the autopilot’s heading accuracy.
- Use a Preventer: On sailboats, rig a preventer to avoid accidental jibes when sailing downwind.
- Dedicated Breaker: Connect the drive unit to a dedicated breaker on the main electrical panel.
Real-World Insights from Boaters
Online forums like Reddit’s r/boating and sailing communities highlight the value of autopilots. Users report that a properly tuned autopilot often steers better than a human in light to moderate conditions, with one boater noting, “My Raymarine EV-200 is the best piece of electronics I’ve ever bought.” However, in following seas above 4–6 feet, manual steering is often preferred due to the autopilot’s reactive nature. Another user emphasized the importance of a satellite compass (e.g., Furuno SC33) for improved performance in rough conditions.
Windvane vs. Autopilot: Which Is Better for Long-Distance Sailing?
For bluewater cruisers, the choice between a windvane and an electronic autopilot depends on priorities:
- Windvane: Ideal for simplicity and independence from electrical systems. The Hydrovane’s auxiliary rudder provides redundancy if the main rudder fails. However, it struggles in light winds and is ineffective when motoring.
- Autopilot: Offers precise course-keeping and integration with modern electronics but requires reliable power and maintenance. Below-deck systems like the Raymarine EV-400 or Garmin Reactor are preferred for their robustness.
Many long-distance sailors carry both, using the windvane as a primary system and a basic autopilot as a backup for calm conditions.
Conclusion
Yacht autopilots are transformative tools that enhance safety, efficiency, and enjoyment on the water. By understanding their components, types, and limitations, boaters can select the right system for their vessel and sailing style. Whether you opt for a budget-friendly tiller pilot, a robust below-deck system, or a mechanical windvane, proper installation, maintenance, and situational awareness are key to safe operation. With the right autopilot, you can focus on the joy of boating while your “silent crewmember” keeps you on course.
