What Is the Difference Between Down Imaging and Sonar

Explore the key differences between down imaging and 2D sonar in fishfinders, their technologies, applications, and pros/cons for fishing and navigation.

Navigating the underwater world, whether for fishing or marine exploration, relies heavily on sonar technologies. Among these, down imaging and traditional 2D sonar stand out as essential tools for anglers, boaters, and marine researchers. While both technologies use sound waves to map underwater environments, they differ significantly in their approach, display, and applications. Down imaging delivers high-resolution, photo-like images of the area directly beneath a boat, while 2D sonar provides a broader, less detailed view of the water column. This article dives deep into the differences between down imaging and 2D sonar, exploring their technologies, practical uses, advantages, disadvantages, and how they complement each other in real-world scenarios.

What is Down Imaging?

Down imaging is an advanced sonar technology that uses high-frequency sound waves to produce detailed, near-photographic images of the underwater environment directly below a boat. Unlike traditional sonar, which offers a broader but less precise view, down imaging focuses on clarity and precision, making it ideal for identifying specific underwater features such as fish, rocks, submerged trees, or shipwrecks.

The technology employs a narrow, fan-shaped beam of high-frequency sound waves (typically 455 kHz to 1.2 MHz). These waves reflect off objects and return to the transducer, which converts the echoes into vivid, high-resolution images displayed on a fishfinder or chartplotter screen. The result is a clear, almost photographic representation of the underwater landscape, allowing users to discern fine details like individual fish or the branches of a submerged tree.

How Down Imaging Works

  1. Emission of Sound Waves: The transducer emits a thin, high-frequency beam directly downward.
  2. Reflection and Detection: Sound waves bounce off underwater objects (e.g., fish, structures, or the bottom) and return to the transducer.
  3. Image Processing: The transducer processes these echoes, creating a detailed image that updates in real-time as the boat moves.
  4. Display: The fishfinder screen shows a scrolling, photo-like image, with the newest data appearing on the right and older data moving left.

Down imaging excels in shallow to moderate depths (typically under 200–300 feet), where its high-frequency beams provide superior resolution. However, its narrow beam limits its coverage area, requiring the boat to pass directly over objects to capture them.

What is 2D Sonar?

Traditional 2D sonar, often referred to simply as “sonar,” is the cornerstone of underwater imaging. It uses lower-frequency sound waves (typically 50 kHz to 200 kHz) emitted in a cone-shaped beam to detect objects, measure water depth, and map the underwater environment. Unlike down imaging, 2D sonar covers a wider area, making it ideal for scanning larger sections of the water column.

The display of 2D sonar is less detailed, presenting data as a series of lines, arches, or echoes. Fish appear as distinctive arches, while the bottom is shown as a continuous line. The size and shape of these arches can indicate the size of fish or other objects, but the lower resolution makes it harder to distinguish fine details.

How 2D Sonar Works

  1. Emission of Sound Waves: The transducer sends out a wide, cone-shaped beam of lower-frequency sound waves.
  2. Reflection and Detection: Objects within the cone reflect the sound waves back to the transducer.
  3. Data Interpretation: The system calculates the time taken for echoes to return, determining the distance and position of objects.
  4. Display: The fishfinder shows a scrolling display with arches for fish, lines for the bottom, and blobs for structures, updating as the boat moves.

2D sonar is effective across a wide range of depths, including deep water, due to its lower-frequency waves, which travel farther than high-frequency waves. Its wider beam provides a broader view, making it suitable for detecting fish schools or large underwater features.

Key Differences Between Down Imaging and 2D Sonar

To understand the practical implications of choosing between down imaging and 2D sonar, let’s break down their differences across several key parameters:

ParameterDown Imaging2D Sonar
Beam ShapeNarrow, fan-shaped beam (thin front-to-back, wide side-to-side)Wide, cone-shaped beam (like an upside-down funnel)
FrequencyHigh (455 kHz–1.2 MHz)Low to moderate (50 kHz–200 kHz)
ResolutionHigh, photo-like images with clear details of fish and structuresLower, line-based or arch-based images with less detail
Coverage AreaNarrow, focused directly beneath the boatWide, covering a broader area of the water column
Depth CapabilityBest in shallow to moderate depths (<200–300 feet)Effective in both shallow and deep water
DisplayDetailed, near-photographic imagesArches for fish, lines for bottom, and blobs for structures
Best UseIdentifying specific structures, individual fish, and precise bottom detailsScanning large areas for fish schools, depth changes, and general navigation

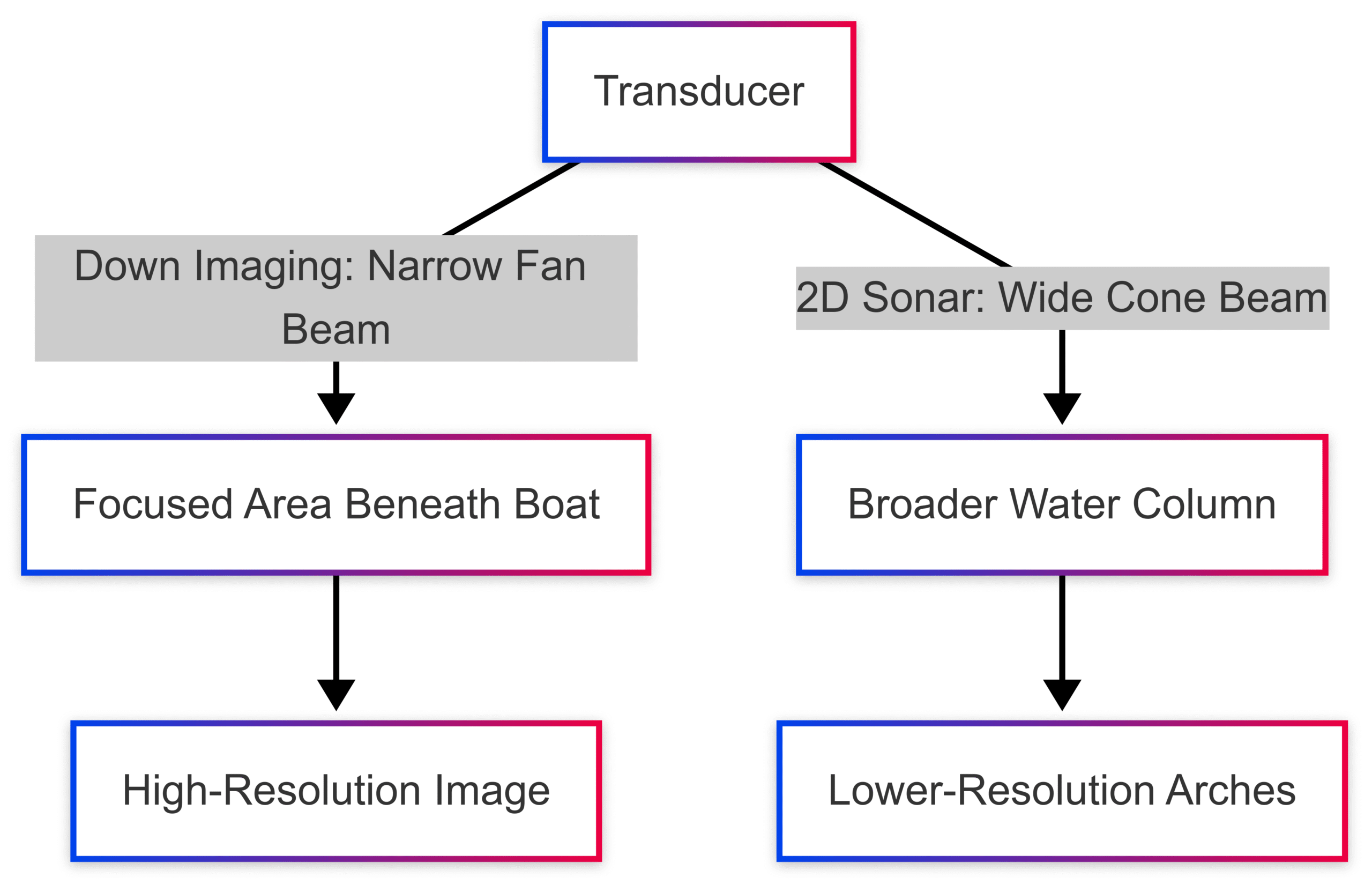

Beam Shape and Coverage

The most significant difference lies in the beam shape. Down imaging uses a razor-thin, fan-shaped beam, which provides a focused view directly beneath the boat. This narrow beam captures fine details but covers a smaller area. In contrast, 2D sonar’s conical beam spreads out as it descends, covering a wider area but sacrificing detail. The following chart illustrates the beam shapes:

What Is the Difference Between Down Imaging and Sonar

Frequency and Resolution

Down imaging’s high-frequency waves (455 kHz–1.2 MHz) produce sharper images but lose effectiveness in deeper water due to signal attenuation. 2D sonar’s lower frequencies (50 kHz–200 kHz) penetrate deeper water but provide less detail. For example, down imaging can distinguish individual branches in a submerged tree, while 2D sonar might show the tree as a vague blob.

Display and Interpretation

Down imaging displays a near-photographic image, making it easier to identify specific objects like rocks, vegetation, or fish. For instance, a bait ball might appear as a dense cloud with individual fish visible, while larger gamefish show as distinct dashes or dots. In 2D sonar, fish appear as arches, with larger fish creating larger arches. However, distinguishing between a fish and a horizontal branch can be challenging, as both may appear as arches.

Depth and Application

Down imaging is ideal for shallow to moderate depths, where its high resolution shines. It’s perfect for pinpointing specific structures or fish. 2D sonar, with its deeper penetration and wider coverage, is better for scanning large areas or fishing in deep water, such as offshore environments.

Practical Applications

Both down imaging and 2D sonar have unique applications in fishing, marine navigation, and underwater exploration. Understanding these applications helps users choose the right tool for their needs.

Down Imaging in Fishing

Down imaging is a game-changer for anglers seeking precision. Its high-resolution images allow users to:

  • Locate Underwater Structures: Identify submerged trees, rock piles, or shipwrecks that attract fish.
  • Spot Individual Fish: Distinguish between baitfish and gamefish, even in dense schools.
  • Optimize Fishing Spots: Pinpoint exact locations of fish-holding structures, improving catch rates.

For example, an angler using down imaging can see a submerged log with individual branches and detect fish hiding among them, enabling precise lure placement. Captain BJ Silvia, a professional angler, notes that down imaging helped him identify tog (tautog) hidden among rocky structures, a feat difficult with 2D sonar alone.

2D Sonar in Fishing and Navigation

2D sonar’s wider coverage makes it ideal for:

  • Scanning Large Areas: Detect fish schools or depth changes over a broad area.
  • Deep-Water Fishing: Track fish and lures in depths beyond down imaging’s range.
  • Marine Navigation: Map the bottom, detect hazards, and monitor water depth in real-time.

In vertical fishing scenarios, such as drop-shotting in 20+ feet of water, 2D sonar’s conical beam keeps fish and lures in view longer, displaying them as horizontal lines when the boat is stationary. This is particularly useful for watching a lure descend toward a fish.

Combined Use

Many anglers use down imaging and 2D sonar together on a split-screen display. Down imaging provides detailed visuals of structures, while 2D sonar’s fish arches make it easier to spot gamefish. For example, a 2D sonar arch might indicate a fish, but down imaging can confirm whether it’s a fish or a branch, reducing false positives.

Pros and Cons

Each technology has distinct advantages and limitations, which influence their suitability for specific tasks.

Down Imaging

Advantages:

  • Superior Image Quality: Photo-like images reveal fine details of structures and fish.
  • Accurate Depth Perception: Precise measurements of object depth.
  • Structure Identification: Easily distinguishes between rocks, vegetation, and other features.

Disadvantages:

  • Limited Coverage: Narrow beam requires the boat to pass directly over objects.
  • Depth Limitation: Less effective in depths beyond 200–300 feet.
  • Water Clarity Dependence: Murky water can reduce image quality.

2D Sonar

Advantages:

  • Wide Coverage: Scans a larger area, ideal for locating fish schools.
  • Deep-Water Performance: Lower frequencies penetrate deeper water.
  • Fish Detection: Distinct arches make fish easy to spot, especially at speed.

Disadvantages:

  • Lower Resolution: Less detail makes it harder to identify specific objects.
  • Depth Estimation: Provides approximate rather than precise depth measurements.
  • False Positives: Horizontal objects like branches may appear as fish arches.

Technology in Action: Real-World Examples

To illustrate the differences, consider these scenarios based on real-world fishing experiences:

  1. Rocky Bottom with Tog: Captain BJ Silvia used down imaging to detect tog nestled between rocks, where 2D sonar showed only a vague bottom signal. The narrow beam of down imaging revealed fish in crevices, leading to a successful catch.
  2. Tuna in Bait Clouds: Captain Dom Petrarca relies on down imaging to spot giant bluefin tuna within dense bait clouds. While 2D sonar shows a washed-out cloud, down imaging’s high resolution distinguishes tuna from smaller baitfish, allowing precise lure adjustments.
  3. Submerged Trees: An angler scanning a lake with down imaging can see individual branches of a submerged tree, while 2D sonar displays it as a blob. This clarity helps target fish hiding in specific parts of the structure.

Equipment and Specifications

Modern fishfinders from brands like Humminbird, Lowrance, and Garmin integrate both down imaging and 2D sonar. Below are examples of popular models and their specifications:

ModelBrandDown Imaging Frequencies2D Sonar FrequenciesPrice (USD)
Humminbird HELIX 7 CHIRP DIHumminbird455/800 kHz83/200 kHz~$499
Lowrance HDS LIVE 9Lowrance455/800 kHz (DownScan)50/83/200 kHz~$1,299
Garmin ECHOMAP UHD 73cvGarmin455/800 kHz (DownVu)50/77/200 kHz~$599

Key Features to Look For

  • CHIRP Technology: Enhances both down imaging and 2D sonar by using a range of frequencies for better target separation.
  • Split-Screen Capability: Allows simultaneous display of down imaging and 2D sonar.
  • GPS Integration: Combines sonar with mapping for precise navigation and waypoint marking.

Choosing the Right Technology

The choice between down imaging and 2D sonar depends on your specific needs:

  • For Precision Fishing: Down imaging is ideal for anglers targeting specific structures or fish in shallow to moderate depths. It’s perfect for bass, crappie, or tog fishing in lakes or coastal waters.
  • For Broad Scanning: 2D sonar suits anglers or navigators scanning large areas or fishing in deep water, such as offshore tuna or deep-lake trout fishing.
  • For Versatility: Using both technologies together maximizes effectiveness. A split-screen display lets you leverage 2D sonar’s fish detection and down imaging’s detail.

Tips for Maximizing Sonar Use

  1. Practice with Settings: Experiment with frequency and sensitivity settings in known areas to understand how they affect the display.
  2. Use Split-Screen: Combine down imaging and 2D sonar to cross-reference data and reduce misinterpretation.
  3. Move Slowly: Down imaging requires the boat to move to create a scrolling image, so maintain a steady, slow speed (2–4 mph) for best results.
  4. Calibrate for Water Conditions: Adjust settings for murky or clear water to optimize image quality.
  5. Learn from Experts: Study real-world examples, like those from Captains Silvia and Petrarca, to apply sonar effectively in your fishery.

Conclusion

Down imaging and 2D sonar are powerful tools that transform how we explore and interact with underwater environments. Down imaging offers unparalleled detail, making it ideal for pinpointing structures and fish in shallow waters. 2D sonar provides a broader view, excelling in deep water and large-area scanning. By understanding their differences and leveraging their strengths, anglers and navigators can enhance their efficiency and success on the water. Whether you’re chasing bass in a lake or navigating coastal waters, combining these technologies on a modern fishfinder ensures you never miss what lies beneath.

Happy Boating!
