Navigating the open waters demands precision, awareness, and confidence. The Raymarine AR200, a cutting-edge marine sensor and video stabilization module, redefines how boaters interact with their surroundings. By integrating a high-precision GPS (GNSS) receiver and an Attitude and Heading Reference System (AHRS) with ClearCruise™ Augmented Reality (AR) technology, the AR200 transforms Raymarine’s Axiom chartplotters into powerful tools for situational awareness. This in-depth review explores the AR200’s features, technical specifications, compatibility, and real-world performance, showing why it’s a game-changer for both novice and seasoned mariners.

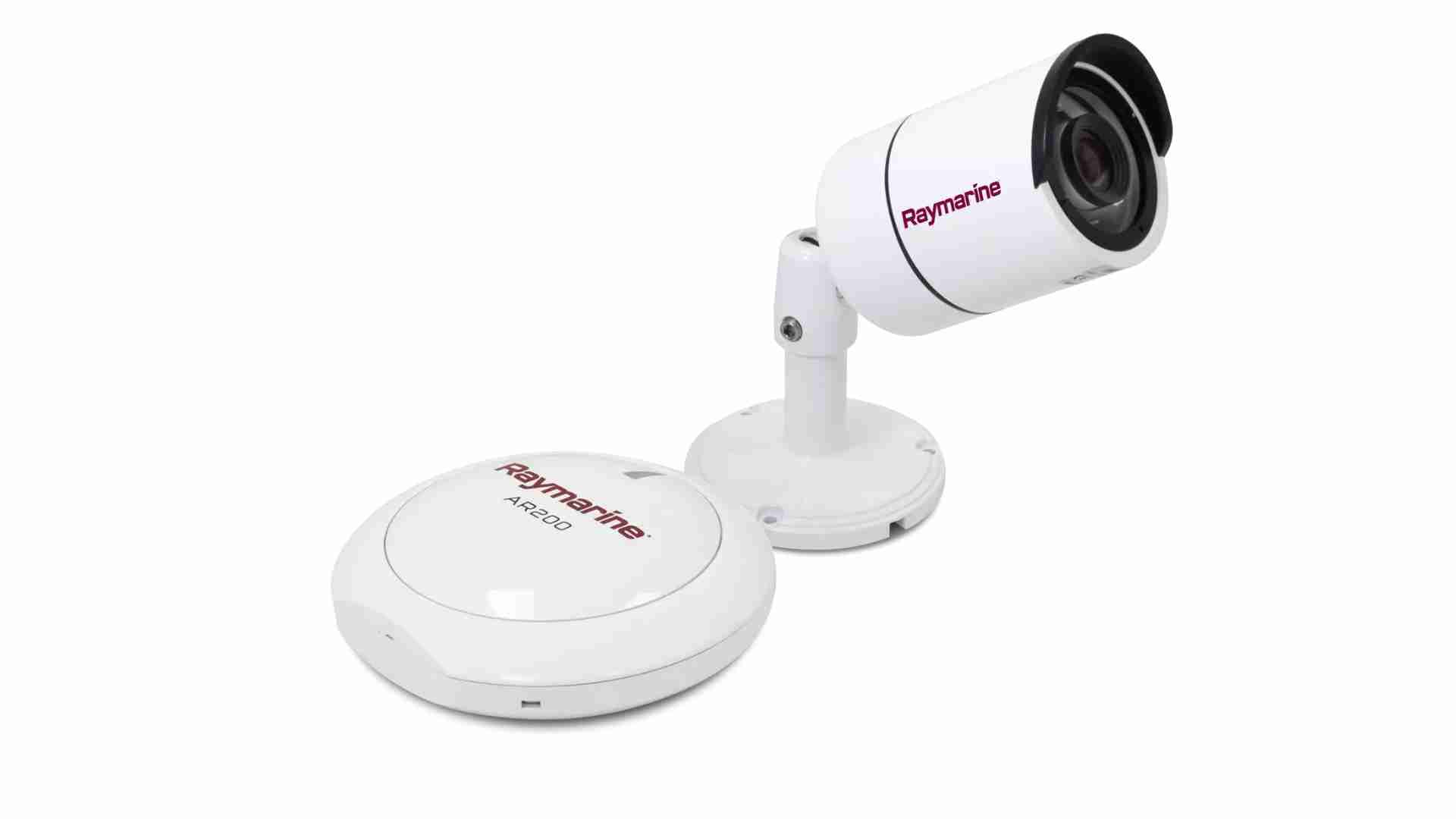

Introduction to the Raymarine AR200
The Raymarine AR200 is a compact yet powerful device designed to enhance marine navigation through advanced sensor technology and augmented reality. It combines a GPS receiver and a 9-axis AHRS sensor to deliver precise position, heading, pitch, and roll data to Axiom chartplotters. When paired with compatible marine cameras, the AR200 enables ClearCruise AR, overlaying critical navigation data onto a live high-definition video feed. This integration allows boaters to visualize AIS-equipped vessels, waypoints, and navigation aids in real time, directly on their chartplotter’s display.
Whether you’re navigating a busy harbor or cruising through unfamiliar waters, the AR200 empowers you to make smarter decisions with enhanced situational awareness. Its seamless integration with Raymarine’s Axiom multifunction displays (MFDs) and user-friendly interface makes it an essential tool for modern mariners.
Key Features of the Raymarine AR200
1. ClearCruise Augmented Reality
ClearCruise AR is the cornerstone of the AR200’s appeal. This industry-first technology overlays navigation data onto a live video feed, creating a dynamic, real-time view of your surroundings. Key features include:
- Navigation Object Overlays: Critical navigation objects, such as buoys, channel markers, and AIS-equipped vessels, are overlaid on the video feed with rich graphics. This makes it easy to identify and interpret objects at a glance.
- AIS Target Identification: Color-coded labels (green for non-threatening, red for potential hazards) provide instant status and risk assessment for nearby vessels. Tapping an AIS target reveals detailed information, such as course, speed, and closest point of approach (CPA).
- Waypoint Visualization: Saved waypoints and marks are displayed in their real-world positions, simplifying navigation in low-visibility conditions like haze or fog.
- Real-Time Updates: The AR200’s stabilization ensures that AR overlays remain accurate, even as the vessel pitches, rolls, or yaws.
2. Advanced GPS and AHRS Sensors
The AR200’s GPS receiver and AHRS sensor are engineered for precision and reliability:
- GPS (GNSS) Receiver:
- Supports GPS, GLONASS, Galileo, and Beidou satellite systems.
- Tracks up to 28 satellites simultaneously for robust signal acquisition.
- Offers position accuracy of <5 meters with SBAS (Satellite-Based Augmentation System) and <15 meters without.
- Achieves a cold start fix in under 2 minutes (typically 60 seconds) and a hot start in under 45 seconds.
- Delivers a 10 Hz update rate for smooth, real-time data.
- AHRS Sensor:
- Features a 3-axis digital accelerometer, 3-axis digital compass, and 3-axis MEMS gyro for precise heading, pitch, roll, and rate-of-turn data.
- Static magnetic compass accuracy of ≤1° RMS and dynamic accuracy of ≤3° RMS.
- Pitch, roll, and yaw accuracy of ≤1°, ensuring stable AR overlays.
3. Video Stabilization
The AR200’s video stabilization module ensures that ClearCruise AR data remains accurate and aligned with the real-world view, even in rough seas. This is critical for maintaining the integrity of AR overlays, preventing disorientation, and enhancing user confidence.
4. Compatibility and Integration
The AR200 integrates seamlessly with Raymarine’s Axiom, Axiom Pro, and Axiom XL multifunction displays running LightHouse 3.7 or later. It supports up to 10 compatible cameras, including:
- Raymarine CAM210IP ($699)
- Raymarine CAM220IP ($499)
- FLIR M132 and M232 thermal cameras
The system connects via Raymarine’s SeaTalkng network or NMEA 2000, making it versatile for various vessel configurations.
5. User-Friendly Interface
The AR200’s integration with Axiom MFDs provides an intuitive interface. Users can adjust the display range, toggle information on or off, and tap AR tags for detailed data. The system’s split-screen mode allows simultaneous viewing of the AR video feed and chartplotter data, optimizing situational awareness.
Technical Specifications
| Category | Specification |
|---|---|
| GNSS (GPS) Receiver | |
| Geodetic Datum | WGS-84 |
| Satellite Differential Type | WAAS (US), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS ready (Japan) |
| Channels | Tracks up to 28 satellites simultaneously |
| Antenna | Internal |
| Satellite Compatibility | GPS, GLONASS, Galileo ready, Beidou ready |
| Sensitivity | Cold start: -147 dBm, Re-acquisition: -160 dBm, Tracking: -164 dBm |
| Operating Frequency | 1574 MHz to 1605 MHz |
| Update Rate | 10 Hz |
| Position Accuracy (95%) | <5 m with SBAS, <15 m without SBAS |
| Time to First Fix | Hot start: <45 seconds, Cold start: <2 minutes (typically 60 seconds) |
| Speed Accuracy (95%) | <0.3 kt |
| AHRS Sensor | |
| Components | 3-axis accelerometer, 3-axis compass, 3-axis MEMS gyro |
| Update Rate | 10 Hz for heading, pitch, roll, and rate of turn |
| Accuracy | Static compass: ≤1° RMS, Dynamic compass: ≤3° RMS, Pitch/Roll/Yaw: ≤1° |
| Environmental | |
| Waterproof Rating | IPx6, IPx7 |
| Operating Temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage Temperature | -25°C to +70°C (-13°F to 158°F) |
| Relative Humidity | Up to 93% |
| Physical | |
| Dimensions | Diameter: 108.48 mm (4.27 in), Depth: 41.57 mm (1.64 in) |
| Weight | 0.91 kg (2 lbs) |
| Power | |
| Operating Voltage | 9 V DC to 16 V DC (protected up to 32 V DC) |
| Power Consumption | 30 mA max |
| Nominal Supply Voltage | 12 V DC (via SeaTalkng network) |
| LEN (NMEA 2000) | 1 |
| Conformance | EMC Directive 2014/30/EU, Australia/NZ C-Tick, RoHS, WEEE |
Pricing and Availability
The Raymarine AR200 Video Stabilization Module (E70537) retails for approximately $499. For a complete ClearCruise AR setup, consider the T70453 Augmented Reality Pack, which includes:
- CAM220IP Eyeball Camera
- AR200 Module
- SeaTalkng 1m Backbone
- T-piece and 10m Raynet Cable
This pack is priced at approximately £1,195 (including VAT). Axiom MFDs range from $849 for smaller models to $12,299 for the Axiom XL, depending on size and features. Compatible cameras (CAM210IP or CAM220IP) cost $699 and $499, respectively.
Installation and Setup
Installing the AR200 is straightforward, thanks to its compact design and compatibility with Raymarine’s SeaTalkng network. The module’s small footprint (108.48 mm diameter, 41.57 mm depth) allows for flexible mounting on the helm or other suitable locations. The system requires:
- An Axiom, Axiom Pro, or Axiom XL MFD running LightHouse 3.7 or later.
- A compatible camera (CAM210IP, CAM220IP, or FLIR thermal cameras).
- A SeaTalkng or NMEA 2000 network for connectivity.
The AR200’s low power consumption (30 mA max) and 12 V DC supply ensure compatibility with most vessel power systems. The IPx6/IPx7 waterproof rating guarantees durability in harsh marine environments.
Real-World Performance
To understand the AR200’s impact, consider a scenario: navigating Hillsboro Inlet in Florida under bright sunlight. The glare makes spotting buoys challenging, but with ClearCruise AR, the Axiom MFD displays a live video feed with AR tags pinpointing channel markers and AIS-equipped vessels. Tapping a tag reveals the vessel’s course, speed, and CPA, enabling quick decision-making. In a man-overboard situation, the AR200’s integration with AIS beacons or the MFD’s MOB function provides a precise blue AR tag to guide the crew back to the last known position.
The AR200’s stabilization ensures that AR overlays remain aligned, even in choppy conditions. For example, the 9-axis AHRS sensor corrects for pitch and roll, maintaining accuracy within ≤1° for pitch, roll, and yaw. This precision is critical in narrow channels or crowded harbors, where misjudging a marker’s position could lead to grounding or collision.
However, the system has limitations. In dense fog, the cameras may struggle to penetrate the gray wall, rendering the video feed less effective. Running the MFD in split-screen mode—AR video on one side, chartplotter with AIS data on the other—helps mitigate this. Additionally, non-AIS-equipped vessels appear without AR tags, requiring traditional watchkeeping to complement the system.

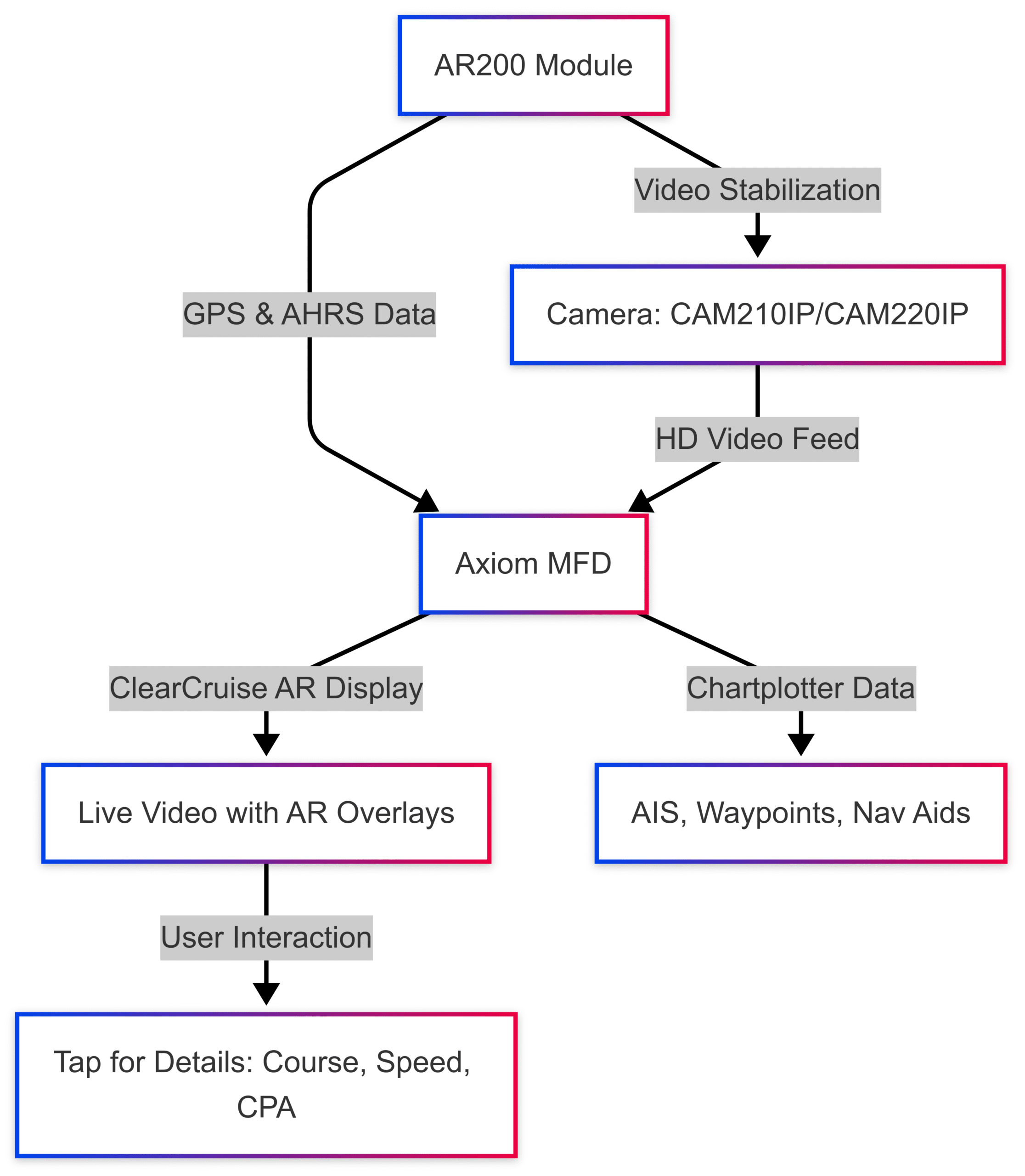

Chart: System Architecture
Below is a simplified diagram illustrating the AR200’s integration with Axiom MFDs and cameras:
This chart shows how the AR200 processes GPS and AHRS data, stabilizes video from compatible cameras, and integrates with the Axiom MFD to display ClearCruise AR overlays.
Benefits for Mariners
Enhanced Situational Awareness
The AR200’s ClearCruise AR technology bridges the gap between traditional chartplotting and real-world observation. By overlaying navigation data onto a live video feed, it reduces the need to shift focus between charts and the horizon, minimizing distractions and improving safety.
Improved Safety
Color-coded AIS tags and waypoint overlays provide instant risk assessment and navigation cues. For example, red tags highlight potential collision risks, while blue tags mark MOB positions, enabling swift responses in critical situations.
Ease of Use
The intuitive interface, combined with the Axiom MFD’s touchscreen capabilities, makes the AR200 accessible to both novice and experienced boaters. The ability to toggle data and adjust ranges ensures flexibility in various conditions.
Versatility
With support for up to 10 cameras, the AR200 is suitable for vessels of all sizes, from small recreational boats to large yachts. Its compatibility with thermal cameras adds value for nighttime or low-visibility navigation.
Limitations and Considerations
While the AR200 is a powerful tool, it’s not a complete replacement for traditional navigation practices:
- Fog and Low Visibility: The system relies on visible camera input, so dense fog can limit its effectiveness.
- Non-AIS Vessels: Vessels without AIS transponders appear without AR tags, requiring manual observation.
- Screen Size: ClearCruise AR performs best on larger Axiom displays (e.g., Axiom XL), as smaller screens may feel cluttered with data.
- Cost: The AR200 and its components (MFD, cameras, cables) represent a significant investment, with total costs ranging from $2,000 to over $13,000 for a full setup.
Importantly, the AR200 is a navigational aid, not an autopilot. Skippers must maintain active watchkeeping and not rely solely on the system to avoid collisions or hazards.
Why Choose the Raymarine AR200?
The AR200 stands out for its innovative use of augmented reality in marine navigation. Unlike traditional chartplotters, which require users to interpret 2D data, the AR200 brings navigation to life with real-time, real-world visuals. Its precision sensors, seamless integration, and robust build make it a reliable companion for any boater. Whether you’re a weekend cruiser or a professional mariner, the AR200 enhances safety, simplifies navigation, and elevates the boating experience.
Conclusion
The Raymarine AR200 is a nautical marvel that redefines marine navigation. By combining advanced GPS, AHRS, and ClearCruise AR technology, it empowers boaters to navigate with unparalleled confidence and awareness. Its intuitive interface, robust performance, and compatibility with Axiom MFDs make it a must-have for modern vessels. While it has limitations in extreme conditions and requires a significant investment, the AR200’s benefits far outweigh its drawbacks for those seeking cutting-edge navigation solutions.
Unleash your inner captain and explore the waterways with the Raymarine AR200. Whether you’re dodging crowded harbors or charting new destinations, this device ensures you stay on course, stay safe, and enjoy the journey.
Happy Boating!
