Raymarine RealVision 3D Sonar is a groundbreaking technology transforming how boaters navigate and explore underwater environments. By combining advanced CHIRP sonar with gyro-stabilized 3D imaging, it offers unparalleled clarity, precision, and situational awareness. Whether you’re fishing, navigating unfamiliar waters, or exploring submerged structures, RealVision provides a comprehensive view of the underwater world. This article delves into the technology, features, benefits, integration, and future potential of RealVision, offering a detailed guide for boating enthusiasts and professionals.
Understanding RealVision 3D Sonar Technology
RealVision 3D Sonar stands out due to its innovative use of Compressed High-Intensity Radar Pulse (CHIRP) sonar and gyro-stabilized imaging. Unlike traditional sonar systems that rely on a single frequency, CHIRP sonar emits a continuous sweep of frequencies, resulting in high-resolution imagery. This allows boaters to detect fine details, such as individual fish, underwater vegetation, and seabed contours, with exceptional clarity.
The gyro-stabilization feature compensates for boat motion, ensuring steady and blur-free images even in choppy waters. This stability is critical for maintaining a clear view, making RealVision a reliable tool for navigation and exploration. The technology integrates four sonar types—CHIRP DownVision, CHIRP SideVision, High-Frequency CHIRP, and RealVision 3D—into a single transducer, delivering a comprehensive underwater perspective.
The Science Behind CHIRP Sonar
CHIRP sonar’s ability to transmit multiple frequencies simultaneously enhances target separation and depth penetration. Traditional sonar might struggle to distinguish between closely spaced objects, but CHIRP’s broad frequency range provides sharper images and better differentiation. For example, it can separate a school of fish from nearby structures or identify a wreck’s outline with precision.
The sonar’s depth capabilities are impressive, reaching up to 900 feet for High CHIRP, 600 feet for DownVision, 300 feet for SideVision, and 300 feet for RealVision 3D. This makes it suitable for both shallow coastal waters and deeper offshore environments. The result is a lifelike representation of the underwater world, enabling boaters to make informed decisions.
Key Features of RealVision 3D Sonar
RealVision 3D Sonar offers a suite of features designed to enhance marine navigation and fishing. These include:
- DownVision: Provides photorealistic images of the seabed, showing contours, vegetation, and fish with remarkable detail. It’s ideal for identifying fishing hotspots or navigating complex underwater terrain.
- SideVision: Expands the field of view by displaying images on both sides of the boat, up to 300 feet. This is particularly useful in narrow channels or when scouting for submerged structures.
- RealVision 3D: Creates a three-dimensional model of the underwater environment, allowing users to pan, tilt, and zoom for a complete view. It reveals drop-offs, canyons, and wrecks in stunning detail.
- Gyro-Stabilized Imaging: Ensures steady visuals by compensating for boat movement, delivering consistent imagery in rough conditions.
- GPS Track Feature: Uses precision GPS to construct real-time 3D models, enhancing accuracy for navigation and mapping.
These features are accessible through Raymarine’s Axiom and Axiom Plus multifunction displays (MFDs), which provide an intuitive interface for controlling sonar settings.

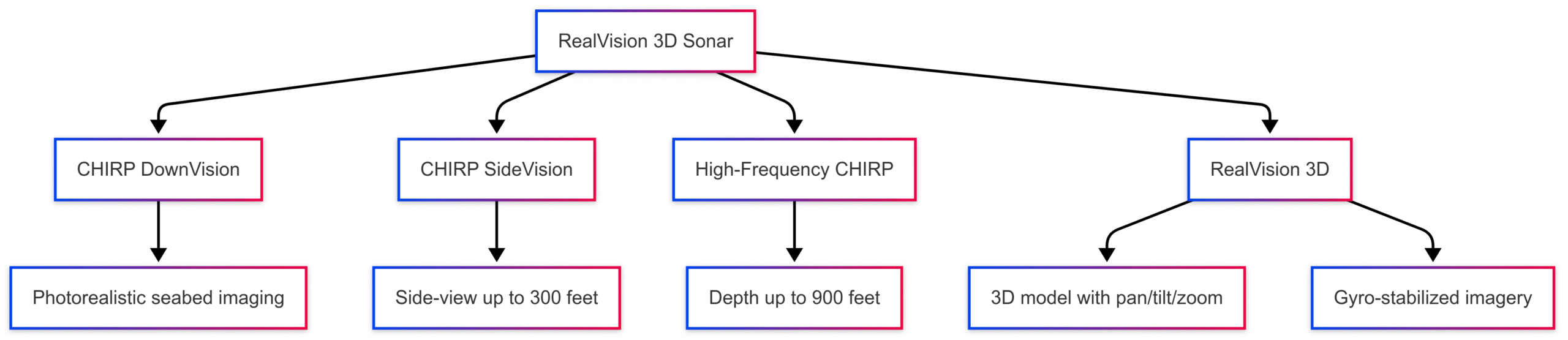

Chart: RealVision 3D Sonar Components
Benefits of RealVision 3D Sonar
RealVision 3D Sonar offers significant advantages for boaters, enhancing safety, navigation, and fishing success. Below are the key benefits:
Enhanced Situational Awareness
RealVision provides a clear and detailed view of the underwater environment, allowing boaters to identify submerged hazards like rocks, reefs, or debris. This awareness is critical for safe navigation, especially in unfamiliar or crowded waters. The ability to visualize underwater structures in 3D helps boaters avoid potential damage to their vessels.
Improved Fishing Efficiency
The sonar’s high-resolution imaging and target separation make it easier to locate fish and identify productive fishing spots. Anglers can observe fish behavior, track schools, and pinpoint structures like wrecks or reefs that attract marine life. This precision increases the likelihood of a successful fishing trip.
Comprehensive Navigation Support
RealVision’s 3D imaging and GPS integration enable precise navigation through complex underwater terrain. Boaters can map uncharted areas, mark waypoints with a single tap, and explore new fishing grounds with confidence. The technology’s compatibility with leading charts from Navionics, C-MAP, and Raymarine’s LightHouse Charts further enhances navigation accuracy.
Safety Advantages
By detecting shallow areas, swimmers, or floating debris, RealVision enhances safety on the water. Its ability to monitor depth changes helps prevent grounding, particularly in marinas or shallow channels. The sonar’s real-time alerts provide an extra layer of protection, ensuring worry-free boating.
Integration with Raymarine Devices
RealVision 3D Sonar is designed to integrate seamlessly with Raymarine’s Axiom and Axiom Plus MFDs, which serve as the control hub for sonar features. These displays, available in 7, 9, and 12-inch sizes, feature high-resolution IPS screens, quad-core processors, and the LightHouse 3 operating system for fast and intuitive performance.
Compatible Devices
The following Raymarine MFDs support RealVision 3D Sonar:
| Model | Display Size | Resolution | Price (ex-VAT) | Features |
|---|---|---|---|---|
| Axiom 7 RV | 7 inches | 1024 x 600 (WSVGA) | Discontinued | RealVision 3D, DownVision, SideVision |
| Axiom 9 RV | 9 inches | 1280 x 720 (WXGA) | £998.29 | RealVision 3D, DownVision, SideVision |
| Axiom 12 RV | 12 inches | 1280 x 800 (WXGA) | Discontinued | RealVision 3D, DownVision, SideVision |
| Axiom+ 7 RV | 7 inches | 1024 x 600 (WSVGA) | Contact Raymarine | Enhanced IPS, HydroTough coating |
| Axiom+ 9 RV | 9 inches | 1280 x 720 (WXGA) | £1,197.95 (inc VAT) | Enhanced IPS, HydroTough coating |
| Axiom Pro 9 RVX | 9 inches | 1280 x 720 (WXGA) | £2,015.21 | HybridTouch, 1kW CHIRP sonar |
Transducer Options
RealVision 3D Sonar requires a compatible transducer to function. Raymarine offers a range of transducers tailored to different boat types and hull designs:
| Transducer Model | Type | Material | Hull Deadrise | Price (ex-VAT) | Depth Range |
|---|---|---|---|---|---|
| RV-100 | Transom Mount | Plastic | N/A | £350.63 | 300–900 feet |
| RV-200 | Through-Hull | Bronze | 0° | £881.88 | 300–900 feet |
| RV-300 | Through-Hull | Plastic | 0° | £740.21 | 300–900 feet |
| RV-400 | Through-Hull | Stainless Steel | 0° | £1,058.96 | 300–900 feet |
| RV-212/220 | Through-Hull (Pair) | Bronze | 12°/20° | £1,455.63 | 300–900 feet |
| RV-312/320 | Through-Hull (Pair) | Plastic | 12°/20° | £1,236.04 | 300–900 feet |
| RV-412/420 | Through-Hull (Pair) | Stainless Steel | 12°/20° | £1,519.38 | 300–900 feet |
Integration Steps
Integrating RealVision with Raymarine MFDs is straightforward:
- Connect the Transducer: Attach the RealVision transducer (e.g., RV-100 or RV-200) to the MFD using the provided 25-pin connector and 8-meter cable. Follow Raymarine’s installation instructions for secure mounting.
- Power On the MFD: Use the swipe-to-power feature or sensor field to activate the display. The LightHouse 3 OS automatically detects the transducer.
- Configure Settings: Access RealVision features through the MFD’s touchscreen interface. Customize sonar modes, adjust sensitivity, and select chart overlays as needed.
- Update Software: Regularly check for LightHouse 3 updates on Raymarine’s website to ensure optimal performance and access new features.
The LightHouse 3 OS is designed for ease of use, with gesture-based controls, customizable data fields, and support for multiple chart types. Its quad-core processor ensures fast chart redraws and smooth multitasking, even when running sonar, radar, and camera feeds simultaneously.
Troubleshooting and Maintenance
To ensure consistent performance, users should address common issues and maintain their RealVision system properly.
Common Issues and Solutions
- Blurry or Inconsistent Images: Check for loose connections or debris on the transducer face. Clean the transducer with a soft cloth to remove marine growth.
- No Sonar Data: Verify that the transducer is properly connected and the MFD is set to the correct sonar mode. Restart the MFD if necessary.
- Interference: Adjust the sonar frequency or sensitivity settings to reduce interference from other electronics or nearby vessels.
For persistent issues, consult the MFD’s user manual or contact Raymarine’s customer support team.
Maintenance Tips
- Regular Inspections: Check the transducer and cables for wear, corrosion, or damage. Replace any compromised components promptly.
- Cleaning: Clean the transducer regularly to prevent marine growth, which can degrade performance.
- Storage: Store the system in a dry, temperature-controlled environment when not in use to protect against extreme conditions.
- Professional Servicing: Schedule periodic maintenance with a certified Raymarine technician to ensure long-term reliability.
Future Developments in RealVision Technology
Raymarine continues to innovate, with anticipated upgrades to RealVision 3D Sonar that promise even greater performance. Future enhancements may include:
- Higher-Resolution Imaging: Improved clarity for finer details, such as distinguishing between fish species or identifying smaller debris.
- Expanded Coverage: Increased depth and side-range capabilities for broader underwater mapping.
- Augmented Reality Integration: Enhanced compatibility with Raymarine’s ClearCruise AR, overlaying sonar data onto real-world views for intuitive navigation.
- AI-Powered Analysis: Automated fish detection and hazard alerts using machine learning algorithms.
These advancements will further solidify RealVision’s position as a leader in marine navigation technology, offering boaters safer and more immersive experiences.

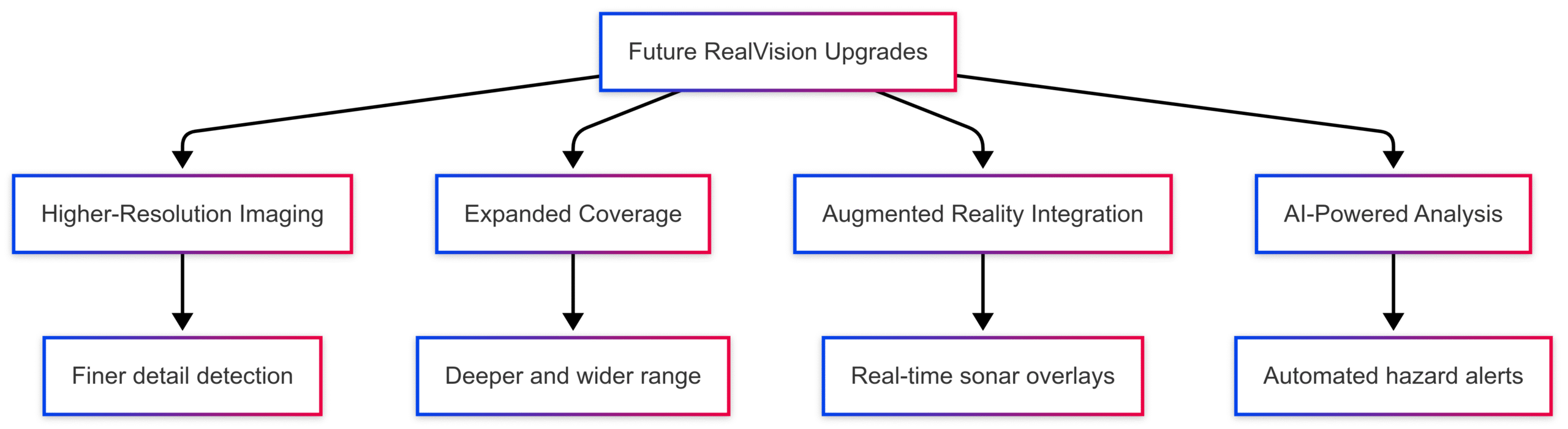

Chart: Future RealVision Enhancements
RealVision’s Impact on Marine Navigation
RealVision 3D Sonar redefines marine navigation by providing a comprehensive and intuitive view of the underwater environment. Its ability to visualize submerged hazards, locate fish, and map uncharted areas empowers boaters to navigate with confidence. The technology’s integration with Raymarine’s Axiom MFDs and LightHouse 3 OS ensures a seamless user experience, while its robust hardware and software support future expansion.
For anglers, RealVision enhances fishing efficiency by pinpointing productive spots and tracking fish behavior. For navigators, it offers unmatched safety and precision, particularly in challenging conditions. As Raymarine continues to innovate, RealVision is poised to shape the future of boating, delivering unparalleled visibility and control on the water.
Pricing and Availability
RealVision 3D Sonar is available through Raymarine’s Axiom and Axiom Plus MFDs, with prices varying based on display size and transducer options. Below is a summary of starting prices (ex-VAT):
- Axiom 9 RV MFD: £998.29
- Axiom+ 9 RV MFD: £1,197.95 (inc VAT)
- Axiom Pro 9 RVX MFD: £2,015.21
- RV-100 Transom Mount Transducer: £350.63
- RV-200 Bronze Through-Hull Transducer: £881.88
- RV-400 Stainless Steel Through-Hull Transducer: £1,058.96
Prices for transducers and MFDs may vary by region and retailer. Check Raymarine’s official website or authorized dealers for current pricing and availability. Note that some models, such as the Axiom 7 RV and Axiom 12 RV, are discontinued but may be available through secondary markets.
Conclusion
Raymarine RealVision 3D Sonar is a game-changer for marine navigation, offering unmatched clarity, precision, and versatility. Its advanced CHIRP sonar, gyro-stabilized 3D imaging, and seamless integration with Axiom MFDs make it an essential tool for boaters. Whether you’re navigating treacherous waters, chasing trophy fish, or exploring underwater landscapes, RealVision delivers the visibility and confidence needed to succeed.
Investing in RealVision means embracing the future of boating, with cutting-edge technology that enhances safety, efficiency, and enjoyment on the water. Visit Raymarine’s website for more information and to explore the full range of Axiom displays and transducers.
