Discover the ultimate guide to inline fuel shut off valves, covering types, installation, maintenance, and top products with specs, prices, and user reviews.
Inline fuel shut off valves are critical components in fuel systems across vehicles, boats, and industrial machinery. These valves ensure safety, efficiency, and control by regulating fuel flow, preventing leaks, and enabling maintenance. This comprehensive guide explores their definition, functionality, types, installation, troubleshooting, maintenance, and top products, complete with specifications, prices, and user reviews. Whether you’re a mechanic, vehicle owner, or machinery operator, this guide equips you with everything you need to know about inline fuel shut off valves.
What Are Inline Fuel Shut Off Valves?
Inline fuel shut off valves are devices installed within a fuel line to control the flow of fuel. Positioned between the fuel source and the engine or tank, they allow users to stop fuel flow during emergencies, maintenance, or repairs. These valves are essential for preventing fuel leaks, reducing fire risks, and ensuring environmental safety by minimizing fuel spills.
Functionality and Importance
The primary function of an inline fuel shut off valve is to provide manual or automated control over fuel flow. In emergencies, such as a fuel line rupture or engine fire, these valves enable rapid fuel supply cutoff, averting potential disasters. During routine maintenance, they simplify tasks like replacing fuel filters or cleaning injectors by isolating the fuel system, ensuring safety and efficiency.
Beyond safety, inline fuel shut off valves contribute to operational efficiency. By preventing unnecessary fuel flow, they reduce waste and enhance system performance. They are versatile, used in applications ranging from automotive and marine to lawnmowers and industrial equipment, making them indispensable in any fuel-dependent system.
Why Inline Fuel Shut Off Valves Matter
Safety First
Fuel systems are inherently hazardous due to the flammable nature of fuels like gasoline and diesel. A single leak can lead to fires, environmental damage, or costly repairs. Inline fuel shut off valves act as a critical safety barrier, allowing operators to stop fuel flow instantly, mitigating risks in emergencies.
Simplified Maintenance
Maintenance tasks, such as replacing fuel lines or filters, require isolating the fuel system. Inline shut off valves make this process straightforward, eliminating the need to drain tanks or deal with fuel spills. This not only saves time but also ensures a cleaner, safer work environment.
Environmental Protection
Fuel spills can contaminate soil and water, leading to environmental harm. By enabling precise control over fuel flow, these valves reduce the likelihood of accidental spills, aligning with environmental regulations and promoting sustainable practices.
Types of Inline Fuel Shut Off Valves
Inline fuel shut off valves come in two primary types: manual and electric. Each type serves distinct purposes, with unique advantages depending on the application.

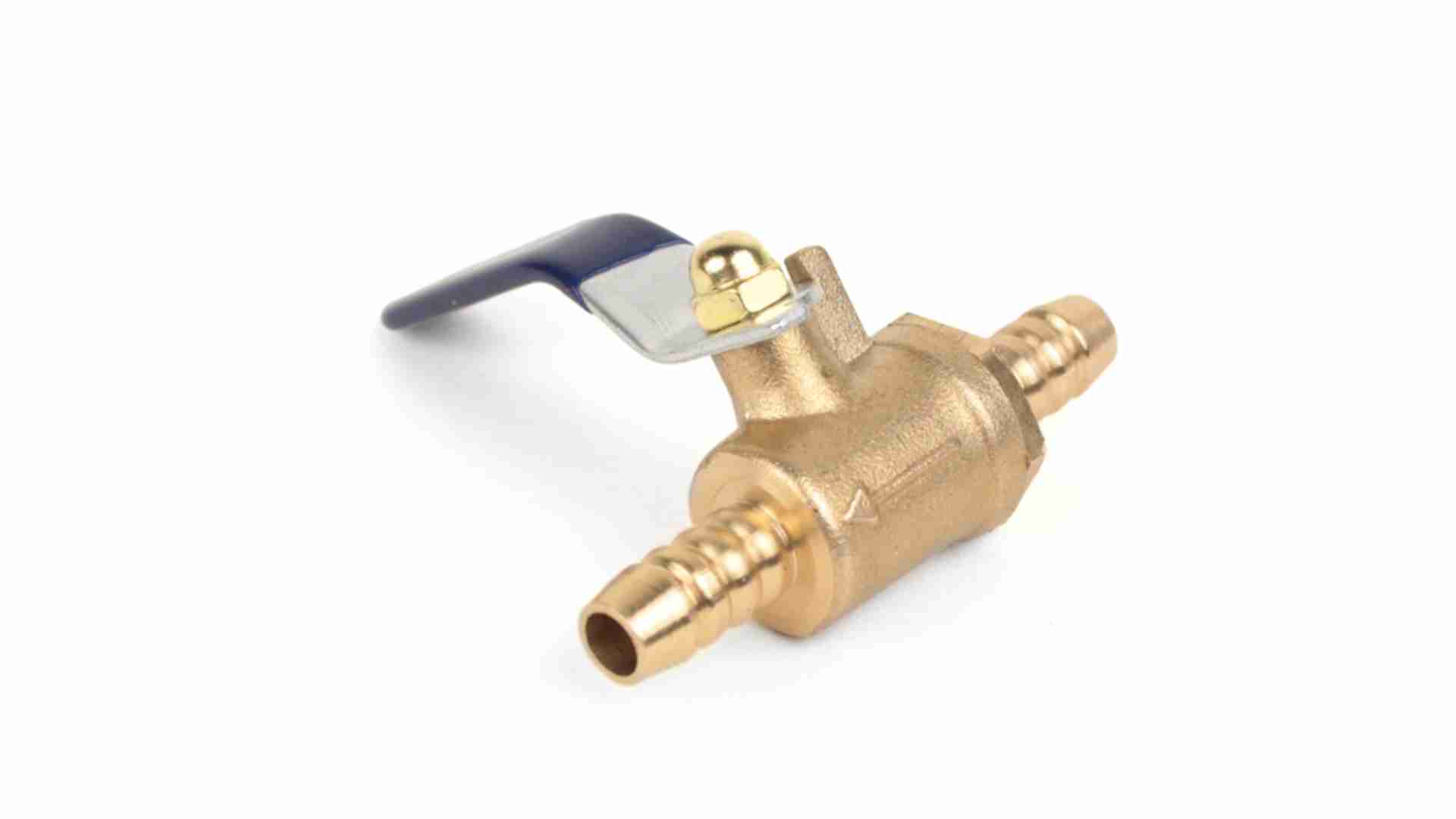

Manual Inline Fuel Shut Off Valves
Manual valves are operated by hand, typically via a lever or knob. They are simple, reliable, and ideal for applications where immediate fuel control is needed without reliance on external power sources.
- Advantages:
- Easy to install and operate
- No dependency on electricity
- Durable and low-maintenance
- Cost-effective for basic applications
- Applications:
- Small engines (lawnmowers, generators)
- Motorcycles and ATVs
- Marine fuel systems
When selecting a manual valve, consider the material (e.g., brass, stainless steel, or plastic), compatibility with fuel type (gasoline, diesel, or ethanol blends), and the valve’s flow capacity.
Electric Inline Fuel Shut Off Valves
Electric valves use a solenoid for remote operation, often integrated with a vehicle’s electrical system or control module. These valves are ideal for automated fuel management and applications requiring precise control.
- Advantages:
- Remote operation via switches or onboard computers
- Integration with sensors for automatic shutoff
- Enhanced precision for complex systems
- Ideal for modern vehicles with advanced electronics
- Applications:
- Automotive fuel systems
- Industrial machinery with automated controls
- High-performance vehicles
Electric valves require a power source and may involve more complex installation, but their automation capabilities make them suitable for advanced systems.
Installation of Inline Fuel Shut Off Valves
Proper installation is critical to ensure the valve functions correctly and safely. Below is a step-by-step guide to installing an inline fuel shut off valve, along with the necessary tools.
Tools Required
- Screwdrivers (flathead and Phillips)
- Wrenches (adjustable or specific sizes per valve)
- Tubing cutter or hacksaw
- Thread sealant (e.g., PTFE tape)
- Hose clamps (if applicable)
- Cleaning rags and fuel-safe solvent
Step-by-Step Installation Process
- Locate the Installation Point: Identify a suitable section of the fuel line with sufficient clearance for valve operation and maintenance access.
- Prepare the Fuel Line: Turn off the fuel supply and drain the line to prevent spills. Use a tubing cutter to cleanly cut the fuel line at the desired location.
- Connect the Valve: Follow the manufacturer’s instructions to attach the valve to the fuel line. Use compression fittings, hose clamps, or threaded connections as required.
- Seal Connections: Apply thread sealant to threaded joints to prevent leaks. Ensure all connections are secure but avoid overtightening.
- Test the Valve: Open and close the valve to verify smooth operation. Check for leaks by running fuel through the system and inspecting all connections.
- Final Inspection: Confirm the valve’s functionality and ensure no fuel leaks or system irregularities are present.
Installation Tips
- Always consult the valve’s manual for specific instructions.
- Use fuel-compatible materials to prevent corrosion or degradation.
- Install the valve in an accessible location for easy operation and maintenance.
Troubleshooting Common Issues
While inline fuel shut off valves are reliable, issues can arise. Below are common problems, their causes, and solutions.
Common Problems
- Leaks:
- Cause: Loose connections, damaged seals, or worn-out valve components.
- Solution: Tighten connections, apply thread sealant, or replace the valve or damaged seals.
- Clogging:
- Cause: Debris or sediment buildup within the valve.
- Solution: Clean the valve with a fuel-safe solvent or install a fuel filter upstream to trap contaminants.
- Valve Malfunction:
- Cause: Mechanical failure (manual valves) or electrical issues (electric valves).
- Solution: For manual valves, inspect and lubricate moving parts. For electric valves, check wiring, solenoid, and power source.
- Restricted Fuel Flow:
- Cause: Incorrect valve size or internal blockages.
- Solution: Ensure the valve matches the fuel line’s diameter (e.g., 1/4″ valve for 1/4″ line) and clean or replace if blocked.
Preventive Measures
- Install a fuel filter to reduce clogging risks.
- Regularly inspect and maintain the valve to catch issues early.
- Use high-quality valves from reputable brands to minimize failures.
Maintenance and Care
Proper maintenance extends the lifespan of inline fuel shut off valves and ensures optimal performance. Here are key maintenance practices:
Routine Maintenance
- Inspect for Damage: Check the valve and fuel lines for corrosion, wear, or cracks. Replace damaged components immediately.
- Test Operation: Cycle the valve (open and close) periodically to ensure smooth functionality and detect sticking or resistance.
- Clean the Valve: Remove dirt, debris, or fuel residue using a fuel-safe cleaner. Avoid harsh chemicals that may damage the valve.
- Lubricate Moving Parts: Apply manufacturer-recommended lubricant to levers or hinges to maintain smooth operation.
- Check for Leaks: Regularly inspect connections for signs of fuel leakage and address issues promptly.
When to Replace
Replace the valve if you notice:
- Persistent leaks despite repairs
- Severe corrosion or material degradation
- Mechanical or electrical malfunctions
- Reduced fuel flow impacting performance
- Upgrading to a more suitable valve type
Monitor your fuel system for symptoms like difficulty starting, reduced efficiency, or fuel odors, which may indicate a faulty valve. Consult a professional technician for inspection and replacement if needed.
Top Inline Fuel Shut Off Valves: Specifications and Prices
Below is a detailed comparison of two popular inline fuel shut off valves: the Oregon 07-403 and the Milttor 1/4″ Inline Fuel Shut Off Valve. These products are widely used and highly rated for their performance.
Comparison Table
| Feature | Oregon 07-403 | Milttor 1/4″ Inline Valve |
|---|---|---|
| Material | Metal (Heavy-duty ball valve) | Metal (Heavy-duty ball valve) |
| Fuel Line Compatibility | 1/4″ ID fuel line | 1/4″ ID fuel line |
| Replaces OEM | Scag 48568 | Scag 48568, Sunbelt B1SB868 |
| Price | $18.65 | $14.97 (includes 2ft fuel line) |
| Weight | 0.1 lb | 5 oz |
| Connection Type | Threaded | Threaded |
| Applications | Vehicles, motorcycles, lawnmowers | Vehicles, generators, lawnmowers |
| Additional Features | Compact design, no mounting hardware included | Includes 2ft fuel line, no hose clamps |
Oregon 07-403 Inline Fuel Shut Off Valve
A heavy-duty metal ball valve designed for 1/4″ fuel lines, ideal for compact installations in vehicles, motorcycles, and small engines.
| Specification | Details |
|---|---|
| Volume | 6.38 in³ |
| Net Weight | 0.1 lb |
| Replaces | Scag 48568 |
| Material | Metal |
| Price | $18.65 |
Pros
- Durable metal construction
- Compact and easy to install
- Reliable for various applications
Cons
- No mounting hardware included
- Slightly higher price than alternatives
User Reviews:
- John P (A&P Mechanic): “Perfect fit for my motorcycle fuel system. Reliable and well-made.”
- Fred B: “Excellent order process and product quality. Very satisfied.”
- W T: “Did the job at a reasonable price.”
- Joseph H: “Works well, no leaks, seems well-made.”
- Chuck C: “Used for non-aviation application, performs perfectly after years of service.”
Milttor 1/4″ Inline Fuel Shut Off Valve
A metal ball valve with a 2-foot fuel line included, designed for 1/4″ fuel lines, suitable for generators, lawnmowers, and vehicles.
| Specification | Details |
|---|---|
| Material | Metal |
| Inlet/Outlet Size | 0.25 inches |
| Number of Ports | 2 |
| Replaces | Scag 48568, Sunbelt B1SB868 |
| Part Number | 07-403 |
| Weight | 5 oz |
| Price | $14.97 (includes 2ft fuel line) |
Pros:
- Includes fuel line, adding value
- High user rating (4.6/5 from 659 reviews)
- Affordable and durable
- Easy to install and operate
Cons:
- No hose clamps included
- Some reports of minor leaks
User Reviews:
- Rob Kranenburg: “Works well, no leaks, feels well-made. The handle is a bit long but not a big issue.”
- Michael Watson: “Used on a Model A Ford. Prevents fuel drips from the carburetor.”
- Jason Roberts: “Good cutoff valve, works very well.”
- Jwj: “Installed on my generator. Prevents carburetor fouling by shutting off fuel.”
- H.D.Rider: “Much better than plastic valves. No leaks, works perfectly.”
Stens 120-212 Inline Fuel Shutoff Valve
A plastic valve designed for 1/4″ fuel lines, compatible with Briggs & Stratton, Exmark, John Deere, Snapper, and Toro equipment.
| Specification | Details |
|---|---|
| Material | Plastic |
| Fits | 1/4″ ID fuel line |
| Replaces OEM | Briggs & Stratton 698183 Exmark 1-603770 John Deere AM107340 Snapper 2-4507 Toro 54-3150 |
| Ethanol Compatibility | Not compatible with fuel containing more than 10% ethanol |
| Price | Varies (dealer pricing, not publicly listed) |
Pros:
- Lightweight and affordable
- Wide OEM compatibility
- Available in bulk packs
Cons:
- Plastic material less durable than metal
- Not suitable for high-ethanol fuels
Chart: Fuel System Integration
Below is a flowchart illustrating the role of an inline fuel shut off valve in a typical fuel system:
This chart shows the valve’s position between the fuel tank and filter, controlling flow to the engine via manual or electric operation.
Choosing the Right Inline Fuel Shut Off Valve
When selecting a valve, consider the following factors:
- Fuel Type: Ensure compatibility with gasoline, diesel, or ethanol blends (e.g., Stens 120-212 is not suitable for >10% ethanol).
- Line Size: Match the valve’s inlet/outlet size to your fuel line (e.g., 1/4″ for Oregon and Milttor valves).
- Material: Metal valves (Oregon, Milttor) offer durability, while plastic valves (Stens) are lightweight but less robust.
- Application: Choose manual valves for simplicity or electric valves for automation.
- Budget: Compare prices and included accessories (e.g., Milttor includes a fuel line).
Conclusion
Inline fuel shut off valves are indispensable for ensuring safety, efficiency, and control in fuel systems. Whether you opt for a manual valve like the Oregon 07-403 or an affordable option like the Milttor 1/4″ valve, understanding their types, installation, and maintenance is key to maximizing their benefits. By choosing the right valve, following proper installation and maintenance practices, and addressing issues promptly, you can enhance the reliability and safety of your fuel system for years to come. With user reviews highlighting durability and ease of use, and products like the Milttor offering excellent value, investing in a quality inline fuel shut off valve is a decision that pays off in performance and peace of mind.
