Discover how to choose the best boat rudder angle indicator for your vessel. Learn about types, features, installation, and top products to enhance safety and navigation.
Navigating a boat, whether in calm waters or challenging conditions, requires precision and control. A rudder angle indicator is a critical tool that provides real-time feedback on the rudder’s position relative to the boat’s centerline, ensuring safe and efficient maneuvering. From docking in tight spaces to integrating with advanced autopilot systems, the right rudder angle indicator can make all the difference. This comprehensive guide explores the purpose of rudder angle indicators, the factors to consider when choosing one, the types available, and top product recommendations, including installation insights from real boaters. With a focus on clarity and practicality, this article will help you select the best rudder angle indicator for your vessel.
What is a Rudder Angle Indicator?
A rudder angle indicator is a device that displays the angle of a boat’s rudder relative to its centerline, offering boat operators a clear visual reference for steering. This tool is essential for maintaining control during precise maneuvers, such as docking, mooring, or navigating through rough seas. By providing immediate feedback on rudder position, it helps prevent costly accidents and ensures safer navigation. Beyond its primary function, a rudder angle indicator can serve as a diagnostic tool, alerting operators to potential issues with the steering system, such as misalignment or mechanical failure.
Rudder angle indicators are particularly valuable in scenarios requiring fine-tuned control. For example, when docking in a crowded marina, knowing the exact rudder angle can prevent collisions. Similarly, in rough waters, the indicator helps maintain course stability. For boats equipped with autopilots, advanced rudder angle indicators can integrate with navigation systems, enhancing automation and precision.
Why You Need a Rudder Angle Indicator
The primary purpose of a rudder angle indicator is to enhance safety and control. Without one, operators must rely on feel or guesswork, which can be unreliable, especially in low-visibility conditions or high-stress situations. Here are the key benefits:
- Improved Maneuverability: Knowing the exact rudder angle allows for precise adjustments, making it easier to navigate tight spaces or maintain a steady course.
- Safety: By providing a clear visual cue, the indicator helps prevent oversteering or unintended course changes that could lead to collisions or grounding.
- Integration with Autopilots: Advanced indicators connect to autopilot systems, enabling automated course corrections and reducing operator fatigue on long journeys.
- Diagnostic Tool: Monitoring rudder position can reveal issues with the steering system, such as wear or misalignment, before they become serious problems.
- Ease of Use: Indicators simplify steering, especially for novice boaters or those operating unfamiliar vessels.
While there are some drawbacks, such as potential visibility issues in low light or added weight, the benefits far outweigh the cons for most boaters. A well-chosen rudder angle indicator can extend the life of your boat’s steering system and make sailing more enjoyable.
Factors to Consider When Choosing a Rudder Angle Indicator
Selecting the right rudder angle indicator involves evaluating several factors to ensure compatibility with your boat and sailing needs. Below are the key considerations:
1. Steering System Compatibility
Boats use various steering systems, including mechanical, hydraulic, or electronic. The type of steering system determines which rudder angle indicators are compatible. For example:
- Mechanical Steering: Common in smaller boats, these systems require simple indicators like the Davis Instruments Rudder Position Indicator, which mounts directly to the steering wheel hub.
- Hydraulic Steering: Found in larger vessels, hydraulic systems often require electronic sensors, such as the Garmin GRA-10, that integrate with autopilot systems.
- Electronic Steering: Advanced systems may already include built-in rudder angle indication, but compatibility with external indicators should be verified.
To determine your boat’s steering system, consult the manufacturer’s manual or inspect the steering components. For instance, hydraulic systems typically involve a pump and fluid lines, while mechanical systems use cables or chains.
2. Purpose and Functionality
The intended use of the rudder angle indicator influences the type you should choose. Consider the following:
- Basic Visual Reference: If you need a simple tool for docking or casual sailing, a basic visual indicator is sufficient. These are affordable and easy to install.
- Autopilot Integration: For long-distance cruising or automated navigation, choose an electronic indicator that connects to your autopilot or chartplotter, such as the Simrad RF25N or Garmin GRF-10.
- Multi-Station Boats: Vessels with multiple helm stations require indicators that can display rudder data across all stations, often via NMEA 2000 networks.
3. Mounting and Installation
The physical installation of the indicator is a critical factor. Some indicators, like the Davis Instruments model, mount directly to the steering wheel hub with a self-adhesive pad, requiring minimal setup. Others, such as electronic sensors, may need to be attached to the tiller or steering cable, which can be more complex. Consider:
- Available Space: Ensure there’s enough room at the helm or tiller for the indicator.
- Wiring Requirements: Electronic indicators often require power and data cables, which may involve drilling or routing wires through the boat.
- Ease of Installation: If you’re not comfortable with complex installations, opt for a plug-and-play solution or consult a professional.
4. Readability
The indicator must be easy to read in various conditions, including bright sunlight, low light, or rough seas. Look for:
- Clear Displays: Electronic indicators with backlit screens or high-contrast gauges are ideal for low-light conditions.
- Size and Placement: Ensure the display is large enough and positioned for easy viewing from the helm.
- Weather Resistance: Marine environments are harsh, so choose indicators with rugged, weatherproof housings.
5. Durability
Marine equipment must withstand saltwater, UV exposure, and temperature fluctuations. Select indicators with:
- Corrosion-Resistant Materials: Stainless steel or high-grade plastic housings are ideal.
- Sealed Construction: Hermetically sealed units, like the Davis Instruments Rudder Position Indicator, prevent water ingress.
- UV Protection: Sunproof materials ensure long-term reliability.
6. Integration with Existing Systems
If your boat has an autopilot, chartplotter, or NMEA 2000 network, choose an indicator that integrates seamlessly. For example:
- Garmin GRA-10: Designed for Garmin autopilots, it plugs directly into SmartPump systems for automatic calibration.
- Simrad RF25N: Compatible with NMEA 2000 networks, it displays rudder data on multiple devices, including chartplotters and iPads via wireless gateways.
- Volvo EVC Systems: Boats with Volvo D4-D6 engines can use resistive sensors like the KUS J-E41006 to display rudder data on engine displays or NMEA 2000 networks.
7. Boat Size and Type
The size and weight of your boat influence the type of indicator needed:
- Lightweight Boats (<100 inches / 250 cm): Small vessels like kayaks or dinghies require compact, lightweight indicators.
- Heavy Boats (>100 inches / 250 cm): Larger vessels with high maneuverability needs benefit from robust electronic indicators that handle complex steering systems.
To determine your boat’s size, measure the distance from the centerline to the side edge. This helps classify your vessel as lightweight or heavyweight, guiding your choice.
Types of Rudder Angle Indicators
Rudder angle indicators come in three main types, each suited to different needs and budgets. Below is a detailed comparison:
| Type | Description | Best For | Price Range |
|---|---|---|---|
| Basic Visual Indicators | Simple, mechanical devices that show rudder angle via a pointer or gauge. | Small boats, casual sailing, docking. | $30–$100 |
| Electronic Indicators | Use sensors to display rudder angle on a digital gauge or navigation system. | Boats with autopilots, multi-helm setups. | $50–$500 |
| Integrated Systems | Built into autopilots or navigation systems, offering advanced functionality. | Large yachts, long-distance cruising. | $500–$2,700 |
Basic Visual Indicators
These are affordable, easy-to-install devices that provide a mechanical or analog display of rudder angle. They are ideal for smaller boats or operators who need a simple reference for docking or basic navigation. Example: Davis Instruments Rudder Position Indicator ($34.99).
- Pros: Inexpensive, no power required, easy to install.
- Cons: Limited functionality, no integration with autopilots.
Electronic Indicators
Electronic indicators use sensors to transmit rudder angle data to a digital display or navigation system. They are more precise and often integrate with NMEA 2000 networks or autopilots. Example: Garmin GRA-10 ($200–$300).
- Pros: High accuracy, integration with modern systems, suitable for multi-helm boats.
- Cons: Requires power and more complex installation.
Integrated Systems
Some autopilots and navigation systems include rudder angle indication as a feature. These are typically found on high-end vessels and require minimal additional hardware. Example: Garmin SmartPump with GRA-10 ($2,699 for SmartPump).
- Pros: Seamless integration, advanced features, automatic calibration.
- Cons: High cost, may require system upgrades.
Top Rudder Angle Indicator Products
Here are three top-rated rudder angle indicators, with specifications and approximate prices based on available data:
1. Davis Instruments Rudder Position Indicator (SKU 385)
- Price: $34.99
- Specifications:
- Mounts to steering wheel hub (2 inches / 5 cm diameter) with self-adhesive pad.
- Pointer swings 30 degrees per wheel revolution.
- Hermetically sealed, weatherproof, and sunproof housing.
- No cables or electricity required (gravity-powered).
- Compatible with mechanical and single-station hydraulic steering systems.
- Best For: Small boats, casual sailors, budget-conscious buyers.
- Where to Buy: Available at marine retailers like West Marine or online at Amazon.
2. Garmin GRA-10 Rudder Angle Sensor
- Price: $200–$300
- Specifications:
- Designed for Garmin autopilots (e.g., SmartPump).
- Plugs directly into SmartPump for automatic calibration.
- NMEA 2000 compatible for integration with chartplotters and displays.
- Requires power and data cables.
- Durable, marine-grade construction.
- Best For: Boats with Garmin autopilots, multi-helm setups.
- Where to Buy: Garmin’s official website, marine electronics retailers.
3. Simrad RF25N Rudder Feedback Unit
- Price: $300–$400
- Specifications:
- NMEA 2000 compatible, ideal for wireless gateways and multi-device integration.
- High-precision sensor for accurate rudder angle data.
- Suitable for hydraulic and mechanical steering systems.
- Requires mounting near tiller or steering cable.
- Best For: Boats with NMEA 2000 networks, long-distance cruisers.
- Where to Buy: Simrad dealers, online retailers like Defender.
How to Install a Rudder Angle Indicator
Installation varies by indicator type and boat configuration. Below is a general guide, with insights from boaters who have installed indicators on vessels like the Ranger Tug R-31S or C-30.
Step 1: Assess Your Boat’s Steering System
- Identify whether your boat uses mechanical, hydraulic, or electronic steering.
- For hydraulic systems, locate the tiller or steering cable for sensor placement.
- For mechanical systems, check the steering wheel hub for mounting compatibility.
Step 2: Choose a Mounting Location
- Basic Indicators: Attach to the steering wheel hub using adhesive pads (e.g., Davis Instruments). Ensure the hub diameter matches the indicator’s specifications (typically 2 inches / 5 cm).
- Electronic Sensors: Mount near the tiller or steering cable. For example, boater Bob Daily mounted a sensor to the steering cable in the cabin of his boat due to limited tiller space.
- Integrated Systems: Check autopilot compatibility (e.g., Garmin SmartPump) and follow manufacturer instructions for plug-and-play installation.
Step 3: Wiring and Power
- Basic Indicators: No wiring required for gravity-powered models like the Davis Instruments indicator.
- Electronic Indicators: Connect to a power source (e.g., key switch or navigation light switch) and run data cables to displays or NMEA 2000 networks. Boater Watson1987 used epoxy to secure a Garmin GRF-10 sensor to the transom, connecting it to an NMEA 2000 network.
- Volvo EVC Systems: Use existing PCU cables for resistive sensors like the KUS J-E41006 ($50), which connect directly to the Volvo engine display.
Step 4: Calibration
- For electronic indicators, follow the manufacturer’s calibration process. For example, the Garmin GRA-10 automatically calibrates when connected to a SmartPump.
- Test the indicator by turning the rudder and verifying that the display reflects the correct angle.
Installation Tips from Boaters
- Bob Daily: Mounted a basic indicator on a wooden board to avoid drilling into the dash. Ran a single wire from the sensor to the gauge, powered by the key switch.
- Watson1987: Used a Garmin GRF-10 and GRA-10 for an R-31, integrating with an NMEA 2000 network. Secured the sensor with epoxy and plastic baseboard trim.
- Full_O_Fish: Connected a resistive sensor to a Volvo EVC system, displaying rudder data on the engine display and NMEA 2000 network via a wireless gateway.
How to Use a Rudder Angle Indicator
Using a rudder angle indicator is straightforward but requires understanding its operation. Here’s a step-by-step guide:
- Align the Indicator: For basic indicators, align one of the angled pins (e.g., the red pin on the Davis Instruments model) with a reference point on the boat’s deck.
- Adjust the Rudder: Tilt the rudder to the desired angle by pushing the lever or turning the wheel. The indicator’s moving pins will reflect the rudder’s position.
- Monitor the Display: For electronic indicators, check the digital gauge or chartplotter for real-time rudder angle data.
- Make Adjustments: Use the indicator to fine-tune the rudder angle during docking, mooring, or course corrections.
For example, to change from a 50-degree to a 60-degree angle, align the indicator’s reference pin with the deck and adjust the rudder until the desired angle is displayed.
When to Use a Rudder Angle Indicator
Rudder angle indicators are most useful in the following scenarios:
- Docking and Mooring: Precise rudder control is critical in tight spaces to avoid collisions.
- Rough Seas: Maintaining a steady course in choppy waters requires constant rudder adjustments.
- Autopilot Operation: Integrated indicators ensure the autopilot maintains the correct course.
- New or Unfamiliar Boats: Indicators help operators quickly adapt to a vessel’s steering characteristics.
- Long Journeys: Automated systems reduce fatigue, and indicators provide a quick reference for manual overrides.
Pros and Cons of Rudder Angle Indicators
| Pros | Cons |
|---|---|
| Enhances safety and precision in steering | May be hard to read in low light or glare |
| Simplifies docking and maneuvering | Adds minor weight and drag to the boat |
| Integrates with autopilots and navigation systems | Electronic models require power and wiring |
| Helps diagnose steering system issues | Higher-end models can be expensive |
Real-World Insights: Installing on a Ranger Tug R-31S
Boaters on forums like Tugnuts have shared valuable insights about installing rudder angle indicators on Ranger Tug R-31S models. Here’s a summary:
- Garmin GRA-10 with SmartPump: Boater Emerson installed a GRA-10 on a 2022 R-29CB, noting its plug-and-play compatibility with Garmin’s SmartPump. The system automatically calibrates, making installation straightforward.
- Basic Indicator for Budget: Bob Daily installed a $100 dedicated indicator, mounting it on a wooden board to avoid dashboard modifications. The sensor was attached to the steering cable due to limited tiller space.
- NMEA 2000 Integration: Watson1987 used a Garmin GRF-10 and GRA-10 on a 2018 R-31, integrating with an NMEA 2000 network to display rudder data on chartplotters.
- Volvo EVC Compatibility: Full_O_Fish connected a KUS J-E41006 sensor to a Volvo EVC system, displaying rudder data on the engine display and NMEA 2000 network via a wireless gateway.
These experiences highlight the importance of matching the indicator to your boat’s existing systems and installation preferences.

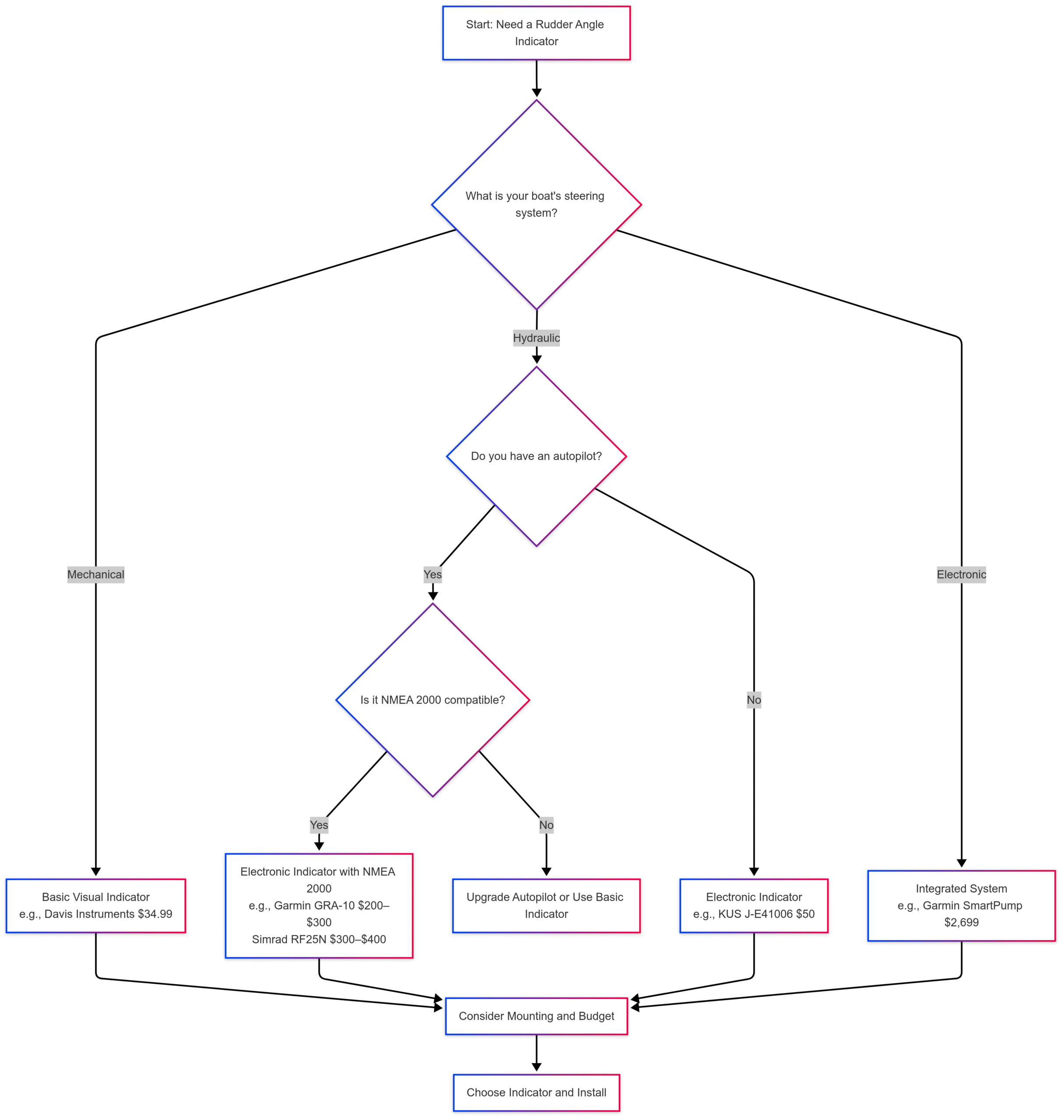

Chart: Rudder Angle Indicator Decision Flow
Below is a decision-making flowchart to guide your selection process:
Conclusion
Choosing the right boat rudder angle indicator requires balancing your boat’s steering system, intended use, and budget. Basic visual indicators like the Davis Instruments Rudder Position Indicator ($34.99) are ideal for small boats and casual sailors, offering simplicity and affordability. Electronic indicators, such as the Garmin GRA-10 ($200–$300) or Simrad RF25N ($300–$400), provide precision and integration for boats with autopilots or NMEA 2000 networks. Integrated systems, like those paired with Garmin’s SmartPump, cater to high-end vessels but come with a higher price tag.
By considering factors like compatibility, mounting, readability, and durability, you can select an indicator that enhances safety and control. Real-world insights from boaters emphasize the importance of matching the indicator to your boat’s setup and leveraging existing systems, such as Volvo EVC or NMEA 2000 networks, for seamless integration. Whether you’re docking in a tight marina or cruising long distances, a rudder angle indicator is an invaluable tool for any boater.
Happy Boating!
