Fishing is more than a pastime; it’s a pursuit of precision, patience, and connection with nature. The Humminbird Helix 7 Fish Finder transforms this experience, equipping anglers with cutting-edge technology to explore the underwater world. With advanced sonar, high-definition imaging, and GPS navigation, the Helix 7 empowers both novice and seasoned anglers to locate fish, map waters, and navigate with confidence. This comprehensive guide explores the Helix 7’s features, benefits, setup, and effective use, offering insights to maximize your fishing success.
What is the Helix 7 Fish Finder?

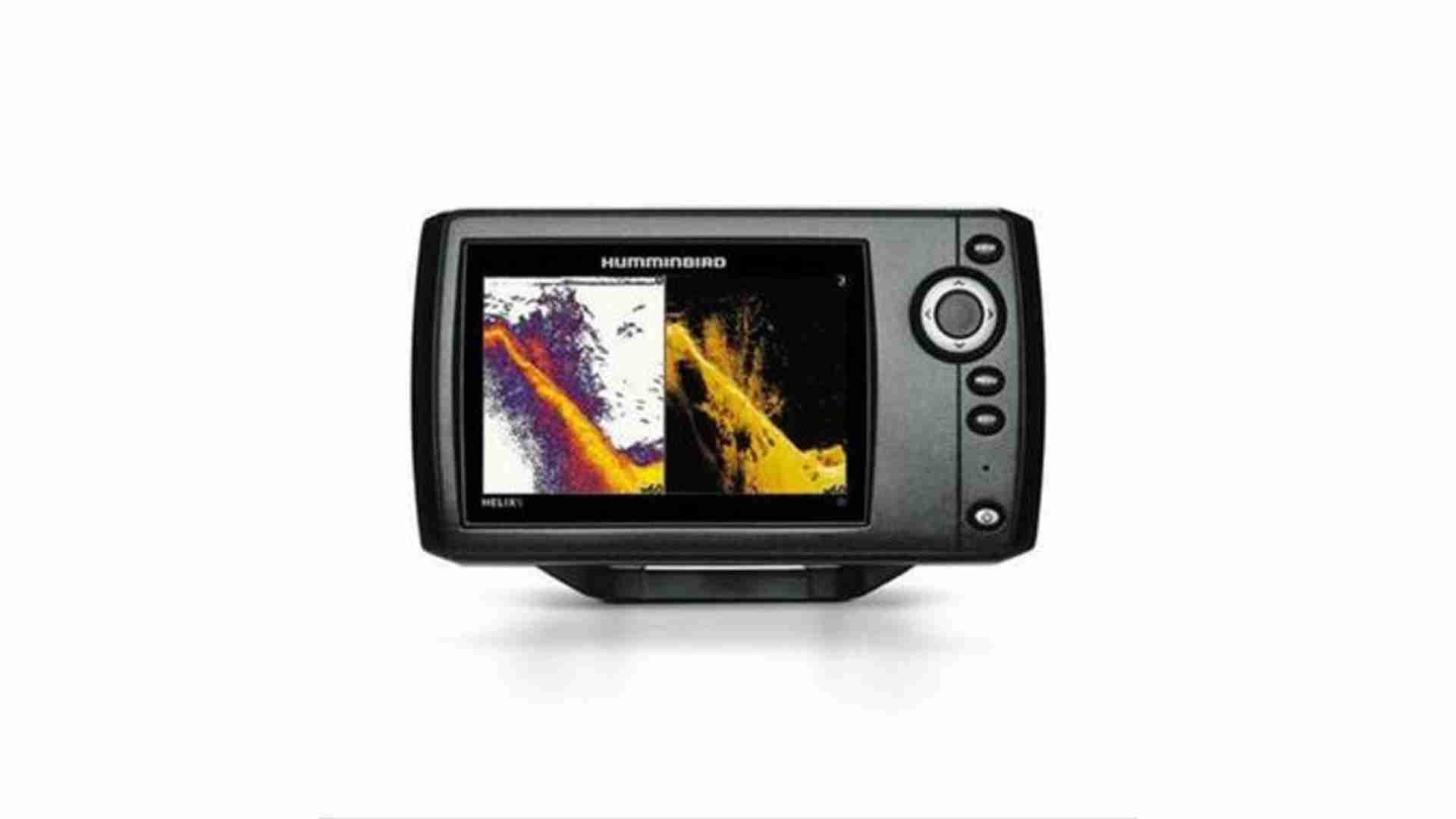

The Humminbird Helix 7 is a state-of-the-art fish finder designed to reveal the underwater environment with remarkable clarity. Using sonar technology, it detects fish, structures, and bottom contours, displaying them on a vibrant 7-inch LED screen. Models like the Helix 7 CHIRP MEGA SI GPS G4 and Helix 7 CHIRP GPS G4N cater to diverse fishing needs, from freshwater lakes to coastal waters. Key features include Dual Spectrum CHIRP sonar, MEGA Side and Down Imaging, internal GPS, and AutoChart Live mapping, making it a versatile tool for anglers.
Key Specifications
| Feature | Helix 7 CHIRP MEGA SI GPS G4 | Helix 7 CHIRP GPS G4N |
|---|---|---|
| Display Size | 7 inches, 1024×600 pixels | 7 inches, 1024×600 pixels |
| Sonar Type | Dual Spectrum CHIRP, MEGA SI, MEGA DI | Dual Spectrum CHIRP |
| Sonar Frequencies | 50/83/200/455/800 kHz, 1.2 MHz | 50/83/200 kHz, HW DSC CHIRP |
| Depth Capability | 1,200 ft (standard), 3,500 ft (optional 50 kHz) | 1,200 ft (standard), 3,500 ft (optional 50 kHz) |
| Side Imaging Range | 800 ft (455 kHz), 250 ft (MEGA) | Not available |
| Down Imaging Depth | 400 ft (455 kHz), 75 ft (MEGA) | Not available |
| Power Output | 500W RMS, 4000W Peak-to-Peak | 500W RMS, 4000W Peak-to-Peak |
| GPS | Internal, Humminbird Basemap | Internal, Humminbird Basemap |
| Networking | Ethernet (G4N only), Bluetooth, NMEA 2000 (G4N) | Ethernet, Bluetooth, NMEA 2000 |
| Memory Card Slots | Single Micro SD | Dual Micro SD |
| Warranty | 1-Year Limited | 1-Year Limited |
| Price (Bundle) | $583.99 (with cable), $602.10 (with cover) | $699.00 (with transducer) |
How the Helix 7 Works
The Helix 7 employs sonar technology to map the underwater world. Its transducer emits sound waves that bounce off objects like fish, vegetation, or the lake bottom. These echoes return to the transducer, which converts them into electrical signals displayed as vivid images on the screen. The Dual Spectrum CHIRP sonar offers two modes:
- Wide Mode (140-200 kHz): Maximizes coverage for scanning large areas.
- Narrow Mode (180-240 kHz): Enhances detail for pinpointing fish and structures.
MEGA Side Imaging (up to 800 ft side-to-side) and MEGA Down Imaging (up to 400 ft below) provide near-photographic clarity, revealing fish, structures, and bottom contours with up to three times the detail of standard imaging. The internal GPS and Humminbird Basemap, covering over 10,000 U.S. lakes and coastal waters, ensure precise navigation.

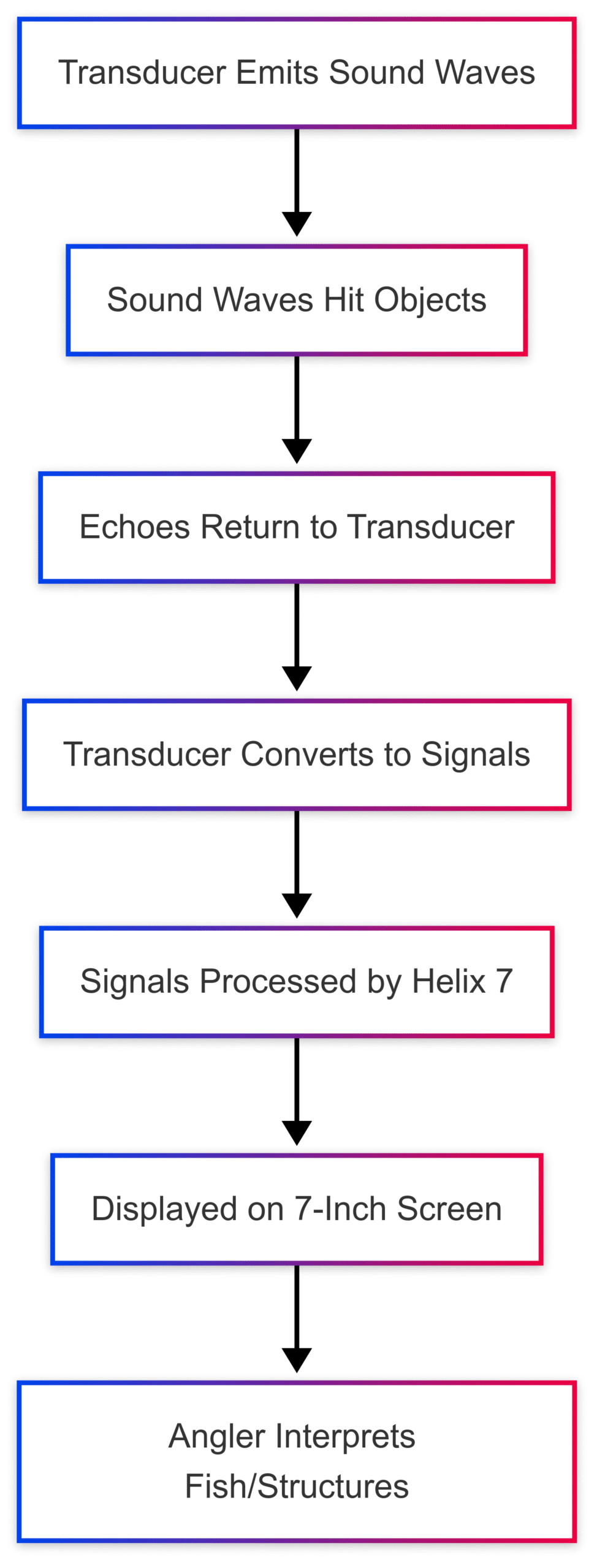

Sonar Workflow Diagram
Benefits of the Helix 7 Fish Finder
The Helix 7 elevates fishing by providing actionable insights and improving catch rates. Here’s how it transforms your angling experience.
Enhanced Fishing Experience
The Helix 7 acts as your underwater eyes, revealing hidden structures, drop-offs, and fish habitats. Its high-resolution 1024×600 display ensures clarity even in bright sunlight, while split-screen views let you monitor sonar, GPS, and charts simultaneously. AutoChart Live allows real-time mapping of depth contours, bottom hardness, and vegetation, helping you discover new fishing spots. With Bluetooth connectivity, you can receive smartphone notifications and update software wirelessly, keeping your device current.
Increased Catch Rates
By pinpointing fish with precision, the Helix 7 eliminates guesswork. Dual Spectrum CHIRP sonar delivers detailed fish arches, distinguishing fish from structures. MEGA Imaging reveals fish direction and species, enabling targeted casting. For example, identifying a school of bass near a submerged log allows you to adjust bait and technique, boosting success. The device’s ability to mark waypoints ensures you can return to productive spots, increasing efficiency.
Navigation and Safety
The internal GPS and Humminbird Basemap provide detailed charts of underwater terrain, buoys, and hazards. Optional LakeMaster and Navionics charts enhance mapping for specific regions. This ensures safe navigation in unfamiliar waters, preventing grounding or collisions with submerged objects.
Setting Up the Helix 7 Fish Finder
Proper setup is critical for optimal performance. Follow these steps to install and configure your Helix 7.
Installation Guide
1. Mount the Transducer:
- Choose a transom or in-hull location with a clear view of the water, submerged when the boat is level.
- For transom mounting, use the provided hardware to secure the XNT 9 HW T or XNT 9 HW MSI 150 T transducer.
- For in-hull mounting (fiberglass boats <1 inch thick), use marine-grade epoxy, as advised by Humminbird Technical Support.
2. Connect the Transducer:
- Use the provided cables (e.g., Minn Kota MKR-MDI-2 for MEGA DI models) to connect the transducer to the main unit.
- Ensure secure connections to prevent signal loss.
3. Mount the Main Unit:
- Select a location with clear visibility and protection from elements.
- Use the gimbal mounting bracket or optional in-dash kit (10.54” W x 5.44” H x 1.13” D).
4. Power On and Configure:
- Connect the power cable (10.8-20 VDC).
- Follow on-screen prompts to set language, units, and sonar preferences.
Tips for Optimal Setup
- Transducer Selection: Choose a transducer suited to your fishing environment (e.g., high-frequency for shallow waters).
- Display Customization: Adjust color palettes and brightness for visibility. For example, select a palette that highlights fish arches in murky water.
- Software Updates: Regularly check Humminbird’s website for firmware updates to enhance performance.
- Cable Management: Secure cables to prevent wear, especially in rough waters.
Using the Helix 7 Effectively
Mastering the Helix 7 requires understanding its interface and leveraging advanced techniques.
Understanding the Display and Controls
The Helix 7’s keypad interface is intuitive, with softkey controls for navigating menus. Key features include:
- Split-Screen Views: Combine sonar, Down Imaging, Side Imaging, and GPS charts.
- X-Press Menu System: Quickly adjust settings like sensitivity or depth range.
- Custom Readouts: Display water temperature, speed, or depth.
Spend time practicing with the interface in shallow waters to interpret sonar returns accurately.
Advanced Fish-Finding Techniques
- Adjust Sonar Frequencies: Use Wide Mode for scouting and Narrow Mode for targeting specific fish.
- Interpret Imaging: MEGA Side Imaging shows structures like weed beds or rocks, while MEGA Down Imaging reveals fish suspended below. For example, a bright, elongated return may indicate a large fish.
- Use AutoChart Live: Map uncharted waters to identify drop-offs or vegetation, saving data to a Zero Lines SD card for future trips.
- Combine GPS and Sonar: Mark fish-heavy spots as waypoints and navigate back using GPS.
Example: Targeting Bass
To locate bass, scan with Wide Mode CHIRP (140-200 kHz) to cover large areas. Switch to MEGA Side Imaging to identify weed beds where bass hide. Mark the spot with GPS, then use Narrow Mode CHIRP (180-240 kHz) to target individual fish. Adjust bait to mimic local prey, increasing hook-up chances.
Maintaining the Helix 7
Regular maintenance ensures longevity and performance.
Maintenance Tips
- Clean After Use: Rinse the transducer and unit with fresh water to remove salt or debris.
- Inspect Cables: Check for wear and secure connections.
- Store Properly: Keep in a dry, temperature-controlled environment.
- Update Software: Use Bluetooth or the Humminbird FishSmart App for updates.
Troubleshooting Common Issues
- Screen Freezing: Restart the unit and check power connections.
- Inaccurate Readings: Ensure the transducer is submerged and free of debris.
- Connectivity Issues: Verify cable integrity or contact Humminbird Support at 1-800-633-1468.
Pricing and Bundle Options
The Helix 7 is available in various bundles, offering value for money:
- Helix 7 CHIRP MEGA SI GPS G4:
- Bundle with Cable: $583.99 (List: $634.98, Save: $50.99)
- Bundle with Unit Cover: $602.10 (List: $649.98, Save: $47.88)
- Helix 7 CHIRP GPS G4N:
- With Transducer: $699.00
- Control Head Only (MEGA DI GPS G4N): Available for custom setups; contact Humminbird for pricing.
Bundles include a transom-mount transducer, power cable, gimbal bracket, and mounting hardware. Optional accessories like LakeMaster or Navionics cards enhance mapping capabilities.
Comparison with Competitors
| Feature | Helix 7 CHIRP MEGA SI GPS G4 | Garmin Striker Vivid 7sv | Lowrance HOOK Reveal 7 |
|---|---|---|---|
| Display Size | 7” (1024×600) | 7” (800×480) | 7” (800×480) |
| Sonar | Dual Spectrum CHIRP, MEGA SI/DI | CHIRP, ClearVü, SideVü | TripleShot CHIRP |
| Depth Capability | 1,200 ft (3,500 ft optional) | 800 ft | 600 ft |
| Side Imaging | 800 ft (MEGA: 250 ft) | 500 ft | 300 ft |
| GPS | Internal, Basemap | Internal, Quickdraw Contours | Internal, Genesis Live |
| Networking | Ethernet, Bluetooth, NMEA 2000 | None | None |
| Price | $583.99–$699.00 | $519.99 | $499.99 |
The Helix 7 stands out with superior imaging, deeper sonar range, and networking capabilities, making it ideal for serious anglers.
Why Choose the Helix 7?
The Helix 7 combines affordability with advanced technology, offering unmatched clarity and functionality. Its MEGA Imaging, Dual Spectrum CHIRP, and AutoChart Live set it apart, while GPS and networking ensure versatility. Whether fishing for bass in a lake or navigating coastal waters, the Helix 7 delivers precision and reliability.
Conclusion
The Humminbird Helix 7 Fish Finder unlocks the underwater world, empowering anglers with tools to locate fish, map waters, and navigate safely. Its advanced sonar, high-definition imaging, and user-friendly design make it a game-changer for fishing enthusiasts. By mastering its setup and features, you can elevate your angling skills and reel in more catches. Invest in the Helix 7 and transform your fishing adventures today.
Happy Boating!
