Anchoring a boat is a critical task that ensures safety and stability, whether you’re fishing, cruising, or docking. Manually hauling an anchor is labor-intensive and impractical for most boaters, especially on larger vessels or in deep waters. A boat anchor winch, also known as a windlass, simplifies this process by automating anchor deployment and retrieval. This comprehensive guide explores the types, features, specifications, and pricing of boat anchor winches to help you select the ideal system for your vessel. From compact electric winches for small boats to heavy-duty hydraulic windlasses for commercial ships, we cover everything you need to know to make an informed decision.
Understanding Boat Anchor Winches
A boat anchor winch is a mechanical device designed to raise and lower an anchor with minimal effort. Mounted on the foredeck, it manages the anchor rode (rope, chain, or a combination) and handles the weight of the anchor and rode under various conditions. Winches and windlasses differ in how they store the rode: winches wrap it around a drum, while windlasses feed it into a below-deck anchor locker. Choosing the right winch depends on your boat’s size, anchoring needs, and operational preferences.
Why Invest in a Boat Anchor Winch?
- Ease of Use: Automates anchor handling, reducing physical strain.
- Safety: Minimizes risks associated with manual anchor retrieval.
- Efficiency: Speeds up anchoring, allowing more time for boating activities.
- Versatility: Suitable for various boat sizes and marine environments.
Types of Boat Anchor Winches
Boat anchor winches are categorized by their power source and shaft orientation. Each type has unique advantages, making them suitable for specific applications.
1. Electric Winches
Electric winches are the most popular choice for recreational boaters due to their convenience and affordability. Powered by 12V or 24V DC motors, they connect to the boat’s battery and feature push-button or remote control operation.
- Pros:
- Easy to operate with minimal effort.
- Available in various sizes for different boat lengths.
- Often include remote controls for hands-free operation.
- Cons:
- Require a robust battery system (35–200 amps).
- May struggle with extremely heavy anchors or deep waters.
- Best For: Recreational boats, trailer boats, and pleasure crafts up to 80 feet.
Example Models:
- GX1: Compact 600W motor, ideal for boats up to 6m. IP68 waterproof rating. Price: ~$500–$800.
- GX2 HD: 1000W motor for boats up to 9m. Fast retrieval rates. Price: ~$800–$1,200.
- GX6 Jumbo: 550mm drum for boats over 50ft. High-capacity for heavy loads. Price: ~$3,000–$5,000.
2. Hydraulic Winches
Hydraulic winches use non-compressible fluids to generate high torque, making them ideal for heavy-duty applications. They require a hydraulic system, which increases complexity and cost.
- Pros:
- Exceptional power for heavy anchors and large vessels.
- Durable and reliable in harsh marine conditions.
- Consistent performance under continuous use.
- Cons:
- Expensive and complex to install.
- Require professional maintenance (e.g., oil checks, filter replacements).
- Best For: Commercial vessels, fishing trawlers, and large yachts.
Example Model:
- Muir Storm 1250 Low-Profile Windlass: High torque for large vessels. Price: ~$5,000–$10,000.
3. Manual Winches
Manual winches are hand-operated and serve as a cost-effective option for smaller boats or as a backup system.
- Pros:
- Affordable and simple to use.
- No reliance on electrical or hydraulic systems.
- Lightweight and compact.
- Cons:
- Labor-intensive, especially in deep waters.
- Limited capacity for heavy anchors or long rodes.
- Best For: Small boats (under 20ft) or emergency use.
Example Model:
- Lewmar Manual Windlass: Basic model for small boats. Price: ~$200–$500.
4. Vertical Windlasses
Vertical windlasses feature a vertically oriented capstan that feeds the rode into an anchor locker below deck. They are compact on the deck but require significant below-deck space.
- Pros:
- Low deck profile for a clean aesthetic.
- Protects rode from environmental exposure.
- Grips rope well, ideal for rope-chain combinations.
- Cons:
- Requires a large anchor locker with sufficient fall.
- Installation involves cutting a large deck hole.
- Best For: Boats with ample below-deck storage.
Example Model:
- Maxwell Marine RC12-10: Flexible with various chain types. Price: ~$1,500–$2,500.
5. Horizontal Windlasses
Horizontal windlasses have a horizontally oriented gypsy and are mounted entirely above deck, requiring less below-deck space.
- Pros:
- Easier installation with minimal below-deck modifications.
- Works with smaller anchor lockers.
- Some models allow manual operation as a backup.
- Cons:
- Takes up more deck space.
- Less effective with rope-heavy rodes.
- Best For: Boats with limited below-deck space.
Example Model:
- Lewmar Pro Fish Free-Fall: Controlled free-fall feature. Price: ~$1,200–$2,000.
Key Features to Consider
Selecting the right anchor winch involves evaluating several critical features to ensure compatibility and performance.
1. Maximum Anchor Capacity
The winch must handle the combined weight of the anchor, chain, and rode. Manufacturers recommend a capacity at least three times the total weight. For example, a 300-pound anchor and rode require a winch rated for at least 900 pounds.
Table: Anchor Winch Capacity Guidelines
| Boat Length | Anchor + Rode Weight | Recommended Winch Capacity |
|---|---|---|
| Up to 20ft | 50–100 lbs | 150–300 lbs |
| 20–40ft | 100–300 lbs | 300–900 lbs |
| 40–80ft | 300–600 lbs | 900–1,800 lbs |
| Over 80ft | 600+ lbs | 1,800+ lbs |
2. Rope and Chain Compatibility
Winches and windlasses must match the rode type (rope, chain, or combination). Vertical windlasses excel with rope-chain rodes, while horizontal windlasses are better for chain-heavy setups. Models like the Maxwell Marine RC12-10 support various chain types (ISO or NACM specs).
3. Motor Power and Voltage
Electric winches typically use 12V or 24V motors, with power ratings from 600W (GX1) to over 1500W (GX3). Higher power ensures faster retrieval and better handling of heavy loads but demands a robust battery system.
4. Water Resistance
Marine environments demand high waterproof ratings, such as IP68, to protect against saltwater corrosion. Models like the GX series and Muir Storm 1250 feature sealed motors and gearboxes for durability.
5. Controls
Options include manual switches, footswitches, or remote controls. Remote control ranges vary (e.g., 30–50 feet for the GX2 HD), offering flexibility for operation from different parts of the boat.
6. Safety Features
Look for:
- Automatic Reset Circuit Breakers: Prevent motor overload.
- Safety Cables: Secure the anchor during retrieval.
- Sealed Switches: Protect against water ingress.
7. Ease of Installation
Electric winches are easier to install than windlasses, which require deck modifications and anchor locker access. Hydraulic winches often need professional installation due to complex hydraulic connections.
8. Materials and Durability
High-quality winches use stainless steel, bronze, or marine-grade aluminum for corrosion resistance. Budget models like the Trac Outdoor Products Angler 30 use ABS or PP plastics, suitable for occasional saltwater use with proper maintenance.
9. Warranty
Premium brands like Lewmar, Maxwell, and Muir offer warranties of 3–5 years, covering motors and components. Budget models may have shorter warranties (1–2 years).
Installation and Maintenance
Proper installation and maintenance are crucial for winch longevity and performance.
Installation Considerations
- Mounting: Winches are versatile and can be mounted in various deck locations. Windlasses require precise placement to align with the anchor locker.
- Electrical/Hydraulic Connections: Electric winches need secure battery connections, often requiring a dedicated battery. Hydraulic winches involve complex fluid systems, typically needing professional setup.
- Rode Management: Winches store rode on a drum, simplifying management. Windlasses feed rode into a locker, which may lead to tangles but protects the rode from exposure.

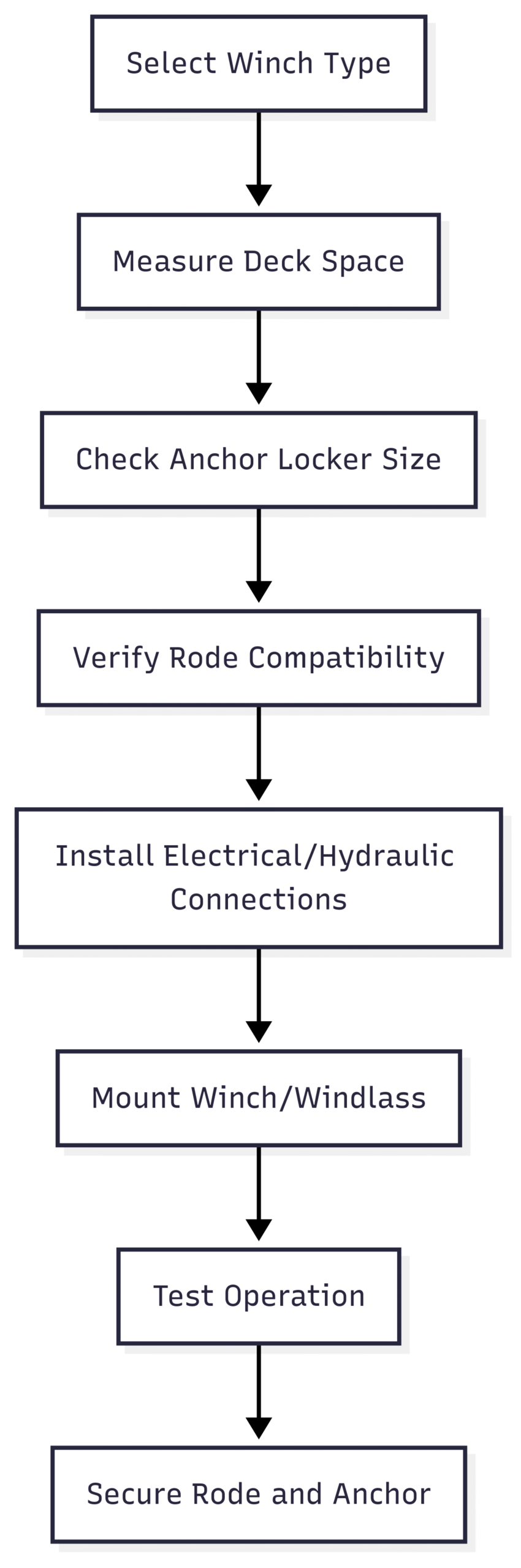

Chart: Installation Process Flow
Maintenance Tips
- Regular Cleaning: Rinse with fresh water after each use to remove salt.
- Inspection: Check for corrosion, rust, or wear on moving parts.
- Lubrication: Apply marine-grade grease annually to rotating components.
- Winterization: Clean and store properly to prevent damage during off-season storage.
- Hydraulic Winches: Check oil levels and replace filters as recommended.
Budgeting and Cost Factors
Anchor winch prices vary based on type, brand, and features. Below is a breakdown of cost factors and price ranges.
Price Ranges by Winch Type
Table: Anchor Winch Price Comparison
| Winch Type | Price Range | Example Models |
|---|---|---|
| Manual Winch | $200–$500 | Lewmar Manual Windlass |
| Electric Winch | $500–$5,000 | GX1, GX2 HD, GX6 Jumbo |
| Hydraulic Winch | $5,000–$10,000+ | Muir Storm 1250 |
| Vertical Windlass | $1,000–$2,500 | Maxwell Marine RC12-10 |
| Horizontal Windlass | $1,000–$2,000 | Lewmar Pro Fish Free-Fall |
Cost Factors
- Winch Type and Brand: Electric winches are more affordable than hydraulic models. Premium brands (Lewmar, Maxwell, Muir) cost more but offer superior durability.
- Capacity and Size: Larger winches for bigger boats or heavier anchors are pricier. For example, the GX6 Jumbo for 50ft+ boats costs significantly more than the GX1 for 6m boats.
- Materials: Stainless steel and bronze winches are more expensive but resist corrosion better than plastic models.
- Additional Components: Chain stoppers, anchor rollers, and footswitches add $50–$200 to the total cost.
- Installation: Electric winches are DIY-friendly, while hydraulic winches may incur $500–$1,500 in professional installation costs.
- Maintenance: Electric winches require minimal maintenance (~$20–$50/year for grease). Hydraulic winches need filters and oil (~$100–$300/year).
Top Models and Specifications
Here’s a detailed look at standout anchor winch models, including specifications and pricing.
1. GX1 – Electric Drum Anchor Winch
- Boat Size: Up to 6m
- Motor: 600W, 12V
- Capacity: Handles 40lb anchors
- Rode: Rope or chain
- Features: IP68 waterproof, compact design, twin shaft bearings
- Price: ~$500–$800
- Warranty: 3 years
2. GX2 HD – Electric Drum Anchor Winch
- Boat Size: Up to 9m
- Motor: 1000W, 12V/24V
- Capacity: 100–300 lbs
- Rode: Rope or chain
- Features: Fast retrieval, sealed motor, remote control (30ft range)
- Price: ~$800–$1,200
- Warranty: 3 years
3. GX6 Jumbo – Electric Drum Anchor Winch
- Boat Size: Over 50ft
- Motor: 1500W+, 24V
- Capacity: 600+ lbs
- Rode: Rope and chain
- Features: 550mm drum, IP68 rating, single-stage gearbox
- Price: ~$3,000–$5,000
- Warranty: 5 years
4. Lewmar Pro Fish Free-Fall (Horizontal Windlass)
- Boat Size: 20–40ft
- Motor: 700W, 12V
- Capacity: 300–900 lbs
- Rode: Chain (ISO specs)
- Features: Controlled free-fall, manual backup
- Price: ~$1,200–$2,000
- Warranty: 3 years
5. Maxwell Marine RC12-10 (Vertical Windlass)
- Boat Size: 30–60ft
- Motor: 1200W, 12V/24V
- Capacity: 300–1,200 lbs
- Rode: Rope or chain (flexible)
- Features: Below-deck installation, high corrosion resistance
- Price: ~$1,500–$2,500
- Warranty: 3 years
6. Muir Storm 1250 Low-Profile Windlass (Hydraulic)
- Boat Size: 40–80ft
- Motor: Hydraulic, high torque
- Capacity: 900–1,800 lbs
- Rode: Chain
- Features: Low-profile design, durable construction
- Price: ~$5,000–$10,000
- Warranty: 5 years
Choosing the Right Winch for Your Boat
To select the best anchor winch, consider the following steps:
- Assess Boat Size and Weight: Use manufacturer guidelines to match winch capacity to your boat’s length and displacement.
- Determine Anchor and Rode Weight: Calculate the combined weight and multiply by three to ensure sufficient winch capacity.
- Evaluate Deck Space: Vertical windlasses save deck space but require anchor lockers. Horizontal windlasses are easier to install but take up more deck area.
- Check Power Availability: Ensure your battery system can handle the winch’s amperage. Add a dedicated battery if needed.
- Prioritize Durability: Opt for stainless steel or bronze models for saltwater use.
- Budget Wisely: Balance upfront costs with long-term reliability. Premium brands save on repair costs over time.

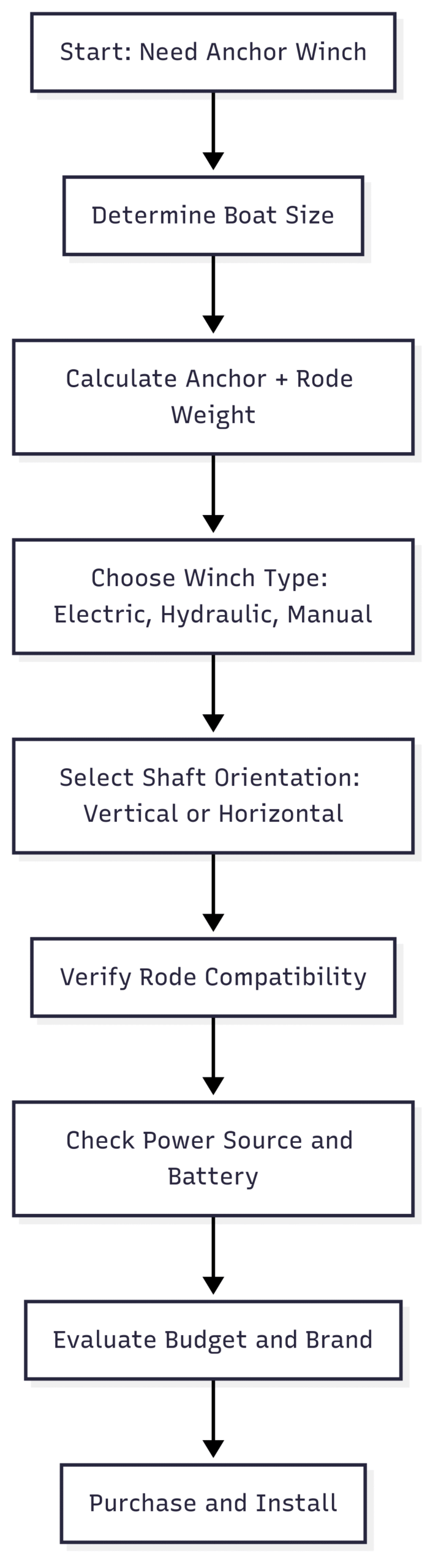

Chart: Decision-Making Process
FAQs
What’s the difference between a winch and a windlass?
A winch stores the rode on a drum, while a windlass feeds it into an anchor locker. Winches are simpler to install, but windlasses protect the rode and save deck space.
What size winch do I need?
Select a winch with a capacity at least three times the combined weight of your anchor and rode. For example, a 2,000-pound boat typically needs a winch rated for 1,000 pounds.
Do I need a bigger battery for a winch?
Yes, electric winches (35–200 amps) often require a dedicated or upgraded battery to avoid draining the main system.
Can a windlass handle both rope and chain?
Many windlasses are designed for rope-chain combinations, but always check the manufacturer’s specifications for compatibility.
How do I maintain my winch?
Rinse with fresh water after use, inspect for corrosion, lubricate moving parts annually, and follow winterization guidelines.
Conclusion
A boat anchor winch is a game-changer for effortless and safe anchoring. Whether you choose an electric winch like the GX2 HD for a trailer boat or a hydraulic windlass like the Muir Storm 1250 for a commercial vessel, understanding your boat’s needs and the winch’s features is key. Prioritize capacity, durability, and compatibility to ensure reliable performance. With trusted brands like Lewmar, Maxwell, and Muir, and proper maintenance, your anchor winch will provide years of hassle-free operation, letting you focus on enjoying the open water.
Happy Boating!
