Boat Navigation Light Types & Requirements

Learn about boat navigation light types, requirements, and safety tips. Understand sidelights, stern lights, and more for safe boating at night.

Navigating a boat at night or in low-visibility conditions is both exhilarating and challenging. Without the familiar road signs or lane markers found on highways, boaters rely on navigation lights to communicate critical information about their vessel’s position, direction, and status. These lights are not mere accessories; they are essential tools for preventing collisions and ensuring safety on the water. This guide explores the types of boat navigation lights, their legal requirements, how they function, and practical safety tips to keep you and others safe. Whether you’re a seasoned boater or new to the helm, understanding navigation lights is crucial for safe and enjoyable boating.

Why Navigation Lights Matter

Boat navigation lights serve as the eyes of your vessel in the dark, during fog, or in heavy rain. They allow other boaters to see you, determine your direction, and understand your vessel’s activity (e.g., underway, anchored, or towing). By clearly signaling your boat’s position and intentions, navigation lights help prevent collisions, which can be catastrophic on the water. The U.S. Coast Guard (USCG) and international maritime authorities mandate specific lighting configurations based on a vessel’s size, type, and operational status. Non-compliance can lead to fines, accidents, or worse.

Beyond safety, navigation lights convey critical information:

• Direction: Red and green sidelights indicate whether a boat is moving toward or away from you.
• Size and Type: Different light configurations signal whether a vessel is a small kayak or a large commercial ship.
• Activity: Lights distinguish between a boat that’s underway, anchored, or engaged in specialized tasks like fishing or towing.

This guide breaks down the types of navigation lights, their purposes, and how to use them effectively, with practical examples and visual aids to clarify requirements.

Types of Boat Navigation Lights

Boat navigation lights are standardized to ensure consistency across vessels worldwide. Each type has a specific color, arc of visibility, and placement on the boat. Below are the primary types of navigation lights and their functions.

1. Sidelights (Combination Lights)

Sidelights are the red and green lights located on the port (left) and starboard (right) sides of a boat, respectively. These lights are often combined into a single fixture at the bow for smaller vessels.

• Color: Red (port), Green (starboard)
• Visibility Arc: 112.5 degrees, from dead ahead to 22.5 degrees abaft the beam on each side
• Purpose: Indicate the boat’s direction and side to other vessels
• Range: Visible for at least 1 nautical mile (nm) for boats under 39.4 feet (12 meters); 2 nm for larger vessels

Sidelights help other boaters determine whether your vessel is crossing their path or moving parallel. For example, seeing a red light means the other boat’s port side is facing you, indicating it may be crossing from your right to left.

2. Sternlight

The sternlight is a white light positioned at the rear (stern) of the boat.

• Color: White
• Visibility Arc: 135 degrees, centered on dead astern
• Purpose: Shows the boat’s rear, helping others determine if you’re moving away
• Range: Visible for at least 2 nm

When combined with sidelights, the sternlight completes a 360-degree visibility arc around the boat, ensuring it’s visible from all angles when underway.

3. Masthead Light

The masthead light is a white light mounted higher on the boat, typically on a mast or elevated structure.

• Color: White
• Visibility Arc: 225 degrees, from dead ahead to 22.5 degrees abaft the beam on both sides
• Purpose: Indicates a power-driven vessel is underway
• Range: 2 nm for boats under 39.4 feet; 3 nm for boats 39.4–65.7 feet; 5 nm for boats over 65.7 feet

On smaller boats, the masthead light and sternlight may be combined into a single all-round white light.

4. All-Round White Light

The all-round white light is a versatile light used primarily when a boat is at anchor or stationary.

• Color: White
• Visibility Arc: 360 degrees
• Purpose: Signals that a boat is anchored, stationary, or engaged in specific activities like fishing
• Range: At least 2 nm

This light is often used on smaller vessels (under 39.4 feet) as a combined masthead and sternlight when underway.

5. Specialized Lights

Certain vessels use additional lights to indicate specific activities or statuses:

• Yellow/Amber Lights: Used for vessels towing or being towed, or for submarines.
• Blue Lights: Indicate law enforcement or search-and-rescue vessels.
• Red-White-Red (Vertical): Signals a vessel engaged in night diving, requiring other boats to maintain distance.

These lights are less common on recreational boats but are critical to recognize to avoid interfering with specialized operations.

How Navigation Lights Work

Navigation lights are designed to provide clear visual cues about a boat’s orientation and movement. By observing the color and combination of lights on another vessel, you can deduce its direction and intentions. Here’s how it works in practice:

• Red Light Only: You’re seeing the port side, meaning the boat is crossing from your right to left. You may need to yield, depending on the situation.
• Green Light Only: You’re seeing the starboard side, indicating the boat is crossing from your left to right.
• Red and Green Lights: The boat is heading directly toward you, requiring immediate action to avoid a collision.
• White Light Only: You’re looking at the stern, meaning the boat is moving away from you.
• Red and White Lights: The boat is moving away, crossing from your right to left.
• Green and White Lights: The boat is moving away, crossing from your left to right.

This system allows boaters to make quick decisions in low-visibility conditions, reducing the risk of collisions.

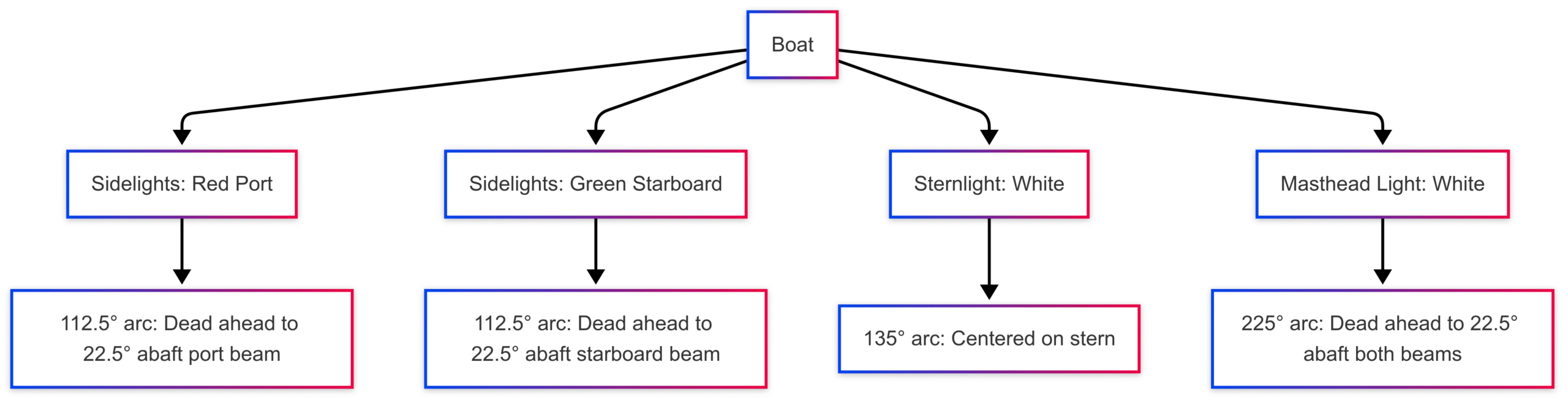

Chart: Navigation Light Visibility Arcs

To visualize the arcs of visibility for navigation lights, refer to the following diagram:

This chart illustrates how each light covers a specific portion of the boat’s perimeter, ensuring 360-degree visibility when combined.

Legal Requirements for Navigation Lights

Navigation light requirements vary based on the vessel’s size, type, and operational conditions. The USCG and international regulations (e.g., COLREGS) provide detailed guidelines, but here are the key requirements for recreational boats:

Powerboats

• Under 39.4 feet (12 meters):
  • Sidelights (red and green, 1 nm visibility)
  • All-round white light (combining masthead and sternlight, 2 nm visibility) or separate masthead (225°, 2 nm) and sternlight (135°, 2 nm)
  • Masthead light must be at least 39 inches above sidelights
• 39.4–65.7 feet (12–20 meters):
  • Sidelights (2 nm visibility)
  • Separate masthead light (225°, 3 nm) and sternlight (135°, 2 nm)
  • Masthead light at least 8 feet above the gunnel
• Over 65.7 feet (20 meters):
  • Same as above, but masthead light must be visible for 5 nm
  • Must carry a copy of navigation rules on board

Sailboats Under Sail

• Under 23 feet (7 meters): May use a flashlight or lantern to show a white light in time to avoid collisions, but sidelights and sternlight are preferred.
• Under 65.7 feet (20 meters): Sidelights (2 nm) and sternlight (2 nm), or a tricolor light (combining sidelights and sternlight, 2 nm).
• Under Power: Considered a powerboat, requiring a masthead light and, during the day, a black steaming cone (apex down).

Oar-Driven or Paddled Vessels (Kayaks, Canoes, Rowboats)

• May use a flashlight or lantern, but a portable bi-color light (red/green) is recommended for better visibility.

Vessels at Anchor

• Outside designated anchorages, display an all-round white light (2 nm visibility) at night.
• During the day, display a black anchor ball.

Visibility Requirements

Local Regulations

Always check local maritime regulations, as some areas (e.g., inland vs. international waters) may have additional requirements. For example, the Great Lakes allow powerboats to use an all-round white light instead of separate masthead and stern lights.

Choosing the Right Navigation Lights

Selecting appropriate navigation lights depends on your boat’s size, type, and intended use. Here are key considerations:

• Compliance: Ensure lights meet USCG or local standards for color, intensity, and visibility range.
• Durability: Opt for LED lights, which are more energy-efficient, longer-lasting, and resistant to vibration compared to incandescent bulbs.
• Placement: Position lights to meet visibility arc requirements and avoid obstruction by boat structures.
• Portability: For small vessels like kayaks, portable bi-color or all-round lights are practical and affordable.

Example Products and Specifications

Prices are approximate and based on typical retail values.

Safety Tips for Using Navigation Lights

Proper use and maintenance of navigation lights are critical for safe boating. Follow these tips:

1. Pre-Departure Checks:
   • Test all lights before leaving the dock.
   • Ensure spare bulbs or backup lights (e.g., a flashlight) are on board.
2. Turn Lights On:
   • Activate navigation lights from sunset to sunrise, even if it’s not fully dark.
   • Use lights during fog, rain, or other low-visibility conditions.
3. Avoid Interference:
   • Turn off non-navigation lights (e.g., spotlights, cabin lights) that could obscure or mimic navigation lights.
4. Regular Maintenance:
   • Inspect lights for corrosion, loose connections, or damage, especially in saltwater environments.
   • Replace damaged lights with USCG-approved models.
5. Know Your Boat:
   • Consult your boat’s manual for specific lighting requirements and placement.
   • Account for bow-up angles when underway, which may affect light visibility.
6. Understand Right-of-Way:
   • Use light patterns to determine which vessel has the right-of-way in crossing situations (e.g., a red light indicates you may need to yield).
7. Stay Informed:
   • Study local and international navigation rules to ensure compliance.
   • Take a boating safety course to deepen your understanding.

Common Installation Mistakes

Improper installation can reduce the effectiveness of navigation lights or violate regulations. Avoid these pitfalls:

• Incorrect Placement: Mounting sidelights too low or obstructed by railings reduces visibility.
• Wrong Visibility Arcs: Misaligned lights may not cover the required 112.5° or 225° arcs.
• Non-Compliant Lights: Using lights that don’t meet USCG visibility or intensity standards.
• Poor Wiring: Loose or corroded connections can cause lights to fail at critical moments.
• Overloading with Other Lights: Bright deck or cabin lights can mask navigation lights.

To avoid these issues, consult a professional or refer to your boat’s manual when installing or upgrading lights.

Navigation Lights for Specific Scenarios

Night Diving

Vessels engaged in night diving display three vertical masthead lights in a red-white-red sequence. Maintain a safe distance to avoid divers in the water.

Fishing Vessels

A green light over a white light indicates a fishing vessel actively trawling, often with large nets deployed. Steer clear to avoid entanglement.

Small Vessels (Kayaks, Canoes, Dinghies)

While a flashlight is permissible, a portable bi-color light is safer and more visible. These battery-powered lights are affordable and easy to mount.

Vessels at Anchor

An all-round white light is required at night, and a black anchor ball during the day, to signal that your boat is stationary.

Interpreting Navigation Lights

Understanding what you see is as important as displaying the correct lights. Here’s a quick guide to interpreting light patterns:

Practical Example: Crossing Paths at Night

Imagine you’re boating at night and see a vessel with both red and green lights visible. This indicates the vessel is heading directly toward you. According to the “Rules of the Road,” you should alter your course to starboard (right) to avoid a collision, as both vessels are responsible for taking action in a head-on situation. If you see only a green light, the other vessel is crossing from your left to right, and you may have the right-of-way, but always proceed with caution.

Maintaining and Replacing Navigation Lights

Regular maintenance ensures your lights remain functional:

• Inspect Regularly: Check for corrosion, cracked lenses, or dim bulbs.
• Upgrade to LEDs: LED lights are more reliable and consume less power.
• Carry Spares: Keep spare bulbs, fuses, and a flashlight on board.
• Professional Installation: For complex setups or larger vessels, hire a marine electrician to ensure compliance.

When replacing damaged lights, choose USCG-approved models. For example, pole lights are common on smaller boats but can be damaged if used as handles. Opt for sturdy mounts or consider flush-mounted LED lights for durability.

Conclusion

Boat navigation lights are more than just a legal requirement—they’re a lifeline for safe boating at night or in low-visibility conditions. By understanding the types of lights, their purposes, and how to interpret them, you can navigate confidently and avoid collisions. Whether you’re operating a small kayak or a large yacht, ensuring your lights meet regulatory standards and are properly maintained is essential. Invest in quality equipment, conduct regular checks, and stay informed about local regulations to make every boating trip safe and enjoyable.

For more boating safety tips or to find the right navigation lights for your vessel, visit retailers like West Marine or consult your local maritime authority. Stay safe and boat wisely!

Happy Boating!
